Ground Solar Mounting Structure and Racking System

Ground mount pv systems,high preassembly ,strength structure and various design and easy to install , ground mount racking will be the best chooice for your solar panel mount and rack systems.


  • Warranty10years, 25years service life
  • PaymentT/T , Paypal,Escrow,West Union
  • Lead time10 workdays
  • CertificateGB50009,DIN 1055
  • Wind Load45m/s
  • SlopeCustomized
  • MaterialAluminium alloy
  • TypeGround

Ground Solar Mount & Rack Systems Solutions and Hardware.

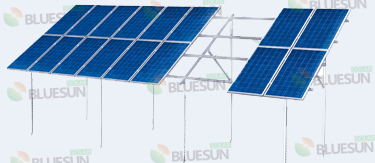

ground mounted pv systems

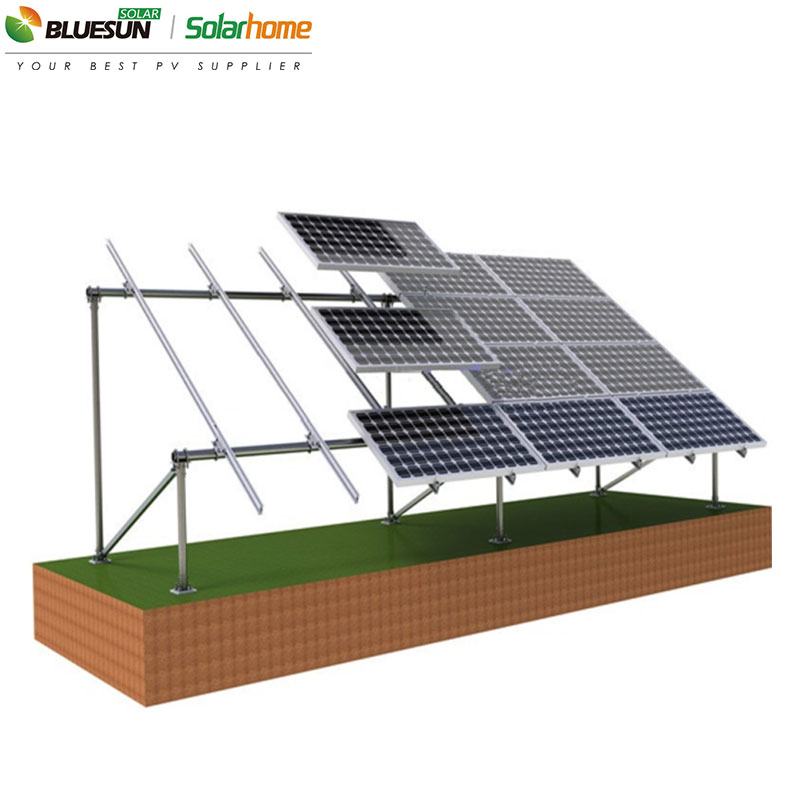

GROUND SOLAR PANEL BRACKET

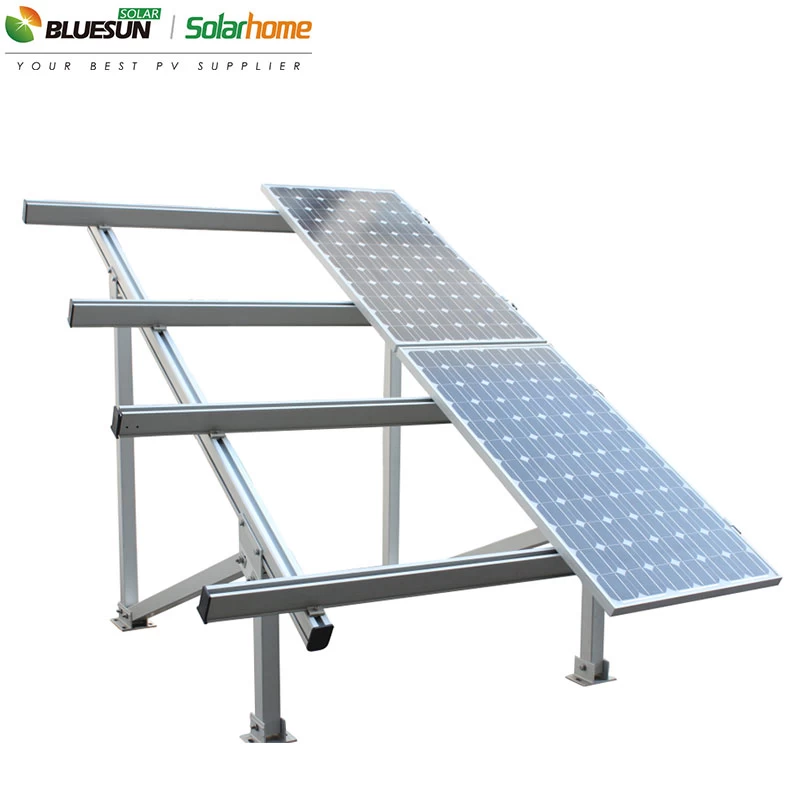

ground mount racking ground mount solar array

GROUND SOLAR BRACKET SPECIFICATIONS

▶ Installation site                               Flat roof.

▶ Installation angle                           5°,10°

▶Wind speed                                        <45m/s.

▶Snow load                                           <1.2KN/m2.

▶Build height                                       <20m.

▶Material                                                 AI 6063-T5 & SUS304.

▶Surface treatment                         HDG.

▶Refer to standard                          GB50009,DIN1055.

▶Warranty                                             15-year warranty , 25-year service life.

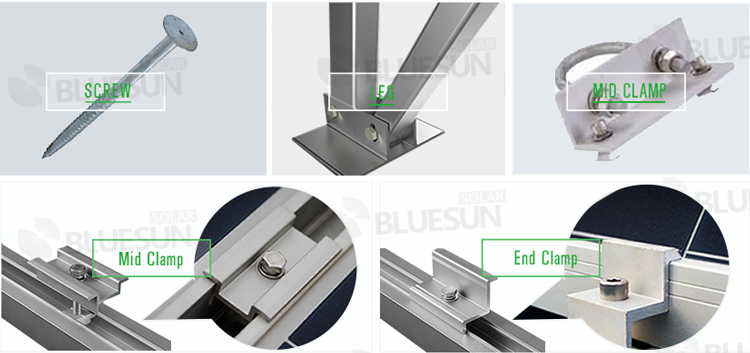

GROUND SOLAR RACKING SYSTEM HARDWARES

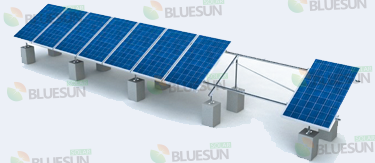

solar pv ground mounting systems

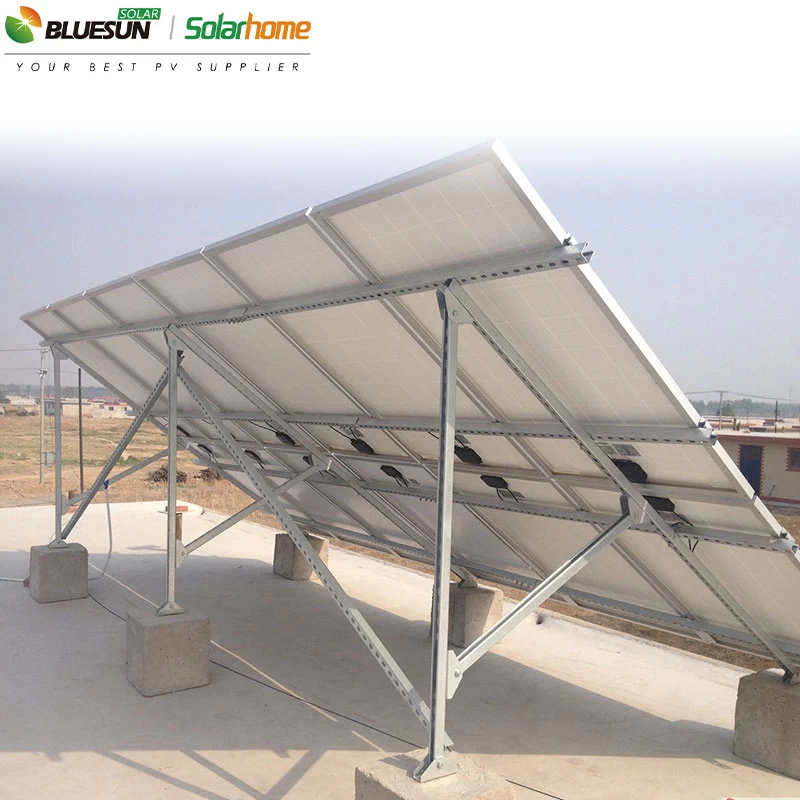

▶  Ground Solar Panel support frame System with Q235B steel bracket as main body material,HDG surface treatment, service life is more than 25 years.

▶  Cement based implanted in the ground makes the connection is frim,embedded bolt will be set into cement based to convenient installation between Adjustable Solar Panel Mount Foot and cement based.

▶  Ground Solar Mounting Rails with features :convenient installation, low cost ,suitable for large-scale Photovoltaic Power Station Constructure.

▶  Adjustable Solar Panel Mounting System suits for all kinds of soil. We optimized the wind and snow load resistance performance, and can bear larger span and larger pressure, realize the optimal design proposal.


PACKING

Solar Mounting rails


TO HELP YOU GET THE RIGHT SYSTEM,PLEASE KINDLY OFFER THE FOLLOWING NECESSARY INFO:

1. Dimension of solar panels(length*width*thickness)?

2. Quantity of solar panels?

3. Where to install : rooftop (flat roof or pitched roof ) or ground ?

4. Tilt angle?

5. Any requirements about wind load and snow load?

6. Any minimum height requirement(distance from ground to panel)?
