Group 24 12V 24V 36V Marine Yacht Batteries with M10 post

  • High energy Density:More energy can be stored in the same space
  • Super Long Cycle life: More than 3500 times cycle life with 80%DOD
  • Easy to connection: Can be replaced directly, all case made by BCI standard.



Product Name

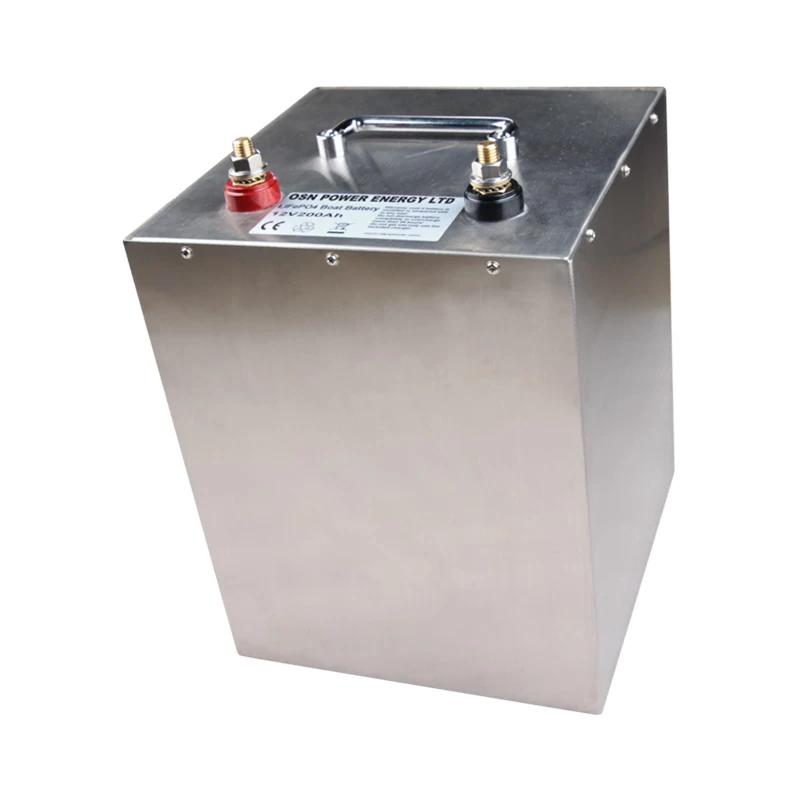

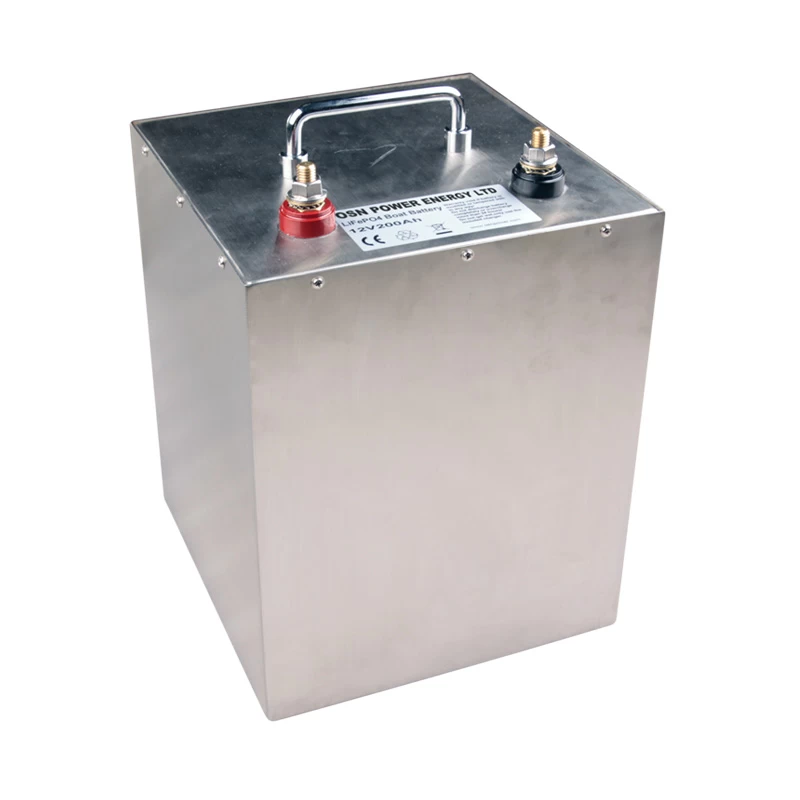

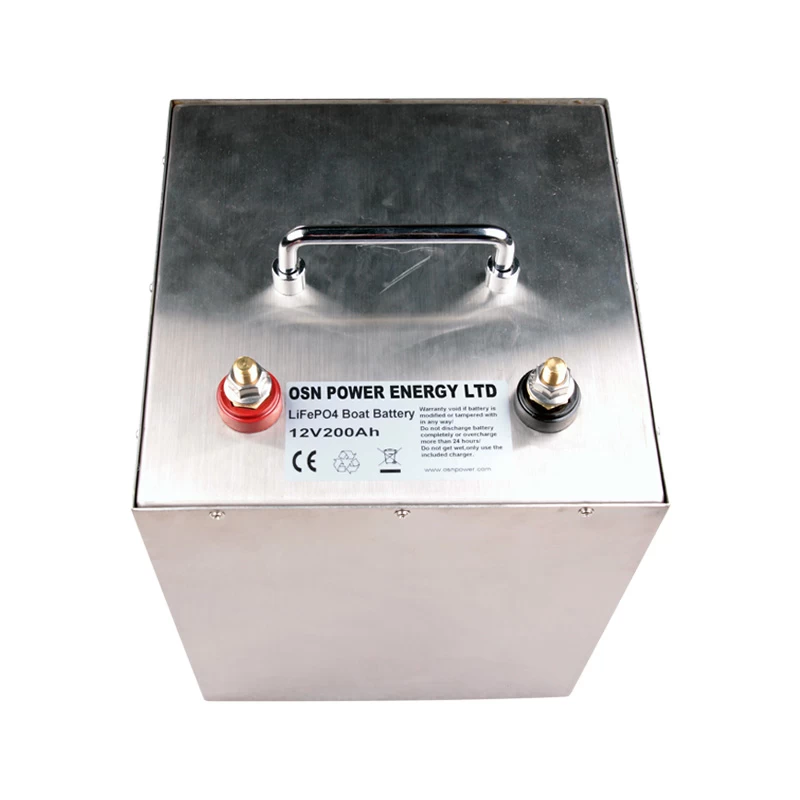

Group 24 12V 24V 36V Marine Yacht Batteries with M10 post


Highlights

  • High energy Density:More energy can be stored in the same space, which may be a good choice for small boat .
  • Super Long Cycle life: More than 3500 times cycle life with 80%DOD
  • Easy to connection: Can be replaced directly, all case made by BCI standard.
  • Waterproof: Can reach IP65
  • Super fixed: avoid the terminal loosening in the boat bumps



Specification for LiFePO4 12V 200AH Marine Battery


LITHIUM ION PHOSPHATE MARINE BATTERY

ELECTRICAL SPECIFICATIONS

TEMPERATURE SPECIFICATIONS

Nominal Voltage: 12.8 Volts

Discharge Temperature: 45-60 range C

Nominal Capacity: 200Ah

Charge Temperature: 45-60 range C

Capacity @ 25A: 480minutes(6hours)

Storage Temperature: 20-30 range C

Energy:2400Wh

BMS High Temperature Cut-Off: 85 range C

Resistance: =5mOhms @ 50%SOC

Reconnect Temperature: 75 range C

Discharge Efficiency: 99.5 %



Self Discharge: 0.04mV/h



Maximum Modules in Series: 4S







DISCHARGE SPECIFICATIONS

CHARGE SPECIFICATIONS

Maximum Continuous Discharge Current:200Amps

Recommended Current Charge:50Amps

Peak Discharge Current:400Amps

Maximum Current Charge: 150Amps

Recommended Low Voltage Disconnect:11 Volts

Recommended Charge Voltage:14.6Volts

BMS Discharge Voltage Cut-Off: 8Volts

BMS Charge Voltage Cut-Off: 15.6 Volts

Reconnect Voltage:8 Volts

Reconnect Voltage:14.6 Volts

Short Circuit Protection: Automatic load recovery

Balancing Voltage: 14.4Volts

   after short circuit/overdischarge/overcurrent protection







MECHANICAL SPECIFICATIONS



Dimensions:(L x W x H):287*233*239 mm with M10 terminal



Weight: About 20kg



Enclosure Protection: IP54





More Feature:

  • Warranty: Warranty for 3 years, can be extended to 5 years
  • Customized service: The battery pack can be customized according to the battery slot size.
  • Battery pool shell selection: custom shells according to customer preferences: plastic lead acid instead of shell, stainless steel shell, acrylic shell
  • Can be connected in series and parallel according to customer needs


Application



Related Product:


Please contact us at service@osnpower.com or +86-18575517952 for most suitable 12V battery solution for your Marine battery.
