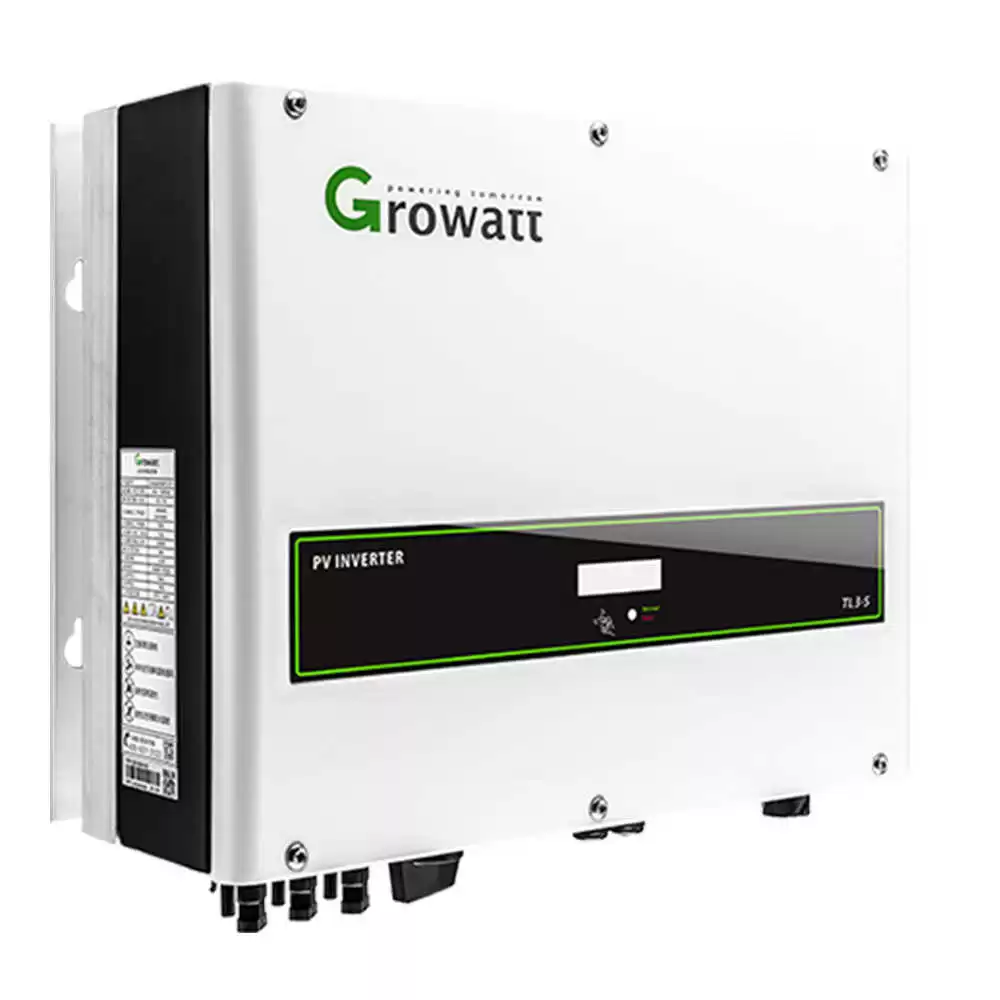

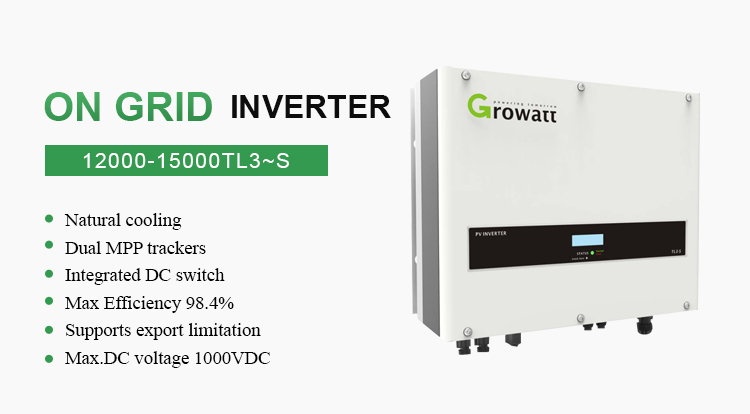

Growatt 7kw~11kw On Grid Solar Inverter
TL3-S series inverters are network-connected inverters that convert the DC current generated by photovoltaic modules into alternating current and power it to the public grid in three-phase.
|
Technical Documentation
|
|
Datasheet
|
Growatt 12000TL3-S
|
Growatt 13000TL3-S
|
Growatt 15000TL3-S
|
|
Input Data
|
|
Max. recommended PV power
(for module STC)
|
14400W
|
15600W
|
18000W
|
|
Max DC voltage
|
1000V
|
1000V
|
1000V
|
|
Start Voltage
|
160V
|
160V
|
160V
|
|
PV voltage range
|
160V - 1000V
|
160V - 1000V
|
160V - 1000V
|
|
Nominal voltage
|
600V
|
600V
|
600V
|
|
MPP voltage range at Full Power
|
480V - 850V
|
480V - 850V
|
480V - 850V
|
|
Max. input current
|
20A/10A
|
20A/10A
|
20A/10A
|
|
Number of independent MPP trackers/
strings per MPP tracker
|
2/2+1
|
2/2+1
|
2/2+1
|
|
Output (AC)
|
|
Rated AC output power
|
12kW
|
13kW
|
15kW
|
|
Max. AC apparent power
|
13.2kVA
|
14.3kVA
|
16.5kVA
|
|
Max. output current
|
19A
|
20.6A
|
23.8A
|
|
AC nominal voltage
|
230V/400V
|
230V/400V
|
230V/400V
|
|
AC grid frequency
|
50Hz/60Hz
|
50Hz/60Hz
|
50Hz/60Hz
|
|
Adjustable power factor
|
0.8 leading -0.8lag ing
|
0.8 leading -0.8lag ing
|
0.8 leading -0.8lag ing
|
|
THDi
|
<3%
|
<3%
|
<3%
|
|
AC connection type
|
3W+N+PE
|
3W+N+PE
|
3W+N+PE
|
|
Efficiency
|
|
Max.efficiency
|
98.40%
|
98.40%
|
98.40%
|
|
Euro - eta
|
97.80%
|
98%
|
98%
|
|
MPPT efficiency
|
99.50%
|
99.50%
|
99.50%
|
|
Protection Devices
|
|
DC reverse polarity protection
|
yes
|
yes
|
yes
|
|
DC switch
|
yes
|
yes
|
yes
|
|
Output AC overcurrent protection
|
yes
|
yes
|
yes
|
|
Output AC overvoltage
protection - varistor
|
yes
|
yes
|
yes
|
|
Ground fault monitoring
|
yes
|
yes
|
yes
|
|
Grid monitoring
|
yes
|
yes
|
yes
|
|
Integrated all-pole sensitive
leakage current monitoring unit
|
yes
|
yes
|
yes
|
|
General Data
|
|
Dimensions (W / H / D)
|
480/448/200 mm
|
480/448/200 mm
|
480/448/200 mm
|
|
Weight
|
23.5kg
|
23.5kg
|
23.5kg
|
|
Operating temperature range
|
-25 °C ... +60 °C
|
-25 °C ... +60 °C
|
-25 °C ... +60 °C
|
|
Noise emission (typical)
|
≤35 dB(A)
|
≤35 dB(A)
|
≤35 dB(A)
|
|
Self-Consumption (night)
|
< 0.5W
|
< 0.5W
|
< 0.5W
|
|
Topology
|
Transformerless
|
Transformerless
|
Transformerless
|
|
Cooling concept
|
Natural
|
Natural
|
Natural
|
|
Environmental Protection Rating
|
IP65
|
IP65
|
IP65
|
|
Altitude
|
3000m
|
3000m
|
3000m
|
|
Relative Humidity
|
0~100%
|
0~100%
|
0~100%
|
|
Features
|
|
DC connection
|
H4/MC4(opt
|
H4/MC4(opt
|
H4/MC4(opt
|
|
AC connection
|
Screw terminal
|
Screw terminal
|
Screw terminal
|
|
Display
|
LCD
|
LCD
|
LCD
|
|
Interfaces: RS232/R485/
RF Ethernet/WiFi
|
yes / yes /
opt / opt / opt
|
yes / yes /
opt / opt / opt
|
yes / yes /
opt / opt / opt
|
|
Warranty:5 years / 10 years
|
yes / opt
|
yes / opt
|
yes / opt
|
|
Certificates and Approvals
|
CE, IEC 62109-1/2, VDE 0126-1-1, Greece, UTE C 15-712,
VDE-AR-N4105, G83, EN50438, CEI 0-21, AS4777, IEC 61727, IEC 62116, CQC
|
