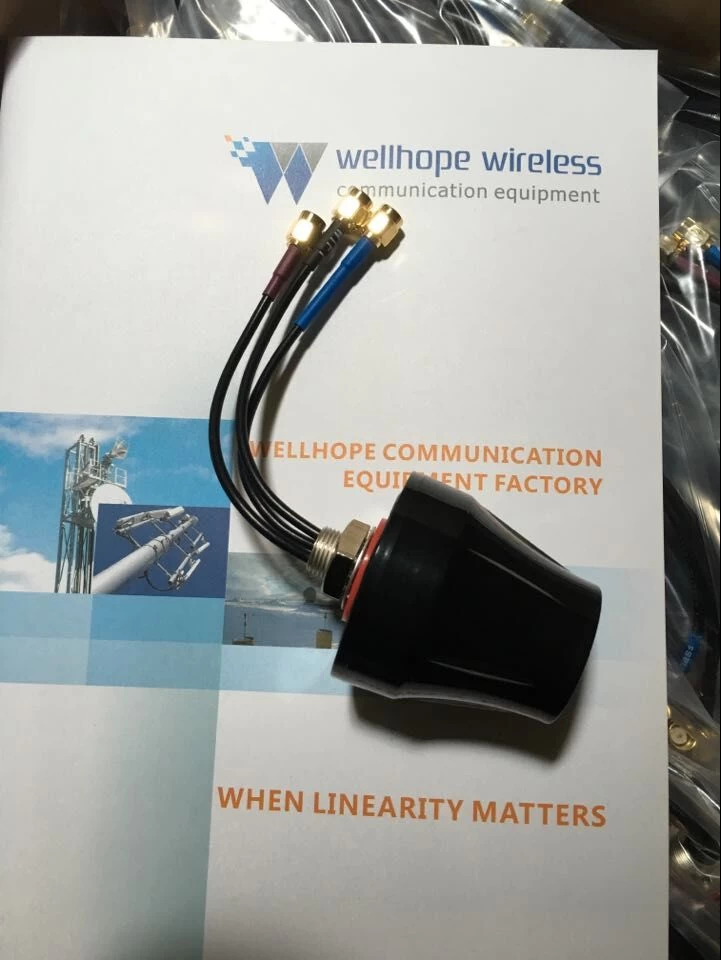

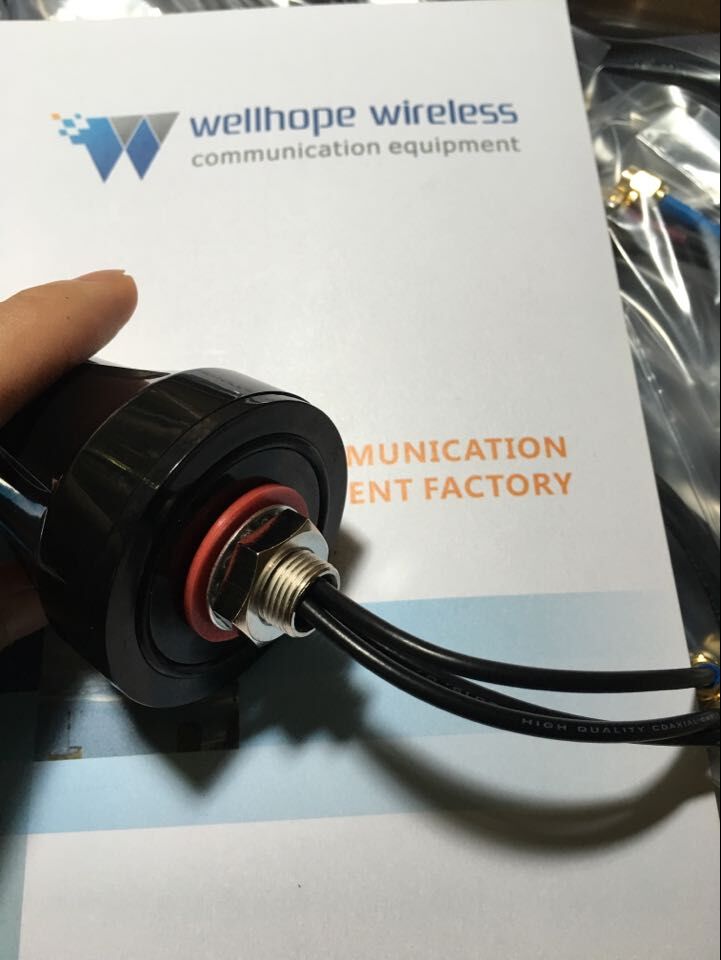

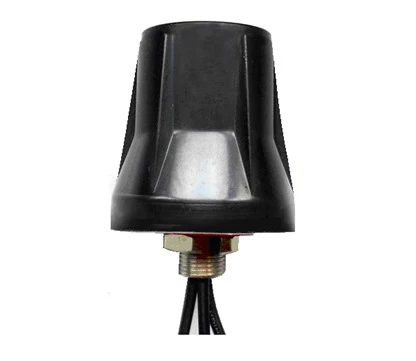

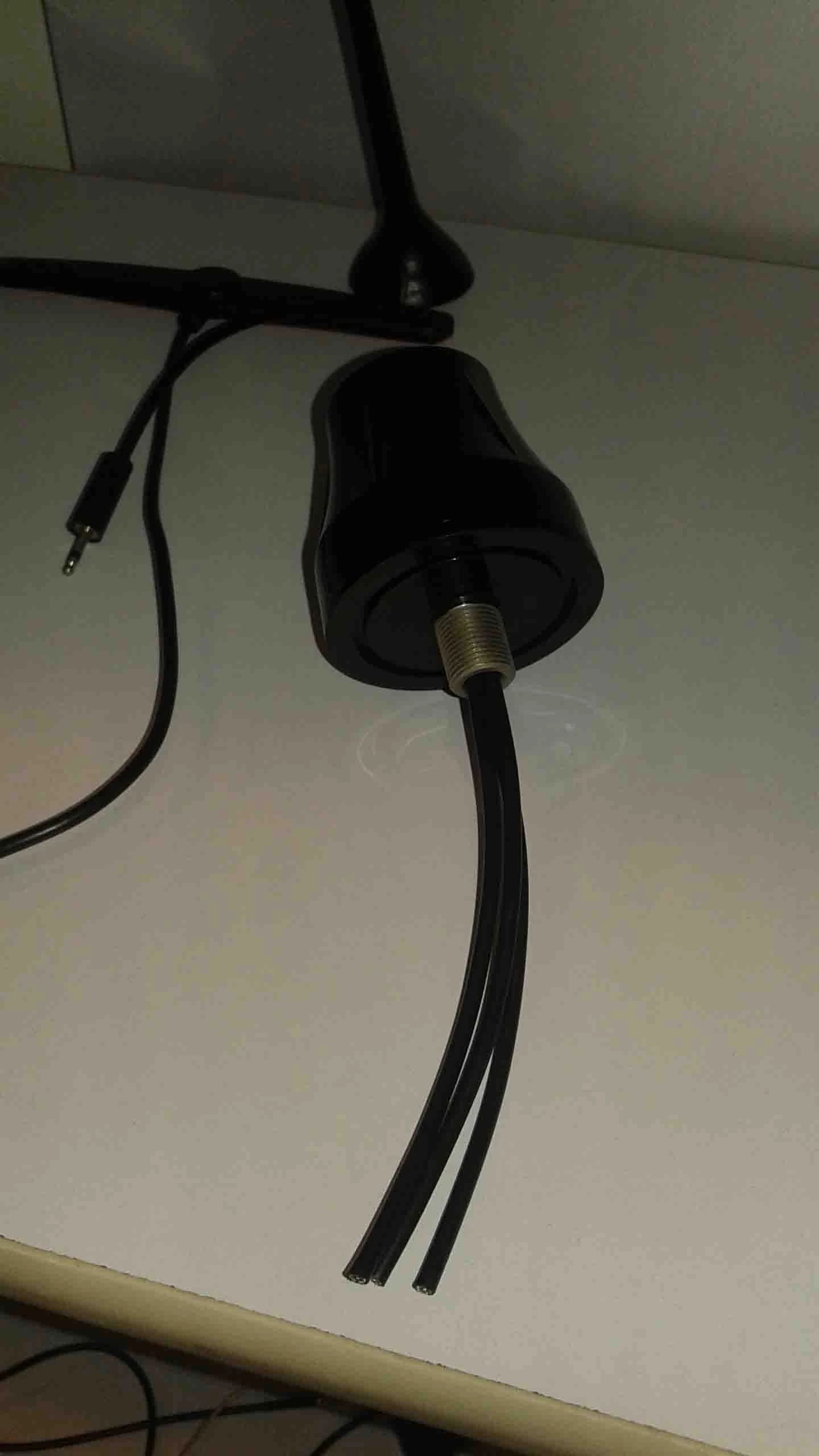

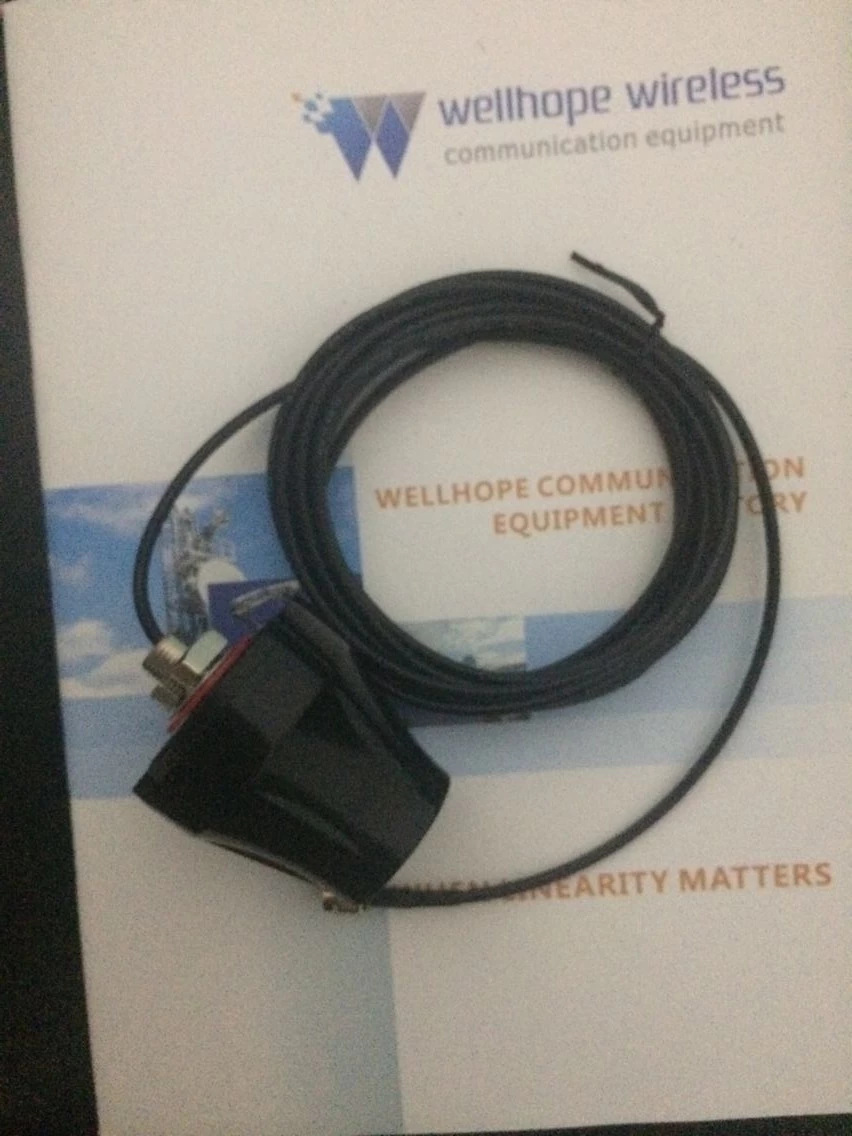

GSM GPS wifi unit for Tracking&Tracing applications antenna

GPS/GSM/WIFI
SMA
Φ50×48(mm) Gnss GPS repeater GPS Modules & chip sets GPS Mouse Receiver GPS Support



GPS part
Frequency;1575.42 MHz±3 MHz
Bandwidth;±5 MHz
VSWR;≤1.5
Gain;3dBi
Polarization Type;RHCP
Input Impedance;50Ω
LNA Gain;25±3 dB
Noise Figure;1.5 dB
Filter Out Band Attenuation;12dB Min f0+50MHz
16dB Min f0-50MHz
DC Voltage;3~5 V
DC Current;8~15 mA
GSM part
Frequency;824-849/1710-1990&850-960/1710-2200Mhz
Gain(Zenith);2±1dB@900MHz or 1±1dB@1800MHz
V.S.W.R;2.0:1
WIFI part
Frequency(MHz);2400~2500 MHz
V.S.W.R(5m);≤2.5︰1
Gain(Zenith);3 dB
Impedance;50 Ω
