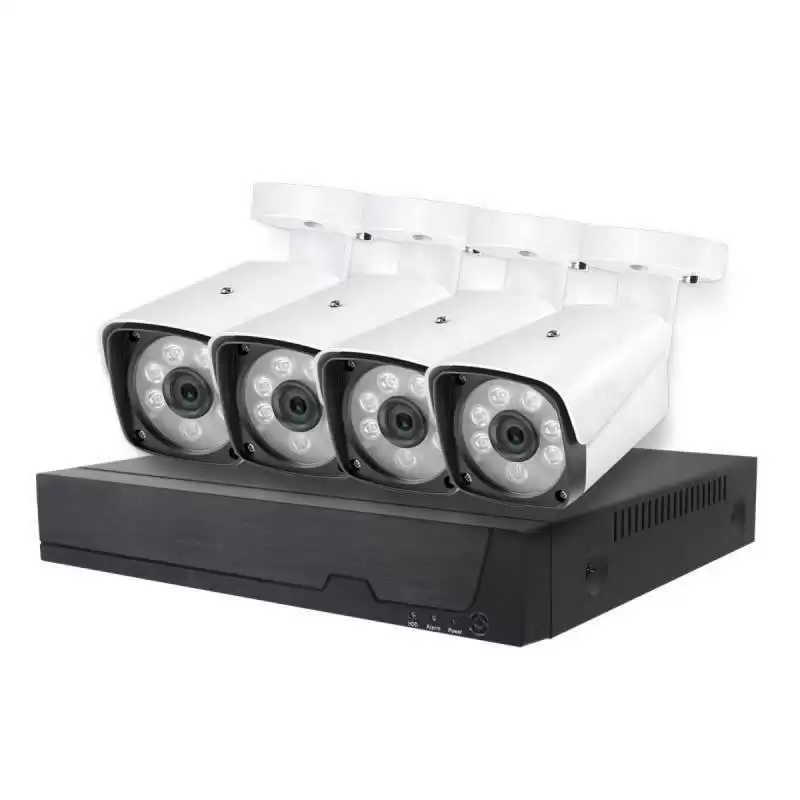

Product Name:H.265 3MP 4CH POE NVR Security System With Alarm Outdoor IP Camera
Feature

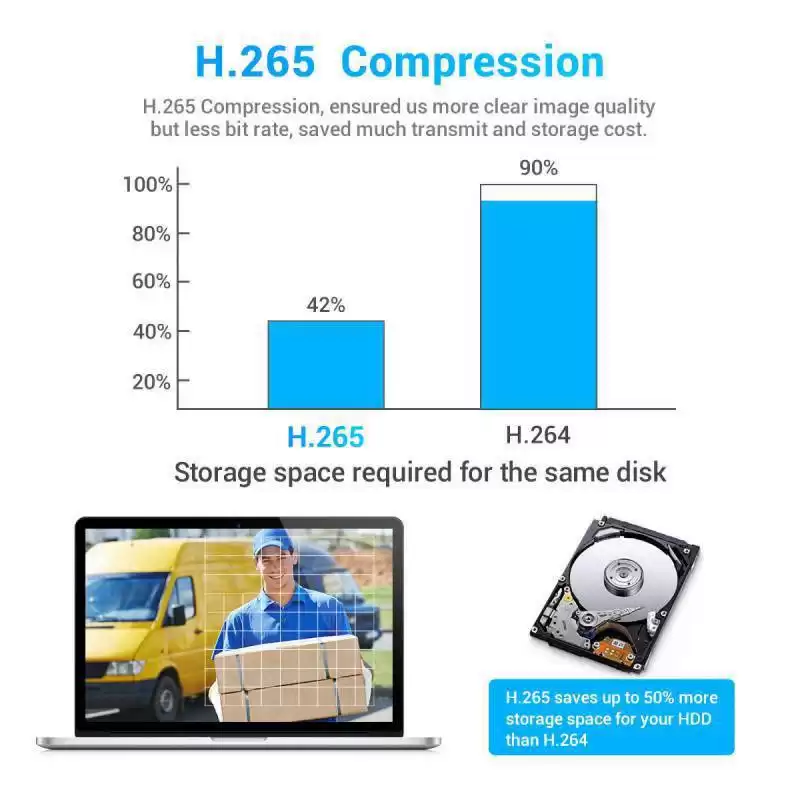

●H.265 Compression, ensured us more clear image quality but less bit rate, saved much transmit and storage cost.H.265 saves up to 50% more storage space for your HDD than H.264.

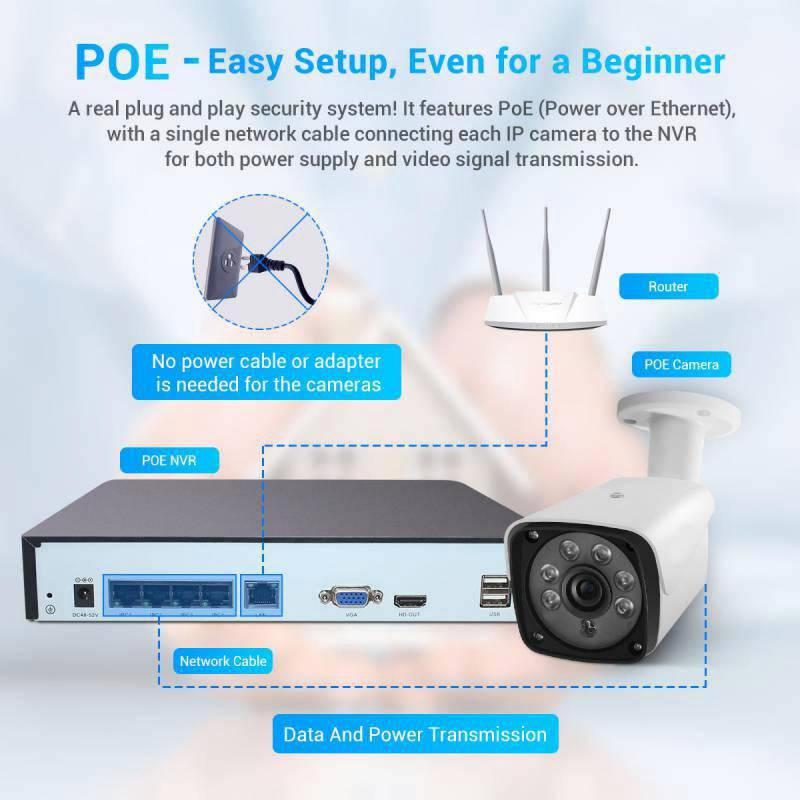

●4CH POE NVR,A real plug and play security system! It features POE, with a single network cable connecting each IP camera to the NVR for both power supply and video signal transmission.

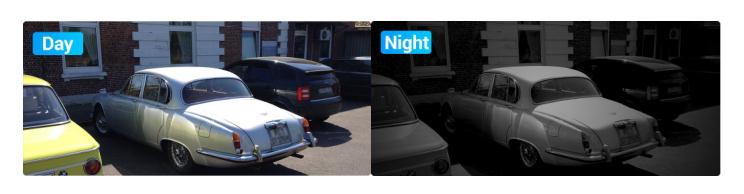

●HD 3.0MP Security System,Day/Night HD 3MP Resolution.
●Motion Detection,Mobile app controlled, while detect the moving object, the alarm message will be sent to the smart phone.
●Video Playback-Recall Events and Moments.
The playback feature allows you to know the whole events:
*Replay significant evidence or funny video records.
*1-channel simultaneous.
*Quick search for any event that happened at any time.
*The timer axis design under the split screen makes it convenient for you to freely go back to different days, hours,or minutes to see the events you missed.
●6TB Hard Disk,Build in a SATA port, support max to 6TB 3.5 inch hard disk.
●Local and Remote Access Anytime & Anywhere.
Specification
|
Model
|
ANSDEN YAN-PVR006
|
|
Camera Parameter
|
|
Camera
|
|
Image Sensor
|
1/2.5”CMOS
|
|
Effective Pixels
|
3MP
|
|
Lens
|
3.6mm
|
|
Angle of View
|
Horizontal: 80°, Vertical: 58°
|
|
Day/Night Mode
|
Auto Switchover
|
|
Min. Illumination
|
0.1Lux/F1.2(Color)；0.01Lux/F1.2(B/W)
|
|
IR Distance
|
15m(50 ft)
|
|
Backlight Compensation
|
Support
|
|
DWDR
|
Support
|
|
Video
|
|
Compression
|
H.265/H.264
|
|
Resolution
|
Main Stream:1920*1080（1080P）,1280*720（720P）
|
|
Sub Stream:800*448(448P),704*576(D1),640*360(360P),352*288（CIF）
|
|
Bit rate
|
64 Kbps~ 12Mbps
|
|
Frame Rate
|
25fps
|
|
Audio
|
|
Interface
|
Not support
|
|
Network
|
|
Interface
|
One 10M/100Mbps RJ45
|
|
Network Protocol
|
HTTP,TCP/IP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, P2P Network Protocol
|
|
Browser Supported
|
IE browser
|
|
OS Supported
|
PC: Windows; Smart Phone: iOS, Android
|
|
Onvif
|
Support
|
|
General
|
|
Power Supply
|
DC12V & PoE (IEEE 802.3at)
|
|
Power Consumption
|
<6W
|
|
Working Environment
|
-30℃~+55℃(14°F~131°F), 10%~90%
|
|
Ingress Protection
|
IP66
|
|
Dimensions
|
175*67*65mm
|
|
Weight
|
0.25KG
|
|

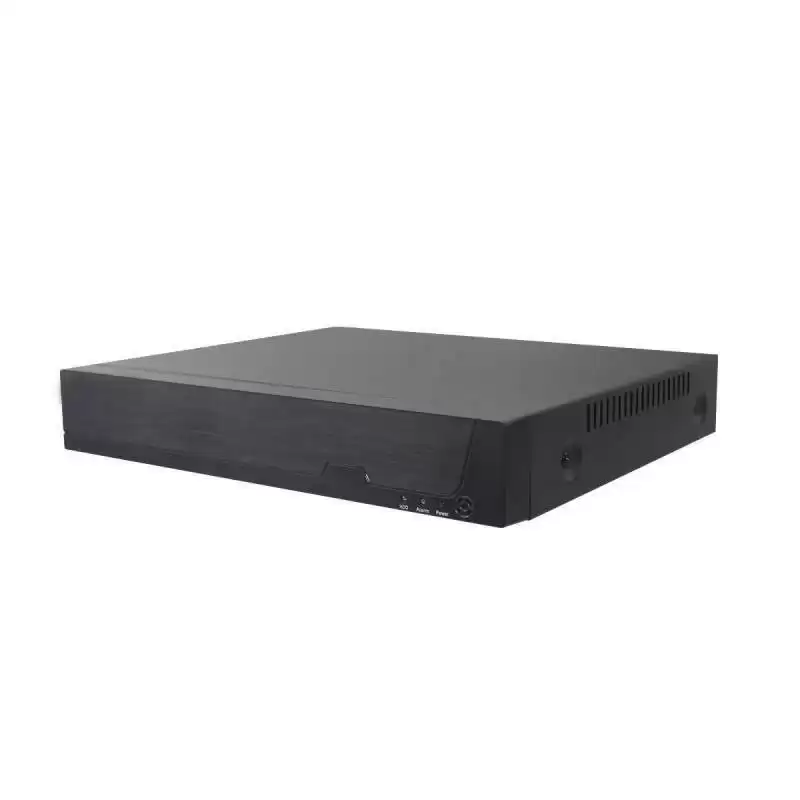

NVR Parameter
|
|
Syetem
|
|
GUI
|
16-Bit menu interface
|
|
Operating System
|
Embedded Linux OS
|
|
A/V Input
|
|
Video Input
|
4 x PoE IP Camera
|
|
Audio Input
|
Not support
|
|
A/V Output
|
|
VGA Output
|
1024*768,1366*768,1280*1024,1920*1080 (1080P)
|
|
HDMI Output
|
1024*768,1366*768,1280*1024,1920*1080 (1080P)
|
|
Audio Output
|
Not support
|
|
Playback Resolution
|
1080P/720P
|
|
Synchronous Playback
|
1 Channel
|
|
HDD
|
|
Interface Type
|
1 SATA Interface
|
|
Maximum Capacity
|
6TB
|
|
External Interface
|
|
USB Connector
|
2 x USB 2.0
|
|
Network Interface
|
One 10M/100M Ethernet RJ45 port, Four Network POE Ports for IP Cameras
|
|
Network
|
|
Network Protocol
|
HTTP,TCP/IP, SMTP, NTP, DHCP, DNS, DDNS, P2P Network Protocol
|
|
Mobile Device
|
iPhone, Android Smartphones
|
|
Remote Software
|
App, PC Client (Windows)
|
|
Onvif
|
Support
|
|
General
|
|
Power Supply
|
Input 110~260V, 52V 1.5A
|
|
Consumption
|
<20W without PoE Cameras
|
|
Working Environment
|
-10°C~+45°C (14°F~113°F),10%~90%
|
|
Remote Software
|
App, PC Client (Windows)
|
|
Onvif
|
Support
|
|
Package information
|
|
Dimension
|
345*275*188mm
|
|
Weight
|
3.9kg
|
|
Packing List
|
4CH POE NVR*1,POE IP Camera*4,NVR Power Adapter*1,Guide*1,
15m Network Cable*4,USB Mouse*1,Screws Package*4,Waterproof Hat*4
|

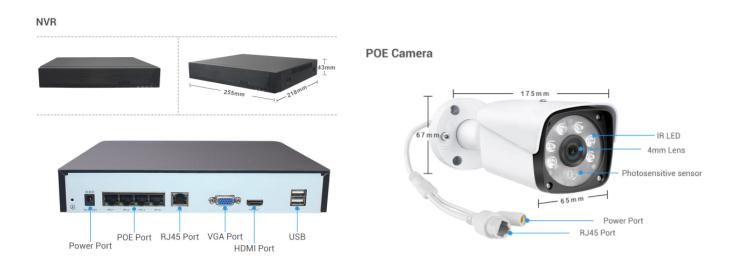

Dimension
It features POE, with a single network cable connecting each IP camera to the NVR for both power supply and video signal transmission.
Application
HD 3.0MP Security System,Day/Night HD 3MP Resolution.
