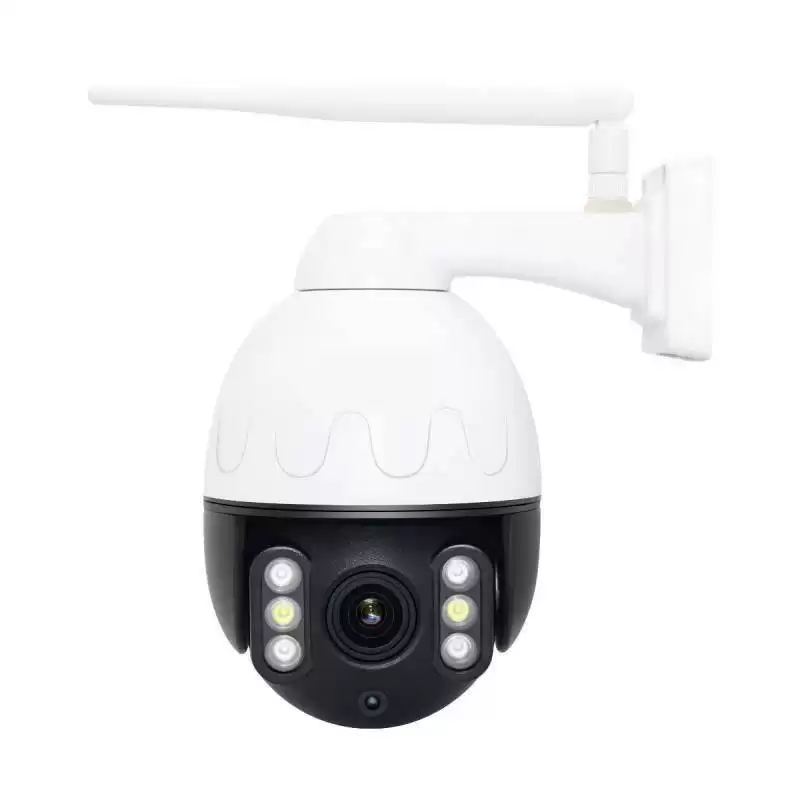

Product Name:H.265 5MP Pan/Tilt/4X Zoom WiFi Waterproof IP Smart Camera
Feature

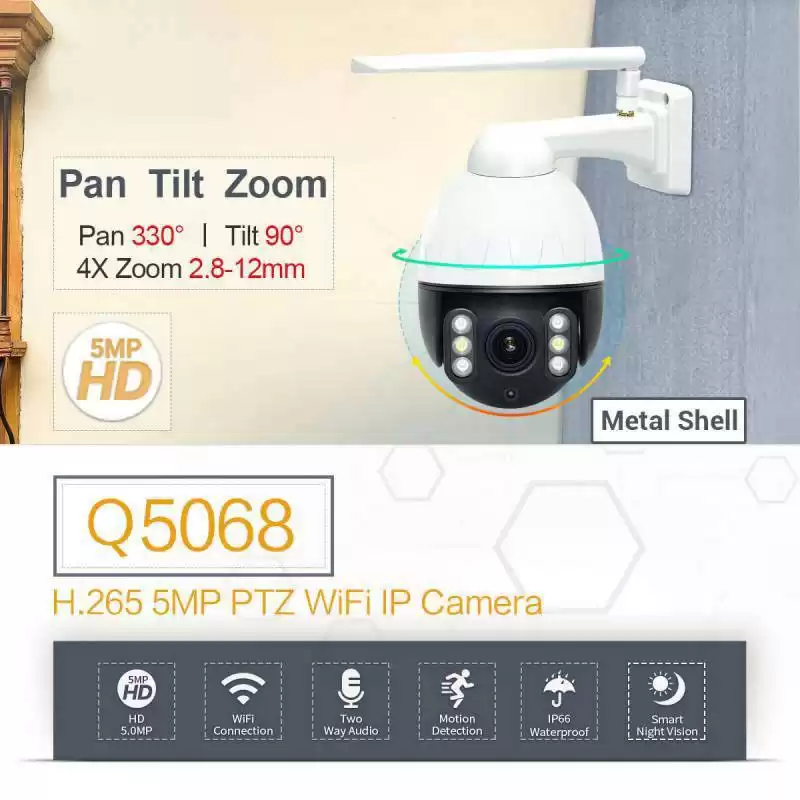

●H.265 5MP PTZ Wi-Fi IP camera，Pan 330/Tilt 90 4X Zoom 2.8-12mm.
●Ordinary,color,intelligent three night vision mode,4pcs IR LED+2pcs white LED.

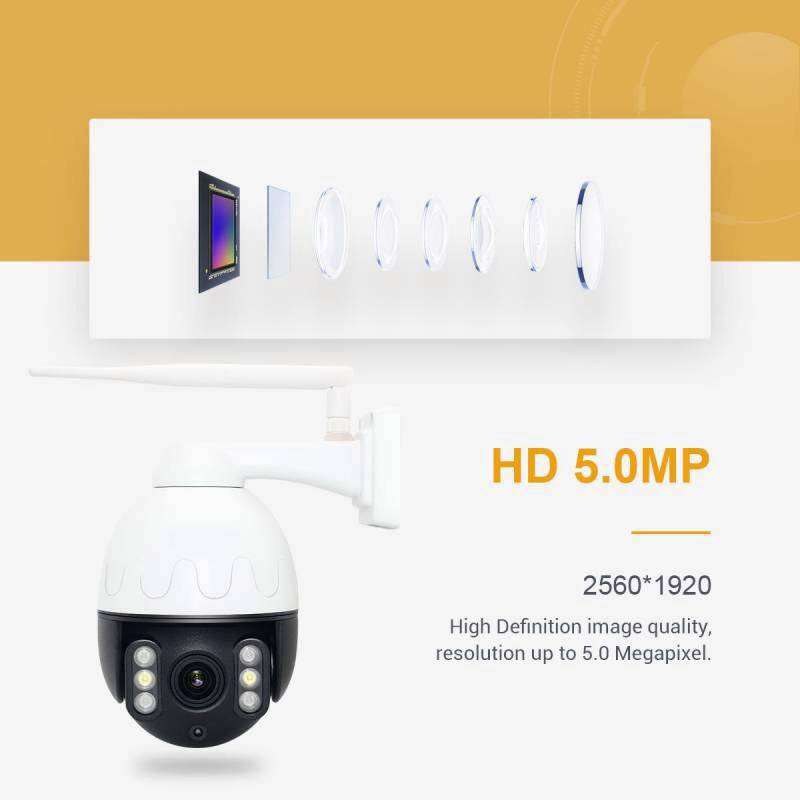

●2560*1920 High Definition image quality,resolution up to 5.0 megapixel.
●Two way audio,Build in microphone and high quality audio speaker.
●4X Zoom 2.8-12mm,This camera support 4X zoom,press Zoom in/out button to see more details.

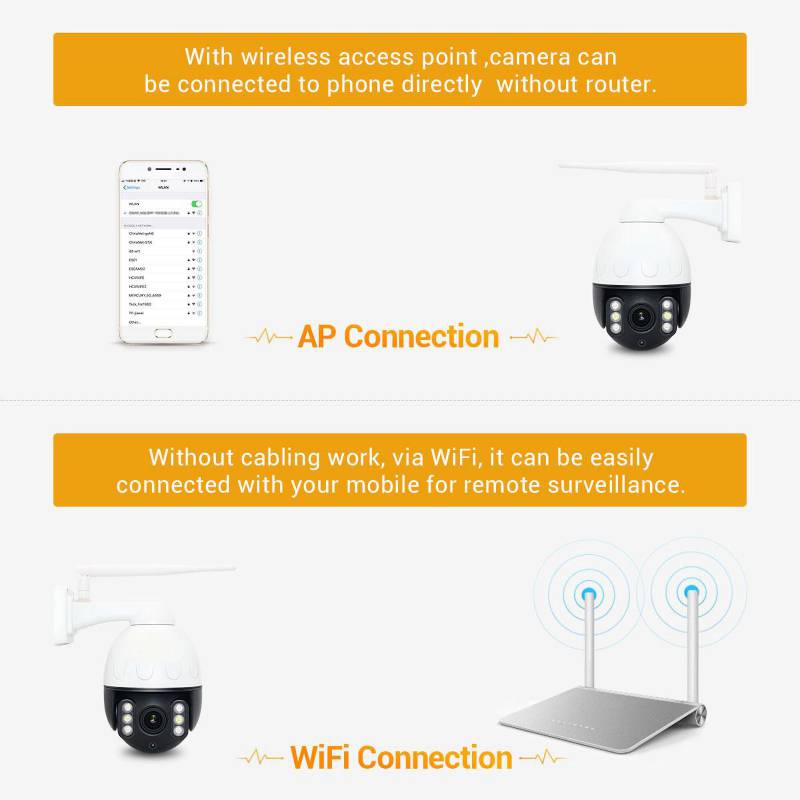

●With wireless access point,camera can be connected to phone directly without router.
●Without cabling work,via Wi-Fi,it can be easily connected with your mobile for remote surveillance.
●IP66 waterproof,suitable for indoor and outdoor use,all weather environment applications.
●Motion Detection,when motion objects detected,it will trigger alarm Email alert,app push notification.
●Privacy mark,support max to 4 privacy mark areas.

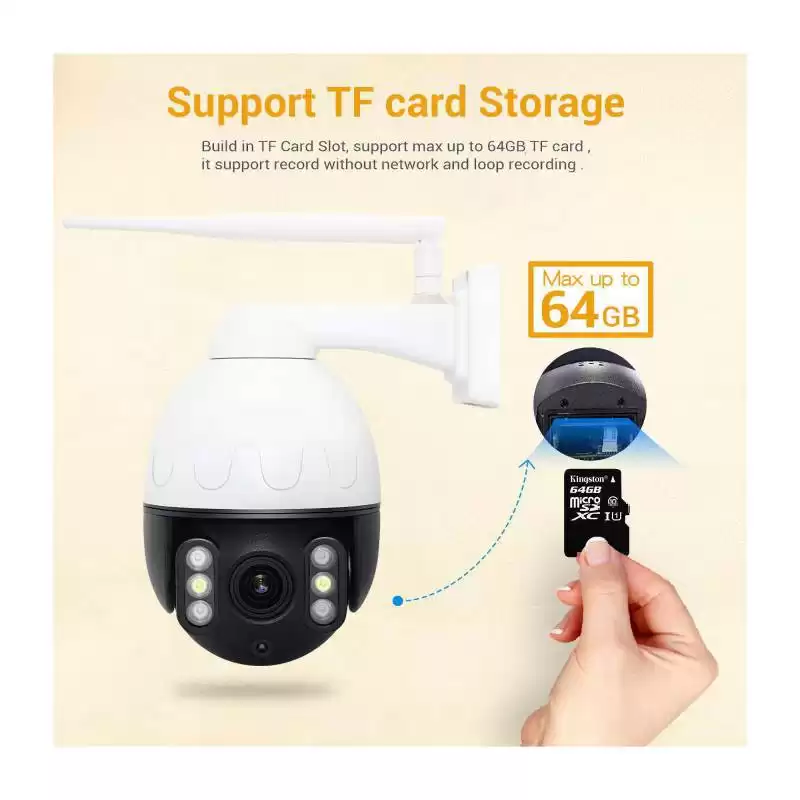

●Build in TF card slot,support max up to 64GB TF card,it support record without network and loop recording.
●Compliance with standard ONVIF protocol,compatibles with various brands NVR,fulfill the needs of rich security and surveillance applications.
●Scene application streets stations squares surveillance.
Specification
|
Model
|
ANSDEN YAC-Q5068
|
|
Camera
|
|
Sensor
|
1/2.8” 5 Megapixel progressive can CMOS
|
|
Electronic Shutter
|
Automatic/Hand movement, 1/25~1/10000s
|
|
Minimum illumination
|
Color 0.2Lux@F1.2;Night vision0.05Lux@F1.2
|
|
Focal Length
|
2.8~12mm
|
|
P\T
|
P 330° \ T 90°
|
|
Functions
|
|
Day/night switch
|
4PCS IR LED and 2PCS White LED ,IR distance 60m
|
|
White Balance
|
Auto white balance
|
|
Digital noise reduction
|
Support 3D noise reduction
|
|
Motion detection
|
Support motion detection
|
|
Privacy shelter
|
Support 4 zones
|
|
OSD
|
Support OSD setting
|
|
Automatic reboot
|
Support schedule reboot
|
|
Video
|
|
Compression
|
H.265/H.264
|
|
Resolution
|
Mainstream:5MP(2560*1920)
|
|
Sub stream:(800x600)、（640x480)
|
|
Video frame rate
|
25fps(50HZ), 25fps(60HZ)
|
|
Bitrate
|
32Kbps~6Mbps CBR/VBR adjustable
|
|
Video adjustment
|
brightness, saturation, chroma, sharpness and contrast adjustment
|
|
Audio
|
|
Input
|
Built-in microphone
|
|
Output
|
Built-in speaker
|
|
Compression
|
G.711
|
|
Network
|
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
Wireless
|
Wi-Fi 802.11b/g/n,Only support 2.4G;AP Mode
|
|
IP Type
|
Dynamic IP&Static IP
|
|
Network Protocol
|
HTTP,TCP/IP,UPNP, RTSP,SMTP,NTP,DHCP,DNS, DDNS,FTP
|
|
Access Protocol
|
Support ONVIF
|
|
Max user
|
6
|
|
Client
|
iPhone, iPad, Android，Windows PC
|
|
Storage
|
|
Micro SD card
|
Support max to 64G Micro SD card
|
|
General
|
|
Power Supply
|
DC12V2A
|
|
Power Consumption
|
2.5W(IR Led Off )/7.2W(IR Led On)
|
|
Working Environment
|
-30°C~+60°C, 10%~90%
|
|
Waterproof
|
IP66
|
|
Product Size
|
180*160*105mm
|
|
Product Weight
|
0.96kg
|
|
Package Dimension
|
195*165*135mm
|
|
Package Weight
|
1.32kg
|
|
Accessories
|
Camera*1，Power adapter*1，Waterproof hat*1，Screw bag*1, Instruction*1,Antenna*1
|

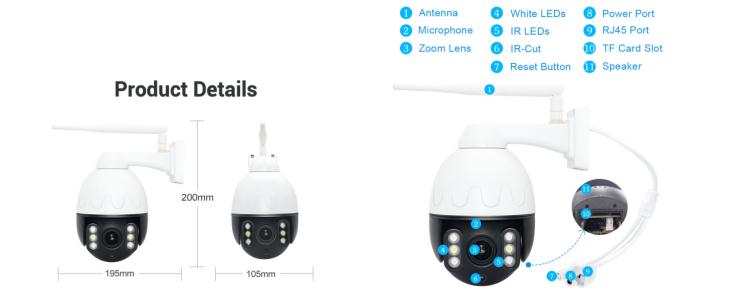

Dimension
Ordinary,color,intelligent three night vision mode,4pcs IR LED+2pcs white LED.
Application
Build in TF card slot,support max up to 64GB TF card,it support record without network and loop recording.
