Product Name:H.265 HD 1080P ONVIF POE Night Vision Waterproof PTZ Dome IP Camera
Feature
●H.265 Compression, ensured us more clear image quality but less bit rate.
●Pan 0~355° Tilt 0~90°,4X Zoom 2.8-12mm.
●3D Digital Noise Reduction ,Image noise will be significantly reduced,resulting in a clearer image.
●Max up to 15m IR Range,Can capture Ultra Clear Night Time Image.
●Motion Detection objects detected,it will trigger alarm Email alert,app push notification.
●Support max to 4 privacy mark areas.
●IP66 Waterproof suitable for indoor and outdoor use. All weather environment applications.

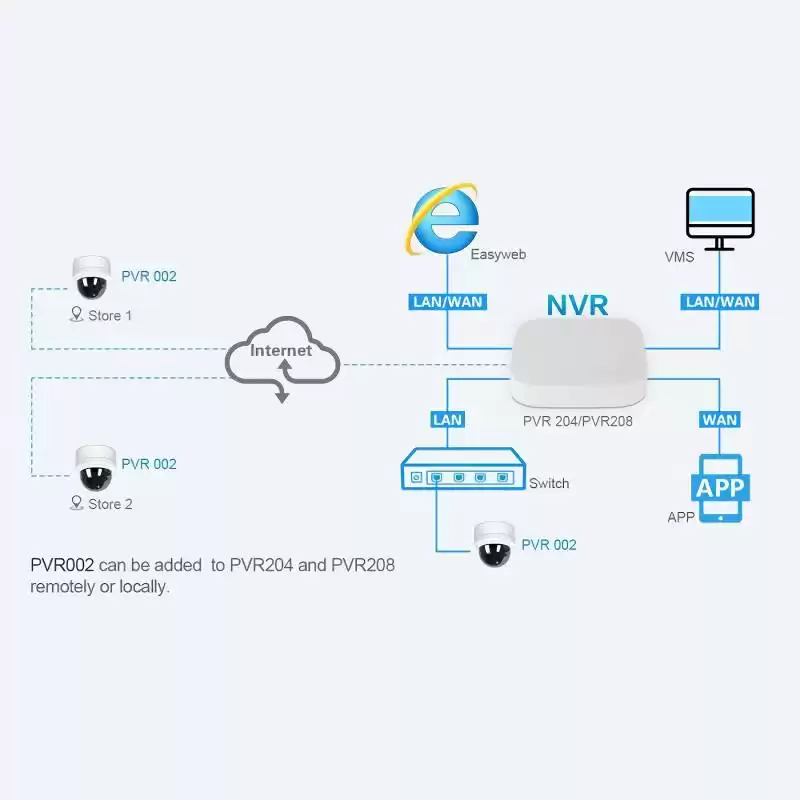

●Multi-Platform, Computers Tablets and Android/IOS Mobile.Can be added to PVR204 and PVR208 remotely or locally.
Specification
|
Model
|
ANSDEN YAC-PVR002
|
|
Camera
|
|
Sensor
|
1/2.7” 2 Megapixel progressive can CMOS
|
|
Electronic shutter
|
Automatic/Hand movement, 1/25~1/10000s
|
|
Minimum illuminance
|
Color 0.1Lux@F1.2;Night vision0.01Lux@F1.2
|
|
Focal length
|
2.8~12mm
|
|
P\T
|
P 355° \ T 90°
|
|
Functions
|
|
Day/night switch
|
IR distance 15m
|
|
White balance
|
Auto white balance
|
|
BLC
|
Support BLC
|
|
Digital noise reduction
|
Support 3D noise reduction
|
|
WDR
|
Support D-WDR
|
|
Motion detection
|
Support motion detection
|
|
Privacy shelter
|
Support 4 zones
|
|
OSD
|
Support OSD setting
|
|
Sleeper
|
Support schedule reboot
|
|
Video
|
|
Compression
|
H.264&H.265
|
|
Resolution
|
Mainstream:1080P(1920*1080)、720P(1280*720)
|
|
Substream：D1（704*576）、360P(640*360)、CIF（352*288)
|
|
Video frame rate
|
25fps(50HZ), 25fps(60HZ)；
|
|
Bitrate
|
64Kbps~12Mbps CBR/VBR adjustable
|
|
Video adjustment
|
Brightness, saturation, chroma adjustment
|
|
Network
|
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
IP Type
|
Dynamic IP&Static IP
|
|
Network Protocol
|
HTTP,TCP/IP,IPv4,UPNP, RTSP,SMTP,NTP,DHCP,DNS,PPPOE, DDNS,FTP
|
|
Access Protocol
|
Support ONVIF
|
|
Max user
|
6
|
|
Client
|
iPhone,iPad,Android,Windows PC
|
|
Audio
|
|
Audio
|
Not support
|
|
General
|
|
Power supply
|
DC12V1A
|
|
PoE function
|
PoE (IEEE802.3af/at)
|
|
Power consumption
|
6W
|
|
Working environment
|
-30°C~+60°C, 10%~90%
|
|
Waterproof
|
IP66
|
|
Product size
|
110*110*100mm
|
|
Product weight
|
0.48kg
|
|
Package dimension
|
135*135*130mm
|
|
Package weight
|
0.7kg
|
|
Accessories
|
Camera*1,Power adapter*1,Waterproof hat*1,Screw bag*1,Instruction*1,Base*1
|

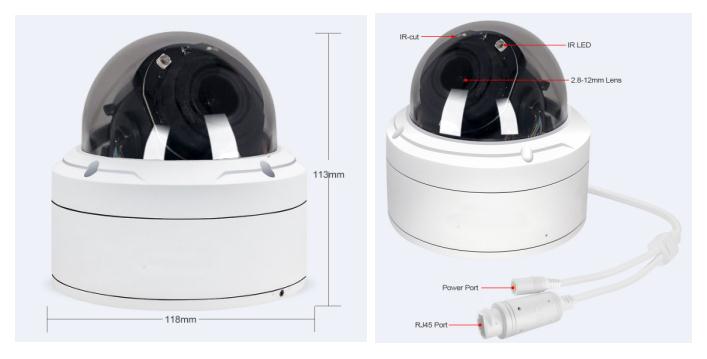

Dimension
H.265 Compression, ensured us more clear image quality but less bit rate, saved much transmit and storage cost.
Application
After enabling 3D Digital Noise Reduction,Image noise will be significantly reduced,resulting in a clearer image.
