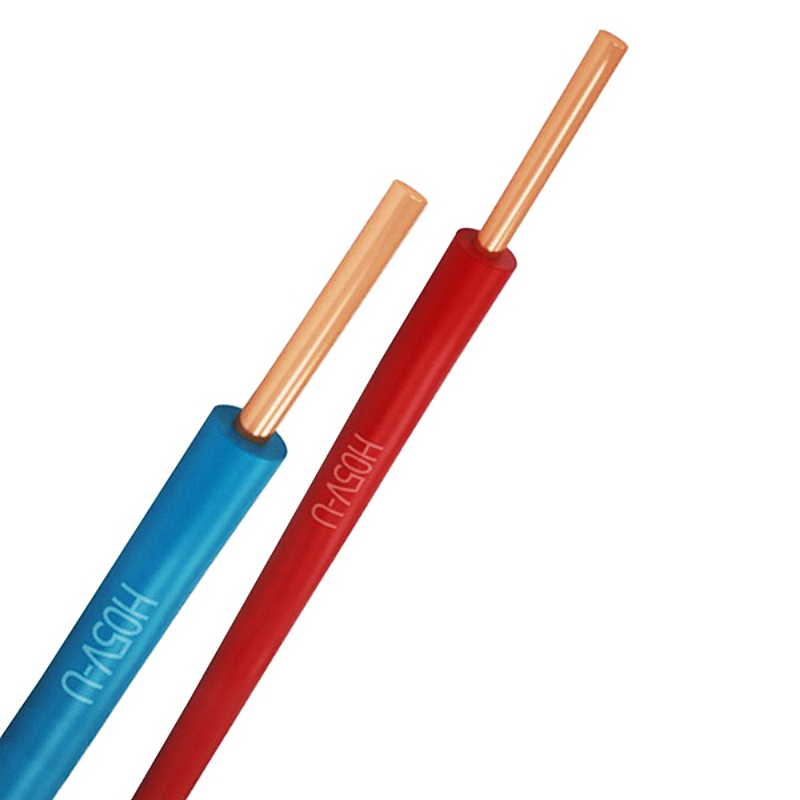

H05V-U BV Solid Copper Wire PVC Insulated Electrical Wire and Cables

H05V-U BV Solid Copper Wire PVC Insulated Electrical Wire and Cables, for protected fixed installations inside appliances and in or on lighting fittings. Further for installations in pipes on and under plaster, however, only for signal circuit and control circuit.



H05V-U BV Solid Copper Wire PVC Insulated Electrical Wire and Cables



PRODUCTS NAME

H05V-U BV Solid Copper Wire PVC Insulated Electrical Wire and Cables.

PRODUCTS KEYWORDS

H05V-U, NYA, BV, solid copper wire, pvc insulated cable, electrical wire, electric cable, wire and cables.

PRODUCTS APPLICATION

H05V-U BV Solid Copper Wire PVC Insulated Electrical Wire and Cables, are suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances.

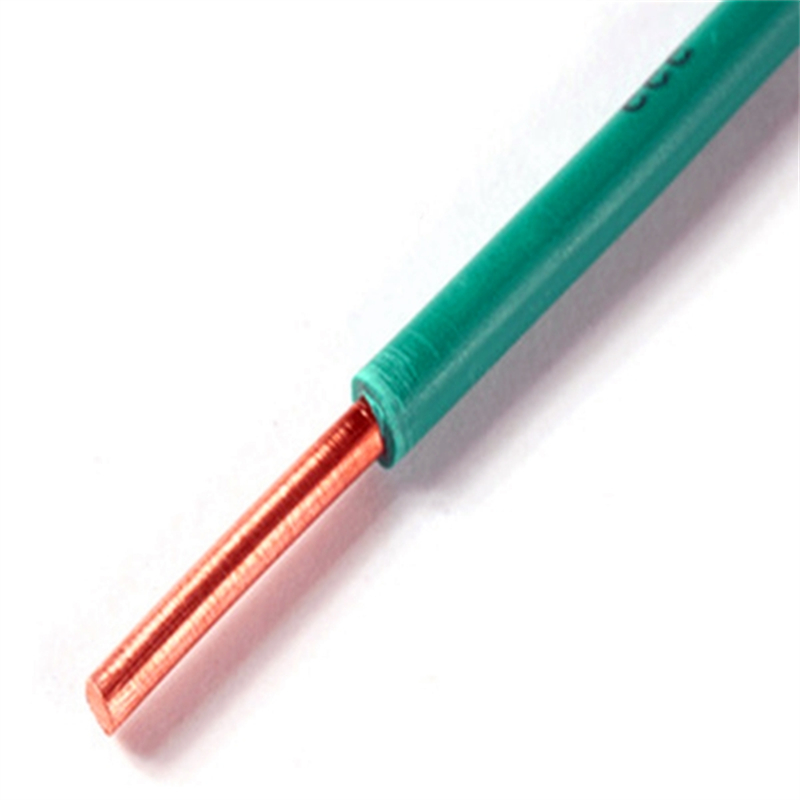

H07V-U solid copper wire and cable

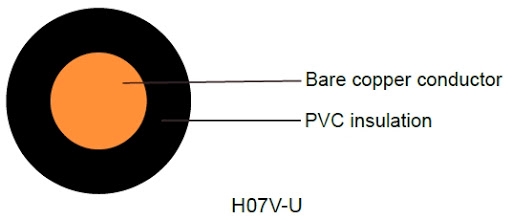

PRODUCTS STRUCTURE

H05V-U BV Solid Copper Wire PVC Insulated Electrical Wire and Cables, the structure as below:

---Conductor Material

Plain annealed copper wire, solid Class 1.

---Insulation Material

PVC (polyvinyl chloride).

---Sheath Material

Non-Sheath.

a

PRODUCTS DESCRIPTION

 Description of Cable   Products Main Technical Sheet
 Products Name

 H05V-U BV Solid Copper Wire PVC Insulated

 Electrical Wire and Cables.

 Conductor Material  Plain annealed copper wires, solid Class 1.
 Conductor Structure  1/1.13 mm.
 Insulation Material  PVC (Polyvinyl Chloride).
 Insulation Thickness  0.6 mm.

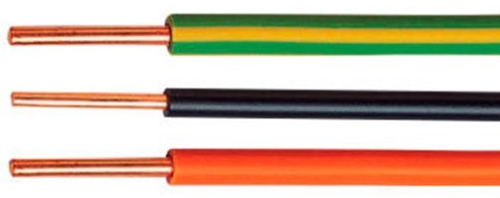

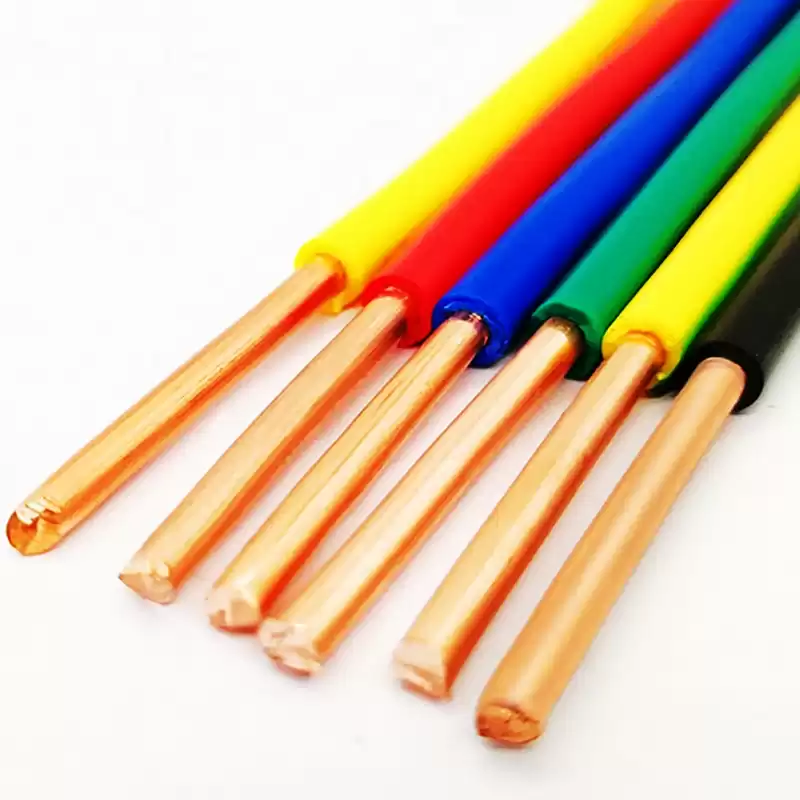

 Insulation Colour  Red, yellow, blue, green, black, grey, white, yellow/green, or others.
Sheath Material  Non-sheath.
 Conductor Cross-section  1 x 1.0 mm2.
 Core Number  Single core, 1 core, 1C.
 Out Diameter  2.8 mm.
 Voltage Rate  300/500V (U0/U).
 About Net Weight  14 kg/km.

 Max. Conductor DC

 Resistance at 20℃ in Air

 18.1 Ω/km.

 Min. Insulated

 Resistance at 70

 0.0110 MΩ.km.

 Max. Ampacity

 at 40 ℃ in air

 20A.
 Production Standard  JB/T 8734-2016, GB/T 5023-2008, IEC 60227, EN 50525-2-31.

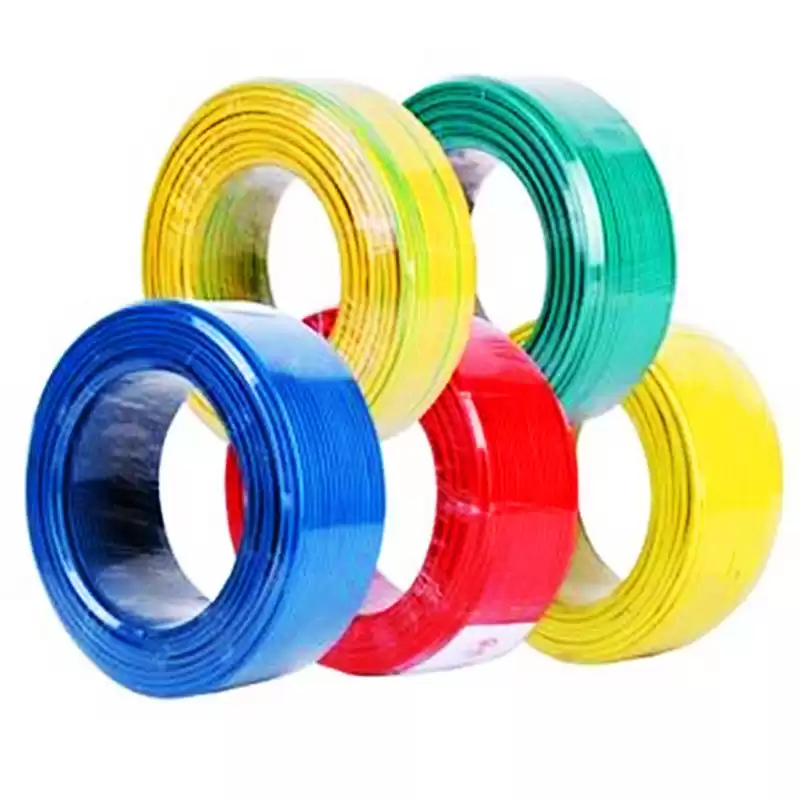

H07V-U solid roll
