H07V-K 2491X Single Core PVC Insulated Flexible Electrical Wire and Cables

H07V-K 2491X Single Core PVC Insulated Flexible Electrical Wire and Cables. H07V-K are wiring cables with thermoplastic PVC insulation for protected, stationary installation inside devices as well as inside or on lamps. They are suitable for protected, stationary use in or on lighting installation or control units/ switchgear in conjunction with voltages up to 1000V AC or 750V DC to-ground.



H07V-K 2491X Single Core PVC Insulated Flexible Electrical Wire and Cables



PRODUCTS NAME

H07V-K 2491X Single Core PVC Insulated Flexible Electrical Wire and Cables.

PRODUCTS KEYWORDS

H07V-K, 2491X, RV, stranded copper wire, pvc insulated cable, electrical wire, electric cable, wire and cables.

PRODUCTS APPLICATION

H07V-K 2491X Single Core PVC Insulated Flexible Electrical Wire and Cables, PVC panel wiring for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.

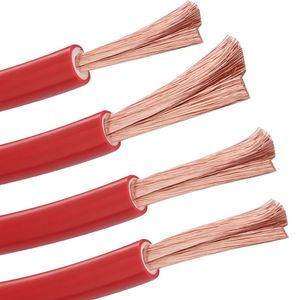

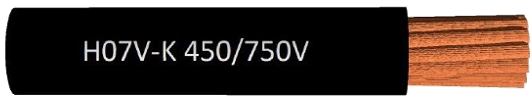

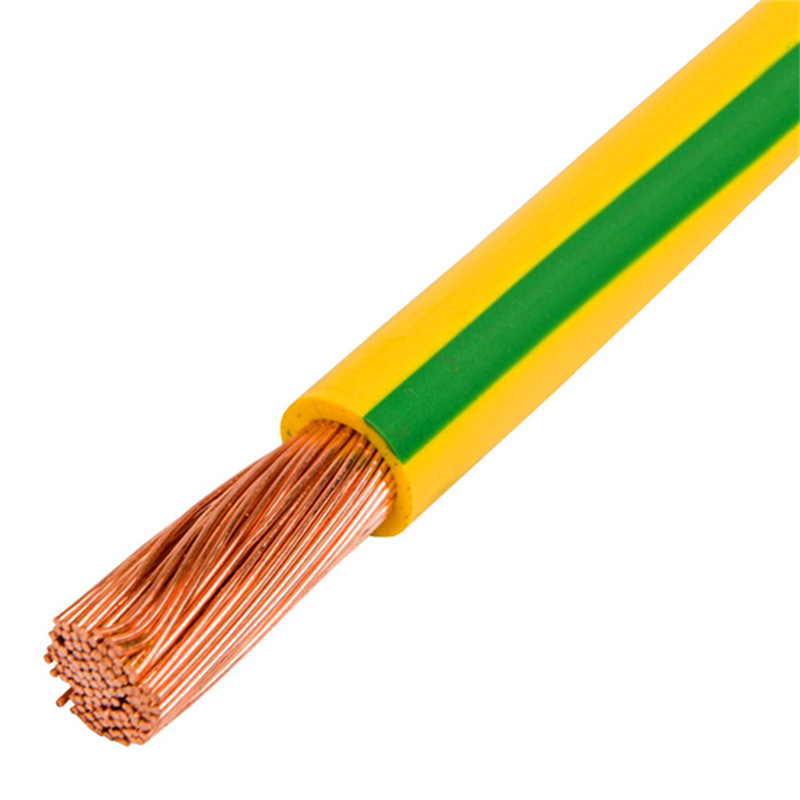

H07V-K flexible cable

PRODUCTS STRUCTURE

H07V-K 2491X Single Core PVC Insulatef Flexible Electrical Wire and Cables, the structure as below:

---Conductor Material

   Plain annealed copper wire, stranded Class 5, or Class 6.

---Insulation Material

   Flexible 85P PVC (polyvinyl chloride).

---Sheath Material

   Non-Sheath.

---Core Number



   Single core, 1C, 1 core.

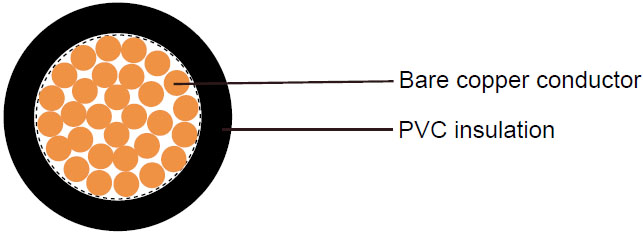

H07V-K RV cable structurer

aPRODUCTS DIMENTIONS

 Description of Cable   Products Main Technical Sheet
 Products Name

 H07V-K 2491X Single Core PVC Insulatef Flexible

 Electrical Wire and Cables.

 Conductor Material  Plain annealed copper wires, stranded Class 5, or Class 6.
 Conductor Structure  84/0.20 mm.
 Insulation Material  85P flexible PVC (Polyvinyl Chloride).
 Insulation Thickness  0.8 mm.
 Insulation Colour  Red, yellow, blue, green, black, grey, white, yellow/green, or others.
Sheath Material  Non-sheath.
 Conductor Cross-section  1 x 2.5 mm2.
 Core Number  Single core, 1 core, 1C.
 Out Diameter  3.6 mm.
 Voltage Rate  450/750V (U0/U).
 About Net Weight  33 kg/km.
 Production Standard  JB/T 8734-2016, GB/T 5023-2008, IEC 60227, EN 50525-2-31.

 Max. Conductor DC

 Resistance at 20℃ in Air

 7.98 Ω/km.

 Min. Insulated

 Resistance at 70

 0.009 MΩ.km.

 Max. Ampacity

 at 40 ℃ in air

 20A.

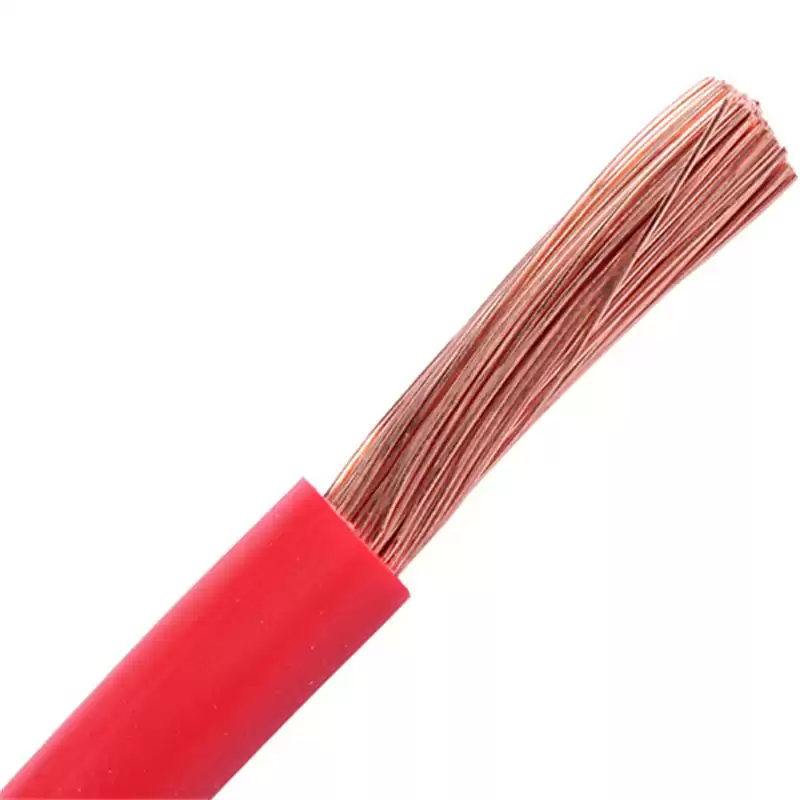

H07V-K electric cable
