H07V-R 6491X BV Stranded Copper Wire PVC Insulated Electrical Wire and Cables

H07V-R 6491X BV Stranded Copper Wire PVC Insulated Electrical Wire and Cables, these cables are indicated for executing permanent installations in housing, premises and offices, electrical control panels, as well as domestic and industrial lighting. They are easy to install thanks to their superslide insulation.



H07V-R 6491X BV Stranded Copper Wire

PVC Insulated Electrical Wire and Cables



PRODUCTS NAME

H07V-R 6491X BV Stranded Copper Wire PVC Insulated Electrical Wire and Cables.

PRODUCTS KEYWORDS

H07V-R, 6491X, NYA, BV, stranderd copper wire, pvc insulated cable, electrical wire, electric cable, wire and cables.

PRODUCTS APPLICATION

H07V-R 6491X BV Stranded Copper Wire PVC Insulated Electrical Wire and Cables, are suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances.

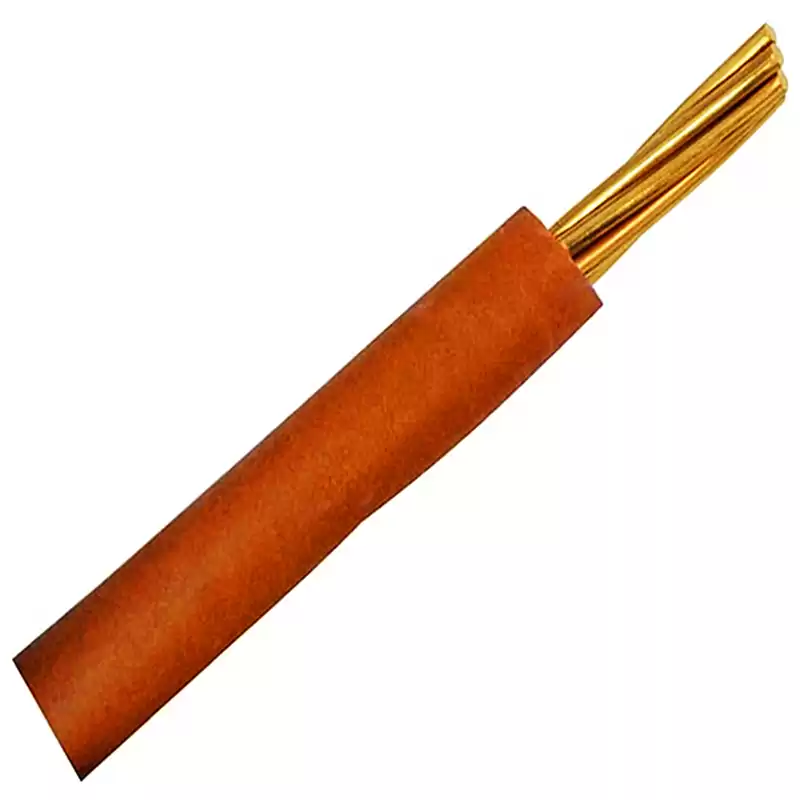

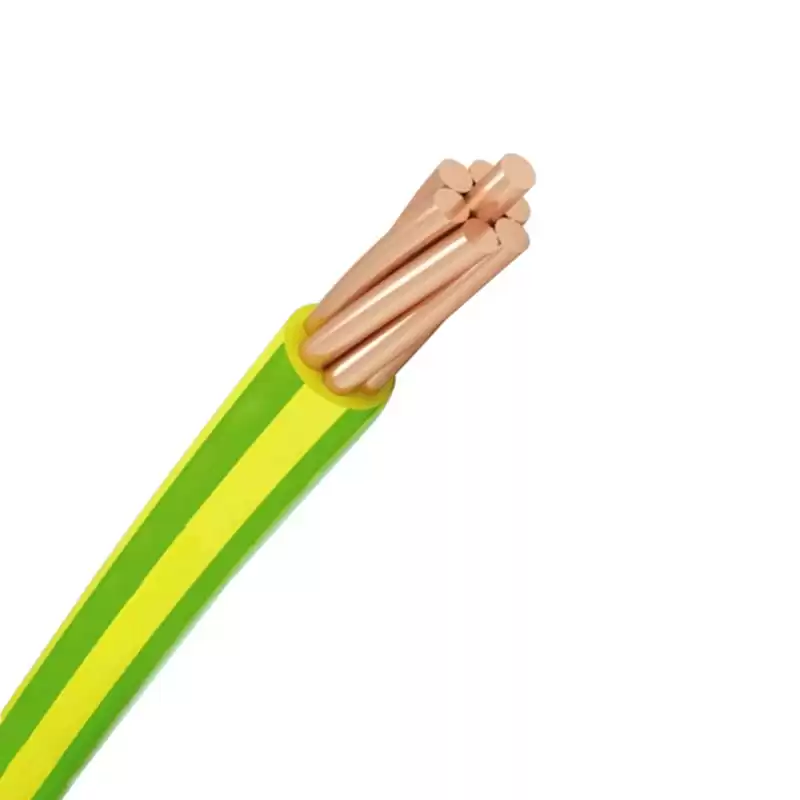

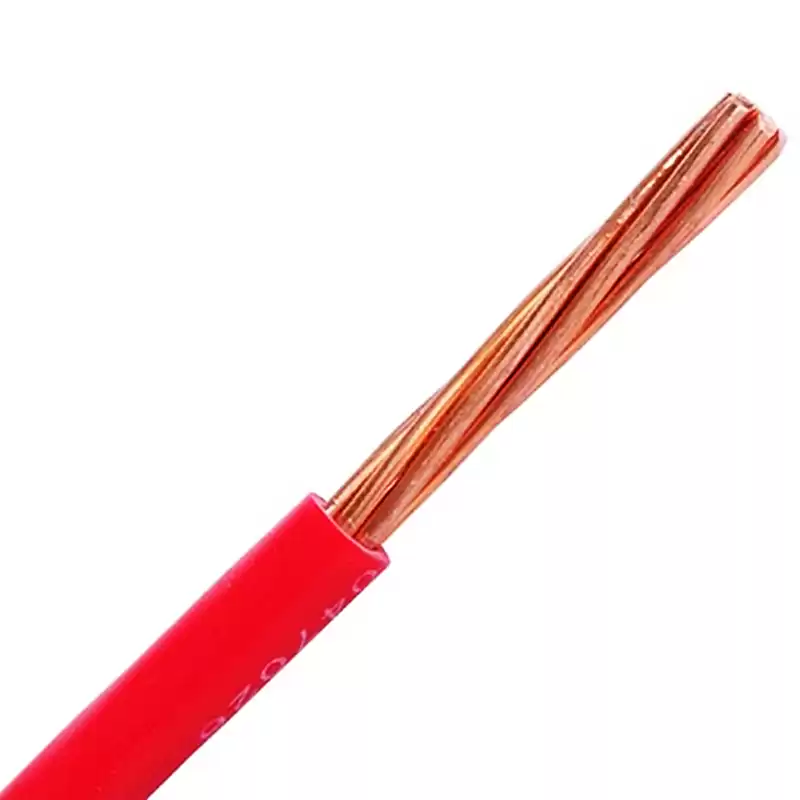

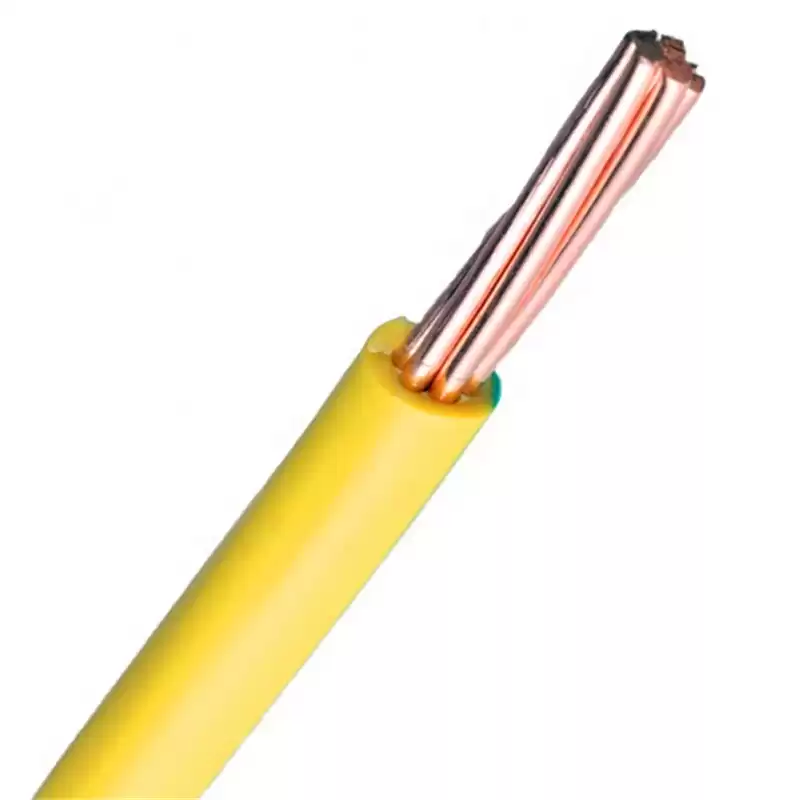

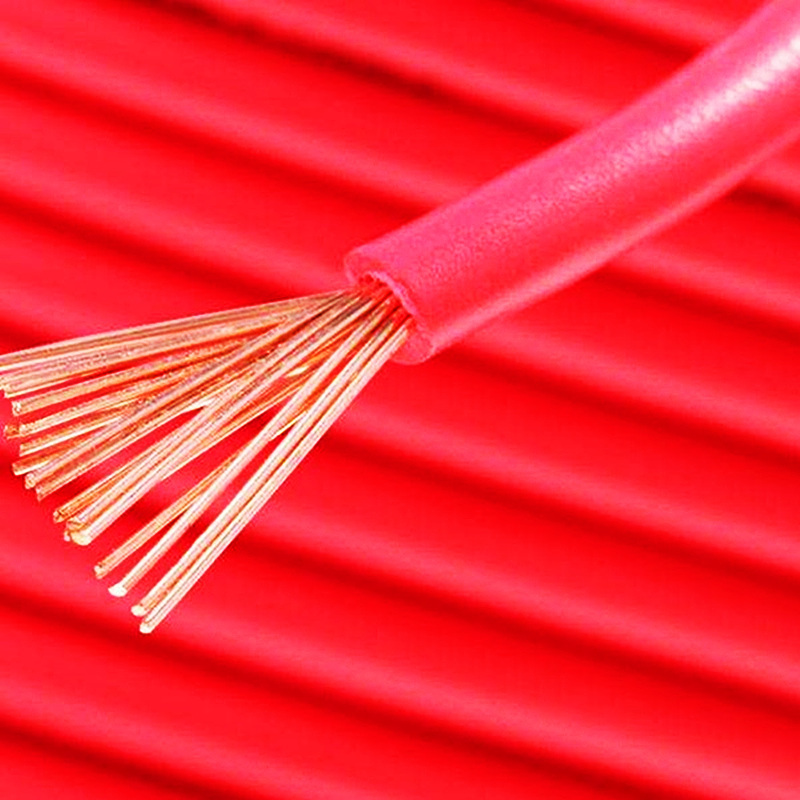

H07V-R stranded copper BV eletric cable

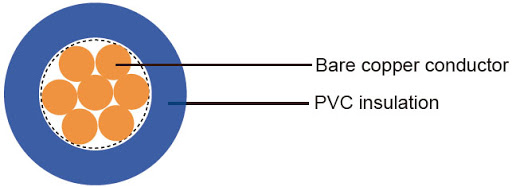

PRODUCTS STRUCTURE

H07V-R 6491X BV Stranded Copper Wire PVC Insulated Electrical Wire and Cables, the structure as below:

---Conductor Material

    Plain annealed copper wire, stranded Class 2.

---Insulation Material

   PVC(polyvinyl chloride).

---Sheath Material

   Non-Sheath.

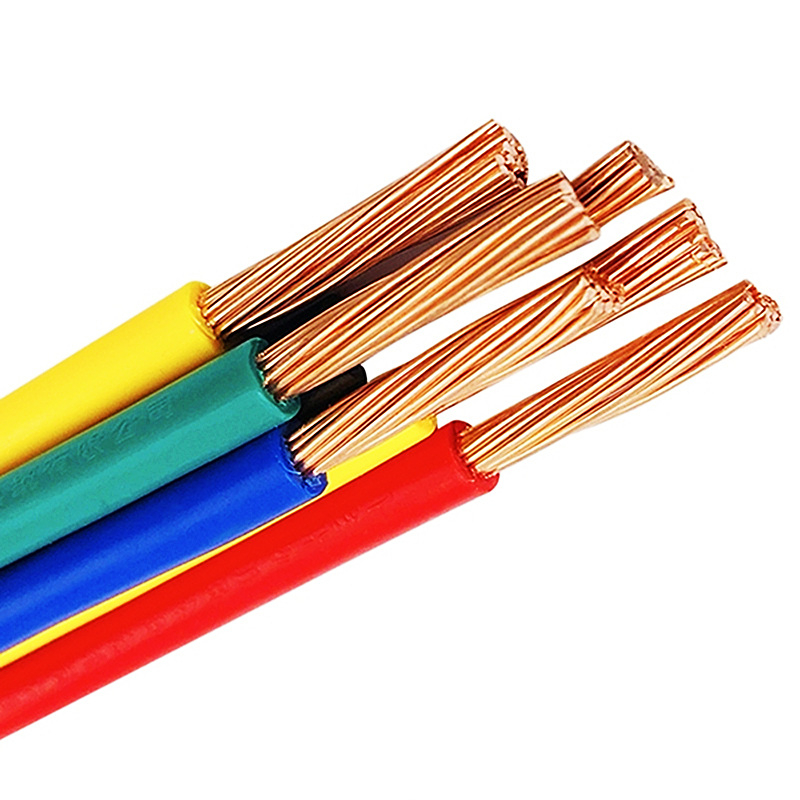

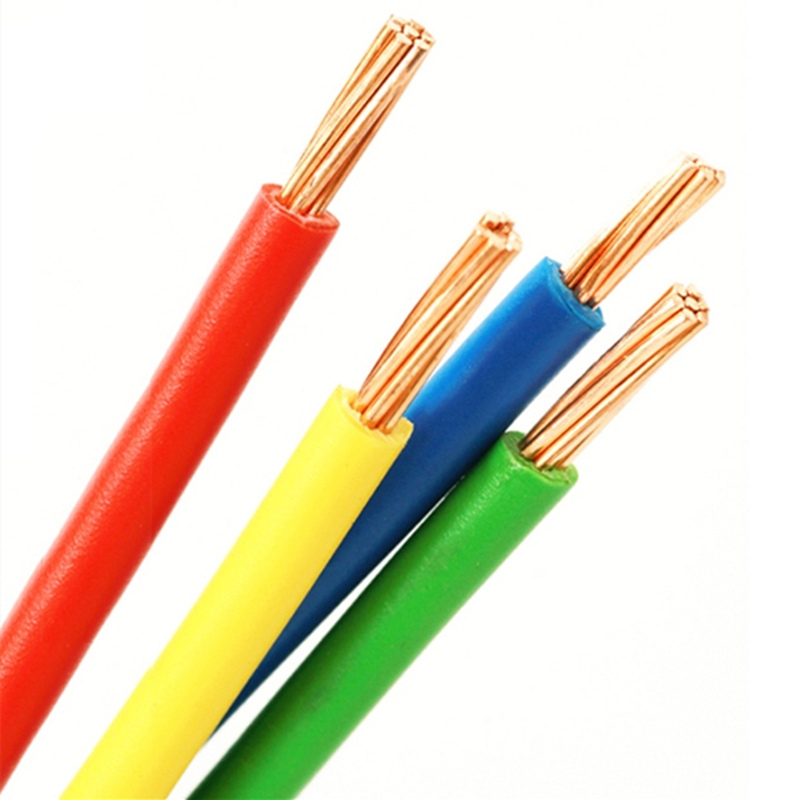

H07V-R stranded copper BV eletric cable

 PRODUCTS DIMENSIONS

 Description of Cable   Description of Products
 Products Name  H07V-R 6491X BV Stranded Copper Wire PVC Insulated Electrical Wire and Cables.
 Conductor Material  Plain annealed copper wires, stranderd Class 2.
 Conductor Structure  7/0.52 mm.
 Insulation Material  PVC (Polyvinyl Chloride).
 Insulation Thickness  0.8 mm.
 Insulation Colour  Red, yellow, blue, green, black, grey, white, yellow/green, or others.
Sheath Material  Non-sheath.
 Conductor Cross-section  2.5 mm2.
 Core Number  Single core, 1 core, 1C.
 Out Diameter  3.6 mm.
 Voltage Rate  450/750V (U0/U).
 About Net Weight  32 kg/km.
 Production Standard  JB/T 8734-2016, GB/T 5023-2008, IEC 60227, EN 50525-2-31.

 Max. Conductor DC

 Resistance at 20℃ in Air

 7.41 Ω/km.

 Min. Insulated

 Resistance at 70℃

 0.009 MΩ.km.

 Max. Ampacity

 at 40℃ in air

 29A.

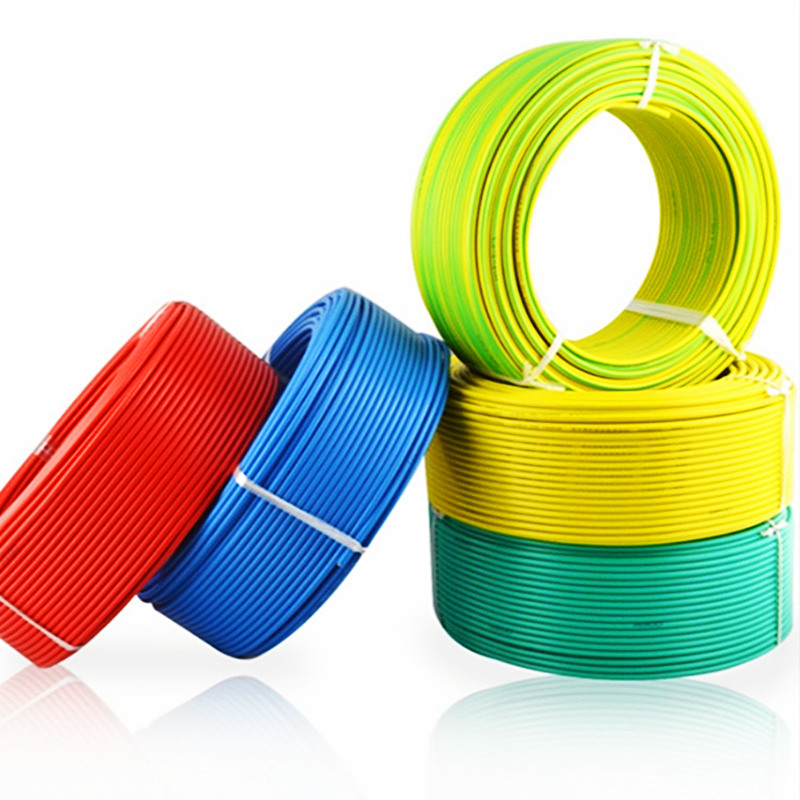

electric cable rolls
