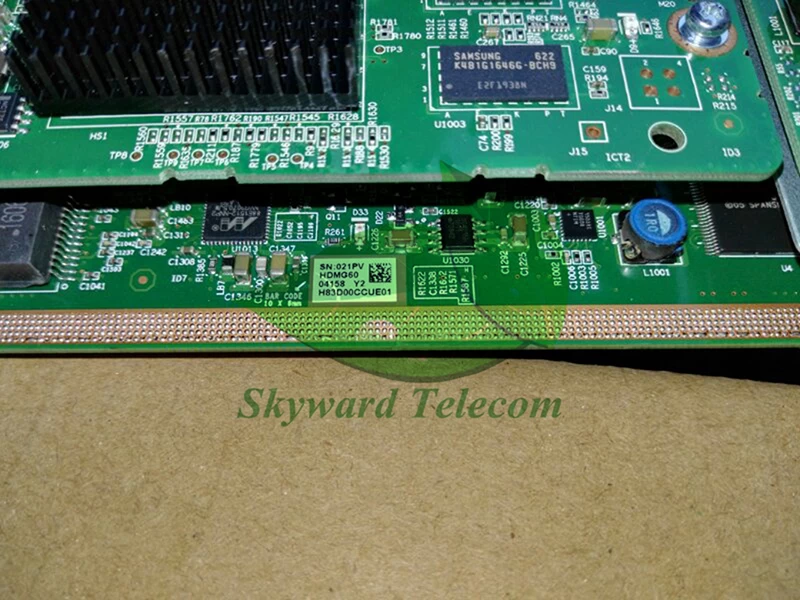

Overview Of Huawei H83D00CCUE01
Brand: Huawei
Model: H83D00CCUE01
Part Number: 03021PVH
Discription: H83D00CCUE01 is Multi-Service Centralized Control Unit Board; Huawei MA5616(F01H100) Broadband Board
Specification
|
Product Number
|
H83D00CCUE01
|
|
Product Description
|
Multi-Service Centralized Control Unit Board
|
|
Product Series
|
MA5616
|
|
Dimensions (H x W x D)
|
88.1 mm x 442 mm x 245 mm
|
|
Operating Environment
|
–40°C to 65°C
5% RH to 95% RH
|
|
Power
|
AC: 110V/220V
DC: –48V
|
|
Network-side Ports
|
Available configuration modes:
CCUE: GPON/GE, 1 x GE (electrical or optical)
CCUD: 1 x GPON, 1 x GE (electrical)
|
|
User-side Ports
|
ADSL2+, VDSL2, POTS, G.SHDSL, E1, ISDN, FE, and GE
|
|
Surge Protection
|
Power: 6 kV
GE/FE: 4 kV
POTS: 4 kV
|
Introduction of MA5616
The SmartAX MA5616 Multi-service Access Module (MA5616) is a board-pluggable box-type device of 2 U high and 19-inch wide. It provides access services with ultra-high bandwidths and flexible capacity expansion capabilities.
-
The MA5616 provides the following user ports: asymmetric digital subscriber line 2 plus (ADSL2+), very-high-speed digital subscriber line 2 (VDSL2), single-pair high-speed digital subscriber line (SHDSL), plain old telephone service (POTS), integrated services digital network (ISDN) and fast Ethernet/gigabit Ethernet (FE/GE).
-
It provides GPON/10G GPON/GE upstream transmission modes. It can be used in fiber to the building (FTTB), fiber to the curb (FTTC), and dedicated line access scenarios.
-
The MA5616 can also be used as a mini digital subscriber line access multiplexer (DSLAM) or a multiservice access node (MSAN) to provide traditional voice, data, and video services.
