We supply injection molding machine and auxiliary equipment,
and can help customers design and bulid production line in your
factory,along with the necessary working process training.

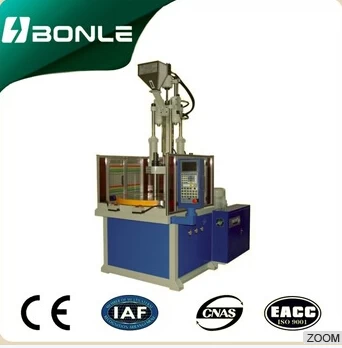

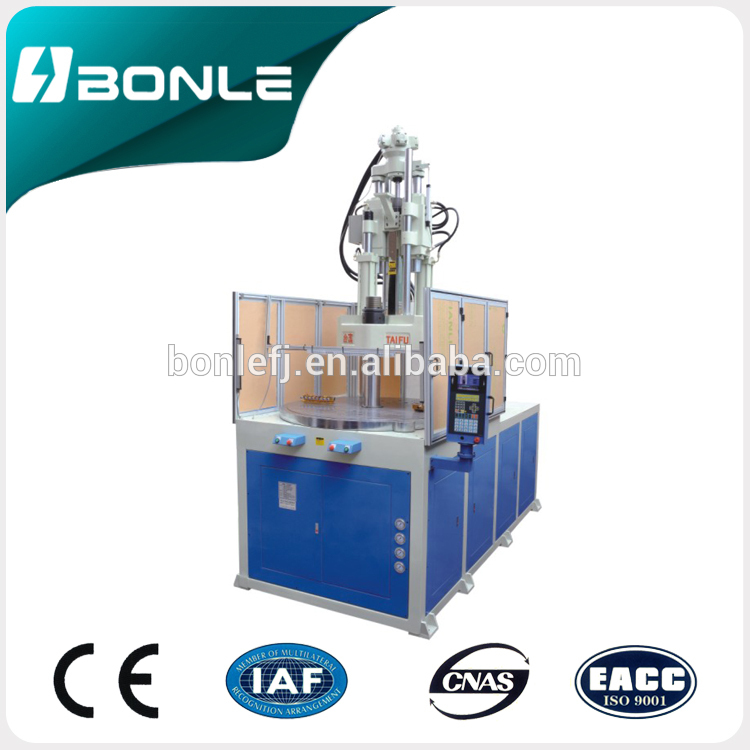

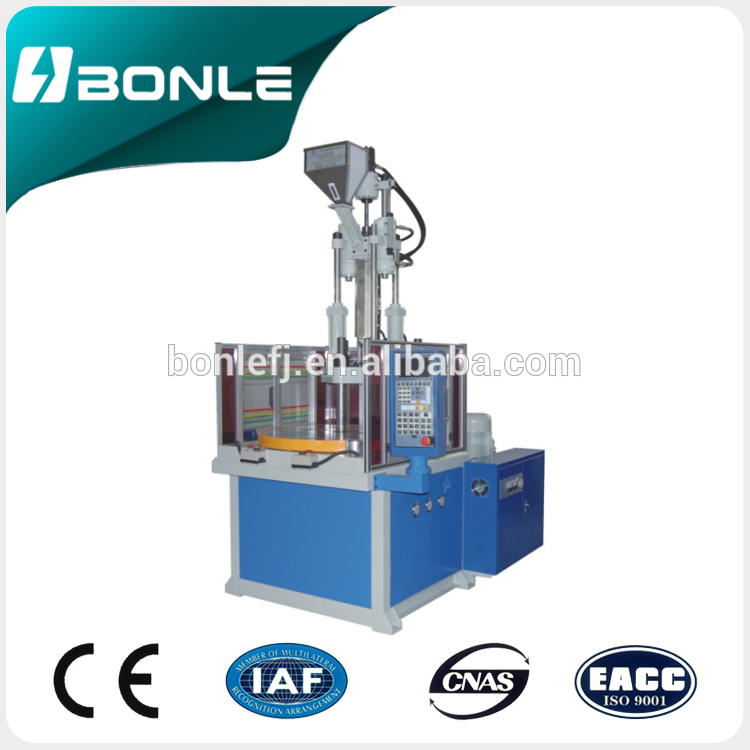

1.Stands closes-fires from the prone position four columnsmol series to do in the identical horizontal plane 180° return lathe.
but the operator does in the fixed operation surface takes to put inlays,the work convenience also lives the efficiency to be high.
2.The surface localization,by is fixed lives,after may guarantee turns on lathe stops,can have the high accuracy the localization about,
takes shape the mold accurately to gather the mold.
3.The aoca from inserts takes out and so onfrom sets,helps all from.
4.The 2 stations,have the special demand to be possible 3 to stand,4to stand in addition or more stations.to a more conv enient operation,
and form does delimits,increase energy.
MODEL
|
V35R2
|
Injection unit
|
Screw diameter (mm)
|
Φ22
|
Φ25
|
Φ28
|
Theoretical injection volume (cm2)
|
53
|
68.8
|
86
|
Injection weight(PS) g(oz)
|
49(1.7)
|
63.8(2.2)
|
80(2.8)
|
Max.Injection pressure Mpa(kgf/c2)
|
248(2530)
|
192(1960)
|
153(1563)
|
Injection rate (cm2/s)
|
44
|
57
|
71
|
Injection speed (mm/s)
|
116
|
Screw speed rotation (r.p.m)
|
0-300
|
Nozzle out from platens (mm)
|
≥45
|
Clamping unit
|
Clamping force KN(tf)
|
343(35)
|
Clamping stroke (mm)
|
200
|
Min.Mold thickness (mm)
|
150(210)
|
Max.Opening (mm)
|
350(410)
|
(LxW)Max.mould size (mm)
|
300*300
|
Rotary table size (mm)
|
Φ810
|
Ejector distance (mm)
|
75
|
Ejector force KN(tf)
|
26.5(2.7)
|
Others
|
System pressure Mpa(kgf/cm2)
|
13.7(140)
|
Oil tank capacity L
|
200
|
Electric power KW(HP)
|
7.5(10)
|
Heatern power KW
|
3.6
|
Machine dimensions LxW (m)
|
1.9*1.5
|
Machine dimensions H (m)
|
2.9
|
Machine weight (tf)
|
2.2
|
