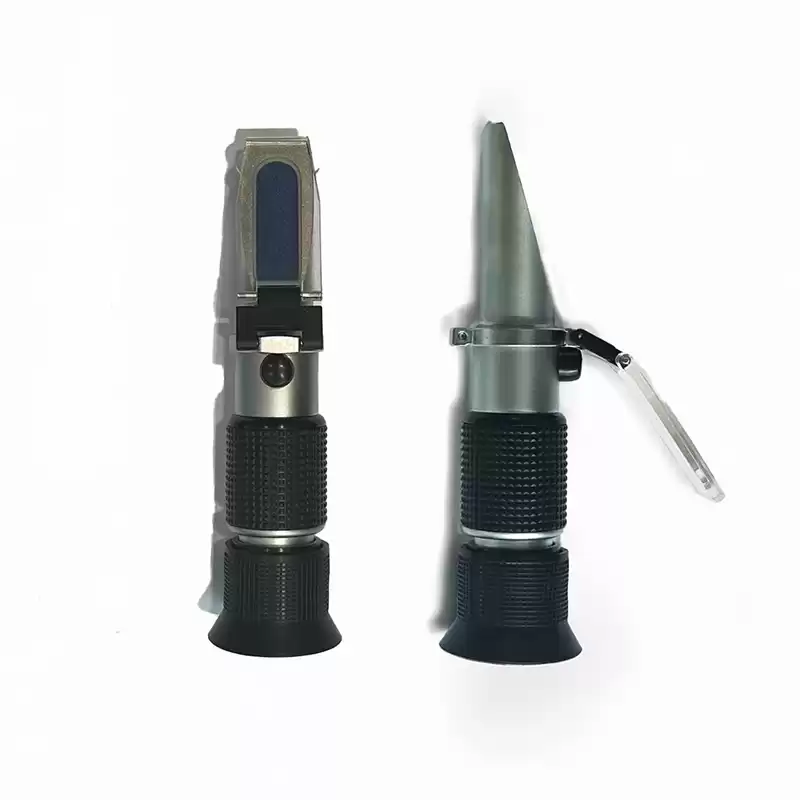

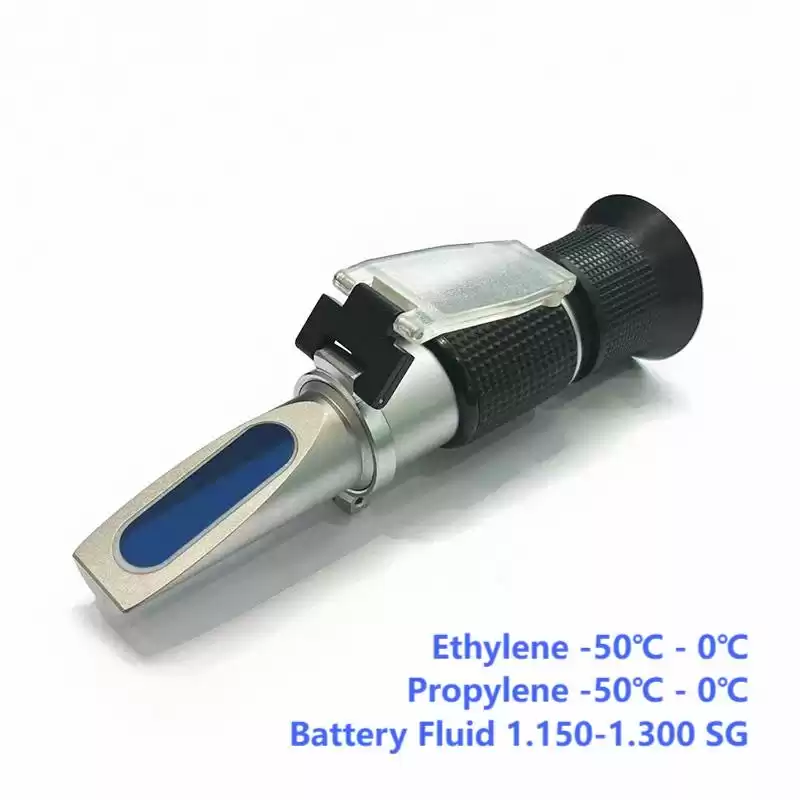

Handheld Coolant Refractometer ATC for Ethylene Propylene Antifreeze Battery Fluid

Product Description

The handheld coolant and battery fluid refractometer is widely used in car maintenance, repair workshops, and battery servicing. This tool helps ensure proper coolant protection in cold climates and accurate assessment of lead-acid battery charge levels.

The RHA-405A model handheld antifreeze and battery acid refractometer has two functions.

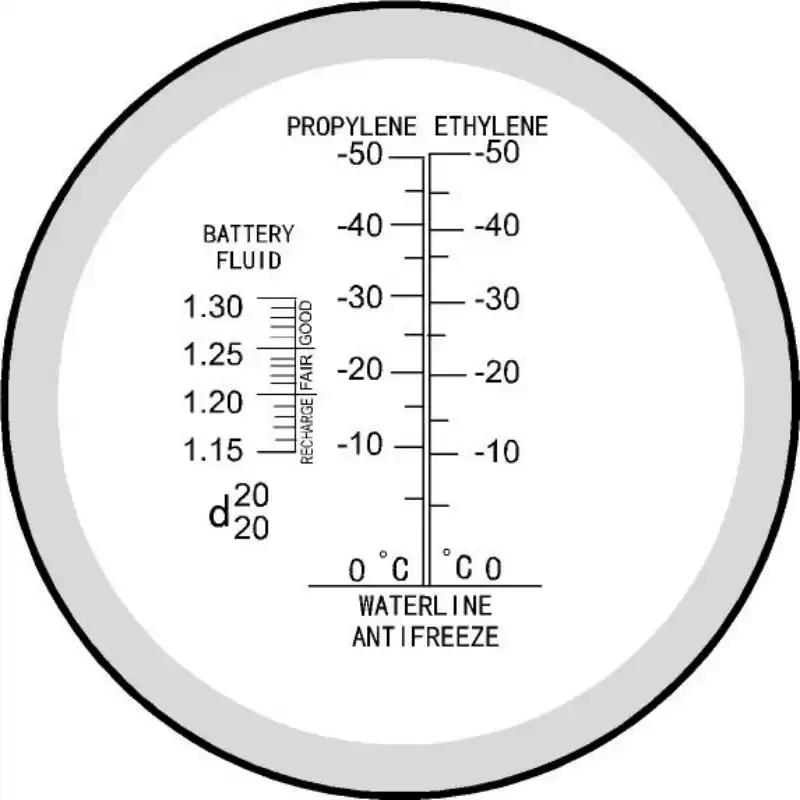

1. It measures the freezing point temperature (in °C) of ethylene glycol- or propylene glycol-based automobile antifreeze. The reading indicates the temperature at which the tested solution will begin to freeze. This model is best suited for use in regions where temperatures do not drop below -50℃。
2. It measures the specific gravity (SG) of battery acid. Specific gravity is the density of the acid compared to water and indicates the state of charge of a lead-acid battery — higher sg means the battery is more fully charged.

Product Features

3-in-1 Diagnostic Tool

 Combines multiple fluid tests into one device—ideal for full vehicle maintenance with a single instrument.



Copper Alloy Housing

 Built with a durable, thermally stable copper body to ensure consistent accuracy and long service life.

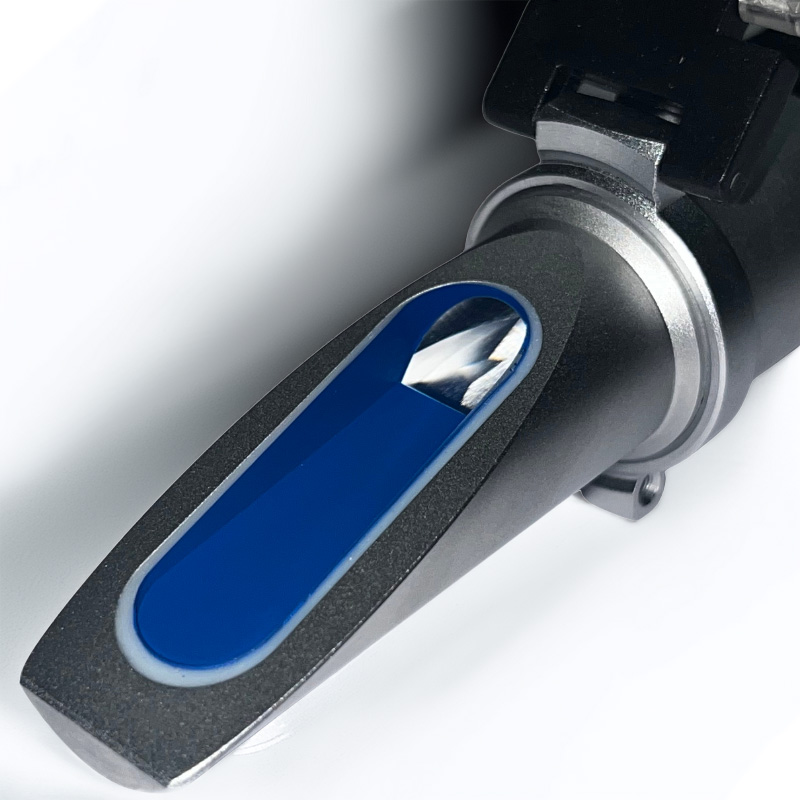

Crown Glass Prism

 Enhances measurement precision and optical clarity for easy, reliable readings.



Automatic Temperature Compensation

 Provides precise readings without manual adjustments under changing ambient conditions.





Typical Applications

- Coolant System Maintenance (℃)

 Check freezing points of ethylene and propylene glycol coolant to ensure proper engine protection in all climates.

- Battery Fluid Diagnostics

 Test the specific gravity of battery acid to determine charge level and battery health.

- Vehicle Servicing & Seasonal Prep

 Used during routine inspections and winterization in cars, trucks, and motorcycles.

- Fleet Maintenance Programs

 Monitor fluid conditions across multiple commercial or industrial vehicles.





Product Parameters

Model	RHA-405A
Net Weight	0.24kg
Length	157mm
Diameter	29mm
Temperature Range	10℃ to 30℃ with ATC 20℃ without ATC

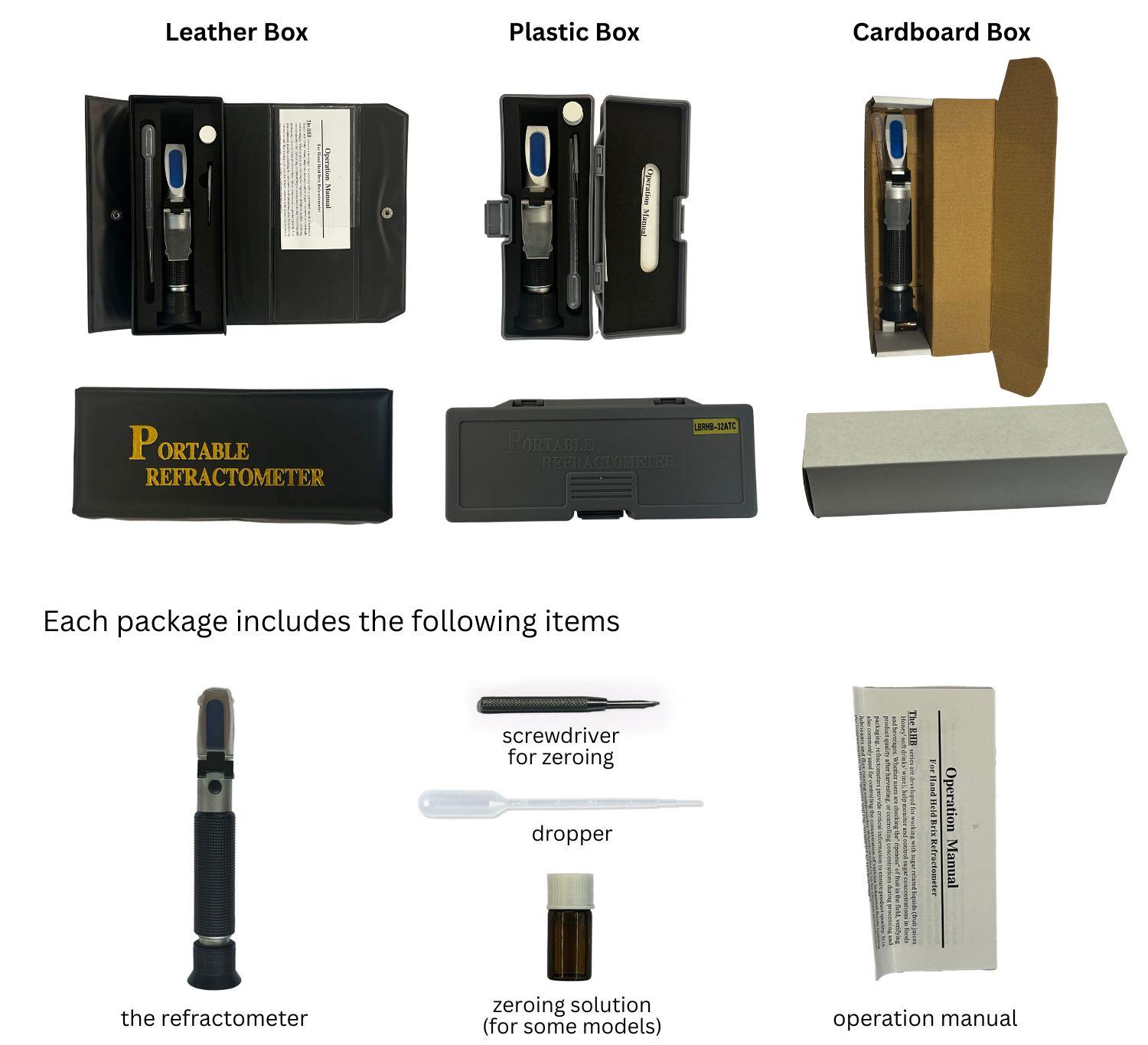

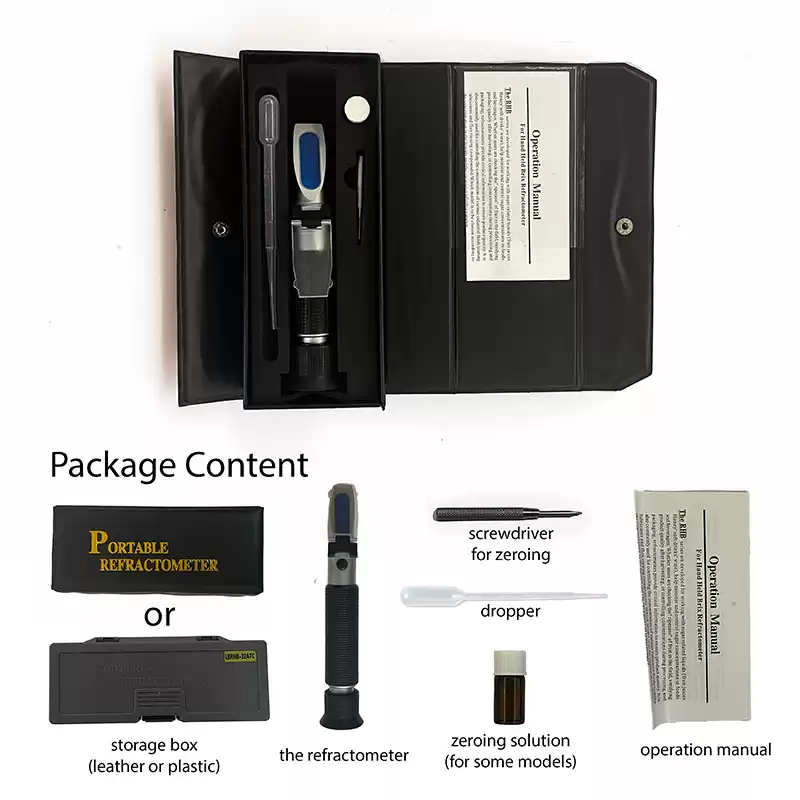

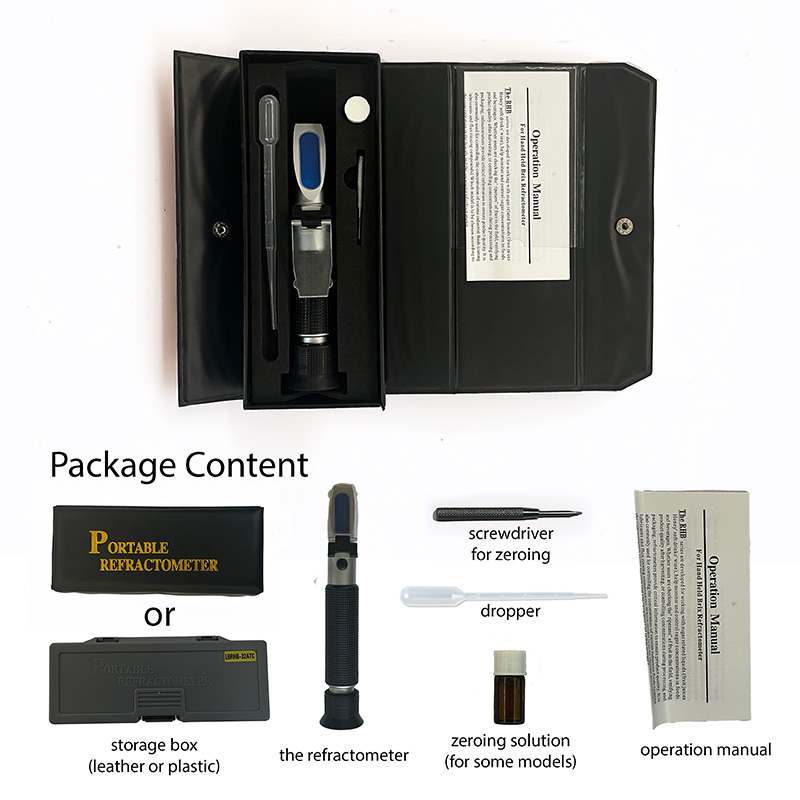

Packaging

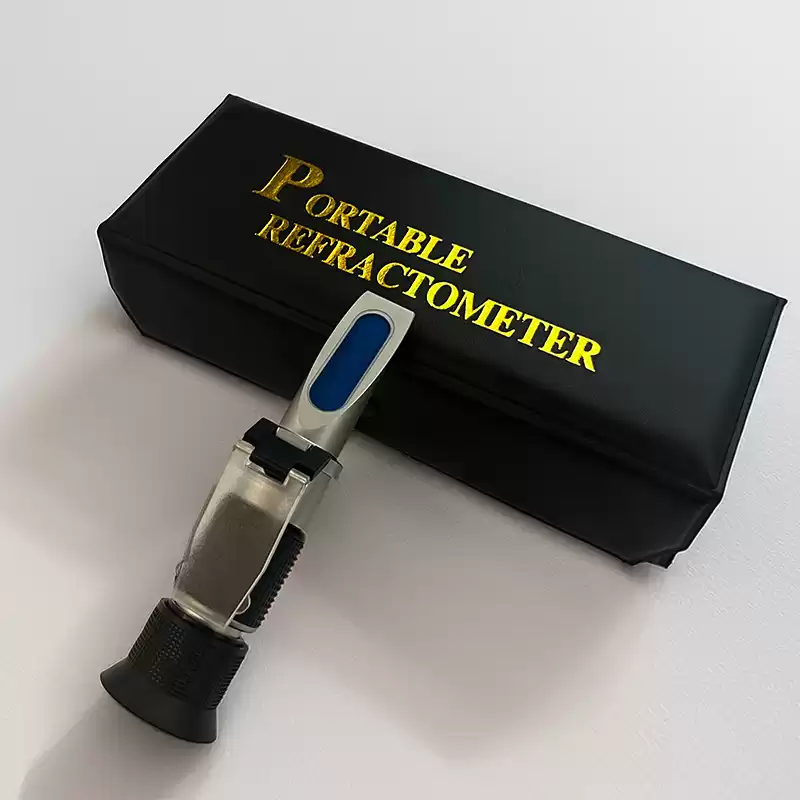

We have three packaging options: leather, plastic, or cardboard. The cost per unit vary with different packaging.

If you have a preferred packaging option or require customized packaging with your own text or logo, please feel free to send us an inquiry.
