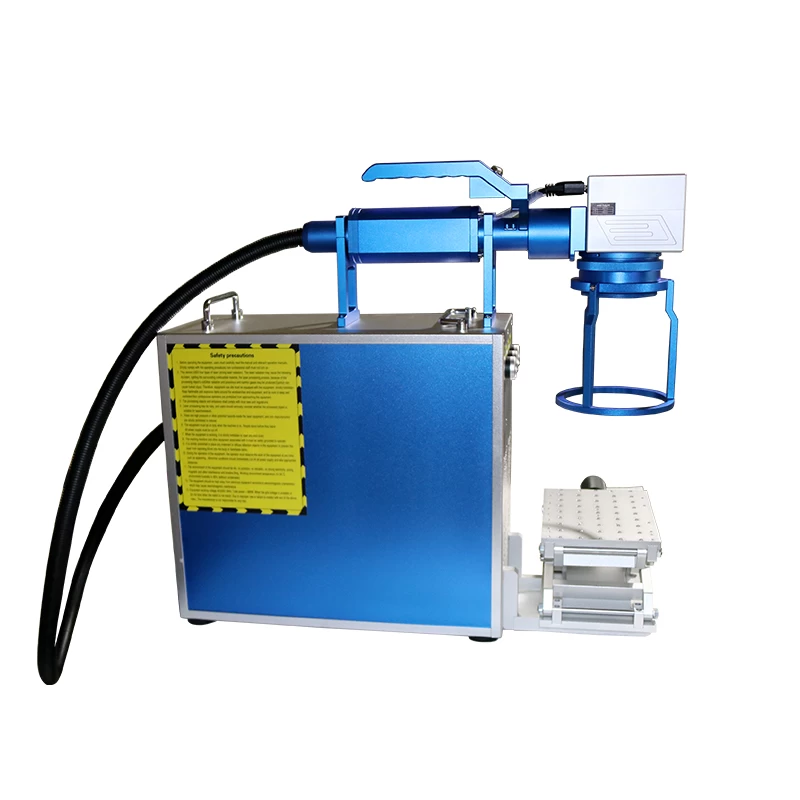

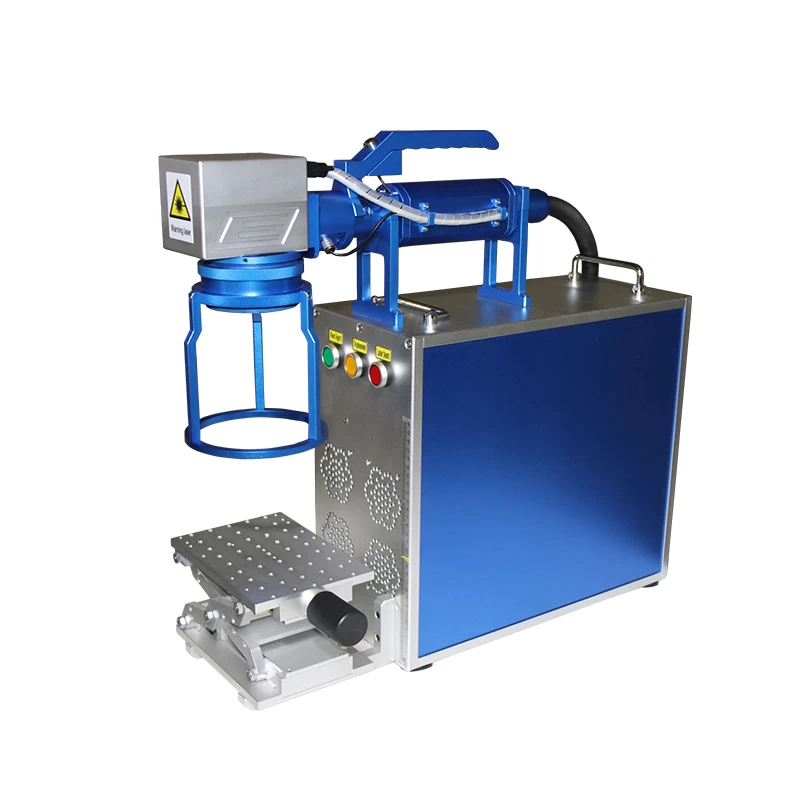

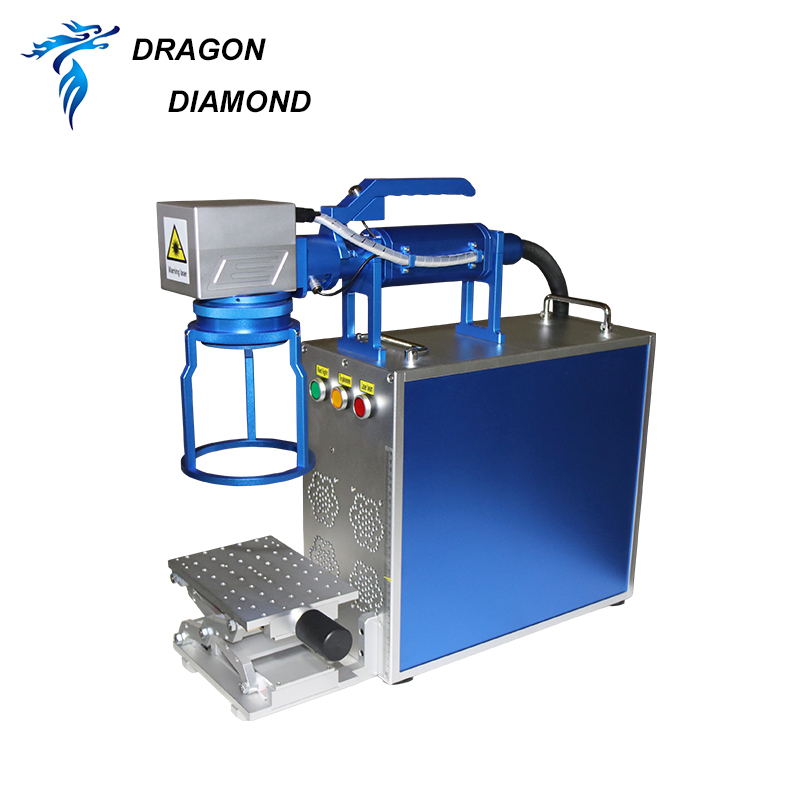

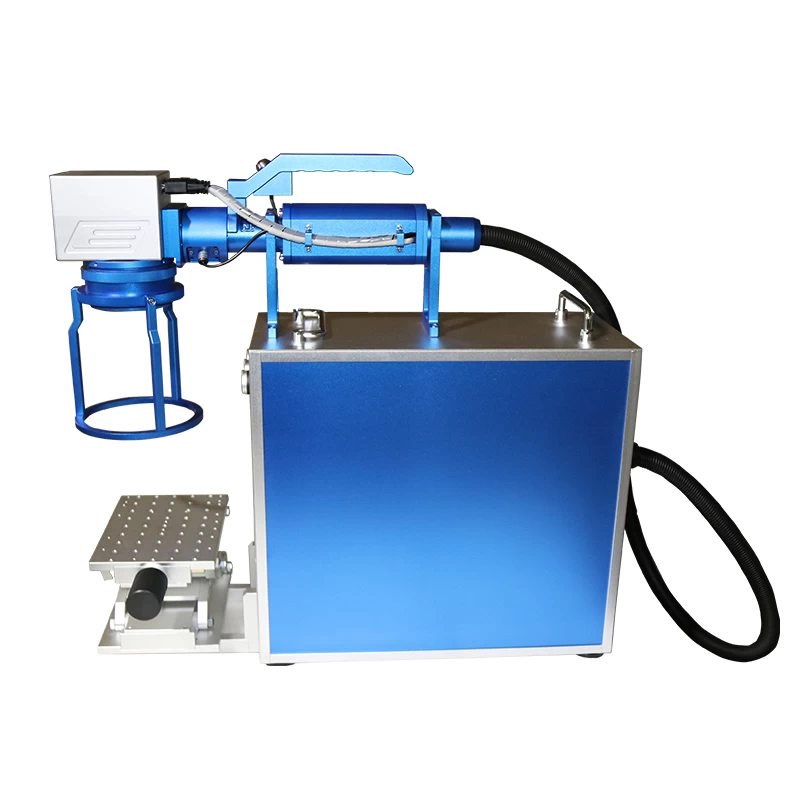

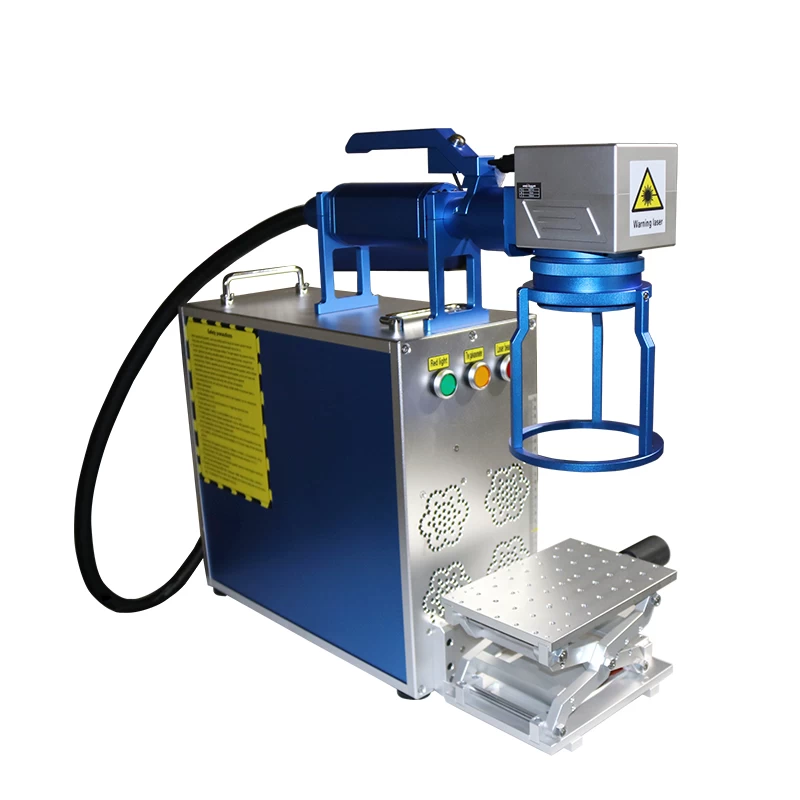

Handheld Fiber Laser Engraving Machine
PRODUCT PARAMETER
|
NO.
|
Model
|
Lz-S20W Handheld
|
|
1
|
Power
|
20W / 30W / 50W for option
|
|
2
|
Marking Range
|
110*110mm / 200*200mm / 300*300mm
|
|
3
|
Repetition Frequency
|
20-80KHZ
|
|
4
|
Laser Wavelength
|
1050-1070nm
|
|
5
|
Marking Depth
|
≤1mm
|
|
6
|
Marking Speed
|
7000mm/s
|
|
7
|
Minimum Linewidth
|
0.01mm
|
|
8
|
Minimum Character
|
0.15mm
|
|
9
|
Repeat Accuracy
|
±0.002
|
|
10
|
Power Consumption
|
500W
|
|
11
|
Dimension
|
760*210*570m
|
|
12
|
Total Weight
|
About 45KG
|
|
13
|
Optional Part
|
Rotary Device,Moving Table
|
|
14
|
Cooling System
|
Bulit In Air Cooling
|
|
15
|
Software
|
EZCAD
|
|
16
|
Controller
|
JCZ
|
|
17
|
Life-Span of Fiber Laser Module
|
100000-200000 hours
|
PRODUCT FEATURES
High Precision
Upto 0.0012mm, bring you the fantastic and satisfied marking effect.
Superior Laser Beam
The definition is 1 micron,10 times as that of traditional products.
No Consumables
One Fiber marker can work for more than 10 years without any consumables.
High Speed
7000mm / second, is 3 to 5 times above that of traditional products.
Low consumption
<500W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.
Long lifespan of IPG/Raycus laser module
0.1-0.2 million hrs (light pumping YAG: several hundred hrs; semi-conductor: 10 000 hrs).
Strong Compatibility
TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc.
Integrated Air Cooling System
The cooling effect is more excellent than the water cooling effect in YAG laser, no maintenance.
Deep Marking
Max. 1mm stainless steel, suitable for the industries which need high precision and depth marking effect.

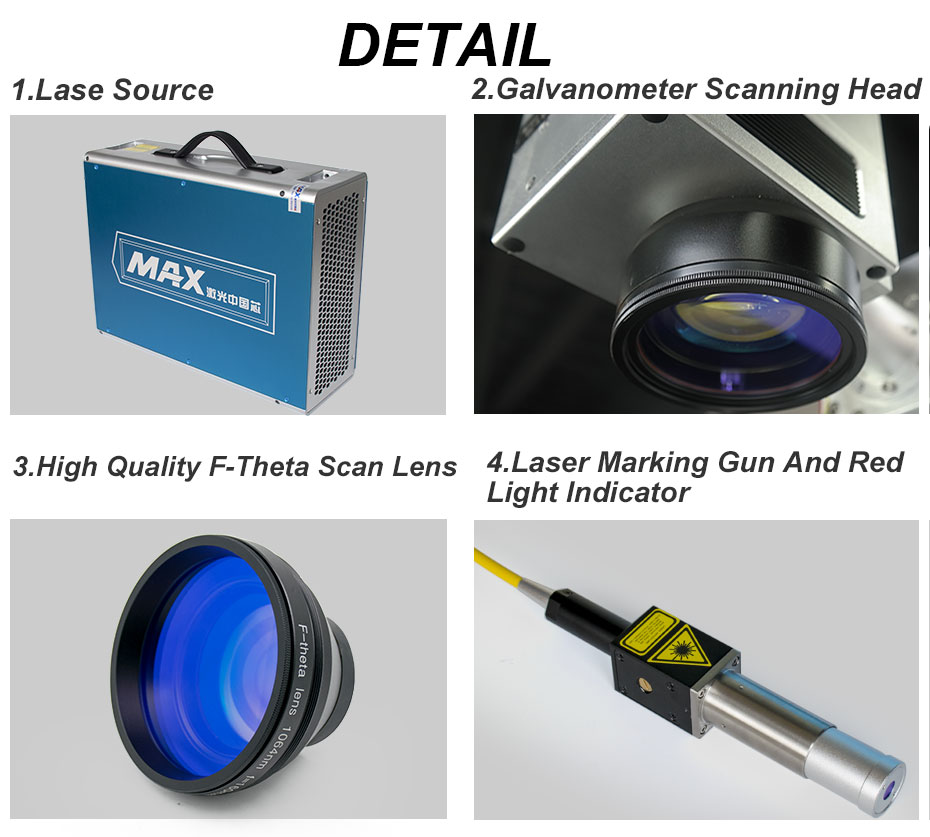

The fiber laser beam comes out from the Max/IPG/Raycus fiber device directly,no need to adjust the laser optical path.

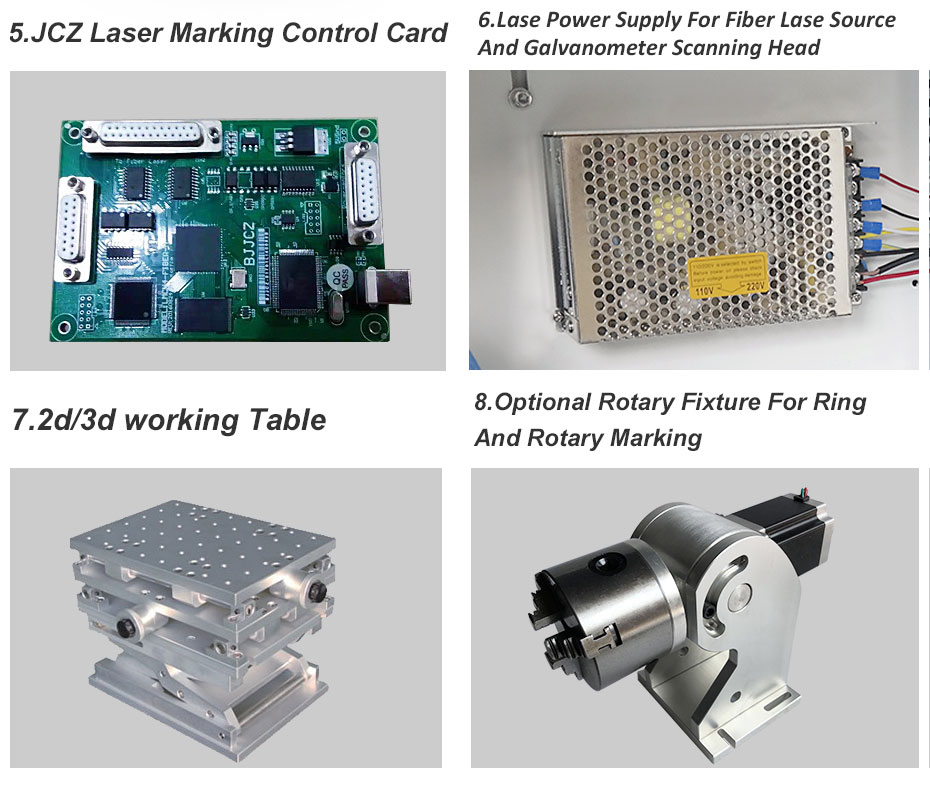

Original JCZ controller, USB interface, swift and stable transmission, easy software operation, strong functions.
High-quality scan head, with good seal, capable to prevent dust and water, small volume, compact and solid.
We offer 20w/30w/50w power for option.
