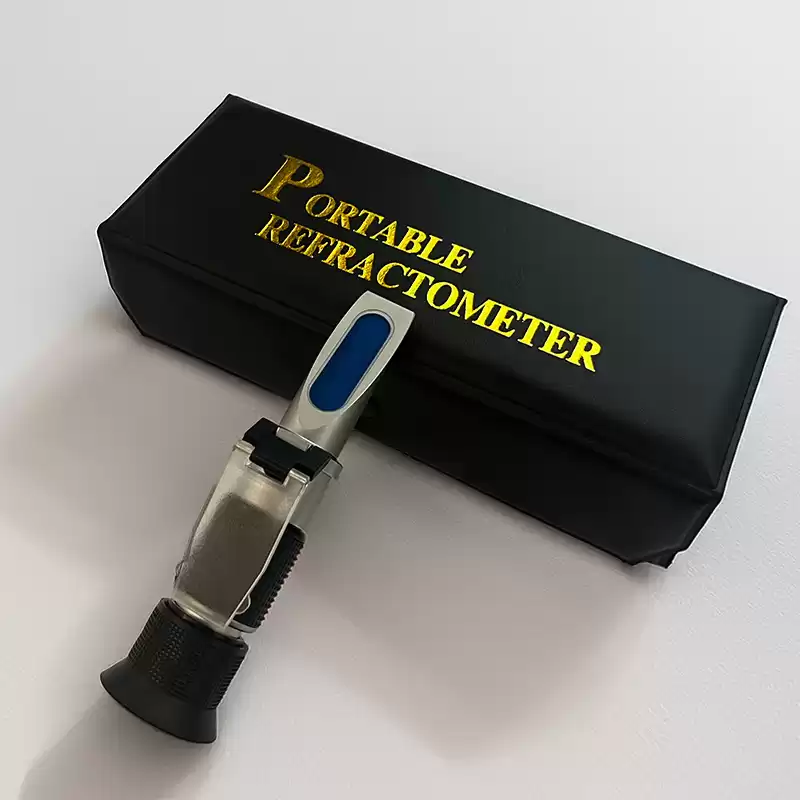

Handheld Medical Protein Refractometer ATC for Serum P Urine SP.G Refactive Index

The RHC-200A Handheld Medical Protein Refractometer is a portable tool used in the medical and healthcare industry. measures the specific gravity of urine, serum protein and refractive index of human beings and animals. The measurement ranges can be found in the table below.



  • The main body of the instrument is made of copper material to maximize measurement accuracy and durability.
  • This model is equipped with an automatic temperature compensation function (ATC). We also provide an economical version without ATC.

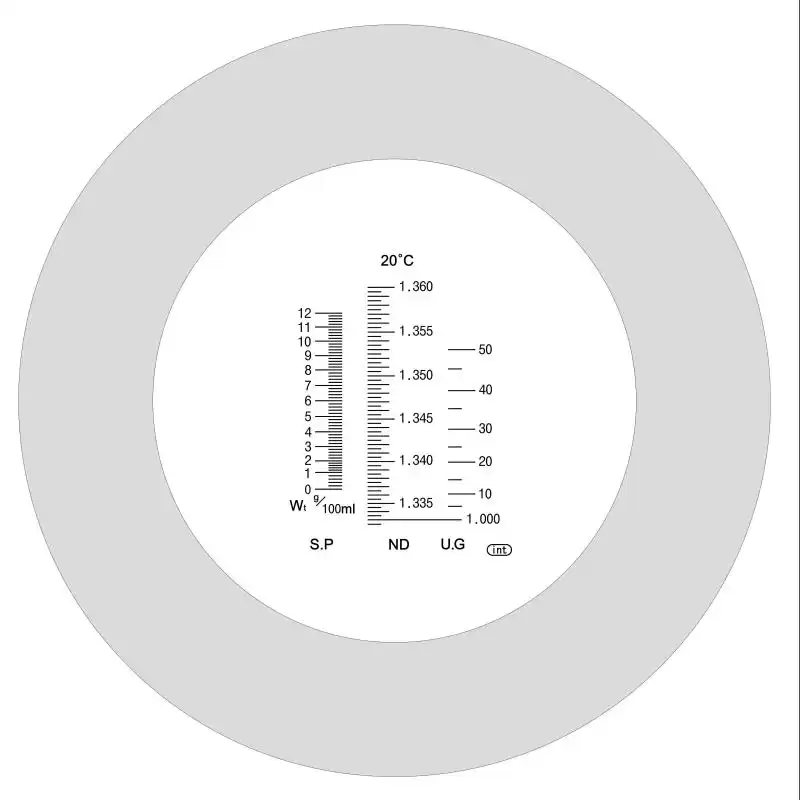

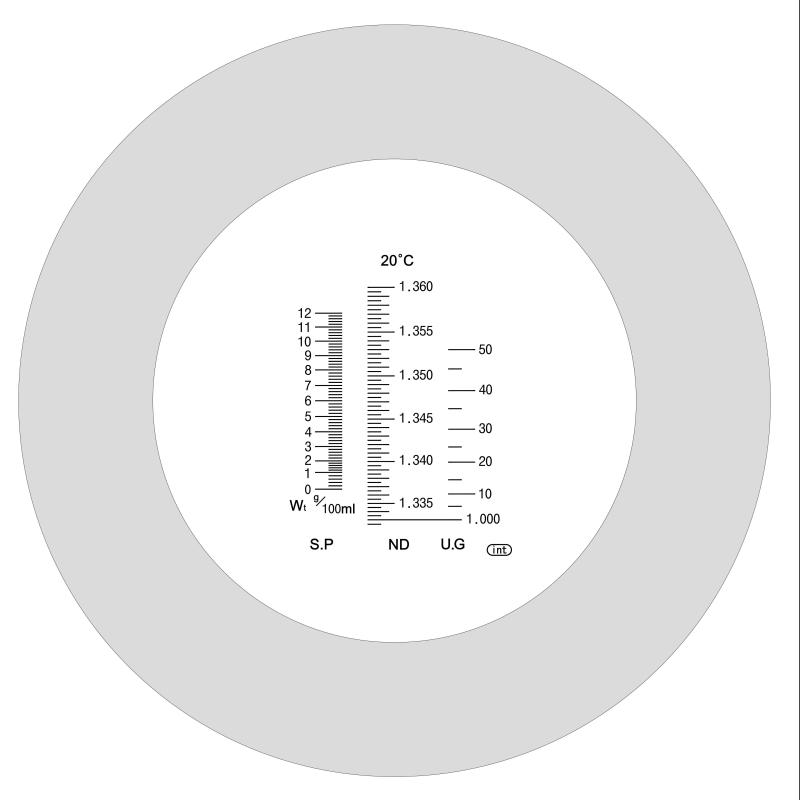

Measurement Specifications

Scale(s) Ranges Resolution Accuracy
 Serum P
0 to 12g/dl
0.2
±0.2
Urine SP.G
1.000 to 1.500sg
0.05
±0.05
 Refactive Index
1.330 to 1.360
0.0005
±0.0005



Product Description

The RHC-200A Handheld Medical Protein Refractometer is a portable instrument that quickly detects protein concentration and screens for proteins in urine by measuring the refractive index of solutions. It features easy operation and rapid detection, and is widely used in scenarios requiring real - time monitoring of protein content, such as healthcare, biological research, and the food industry.





Product Features

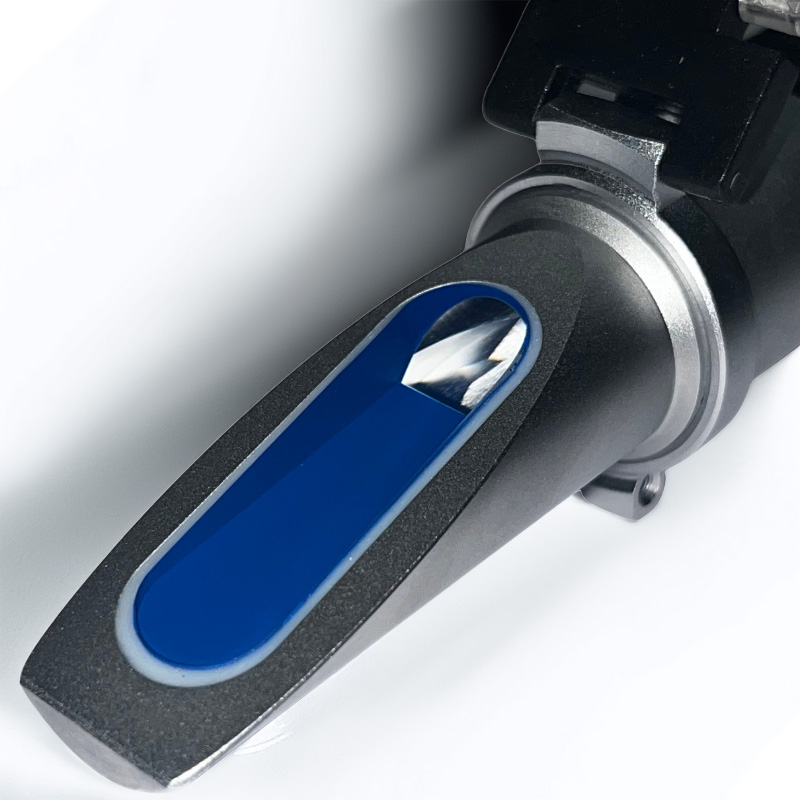

Refractometer Prism

High Accuracy Multi-Scale Design

   Measures serum protein, urine specific gravity, and refractive index in both humans and animals—ideal for clinical and veterinary use.



Copper Alloy Construction

 Durable, thermally stable housing ensures precision and long-term use in clinical environments.



Automatic Temperature Compensation

 Provides consistent and accurate readings across varying ambient conditions without manual correction.



Crown Glass Prism

 Enhances optical clarity for sharp, easy-to-read results during point-of-care or lab testing.



Typical Applications

- Mobile Medical Units

 Useful for community health outreach or rural clinics where lab equipment is limited.

- Human Medical Diagnostics

 Measure serum protein concentration and urine specific gravity for hydration assessment, protein levels, or renal function screening.

- Veterinary Health Screening

 Used in animal clinics to assess hydration, kidney function, or nutritional status via urine and serum testing.

- General Clinical Laboratory Use

 Support routine health checks or patient monitoring in hospital labs and outpatient clinics.





Product Parameters
Model RHC-200A
Net Weight 0.25kg
Length 170mm
Diameter 29mm
Temperature Range

10℃ to 30℃ with ATC

20℃ without ATC



Packaging

We have three packaging options: leather, plastic, or cardboard. The cost per unit vary with different packaging.

If you have a preferred packaging option or require customized packaging with your own text or logo, please feel free to send us an inquiry.

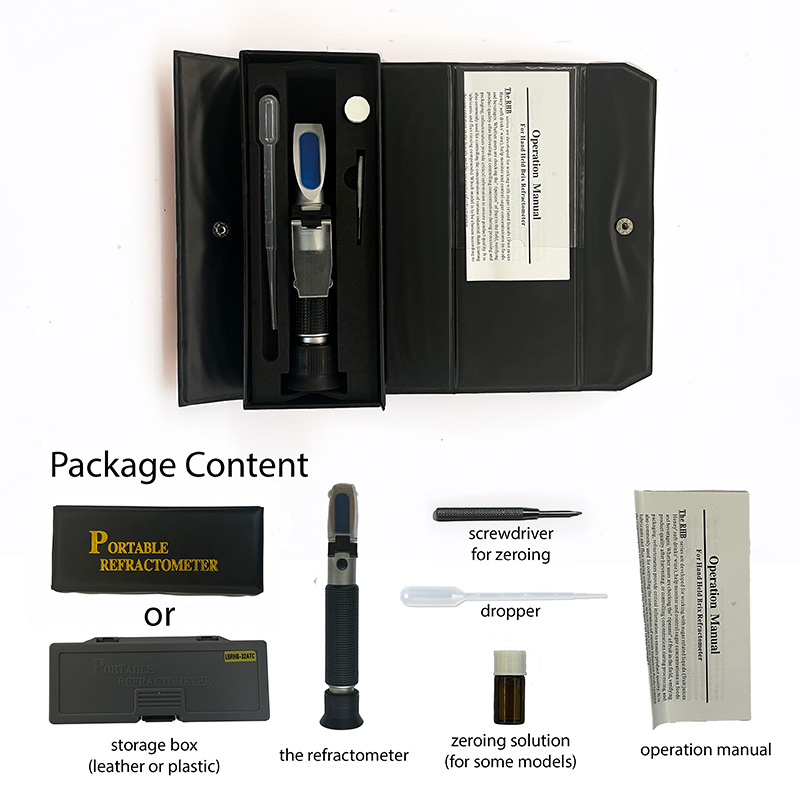

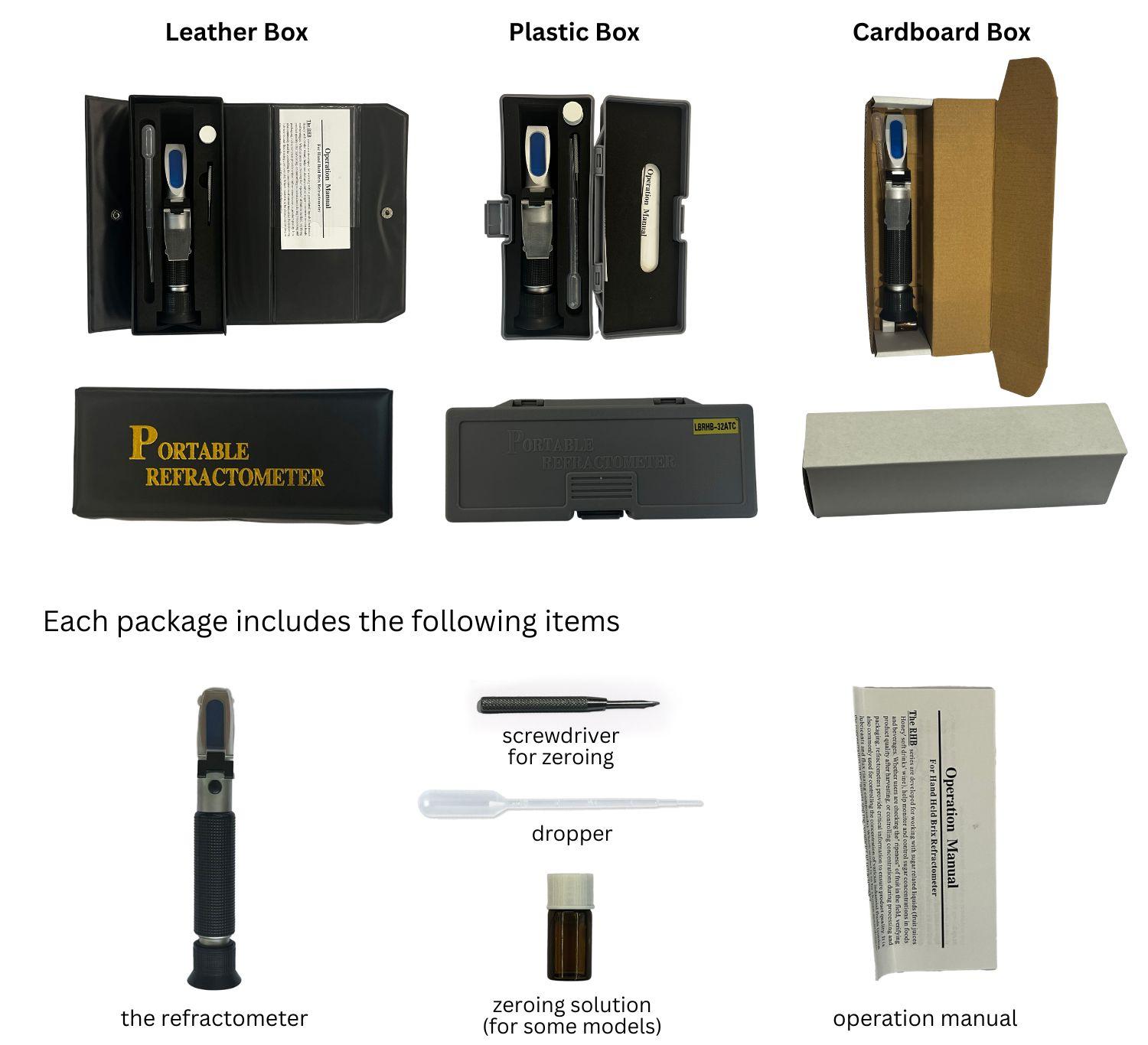

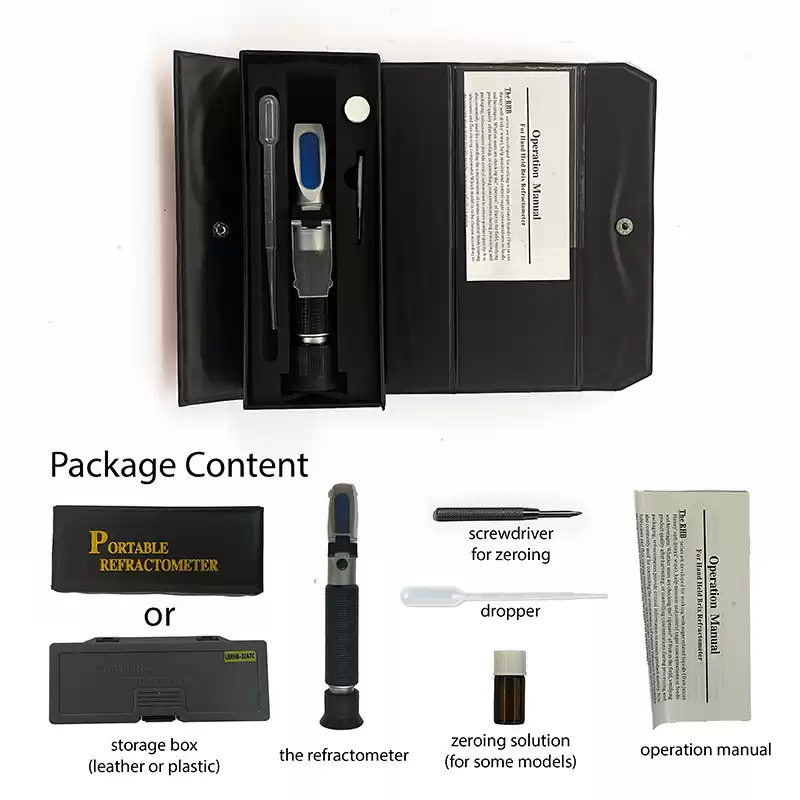

Handheld Refractometer Packaging Options and Content







Instruction of Use

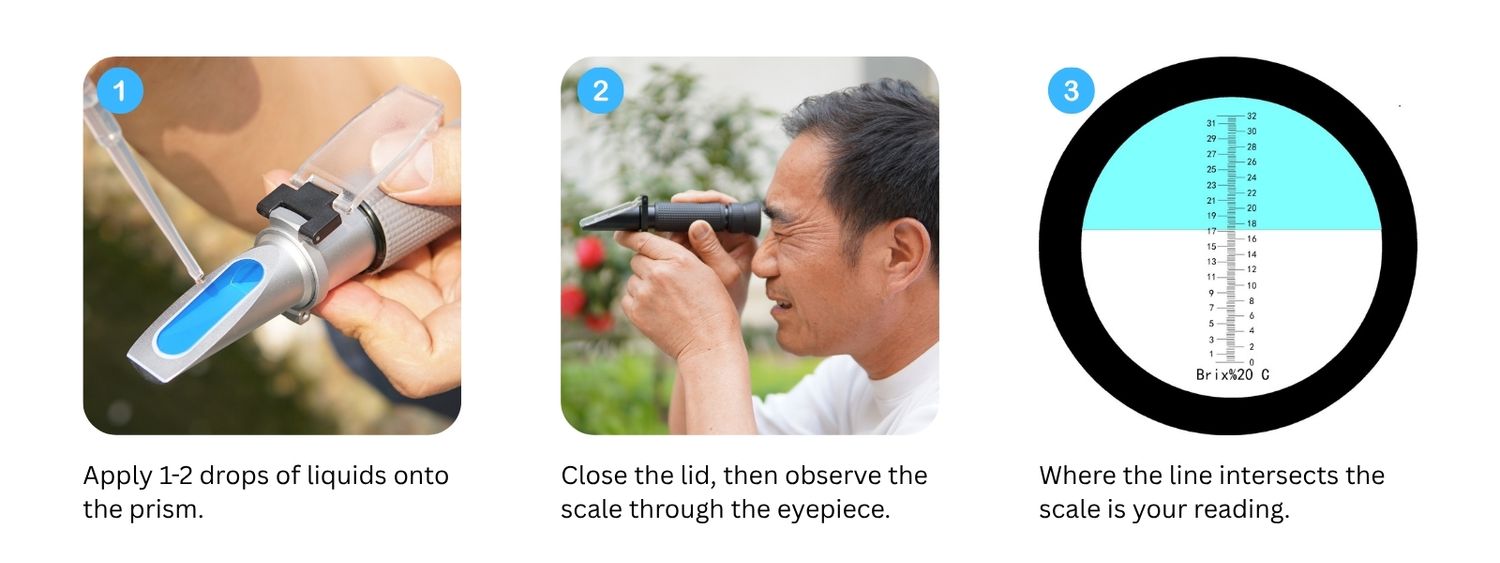

Handheld Refractometer Instruction of Use

After-Sale Services

At Lindian Technology, we take pride in providing only premium-quality refractometers. If any of our products is found to be defective upon arrival, we will replace the defective unit free of charge.

In addition, we offer a free replacement warranty for a period of three years, along with free lifetime maintenance and calibration services.
