Introduction

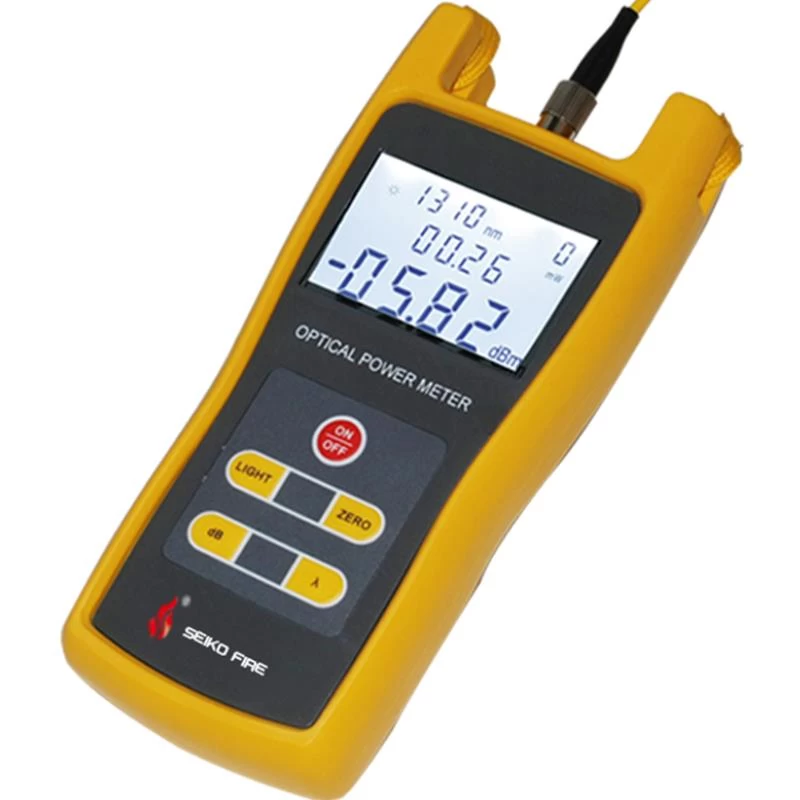

S308 handheld optical power meter is a compact and an
easy-to-use testing instrument for optical fiber networks, which can be used
for absolute optical power measurements as well as for relative loss
measurements in optical fibers. It features ingenious appearance, wide range of
power measurement, high accuracy and user self-calibration function with high
performance-to-price ratio.
Features
-
User self-calibration function.
-
Comfortable LCD display and optional backlight LCD display supports night
operation.
-
Power measurements in dBm or mw and insertion loss in dB.
-
Low battery consumption, more than 240 hours continual operation time for
three 1.5V alkaline batteries.
-
10 minutes Auto-off function can be activated or deactivated.
Applications
-
Maintenance in Telecom
-
Maintenance CATV
-
Fiber Optic Lab Testing
-
Other Fiber Optic Measurements
Specifications
|
Type
|
S308A
|
S308B
|
|
Wavelength (nm)
|
800~1700nm
|
|
Detector
|
InGaAs
|
|
Measurement Range (dBm)
|
-70~+3
|
-50~+26
|
|
Uncertainty
|
±5%
|
|
Calibrated Wavelength (nm)
|
850,980,1300,1310,1490,1550
|
|
Resolution (dB)
|
0.01
|
|
Optical Connector
|
FC (interchangeable SC, ST)
as well as 2.5mm universal
|
|
Power Supply
|
Alkaline Battery (3 AA 1.5V
batteries)
|
|
Battery Operating Time
|
240 h with 1.5V Battery (3)
|
|
Operating Temperature (℃)
|
-10 ~ +60
|
|
Storage Temperature (℃)
|
-25 ~ +70
|
|
Relative Humidity
|
0 to 95% (non-condensing)
|
|
Dimension (mm)
|
175x82x33
|
|
Weight (g)
|
310
|
Standard Package
-
S308 optical power meter
-
Protective rubber boot
-
3pcs 1.5V batteries
-
User manual
-

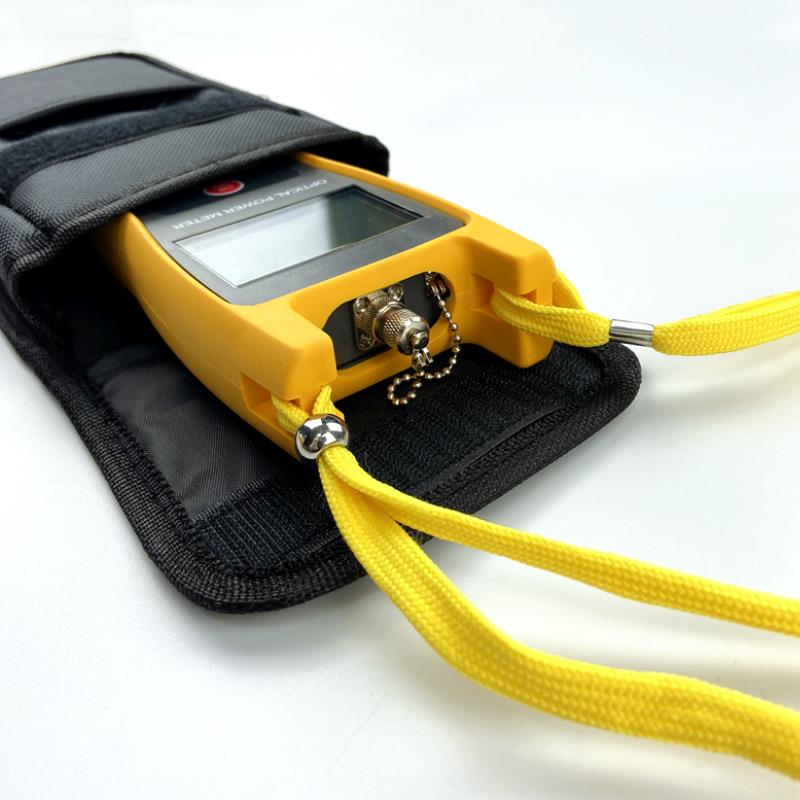

Cotton swabs and soft carrying case
