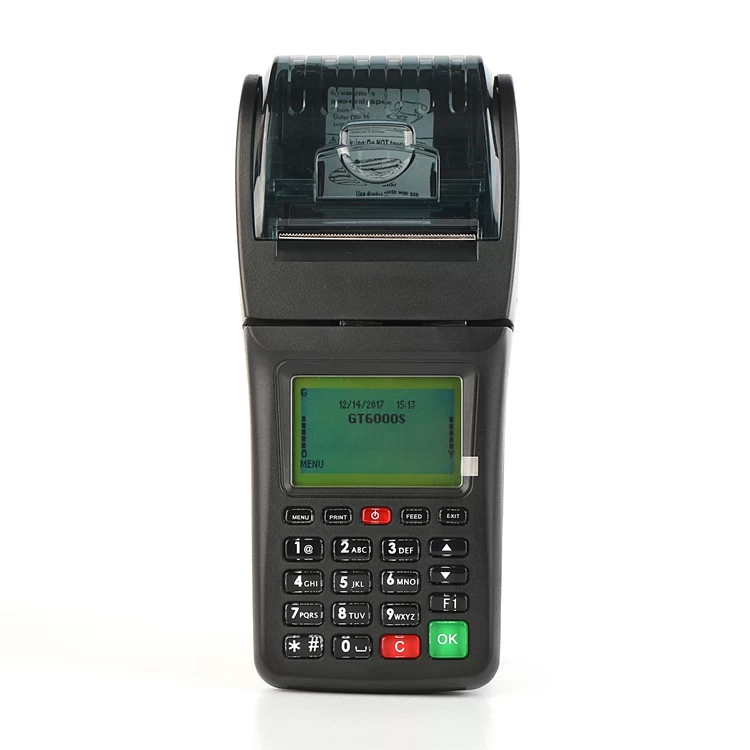

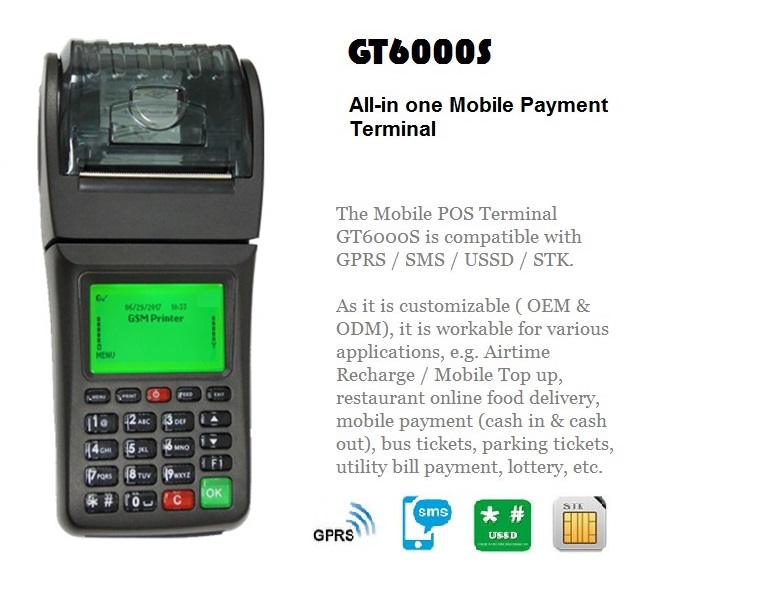

Product Item: Handheld Wireless POS Terminal for Airtime Topup and Mobile Recharge

Model: GT6000S

GPRS SMS Printer GT6000S is portable type.

As it can work with GPRS, SMS, USSD and STK, it is mainly for airtime top up, mobile recharge, restaurant online food delivery, lottery, mobile payment (cash in and cash out), bus tickets printing, parking tickets, etc.

The basic work way for it is to receive remote information from SMS Gateway, or communicate with web server and receive the response from web server.

Main Features:

• OEM & ODM (customizable)
• Connectivity: GPRS, SMS, USSD & STK.
• Firmware and configurations can be REMOTELY update
• Logo customizable
• Multiple language supported (e.g. English, Arabic, Persian, Spanish, Portuguese, Italian, French, Danish, Swedish, Mexican, German, Russian, Polish, Slovak, Vietnamese, Chinese, Greek, etc. (customizable)
• Printed format customizable
• Font size settable
• The restaurant can accept the order and select the expected delivery time, or reject the order and input the reject reasons.
• CE certified
• 1-year-warranty
• With after sales & technical support
• etc.

Connection Mode:  GPRS,  SMS,  USSD,  STK

1) GPRS Mode:

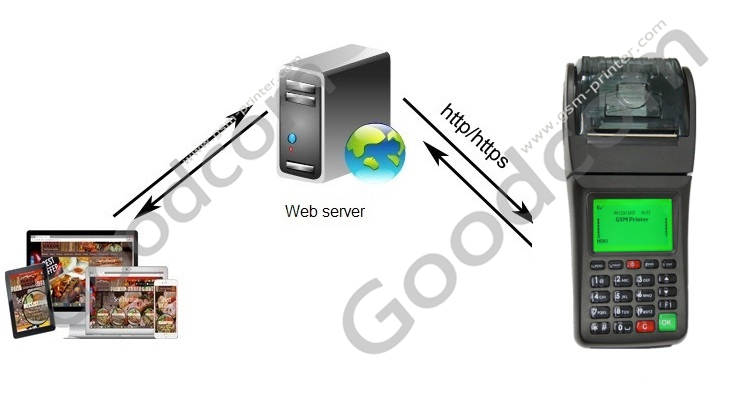

     a. HTTP / HTTPS:

1.  It requires u have your own web server, including the IP address, port, file path, callback URL, etc.
2. The GPRS SMS Printer uses data to communicate with the website, then retrieve the information and  process it accordingly and convert the mark-up data to a complete order. User can accept the order and select the expected delivery (e.g. 15 mins), or reject the order and select the reject reason (e.g. food unavailable).
3. The GPRS SMS Printer can also feedback the confirmation of the order via GPRS and connection to the website server in order to update the website database with the order status.

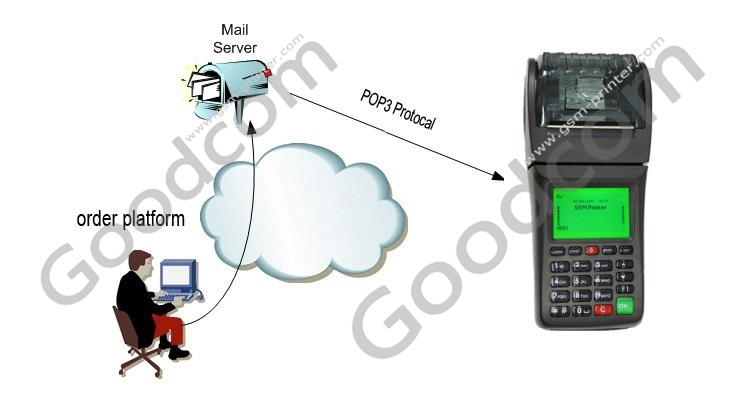

      b. POP3:

1. Customers place the order via mobile phone or  website.
2. The order is generated and send to a specific email account which is used to receive the email orders.
   The printer receives the email and print it out.
3. Restaurant can accept the order and select the expected delivery time (e.g. 15 mins), or reject the order. User can also set the printer to auto print all orders.

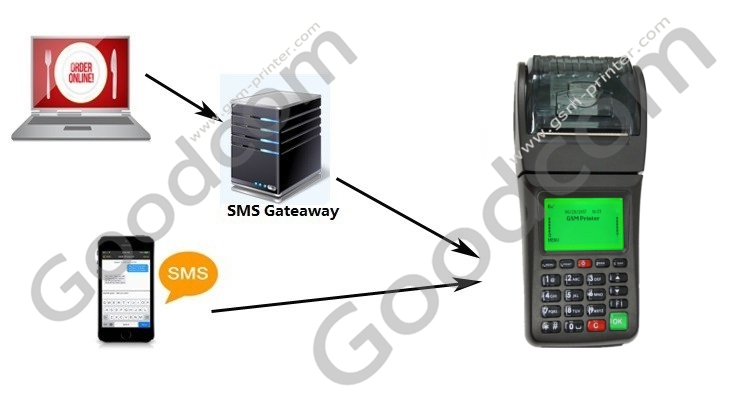

2) SMS Mode:

1. Customers make order via mobile phone or website.
2. GPRS SMS Printer automatically print the order out.
   The user can accept order and select the expected delivery time(e.g. 15mins),  or reject the order and select the reject reason (e.g. food unavailable).
3. Further more, u can also install a GSM modem, and customer places their order via sms. Server forwards order to the SMS Printer located in restaurant kitchen.

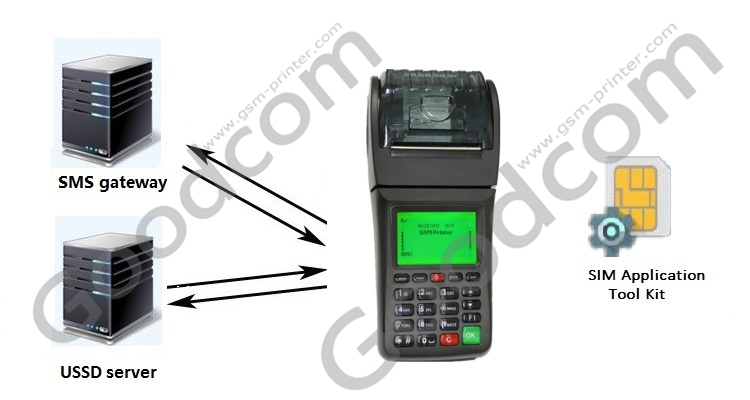

3) USSD Mode:

     For USSD mode, the SIM card should support USSD.  The printer has supported dial out USSD

     code. When there is any messages that is received from the USSD server, the printer can print

     them out automatically.

4) STK Mode:

    The SIM card that is inserted to printer should support STK ( SIM Tool Kit). When the printer receives the messages, it can print them out automatically.
