HC02 motor thermal protector for wiper motor
Whether the wiper motor is in good condition determines whether the wiper can work normally. In order to ensure driving safety, we will install a thermal protector in the wiper motor. It can effectively prevent the damage of the wiper motor due to excessive temperature and excessive current, thereby prolonging the service life of the wiper motor and increasing the safety. HC02 bimetal motor thermal protector is designed for wiper motor.
Features
Small size, long life and high reliability.
Excellent protection against overload, plugging turn or short-circuit over-current.
Set overload trip current according to the customer request,up to 30A.
Accurate trip off time can prevent motor from overheating(4〜10s).
Each type of parts strictly implemented European ROHS environmental standards.
Terminals are optional and customized.
Specifications
|
Item No.
|
HC02
|
|
Electrical specifications
|
1~30 amps/15 volts DC
|
|
1~15 amps/30 volts DC
|
|
1~30 amps/250 volts AC
|
|
1~30 amps/125 volts AC
|
|
Operating temperature range
|
60°C~180°C
|
|
Temperature tolerance
|
± 8°C, ± 10°C
|
|
Trip off current range
|
1-30A
|
|
Trip off time
|
4~10s
|
|
Case material
|
Plastic
|
|
Case size(mm)
|
11.15*8*3.6
|
|
Wire
|
Optional and customized
|
Applications
 |
 |
 |
 |
| Baby stroller motors |

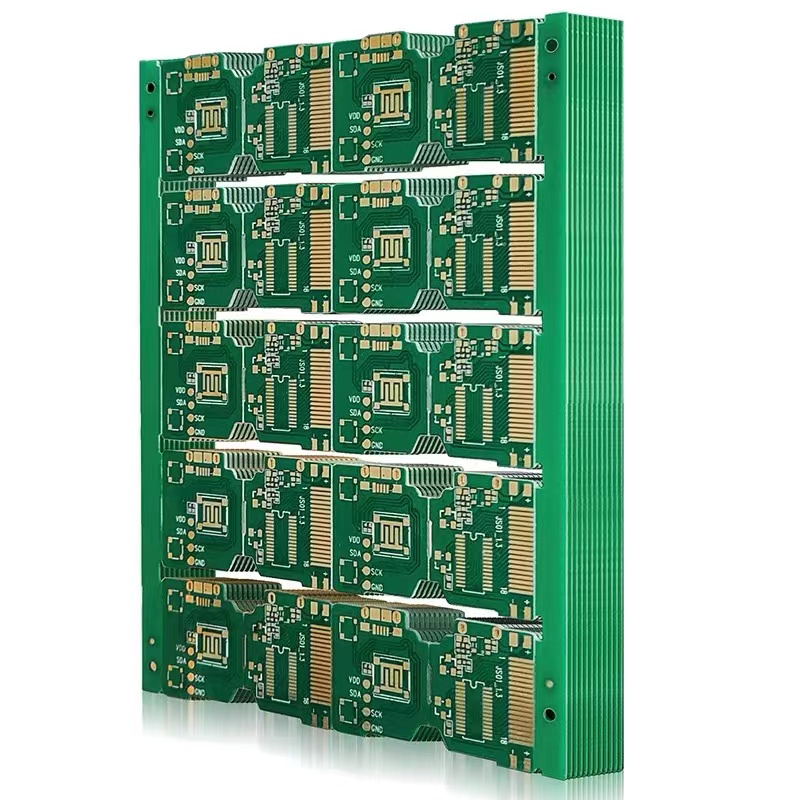

Circuit boards |

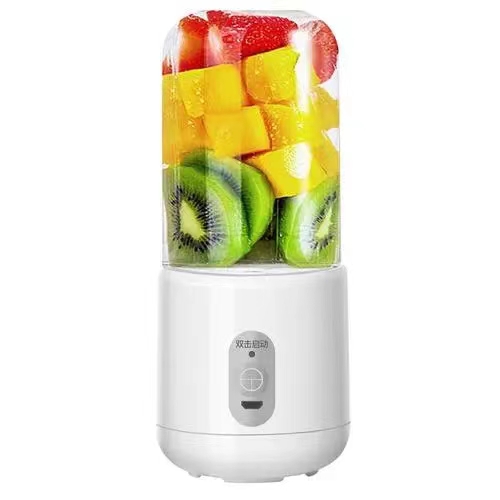

Juicers |

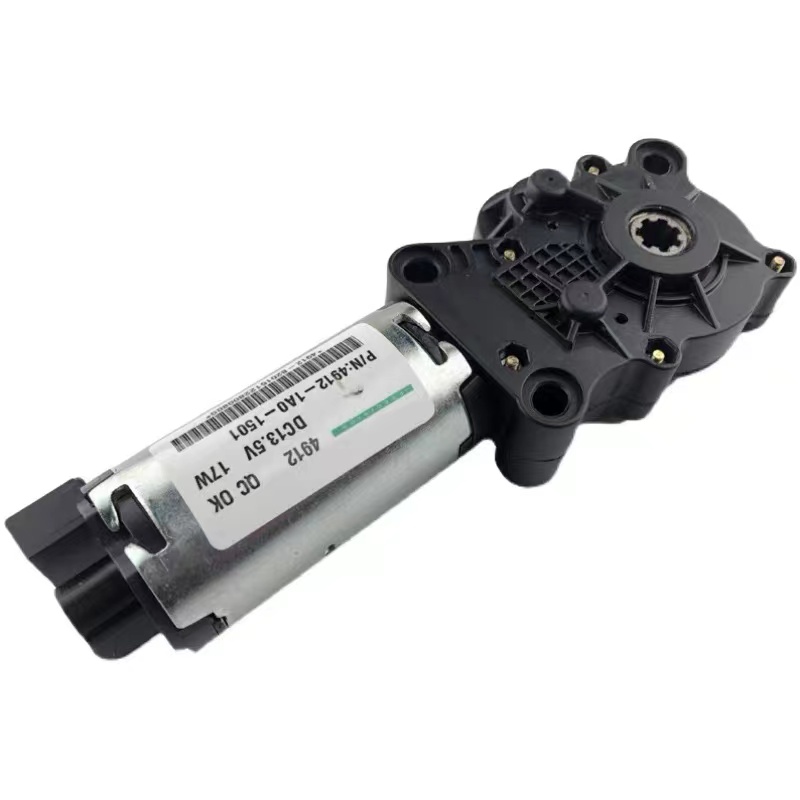

Seat motors |
 |
 |
 |
 |

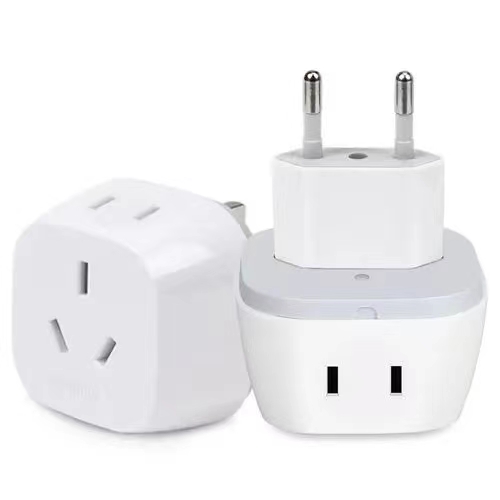

| Travel sockets |

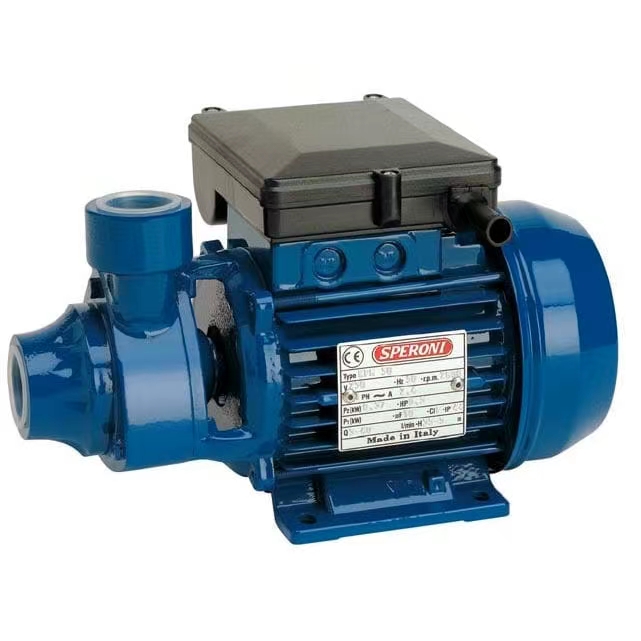

Water pumps |

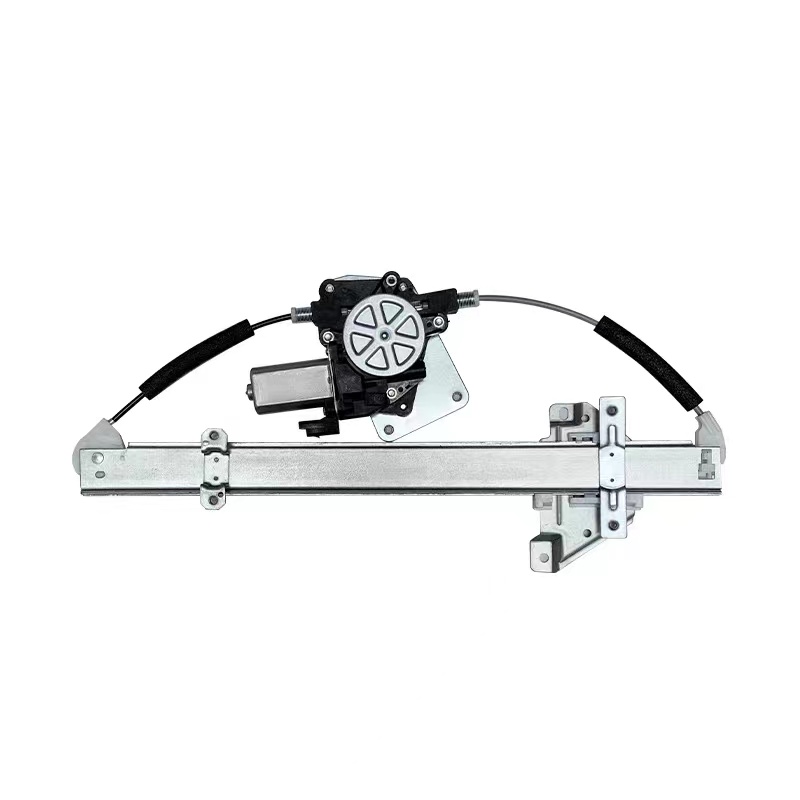

Window motors |

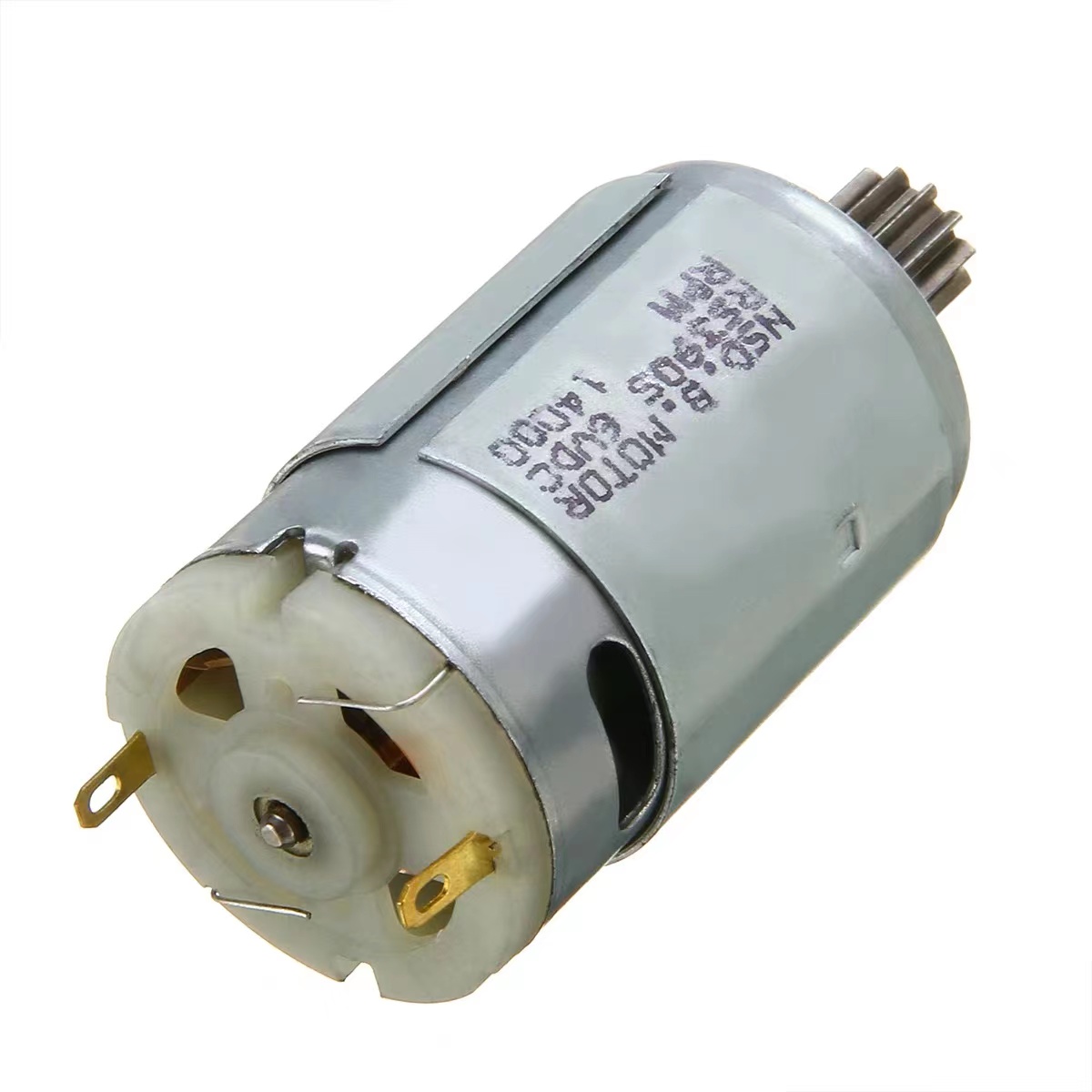

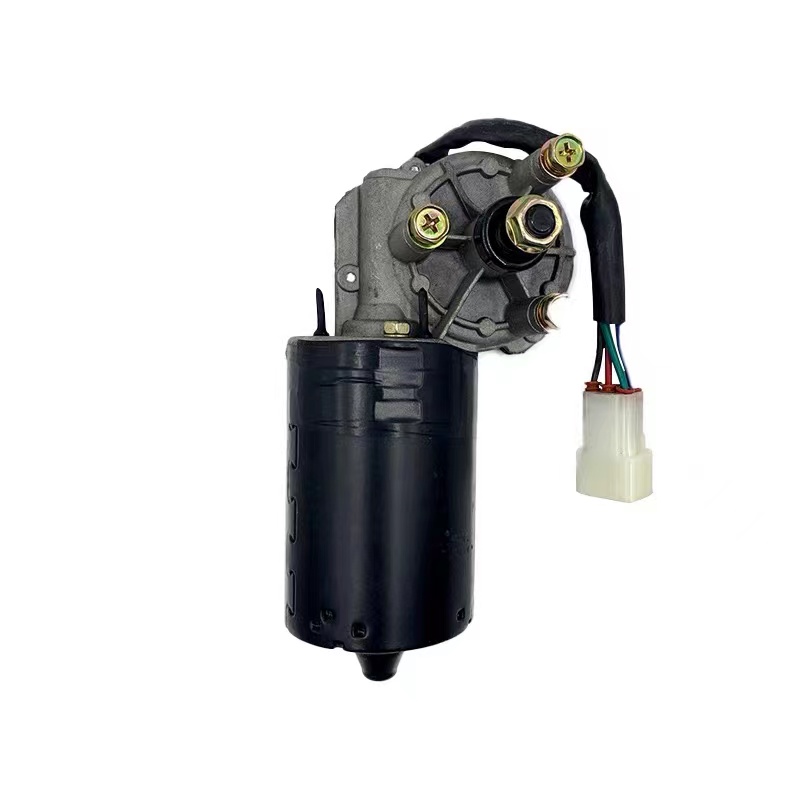

Wiper motors |

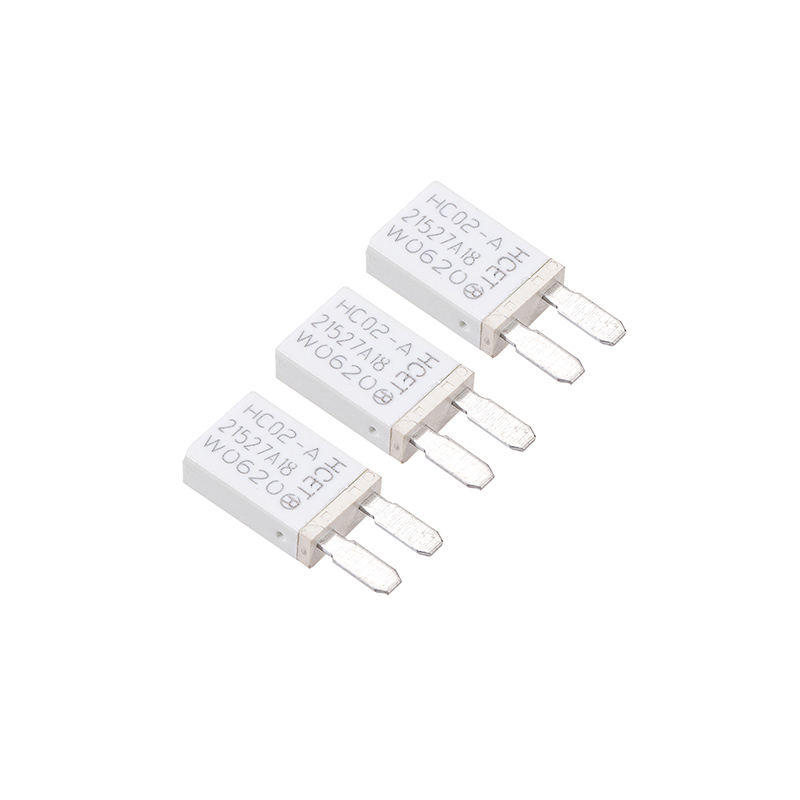

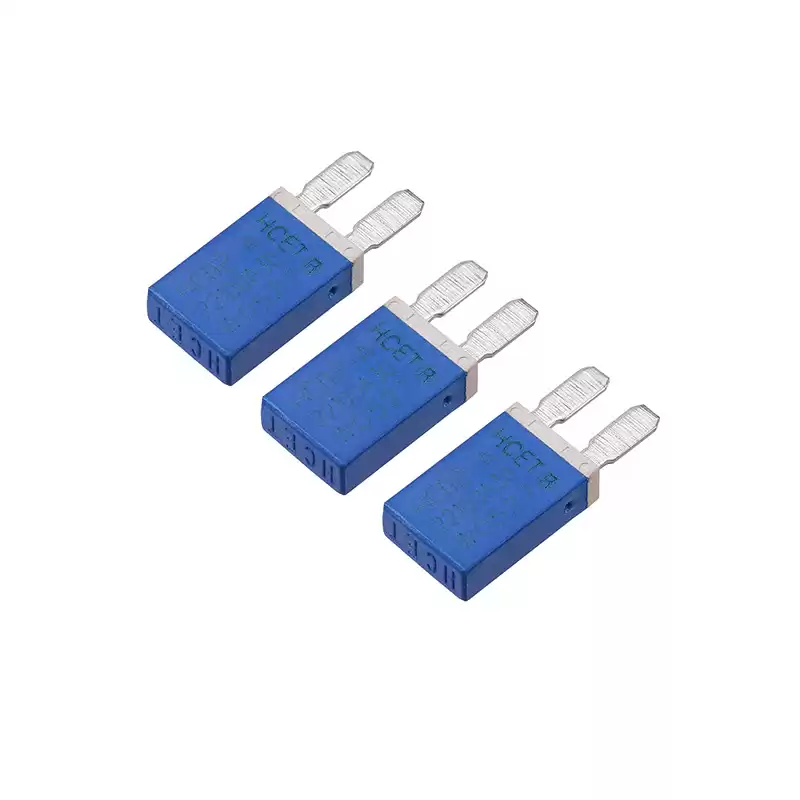

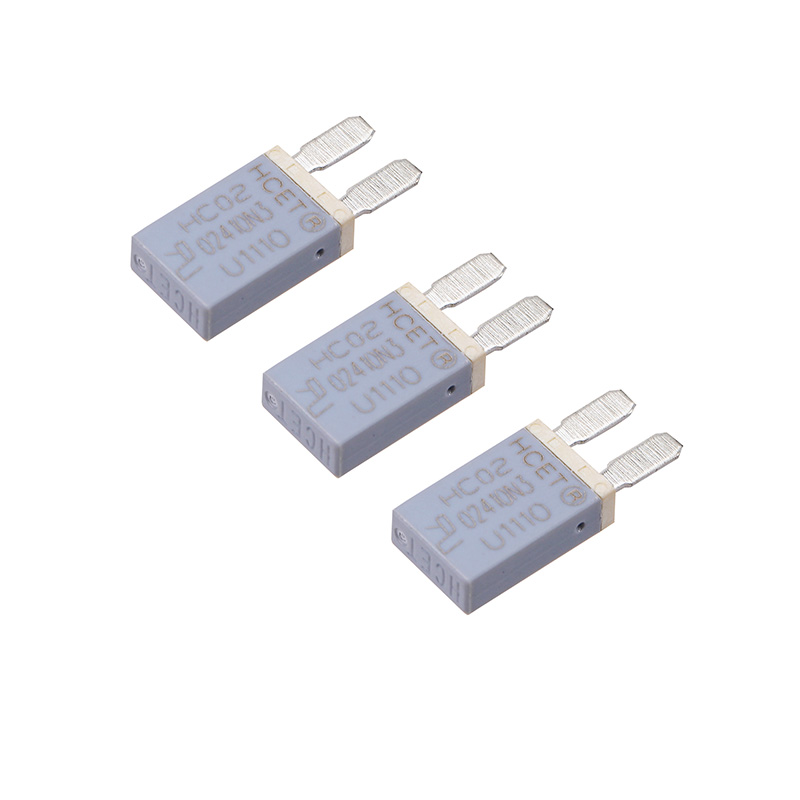

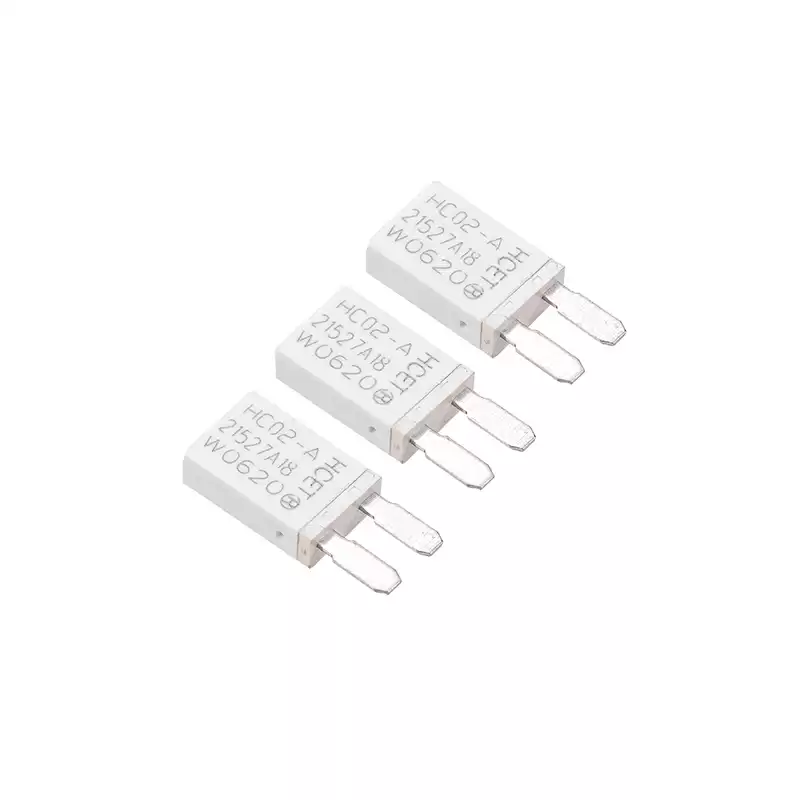

Product display

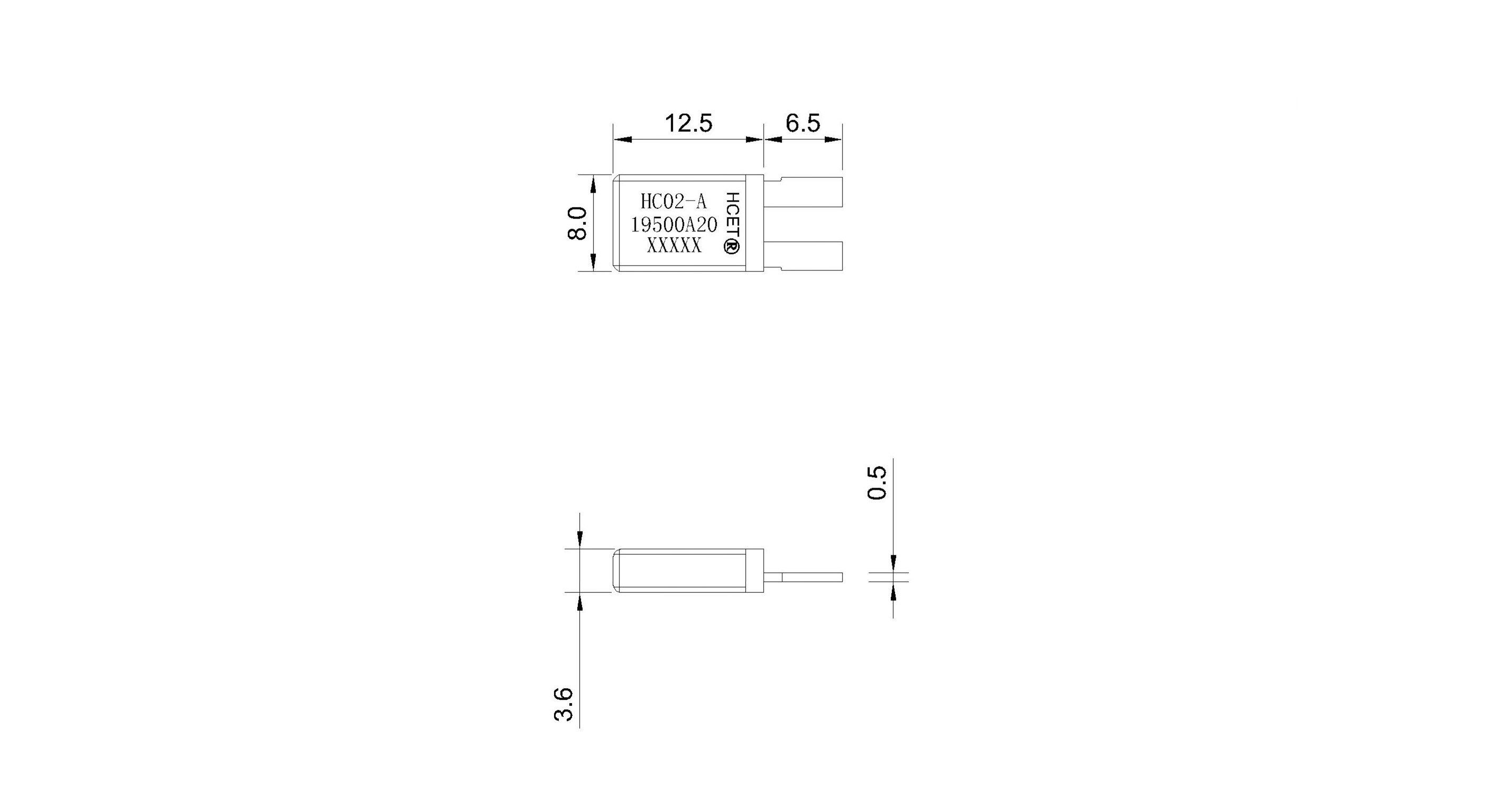

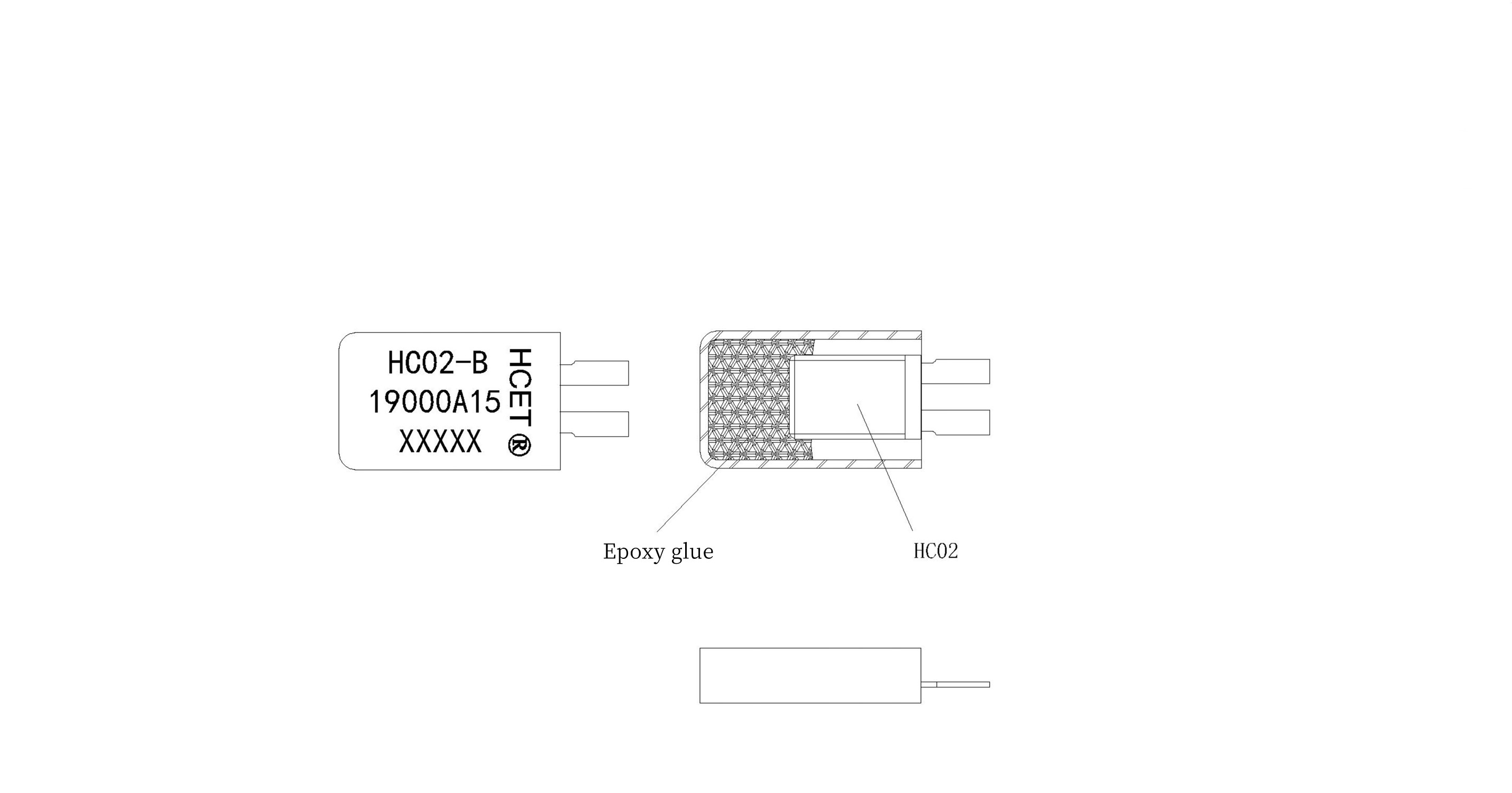

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.
