HCET-B temperature control switch for motors&pumps&power tools
Some garden equipment such as lawnmowers, snowplows, large vacuum cleaners and so on have safety hazards during our use. If the motor overheats, it can be dangerous.The HCET-B series overheating temperature protector improves the safety of our use of these products.Overheating temperature switches are everywhere in our lives.
Features
Both temperature and current sensitive.
With hand-reset function.
Set overload trip current according to the customer request,up to 35A.
Accurate trip off time can prevent motor from overheating (3〜8s).
Small size, insulation shell make it more flexible and easy to install.
Each type of parts strictly implemented European ROHS environmental standards.
Specifications
|
Item No.
|
HCET-B
|
|
Electrical specifications
|
30 amps/15 volts DC
|
|
15 amps/30 volts DC
|
|
15 amps/250 volts AC
|
|
30 amps/125 volts AC
|
|
Operating temperature range
|
50°C-180°C
|
|
Temperature tolerance
|
± 5°C, ± 8°C
|
|
Trip off current range
|
1-35A
|
|
Trip off time
|
3-8s.(according to customer's requirements)
|
|
Case material
|
Plastic
|
|
Case size(mm)
|
20*8.5*4.4
|
|
Wire
|
Optional and customized
|
Applications
 |
 |
 |
 |

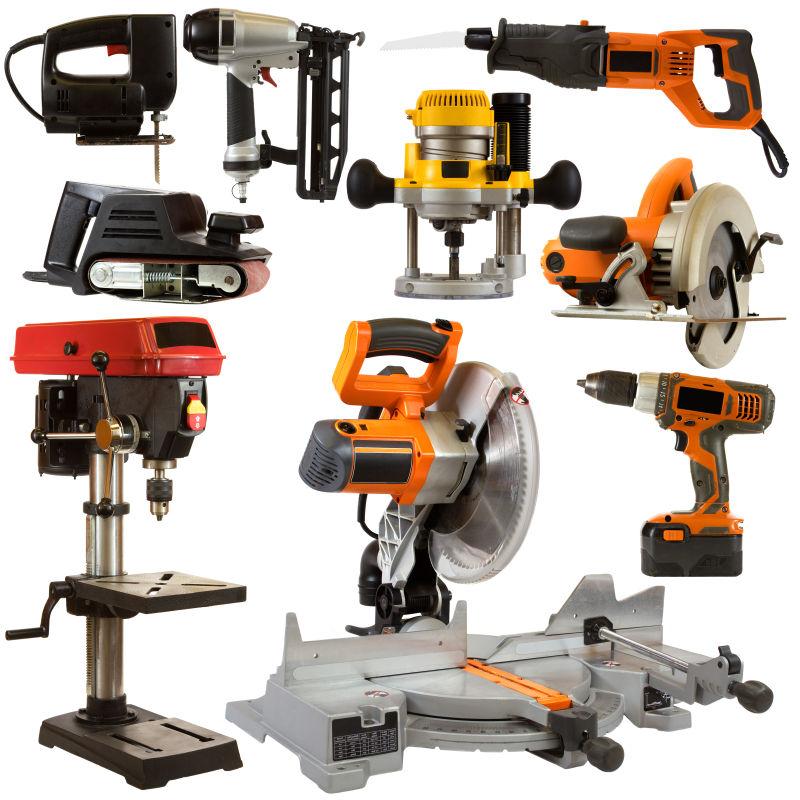

| Electric tools |

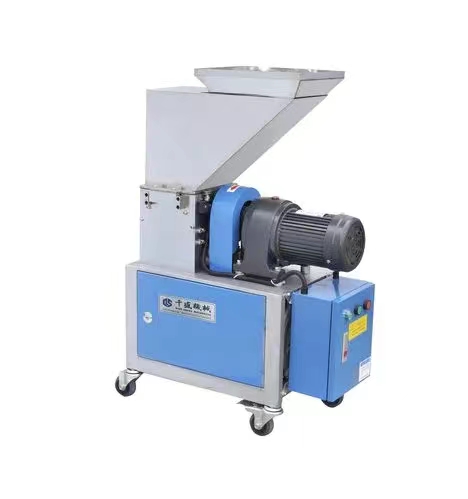

Grinders |

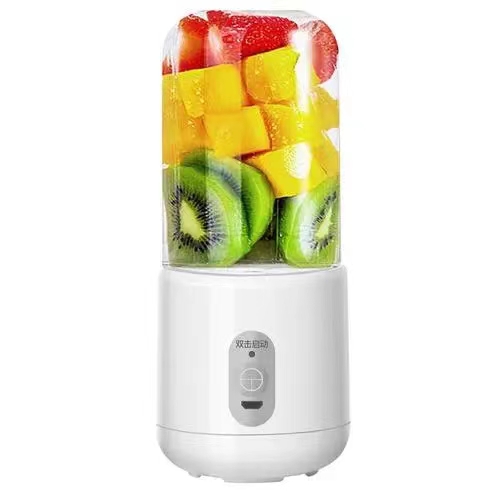

Juicers |

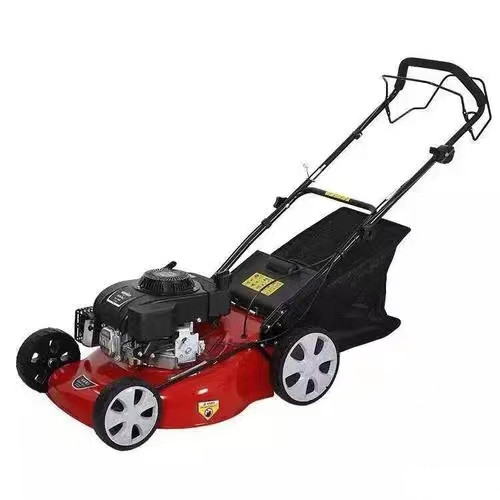

Lawn mowers |
 |
 |
 |
 |

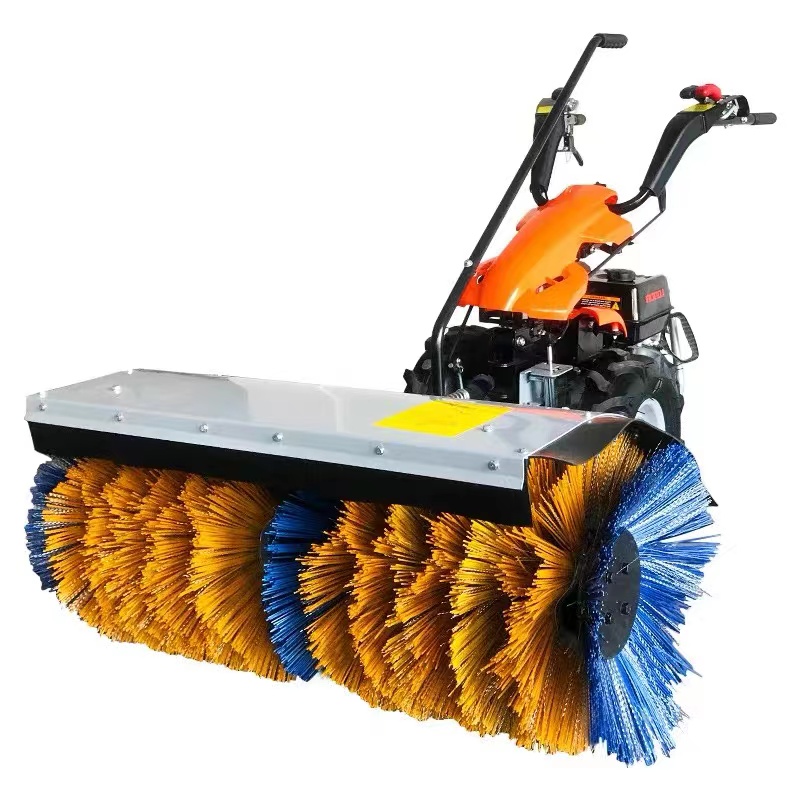

| Snowplows |

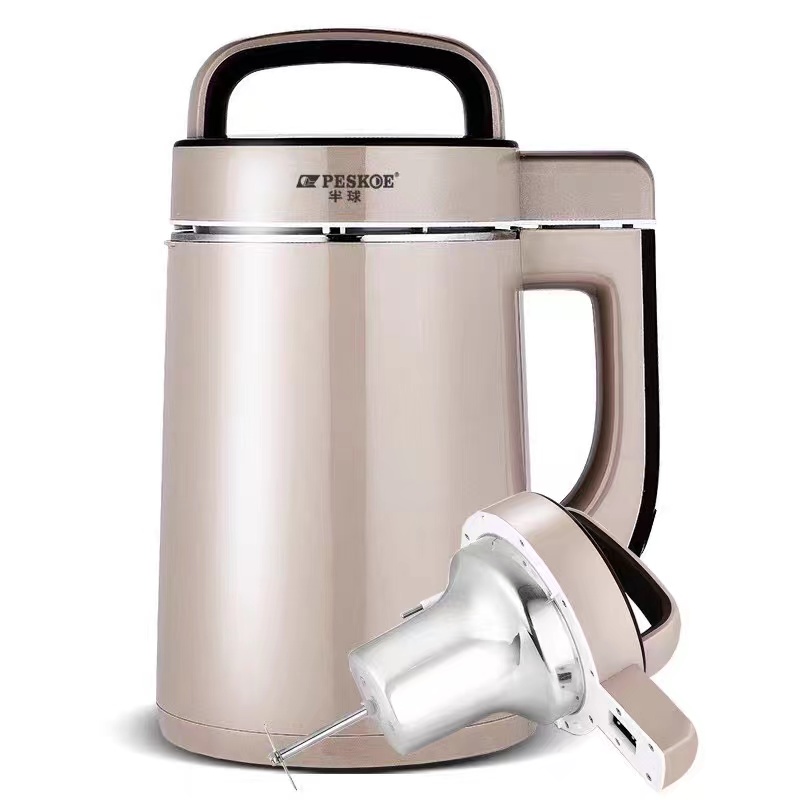

Soybean milk machines |

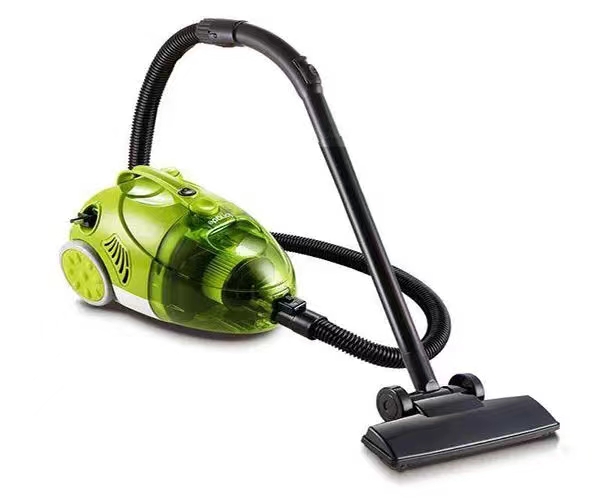

Vacuum cleaners |

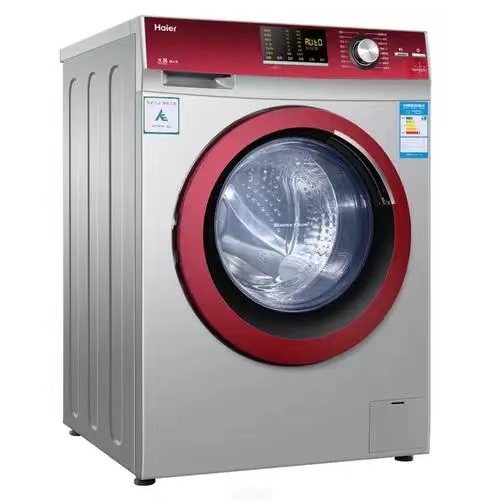

Washing machines |

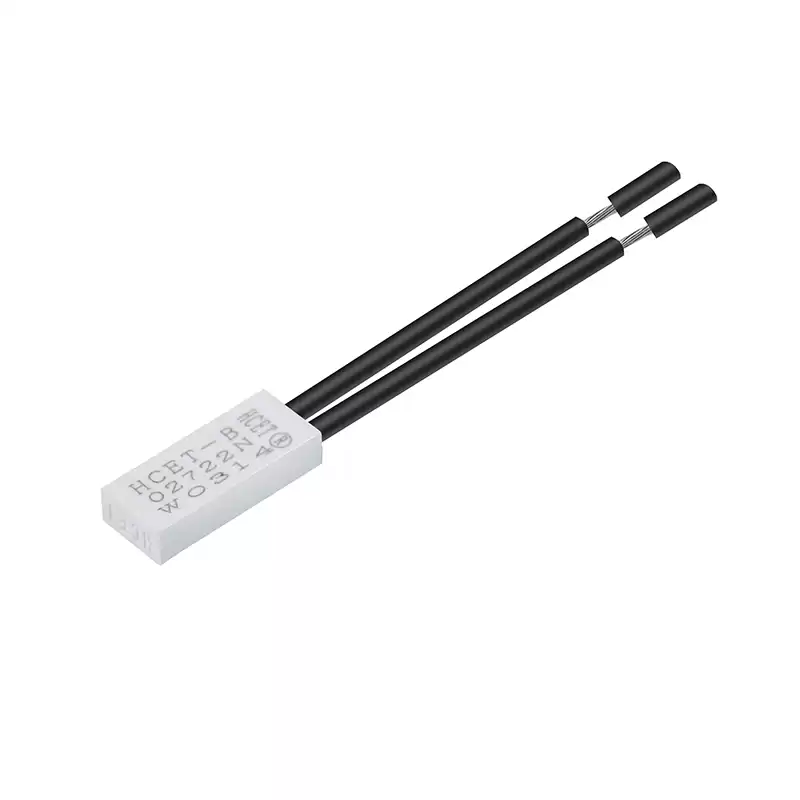

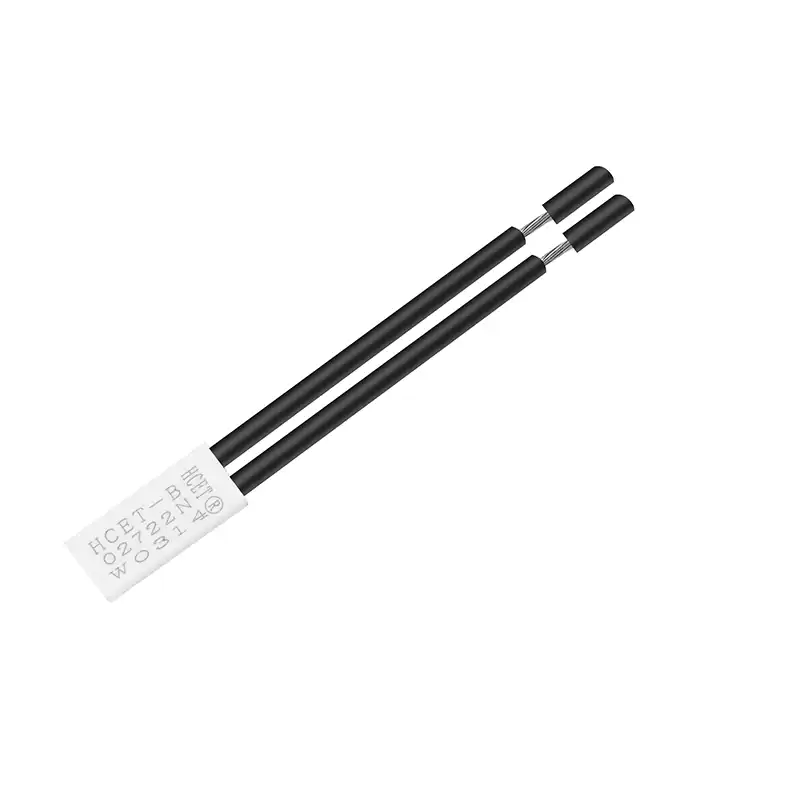

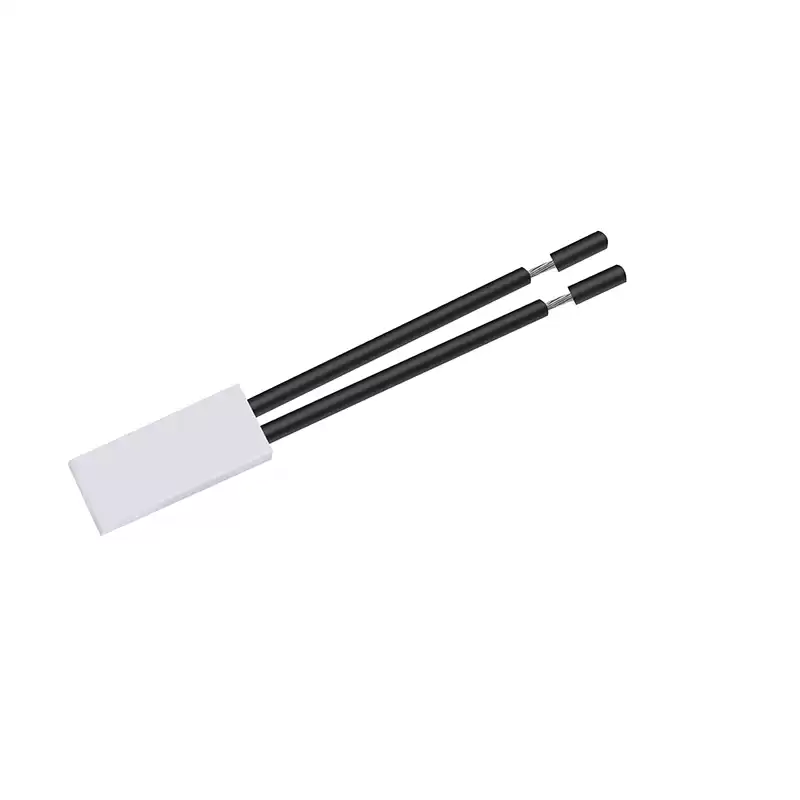

Product display

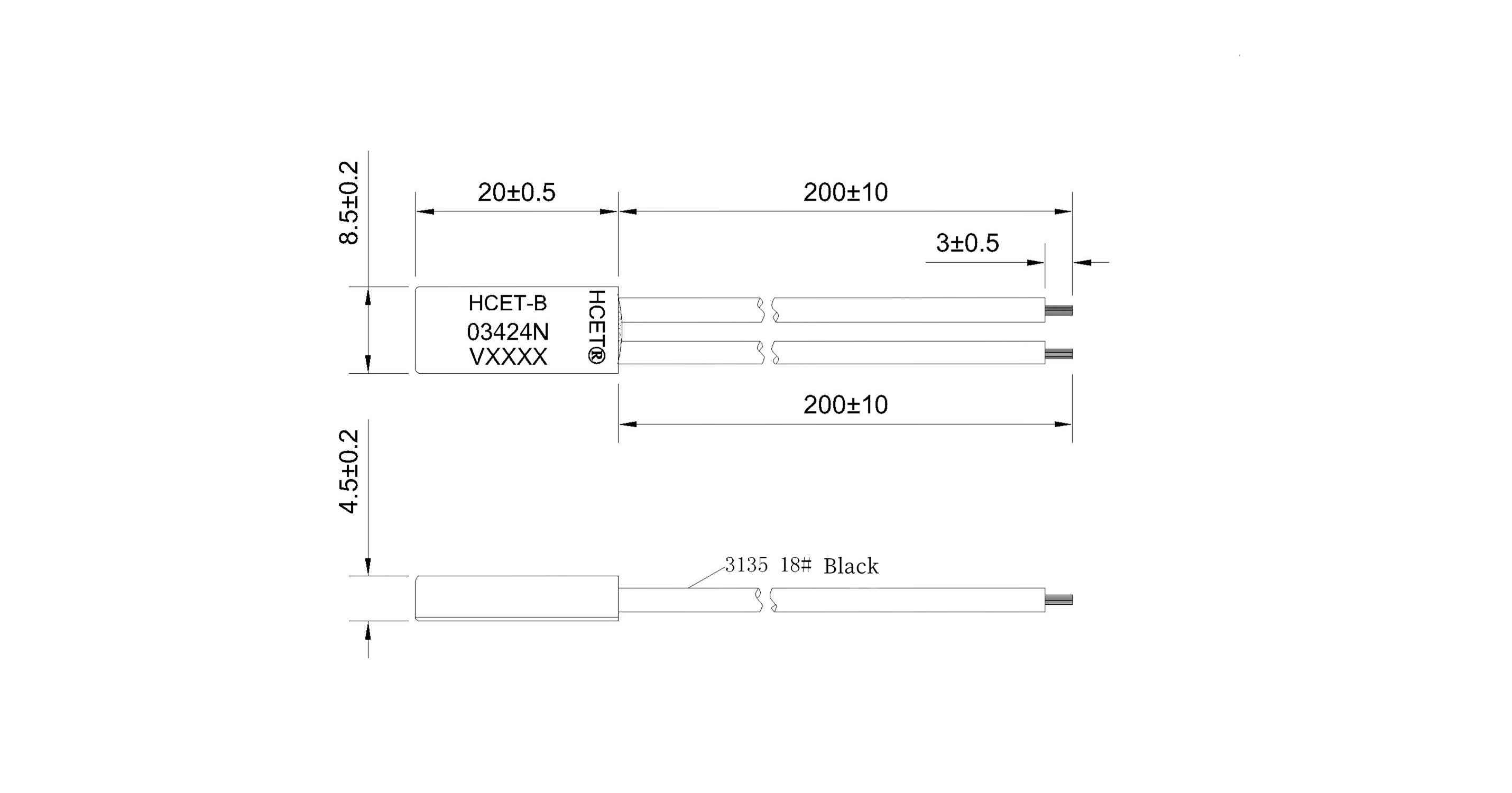

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.

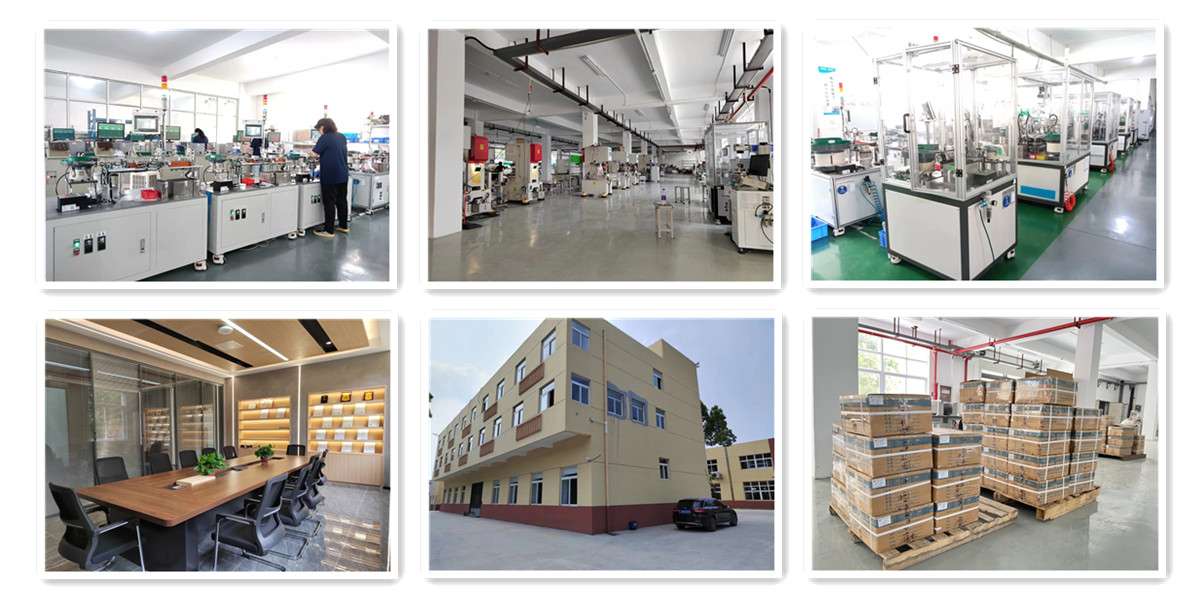

Factory display
