HCET-B series bimetal motor protector for pumps and motors
With the development of technology,the application range of electric motors is becoming more and more extensive,especially the use of electric motors in daily life and production is becoming more and more important.Motor is an indispensable part in many occasions,but the accidents caused by motor burning also happens from time to time.Motor burning is mainly caused by the following reasons:motor overheating,overload,broken equal. With the motor protector for electric motors, these accidents are avoided and we are guaranteed safety when using the equipment. HCET-B motor overheating protector plays a big role in this field.
Features
Both temperature and current sensitive.
With hand-reset function.
Set overload trip current according to the customer request,up to 35A.
Accurate trip off time can prevent motor from overheating (3〜8s).
Small size, insulation shell make it more flexible and easy to install.
Each type of parts strictly implemented European ROHS environmental standards.
Specifications
|
Item No.
|
HCET-B
|
|
Electrical specifications
|
30 amps/15 volts DC
|
|
15 amps/30 volts DC
|
|
15 amps/250 volts AC
|
|
30 amps/125 volts AC
|
|
Operating temperature range
|
50°C-180°C
|
|
Temperature tolerance
|
± 5°C, ± 8°C
|
|
Trip off current range
|
1-35A
|
|
Trip off time
|
3-8s.(according to customer's requirements)
|
|
Case material
|
Plastic
|
|
Case size(mm)
|
20*8.5*4.4
|
|
Wire
|
Optional and customized
|
Applications
 |
 |
 |
 |

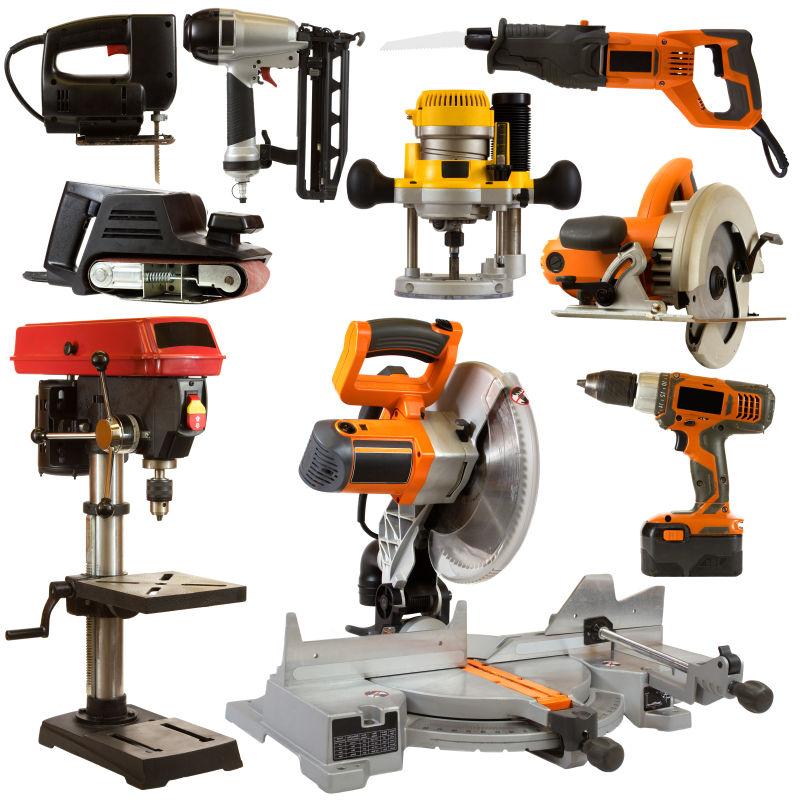

| Electric tools |

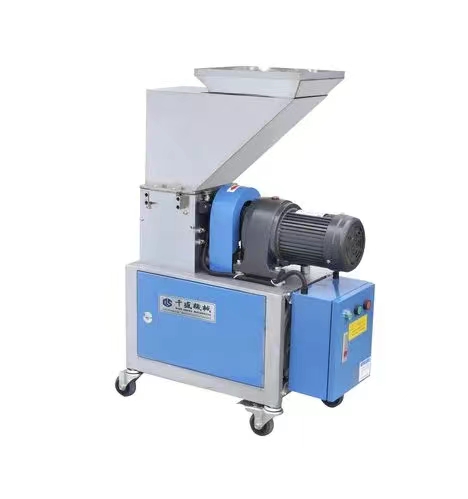

Grinders |

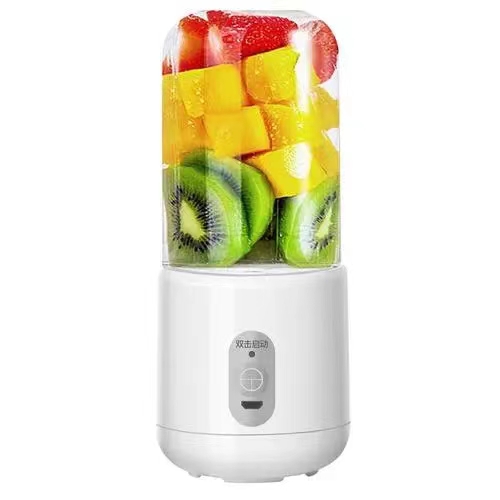

Juicers |

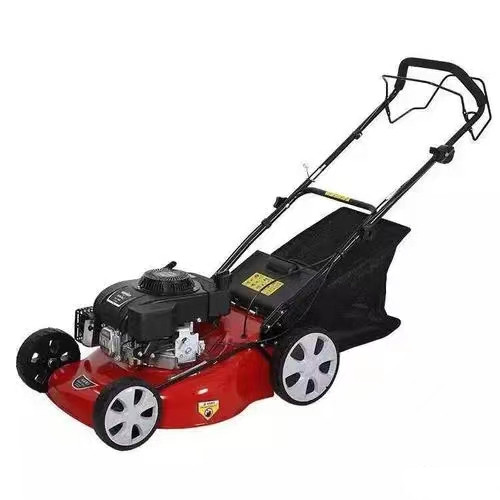

Lawn mowers |
 |
 |
 |
 |

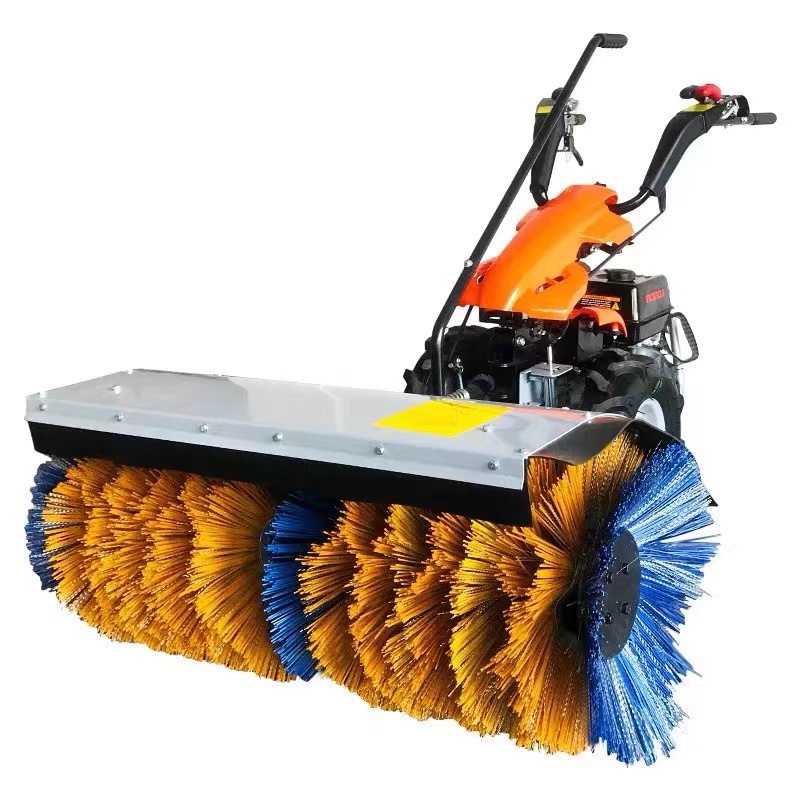

| Snowplows |

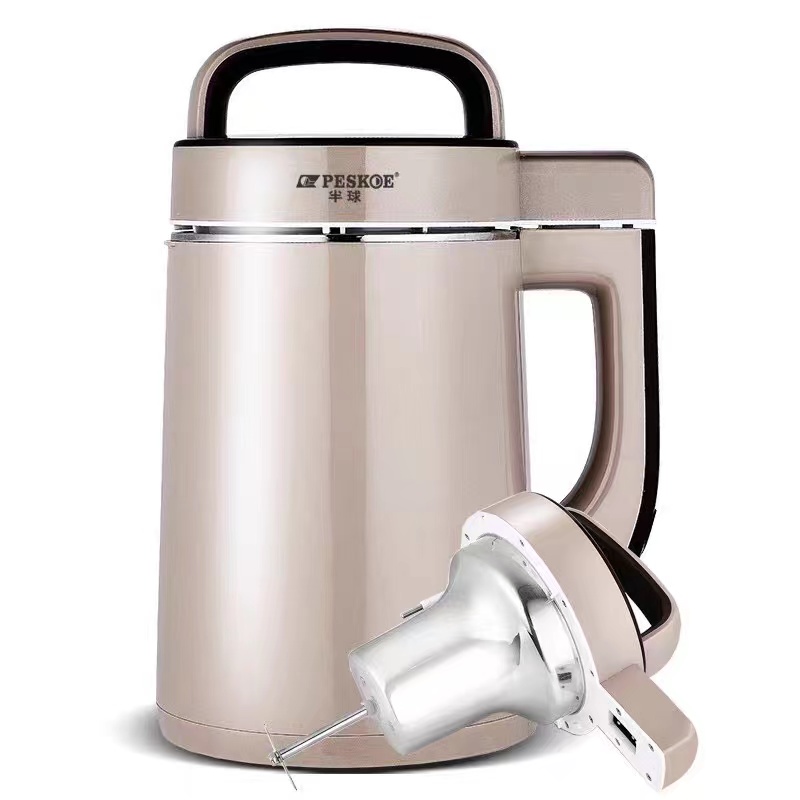

Soybean milk machines |

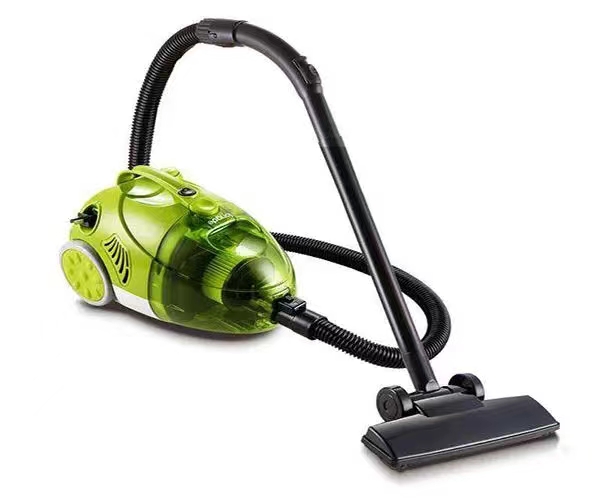

Vacuum cleaners |

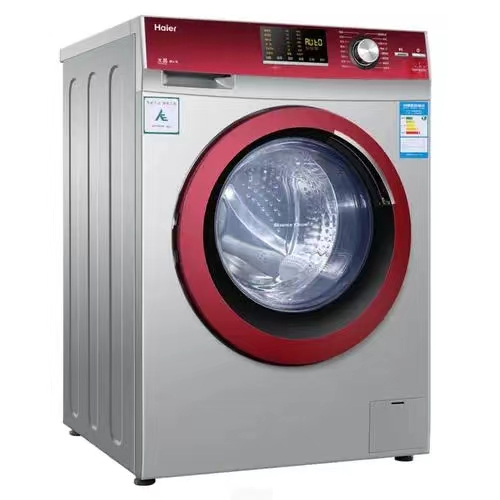

Washing machines |

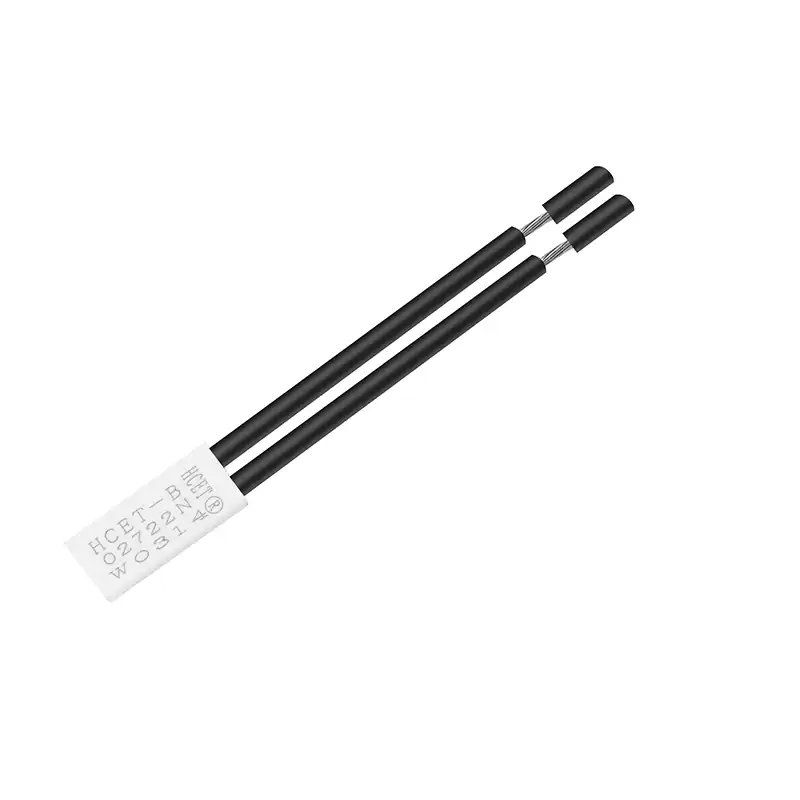

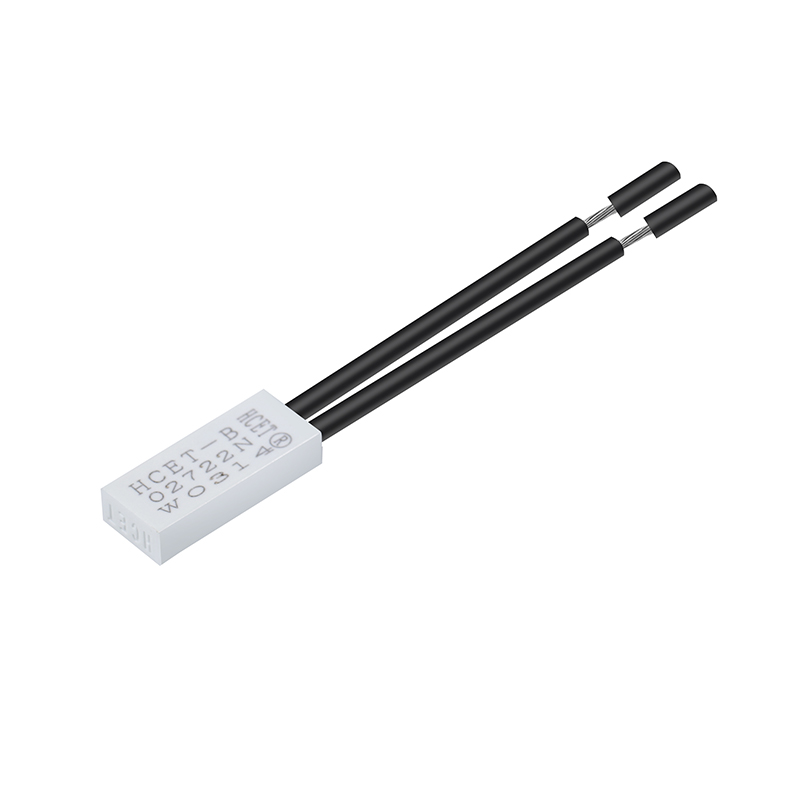

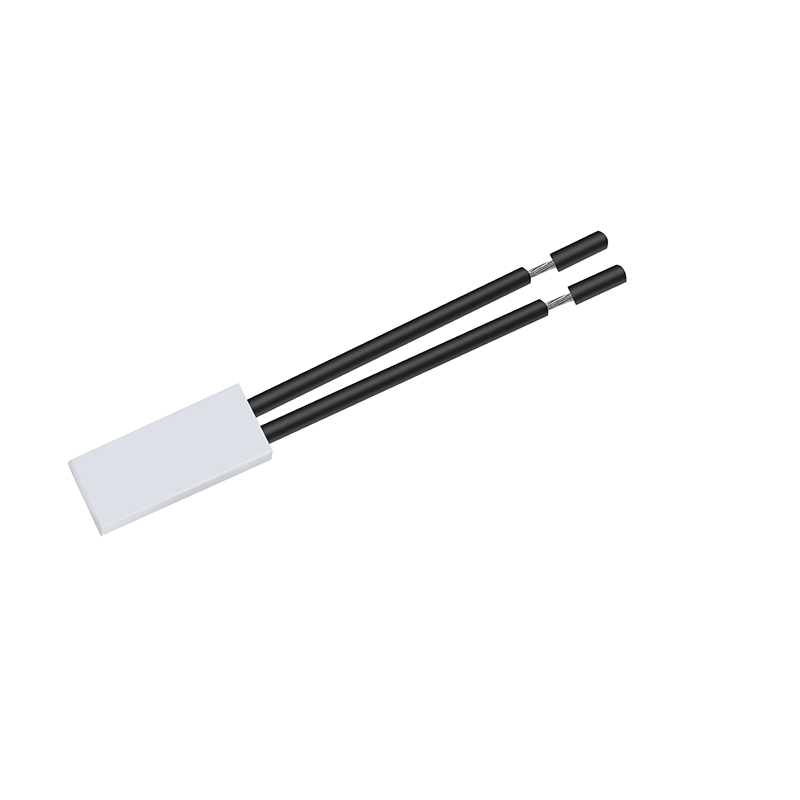

Product display

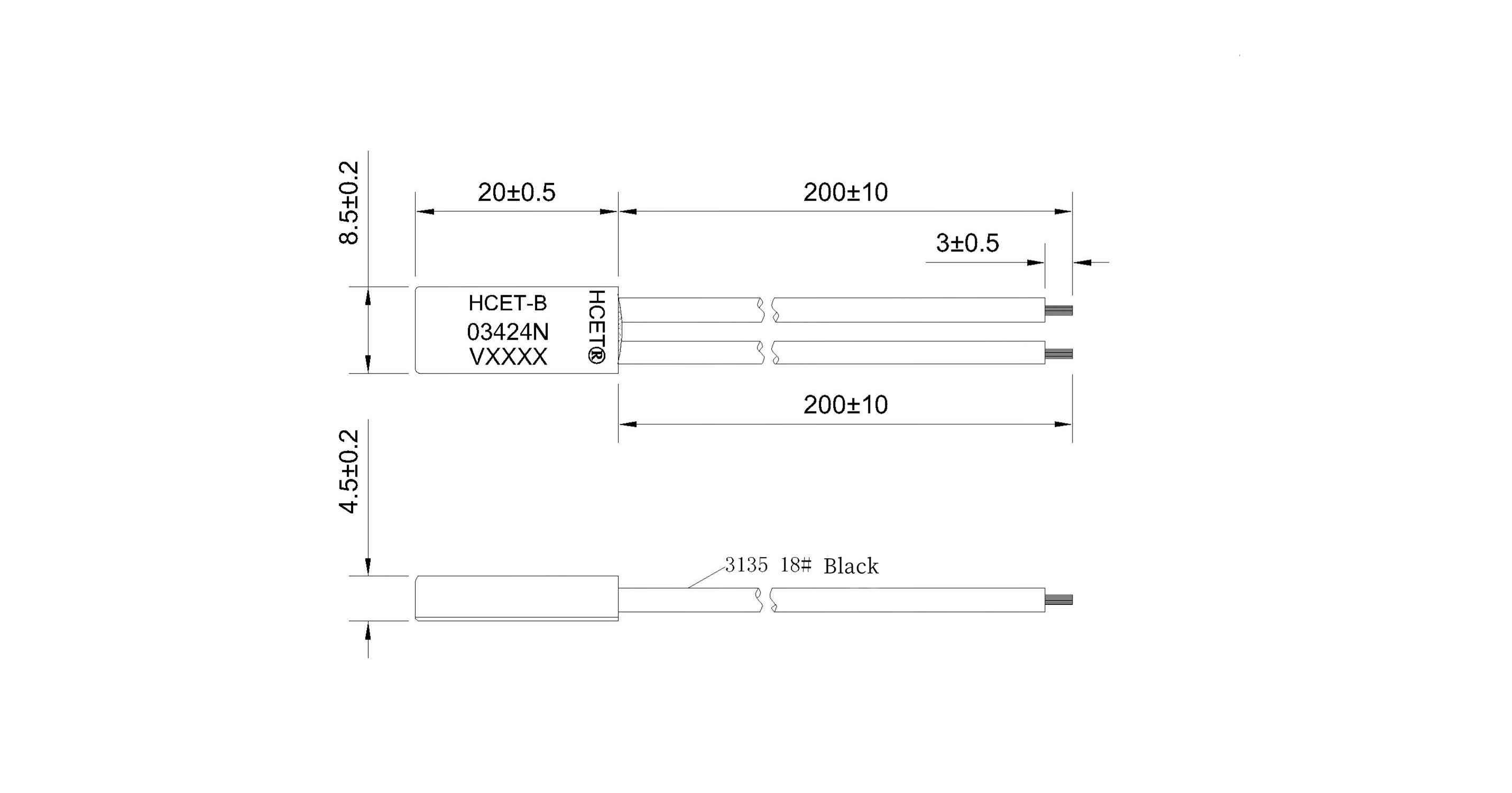

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.

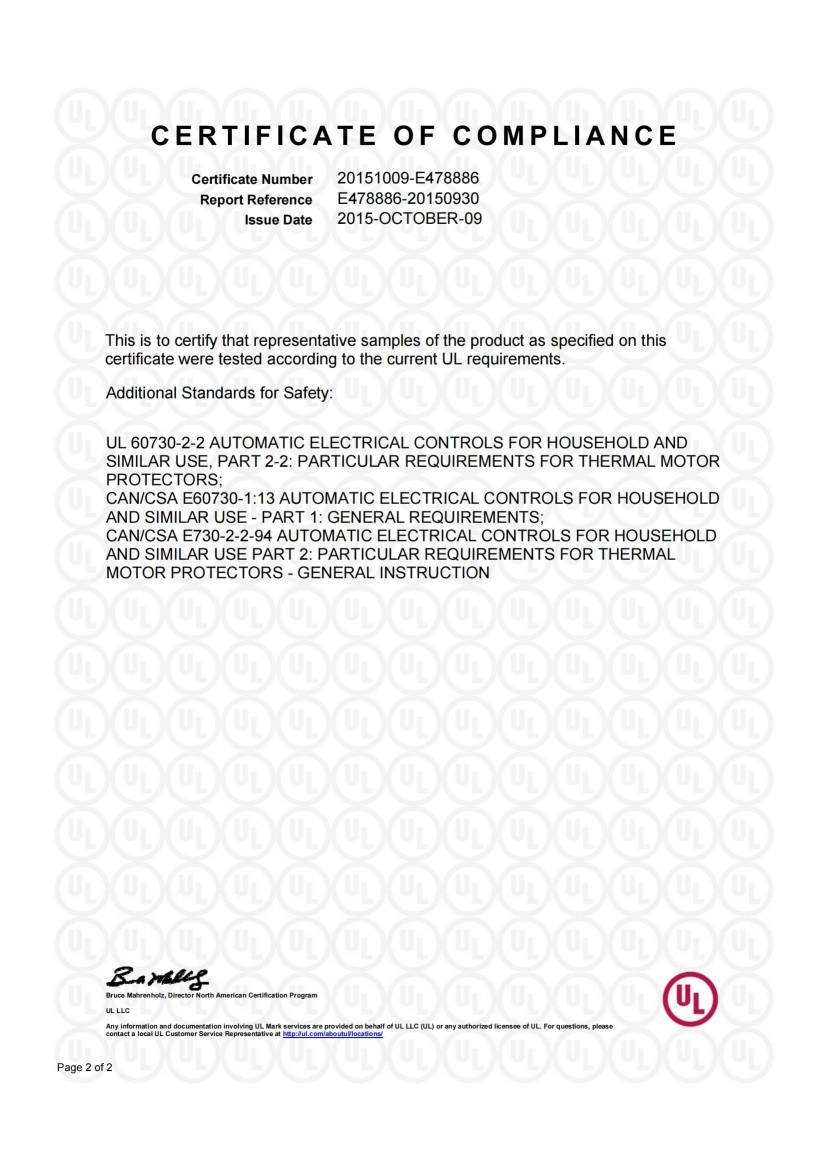

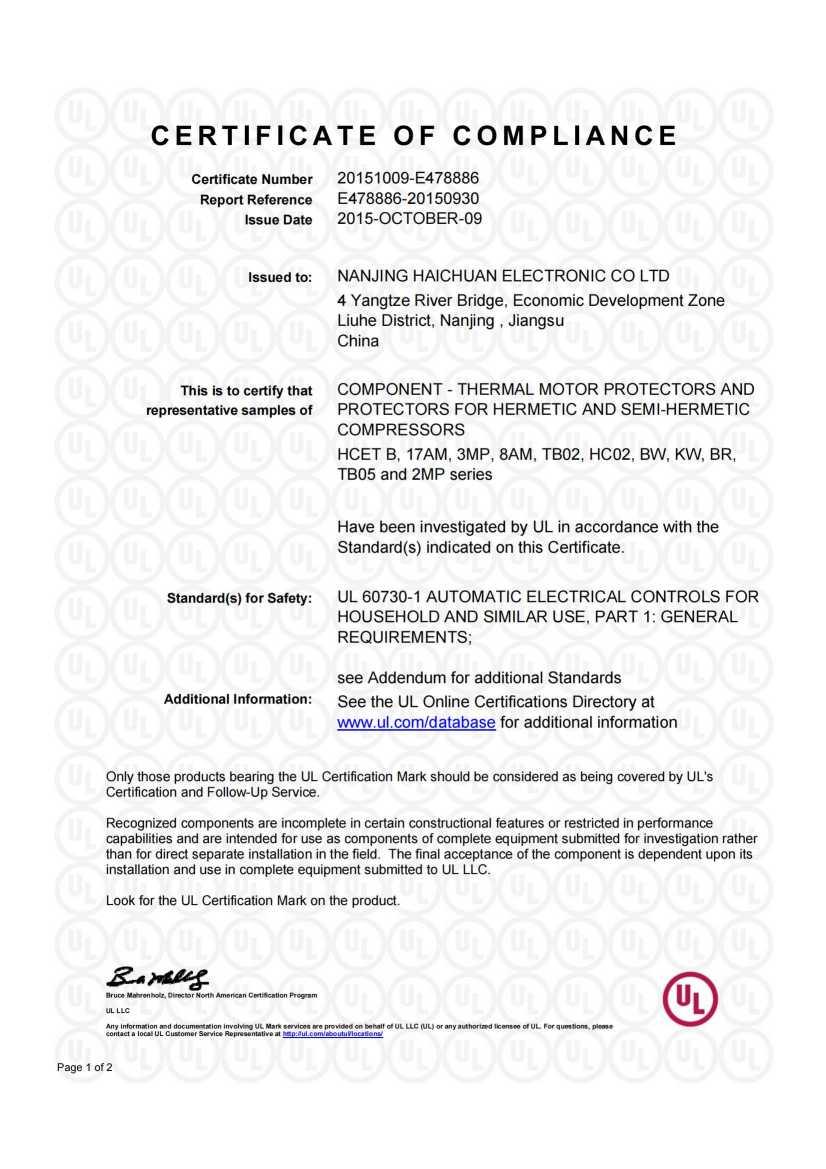

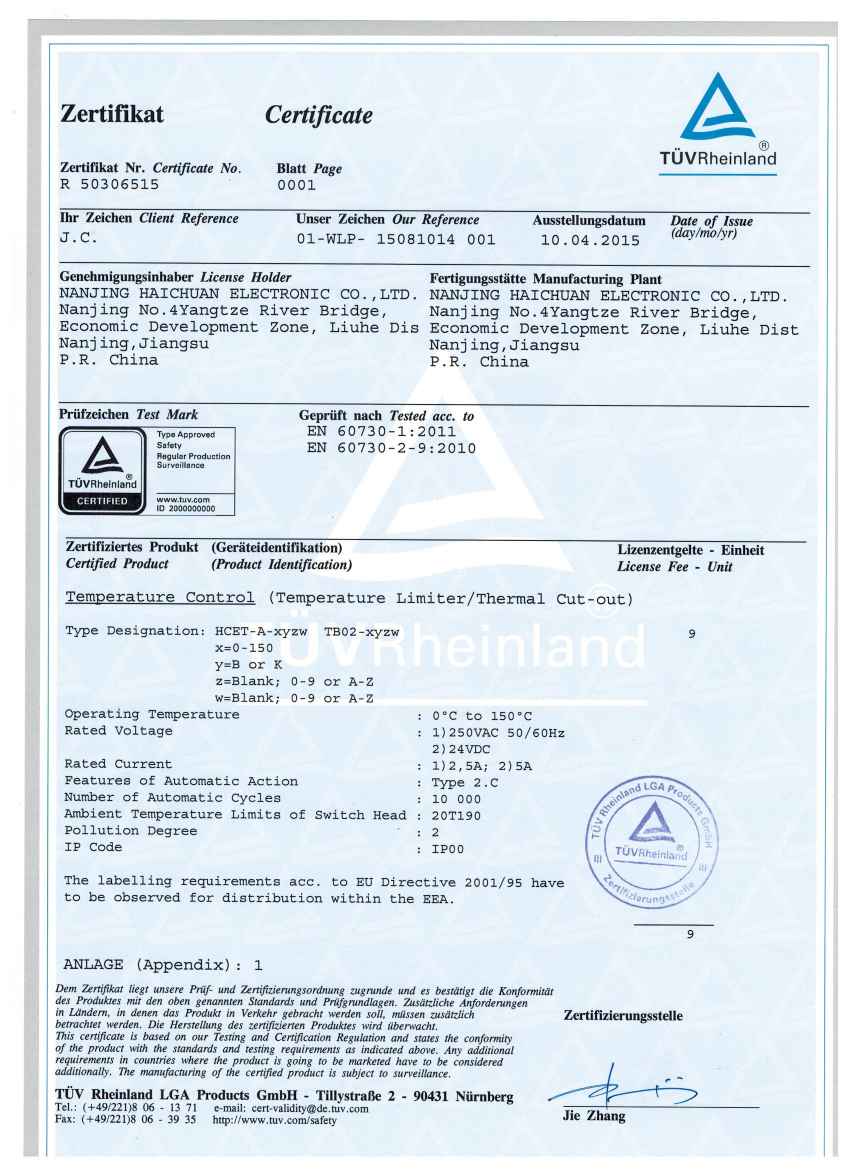

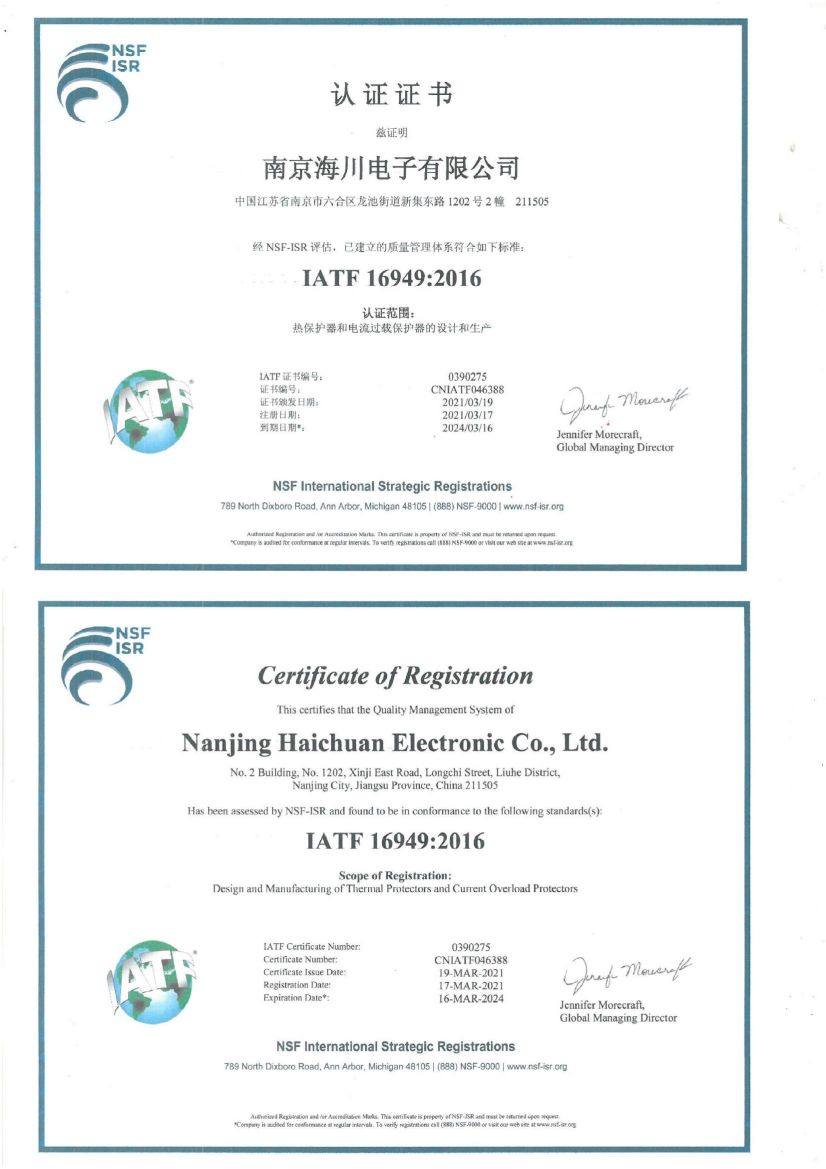

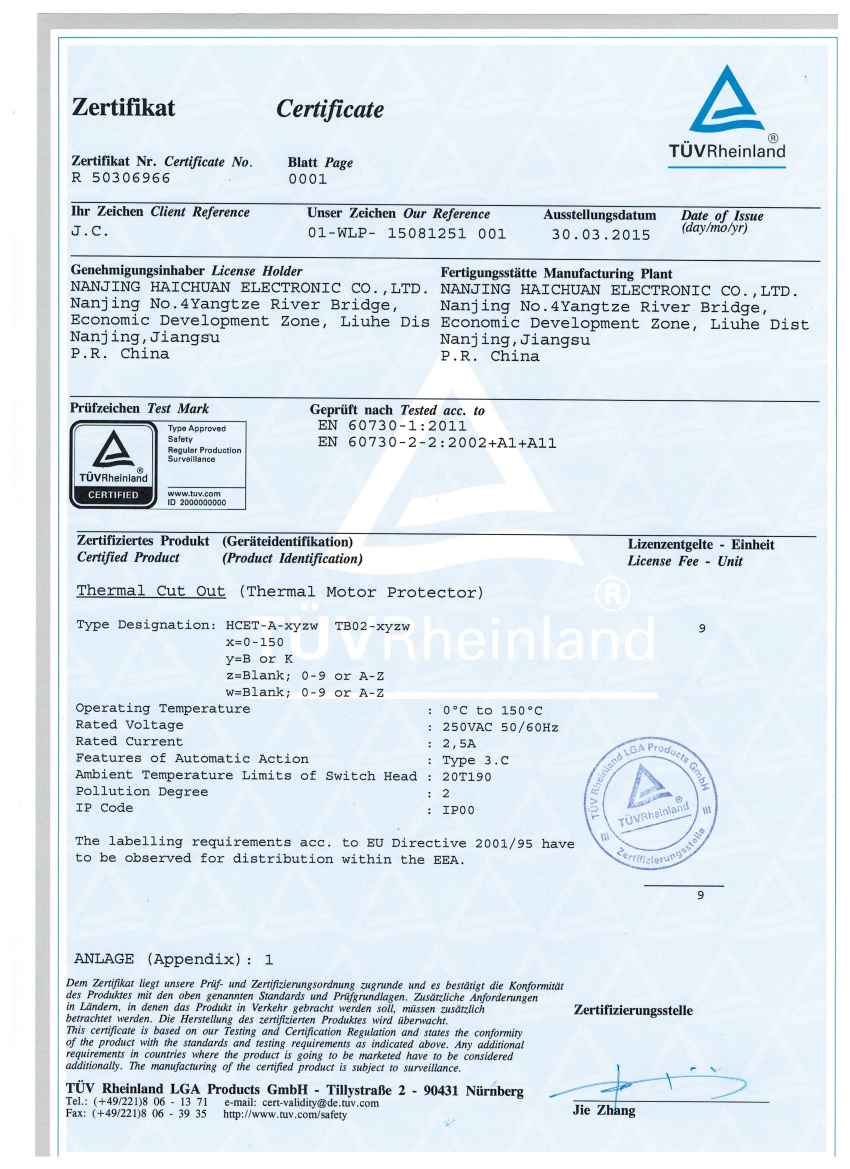

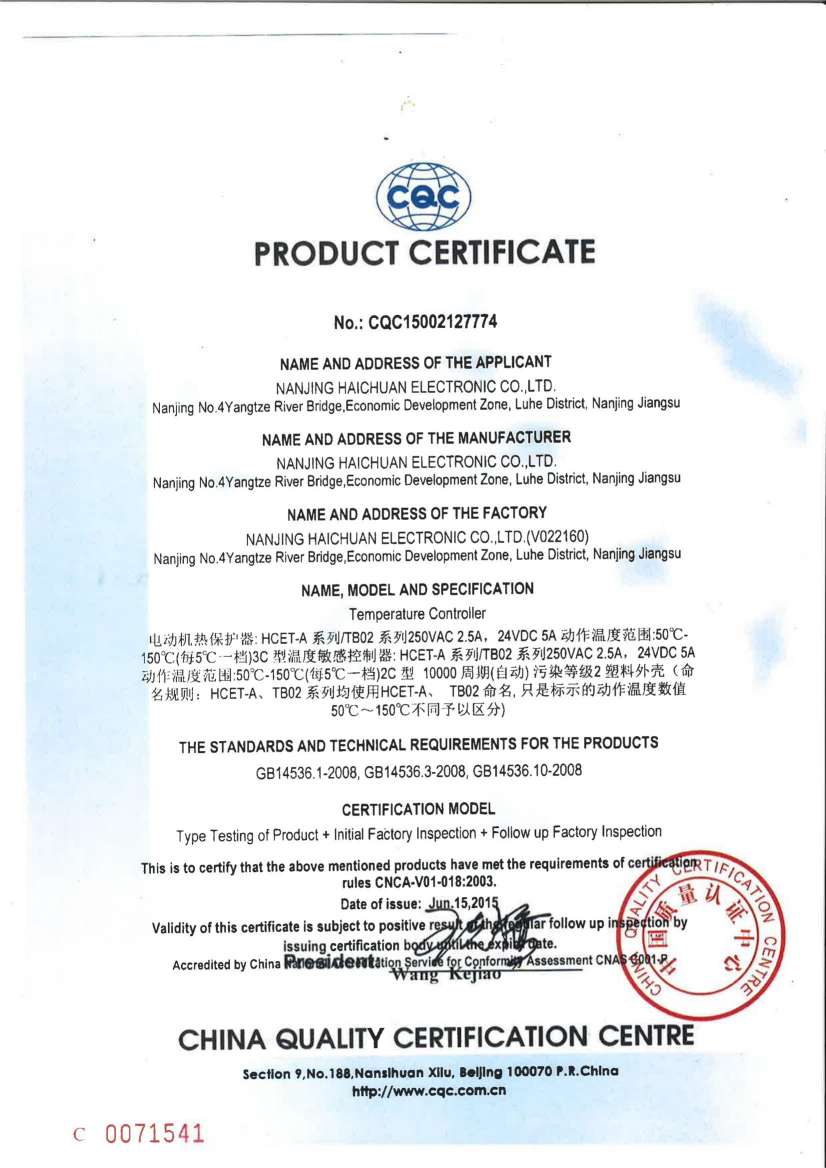

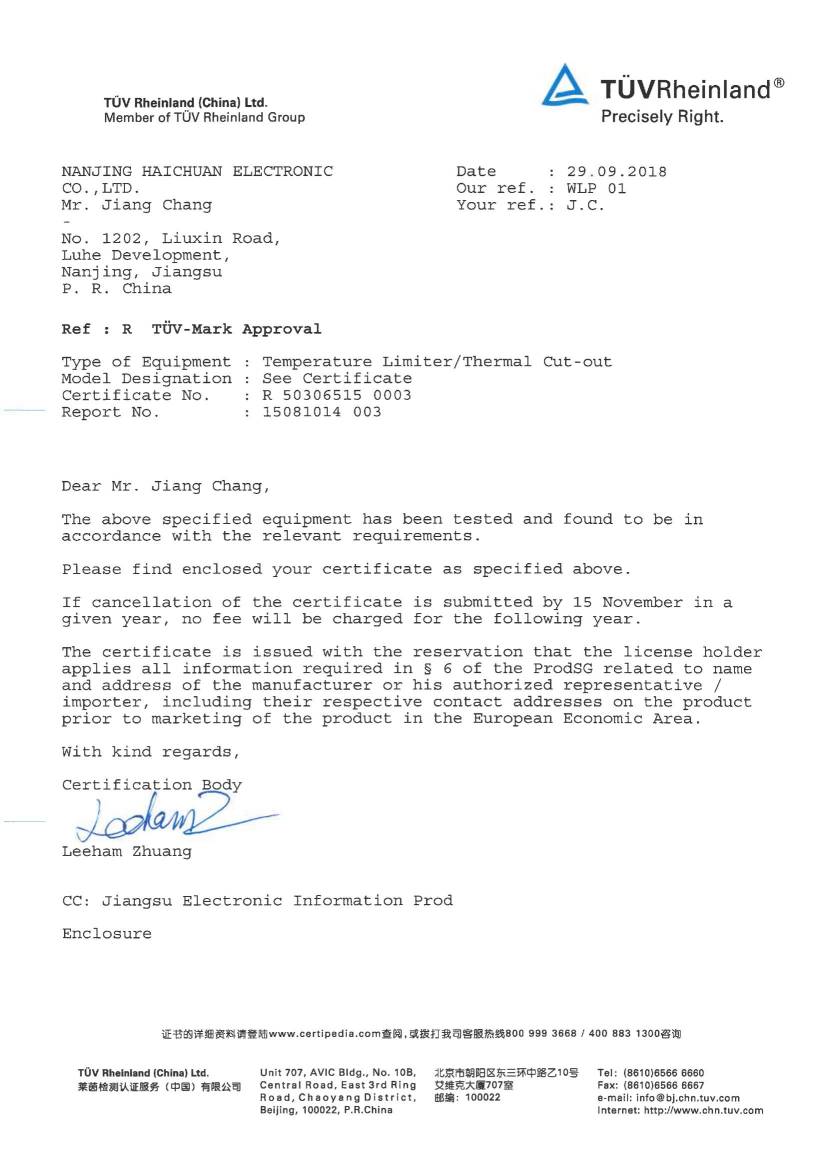

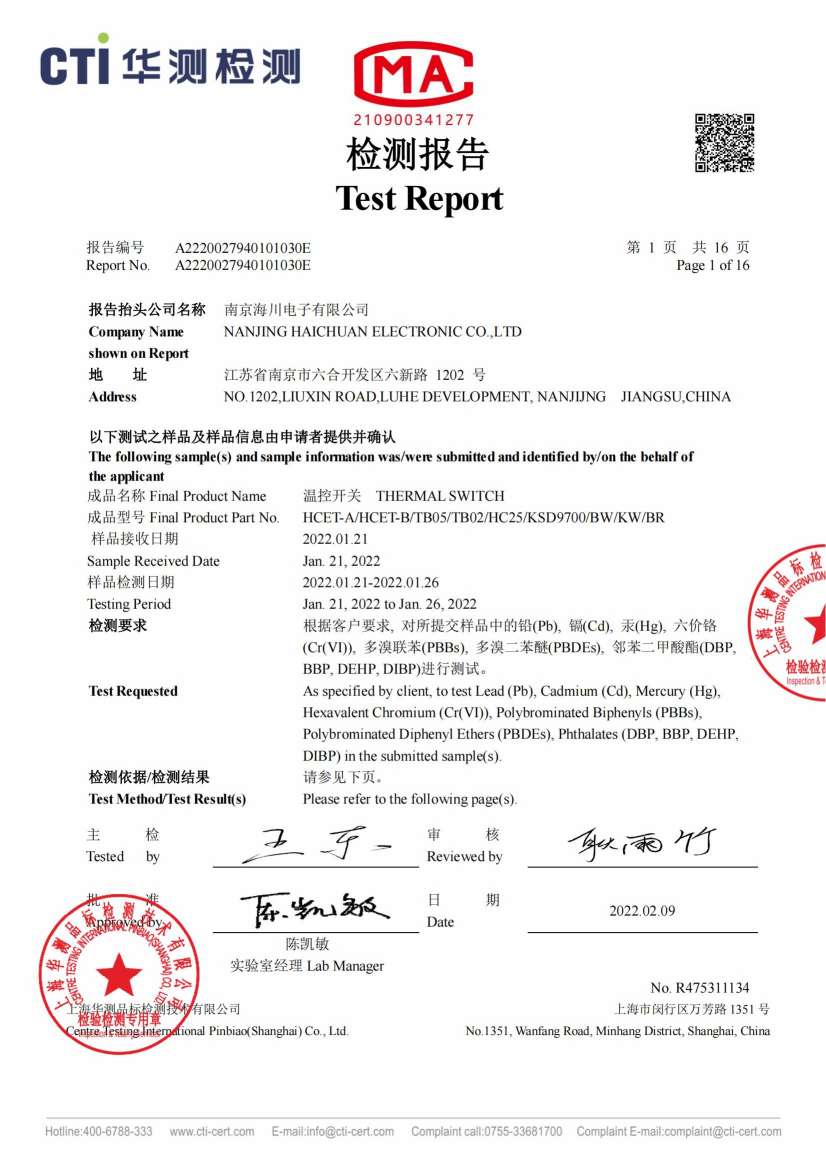

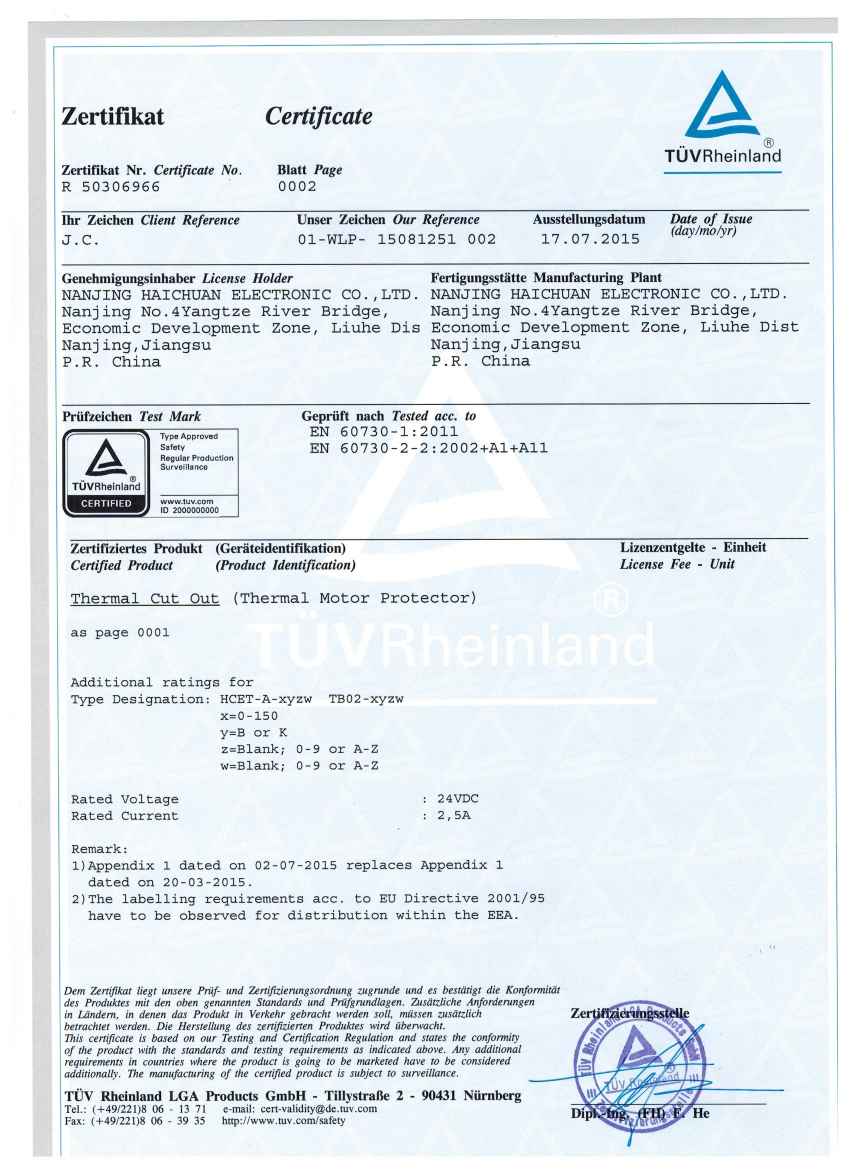

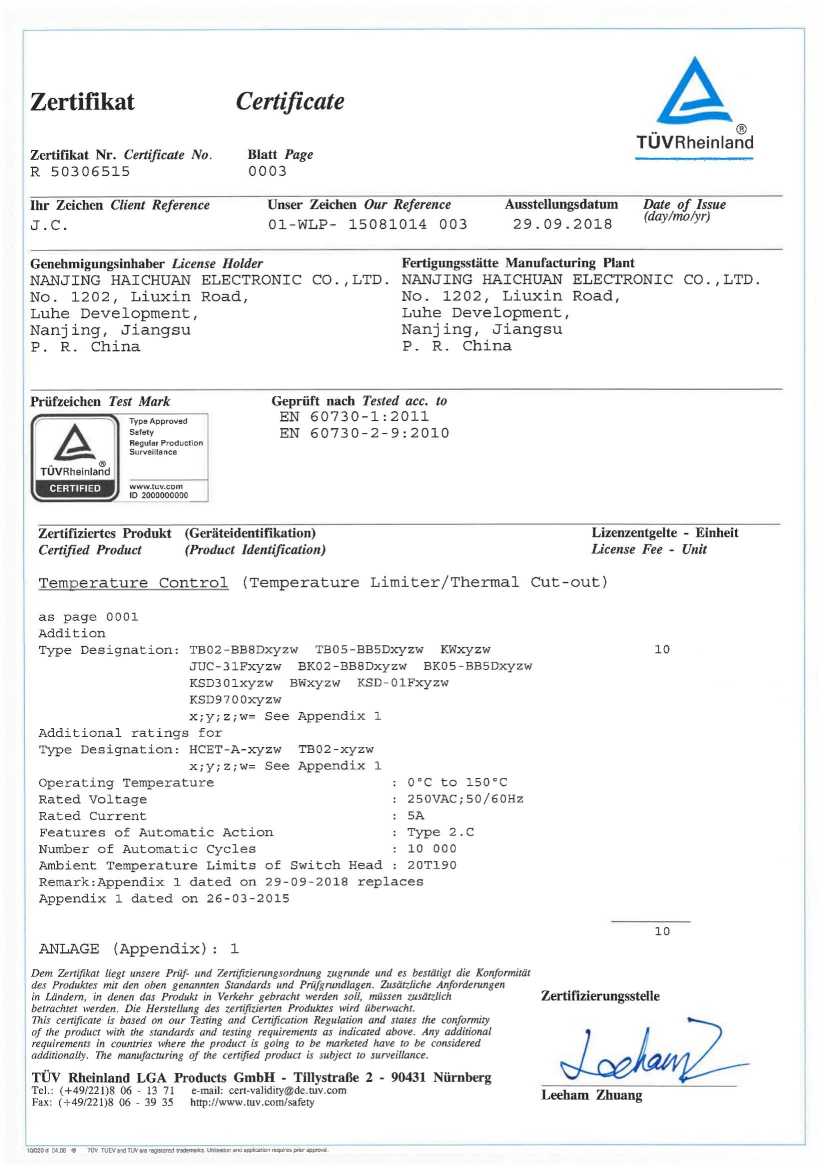

Certificates
Nanjing Haicheng Electronic Technology Co., Ltd. is a national high-tech enterprise which has passed the ISO/TS16949 quality management system certification. It has a number of independent patents, and its products have passed the UL, TUV, CQC, PSE multinational international safety regulations certification.
