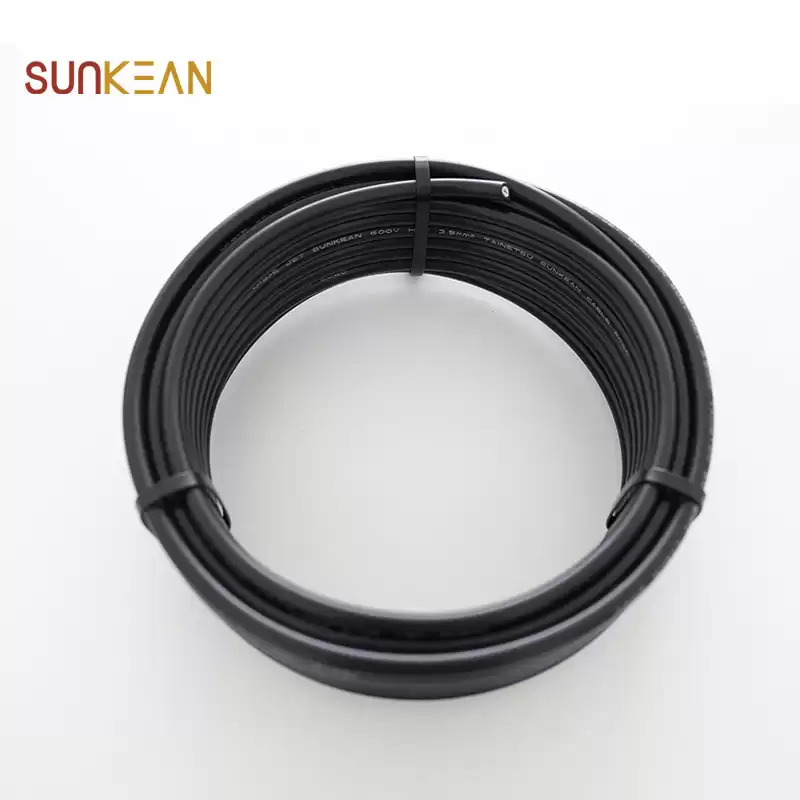

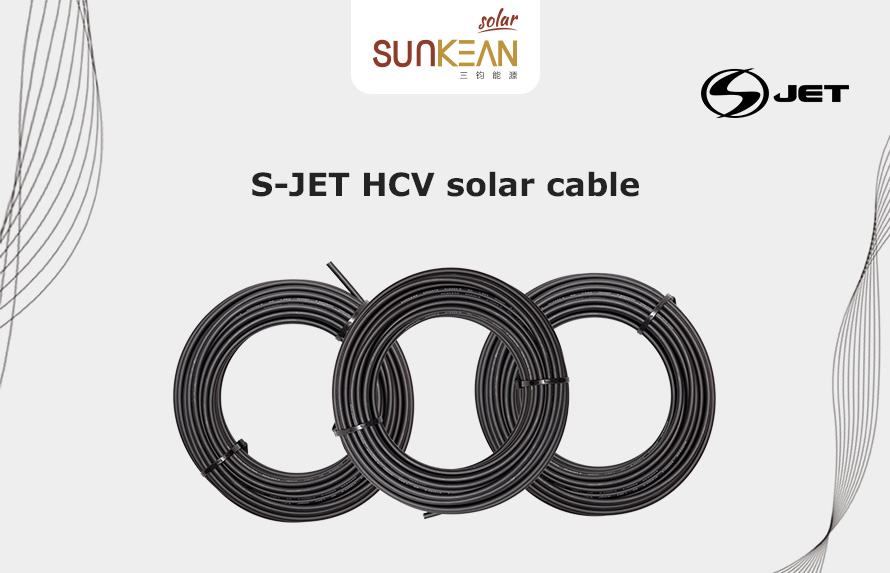

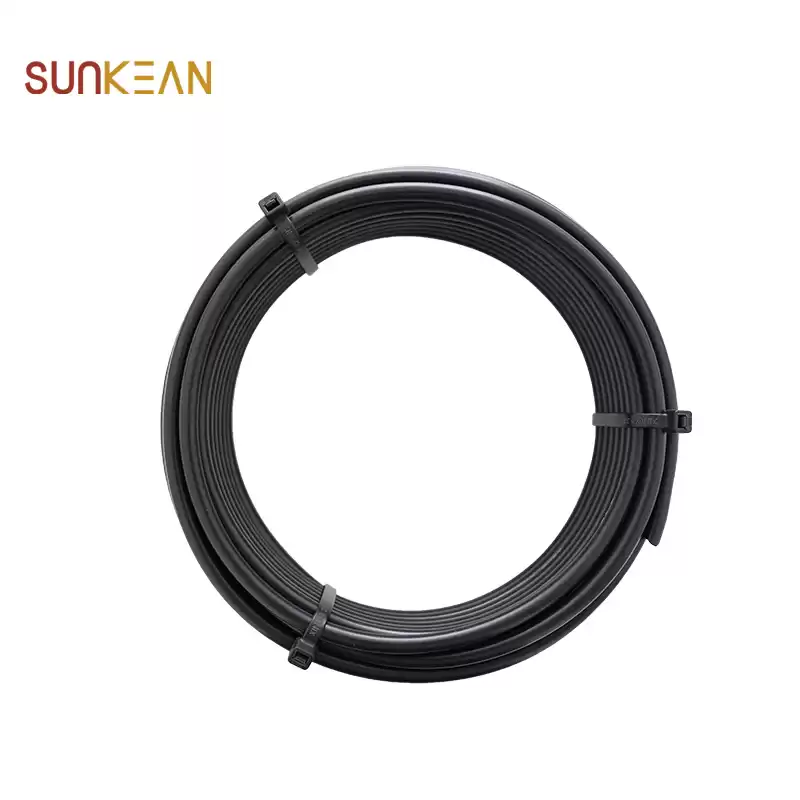

Japanese standard PSE approved HCV solar cable
SUNKEAN has more than 20 years of experience in the field of solar cables. There are various sizes for you to choose. We have enough solutions to connect photovoltaic solar systems to meet your needs and ensure the long-term operation of solar systems.
Product description:
Voltage Rating(Uo/U)
|
600V
|
Test Voltage
|
2250V AC
|
Temperature Rating
|
Rated: -40°C to +90°C
|
Testing Standard
|
JIS C3605/JIS C3005
|
|
Cable Name
|
Cross Section
(mm²）
|
Construction
(No./mm)
|
Insulation O.D.
(mm)
|
Conductor resistance
Max(Ώ/km)
|
Cable O.D.
(mm)
|
|
PSE HCV
|
2.0
|
7/0.60
|
3.30
|
9.24
|
6.10
|
|
3.5
|
7/0.80
|
3.90
|
6.70
|
5.20
|
|
5.5
|
7/1.00
|
4.90
|
7.70
|
3.33
|
|
8.0
|
7/1.20
|
5.50
|
8.30
|
2.31
|
Advantages:

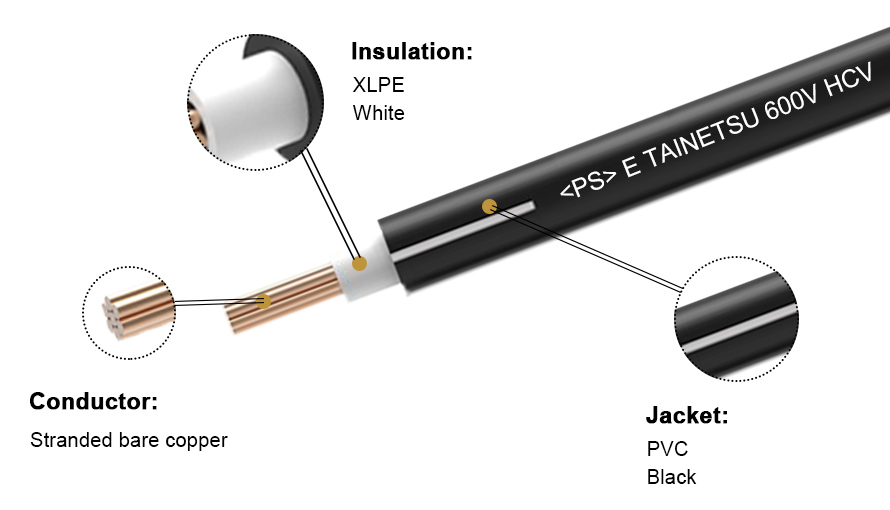

(1) Dual wall insulation, Electron beam cross-linked.
(2) Resistance to UV, water, ozone, fluids, salt, hydrolyzation, general weathering.
(3) Halogen free, flame, retardant, low toxicity.
(4) Flexibility and stripping performance.
(5) High current carrying capacity.
(6) Resistance to abrasion.
(7) High temperature resistance, material will not melt or flow
(8) Long lifespan ,over 25 years (90°C)

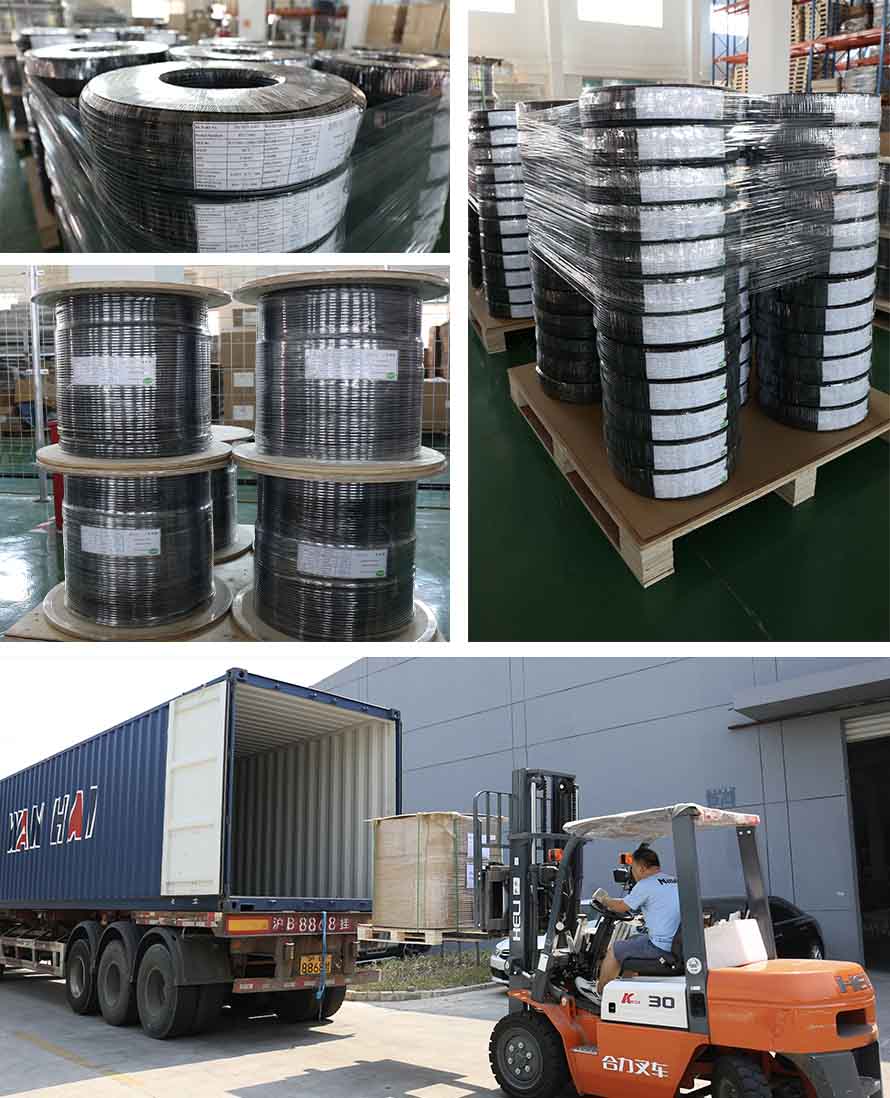

Packing & Delivery:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules, Twin core solar cable, solar extension cables , staubli mc4 connectors, fence, mini inverter for home use etc solar products .
SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
