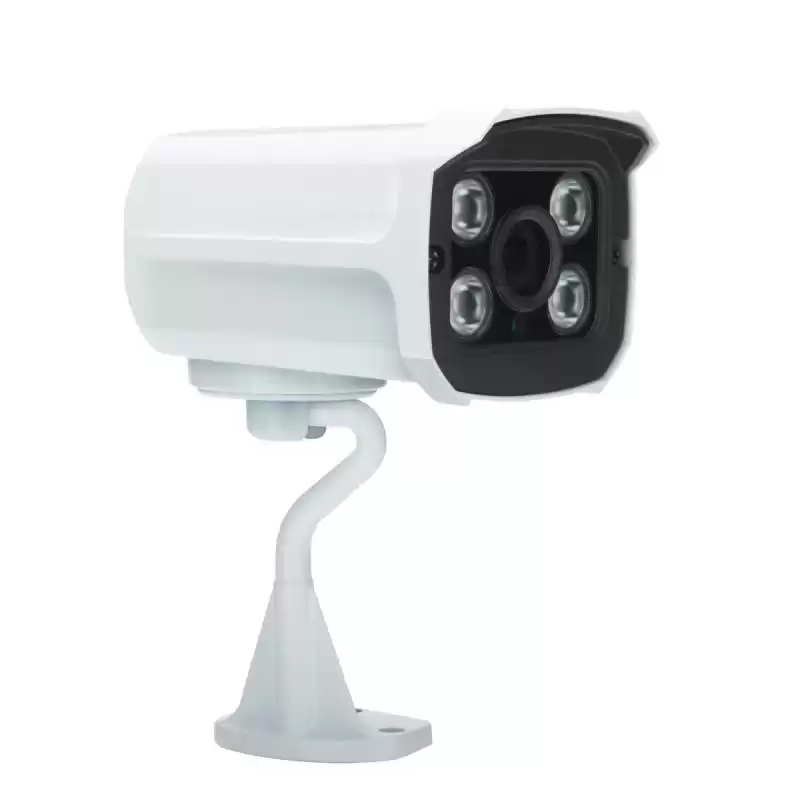

Product Name:HD 1080P P2P POE IP Camera Motion Day Night Onvif POE IP 66 Waterproof
Feature

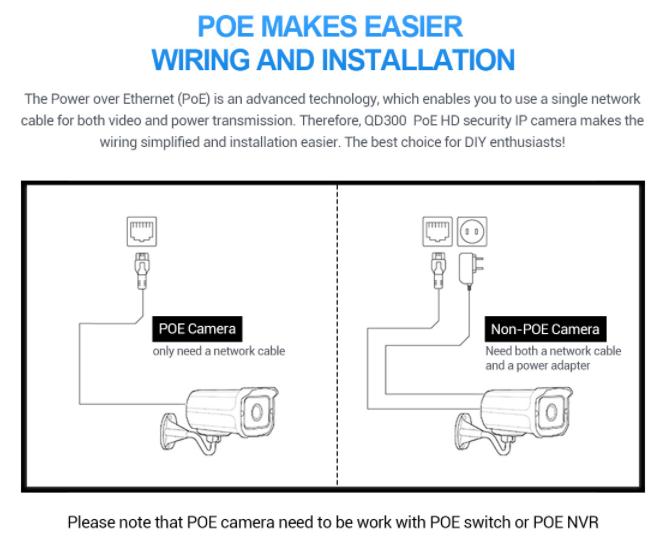

●POE makes easier, wiring and installation.
The Power over Ethernet(POE) is an advanced technology, which enables you to use a single network cable for both video and power transmission. Therefore, QD300 POE HD security IP camera makes the wiring simplified and installation easier. The best choice for DIY enthusiasts!
POE Camera, only need a network cable.
Non-POE Camera, need both a network cable and a power adapter.
Please note that POE camera need to be work with POE switch or POE NVR.
●1920*1080 HD, high definition image quality, resolution up to 2 megapixels.
●Support max to 4 privacy mark areas.
●IP66 waterproof, suitable for indoor and outdoor use, all weather environment applications.
●Day and night vision, IR cut filter with auto switch. 4 PCS infrared LED s, IR distance is up to 15m, 75.7° H angle of view.
●Motion detection, QD300 wired POE camera detects moving objects and trigger alerts when dangers occur, It will inform you in real time when invasion happens.
Email, Send captured images to Email.
APP, Push notifications to your mobile device.
FTP, Save and upload captured images to FTP server.
●Support mufti-platform
Android/ios Mobile Tablets &Computers.
●APP Application
01.Download the APP
XMeye from APP Store or Google Play
02.Open APP and login to register, then select video source to watch
●Onvif protocol
If you have multiple IP cameras or if you want 24/7 recording. Camera can work perfectly with various brand NVR, and for round-the-clock monitoring and recording for your home & business security and surveillance.
Specification
|
Model
|
ANSDEN YAC-QD300
|
|
Camera Parameter
|
|
Camera
|
|
Sensor
|
1/3" CMOS
|
|
Effective Pixels
|
2MP
|
|
Electronic Shutter Speed
|
Auto/Manual, 1/50~1/10000s
|
|
Minimum Illumination
|
Color：0.1Lux@F1.2；B&W：0.01Lux@F1.2(IR on)
|
|
Lens
|
3.6mm fixed lens
|
|
Angle of View
|
75.7°
|
|
Functions
|
|
Day/Night Switch
|
15M（4 x IR Lamps）
|
|
White Balance
|
Auto white balance
|
|
Backlight Compensation
|
Support BLC
|
|
S/N Ratio
|
≥50db (AGC closed)
|
|
Digital Noise Reduction
|
Support 3D noise reduction
|
|
WDR
|
Support D-WDR
|
|
Motion Detection
|
Support motion detection
|
|
Privacy Shelter
|
Support 4 zones
|
|
OSD
|
Support OSD setting
|
|
Video
|
|
Compression
|
H.264/H.265
|
|
Resolution
|
Mainstream:1080P(1920*1080),720P(1280*720)
|
|
Substream：D1(704*576)
|
|
Video Frame Rate
|
1-25FPS
|
|
Bitrate
|
0.1Mbps-8Mbps continuously adjustable, support CBR / VBR
|
|
Video Adjustment
|
brightness,saturability,chromacity adjustment
|
|
Audio
|
|
Audio
|
Not support
|
|
Network
|
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
IP Type
|
Dynamic IP and Static IP
|
|
Network Agreement
|
TCP/IP, DHCP, HTTP, HTTPS, NTP, DNS, RTP ,SMTP,RTSP
|
|
Access Protocol
|
Support ONVIF
|
|
Max user qty
|
10
|
|
Client
|
iPhone, iPad, Android,Windows PC
|
|
General
|
|
Power Supply
|
DC12V & PoE
|
|
Power Consumption
|
<6W
|
|
Working Environment
|
-20°C~+60°C, 10%~90%
|
|
Waterproof
|
IP66
|
|
Dimension
|
107mm * 68mm * 60mm
|
|
Weight
|
0.25kg
|
|
Package Dimension
|
155mm * 95mm * 85mm
|
|
Package Weight
|
0.35kg
|
|
Accessories
|
IP Camera*1,Screws package*1,Waterproof hat*1,Manual*1
|
|
Note:POE camera does not include a power adapter. please purchase an additional 12V power adapter if you need.
|

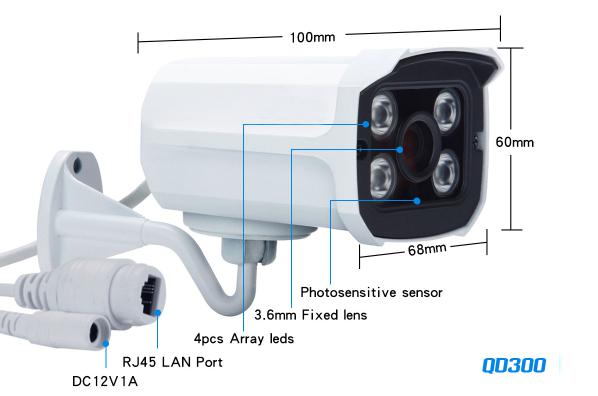

Dimension
POE makes easier, wiring and installation.The Power over Ethernet(PoE) is an advanced technology, which enables you to use a single network cable for both video and power transmission.
Application
Can be used indoors and outdoors, villa, indoor, garage, courtyard, and can be effectively isolated regardless of heavy rain or dust.
