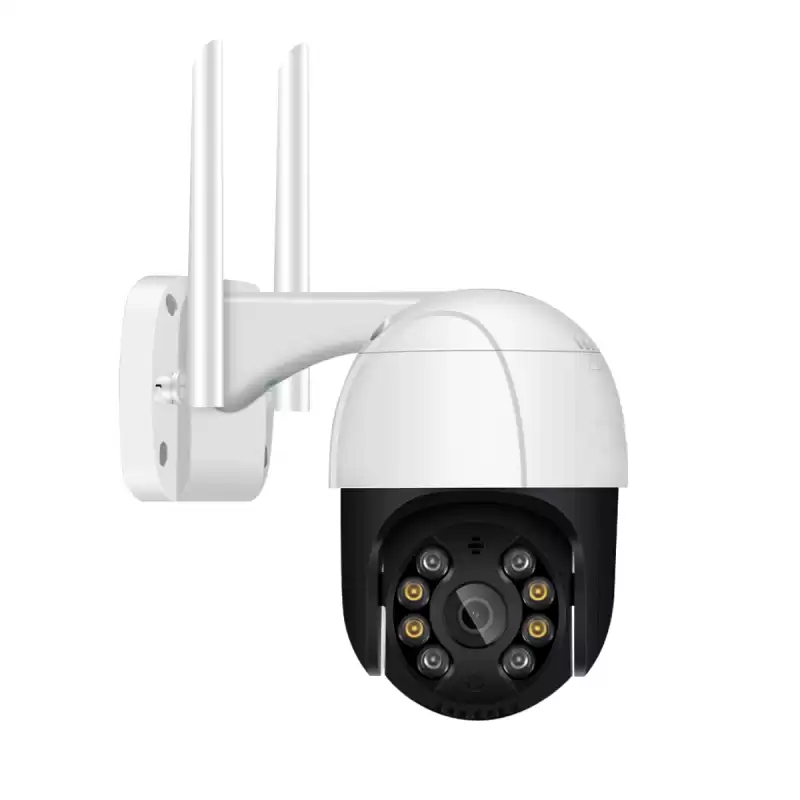

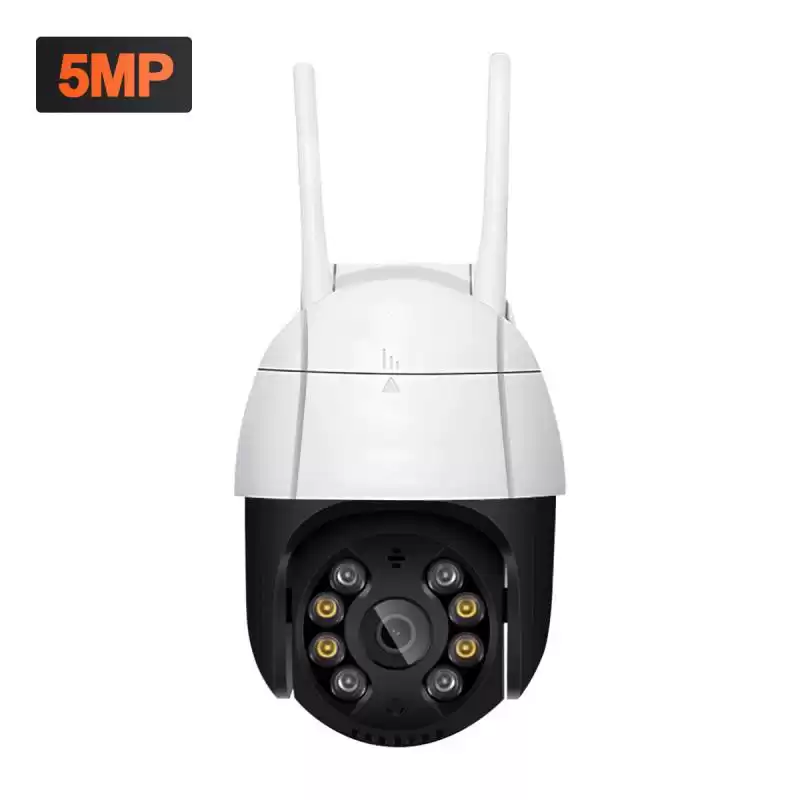

Product Name:HD 5MP Pan/Tilt Al Humanoid Detection Cloud Storage WiFi IP Camera H.265X Auto Tracking Two Way Audio
Feature
●HD 5MP 2592*1944, high definition image quality, resolution up to 5.0 megapixel.
●Smart AI humanoid detection auto tracking, support mixing line, area, two-way flow detection, easy setting in App.
●Smart dual light modes, with 4 PCS white LED and 4 PCS IR LED.
Ordinary, IR LED turn on at night and get night vision image.
Color, white LED turn on at whole night and get color image.
Intelligent, white LED turn on at night when alarm is triggered, night vision image will be changed to color image.
●H.265X compression, ensured us more clear image quality but less bit rate, saved much transmit and storage cost.
●Pan/Tilt, Pan 355°+Tilt 90°, sliding screen manually enables remote control of the rotation of camera and real-time monitoring.
●Two way audio, build in microphone and high quality audio speaker with loud volume(4w high power), it can do two way talk online between camera and mobile phone.
DIY alarm voice, choose default alarm voice or voice you record, camera will say something with you choose to force the intruder leave your house.
●.AP connection, with wireless access point, camera can be connected to phone directly without router.
WiFi connection, without cabling work, via WiFi, it can be easily connected with your mobile for remote surveillance.
●Support 128GB TF card and cloud storage, free 30-day cloud storage and max 128G SD card record, data security is more stable.
If you want to keep using cloud service, you just need to pay for it,
if you don't need to use, it will stop it automatically when you don't pay for the fee.
●Multi-Platform, support Android/IOS mobile, tablets, and computers.
●Support ONVIF protocol, can be connected to a third-party NVR centralized management camera.
Specification
|
Model
|
ANSDEN YAC-QF108
|
|
Camera Parameter
|
|
Camera
|
|
Sensor
|
1/2.7” 5 Megapixel progressive scan CMOS
|
|
Minimum illuminance
|
Color 0.001Lux@F1.2;Night vision 0.0001Lux@F1.2
|
|
Focal Length
|
3.6mm
|
|
Viewing angle
|
75.7°
|
|
P\T
|
P 330° \ T 90°
|
|
Functions
|
|
Day/night switch
|
4PCS IR Leds and 4PCS White Leds ,IR distance 20m
|
|
White Balance
|
Auto white balance
|
|
Digital noice reduction
|
Support 3D noise reduction
|
|
Motion detection
|
Support AI humanoid detection and Auto Tracking
|
|
Privacy shelter
|
Support 4 zones
|
|
OSD
|
Support OSD setting
|
|
Video
|
|
Compression
|
H.265X
|
|
Resolution
|
Mainstream:5MP(2592*1944)
|
|
Substream:(640x360)
|
|
Video frame rate
|
25fps(50HZ), 25fps(60HZ)
|
|
Video adjustment
|
Brightness,Saturability,Chromacity adjustment
|
|
Audio
|
|
Input
|
Built-in microphone
|
|
Output
|
Built-in speaker
|
|
Compression
|
G.711A
|
|
Network
|
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
Wireless
|
WiFi 802.11b/g/n,Only support 2.4G; AP Mode
|
|
IP Type
|
Dynamic IP&Static IP
|
|
Network Protocol
|
HTTP,TCP/IP,UPNP, RTSP,SMTP,NTP,DHCP,DNS, DDNS,FTP
|
|
Access Protocol
|
Support ONVIF
|
|
Max user
|
5
|
|
Client
|
iPhone, iPad, Android，Windows PC
|
|
Storage
|
|
Micro SD card
|
Support max to 128G Micro SD card
|
|
Cloud Storage
|
Support(Free 30-day cloud storage)
|
|
General
|
|
Power Supply
|
DC12V2A
|
|
Power Consumption
|
2.5W(IR Led Off )/7.2W(IR Led On)
|
|
Working Environment
|
-20°C~+50°C, 10%~80%
|
|
Waterproof
|
IP66
|
|
Product Size
|
165*150*190mm
|
|
Product Weight
|
0.4kg
|
|
Package Dimension
|
193*163*93mm
|
|
Package Weight
|
0.65kg
|
|
Accessories
|
Camera*1，Power adapter*1，Waterproof hat*1，Screw bag*1, Instruction*1
|

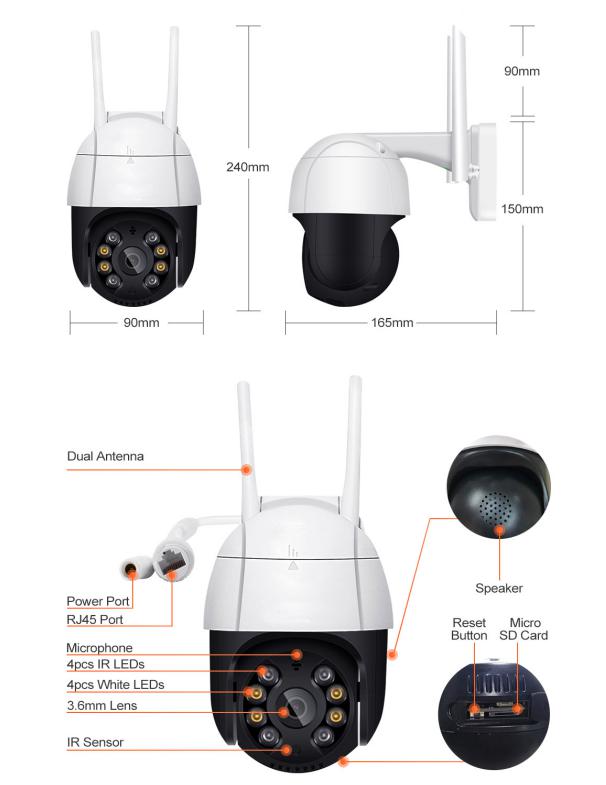

Dimension
Smart AI humanoid detection auto tracking, support mixing line, area, two-way flow detection, easy setting in App.
Application
DIY alarm voice, choose default alarm voice or voice you record, camera will say something with you choose to force the intruder leave your house.
