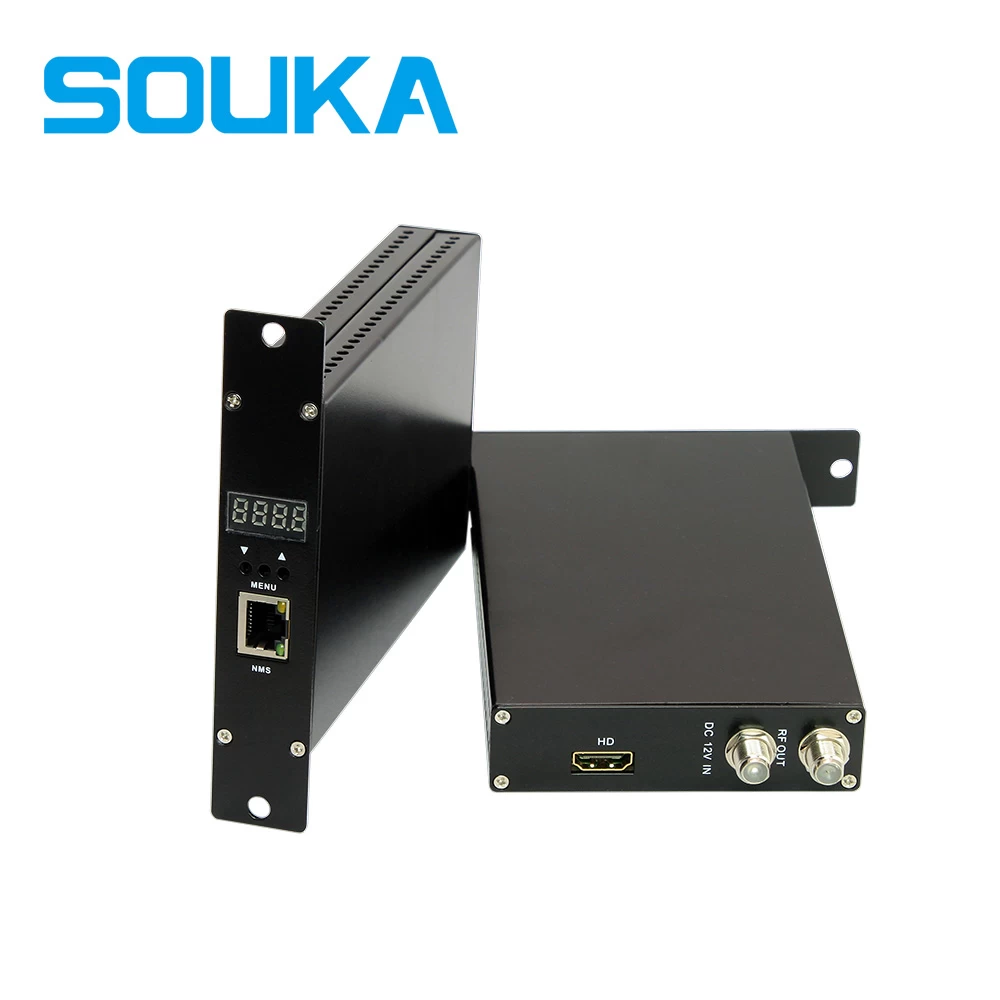

The SKD2715 HD to RF modulator is designed for hotel cable TV system. The modulator will convert the HD signal into the RF signal to your current coax system. It not only can work with the base unit of SKD2700M, but also work stand-alone.
1. Support MPEG 2 video encoding and MPEG-1 Layer II audio encoding

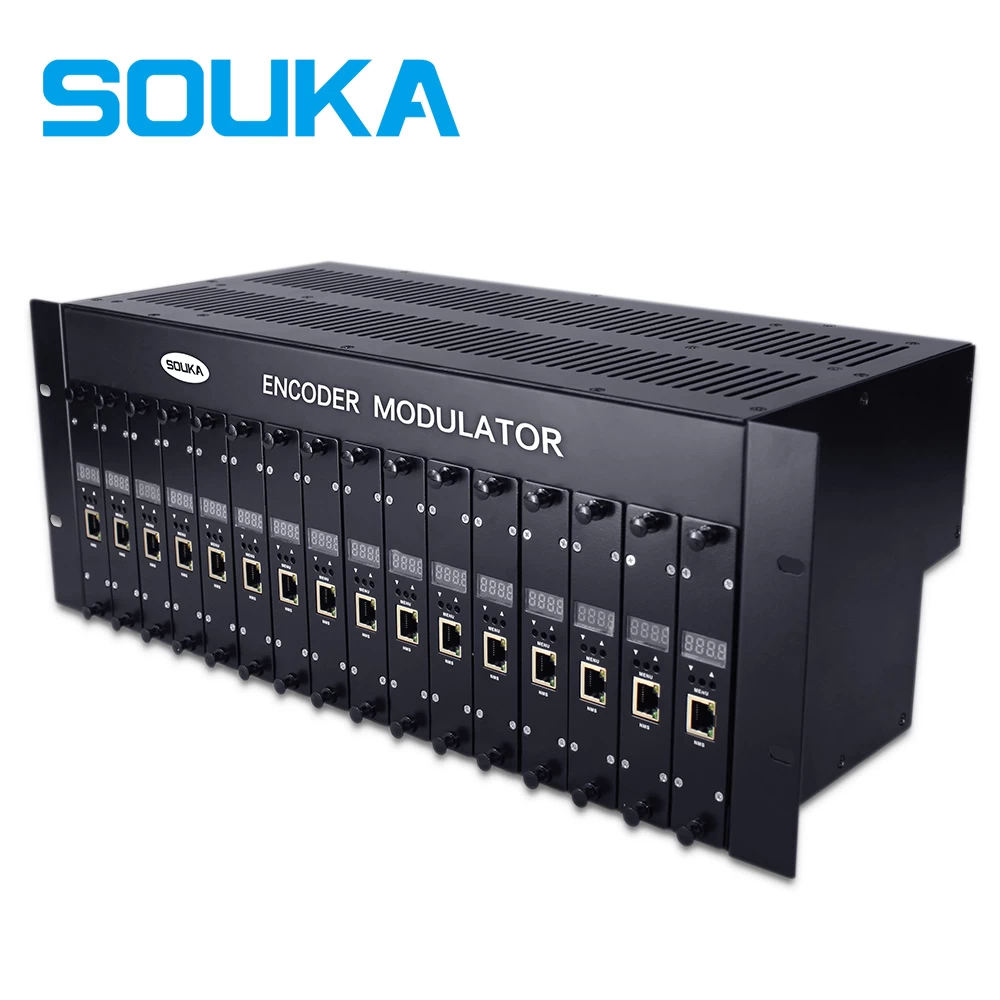

2. Integrated with SKD2700M base unit for a 16 IN 1 system
3. TS ID, PID, Service name programable
4. Output RF frequency range from 50MHz to 999.999 MHz
5. Output resolution 1080P @30FPS
6. User friendly front panel operation for easy setting up
7. Support Android mobile phone control and set up
|
ENCODING
|
|
Input Connector
|
HD 1.4
|
|
VIDEO
|
Encoding
|
MPEG 2
|
|
Input Resolution
|
1920*1080_60P;
1920*1080_50P; 1920*1080_60i;
|
|
1920*1080_50i; 1280*720_60P;
1280*720_50P
|
|
Bitrate
|
2 ~ 18 Mbps
|
|
AUDIO
|
Encoding
|
MPEG 1 Layer II
|
|
Sample Rate
|
48KHz
|
|
Bitrate
|
384kbps
|
|
MODULATION
|
|
ISDB-T
|
Standard
|
ARIB STB-B31
|
|
Bandwidth
|
6M
|
|
Constellation
|
QPSK, 16QAM, 64QAM
|
|
MER
|
≥ 42 dB
|
|
Code rate
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
Guard Interval
|
1/32, 1/16, 1/8, 1/4
|
|
Transmission Mode
|
2K, 4K, 8K
|
|
Interleave
|
0, 1, 2, 3
|
|
OUTPUT
|
|
RF
|
Output Level
|
≥ 30dBmV
|
|
Output Frequency Range
|
50 ~ 999.999MHz
|
|
Out-band Rejection
|
≥ 60dB
|
|
SYSTEM
|
|
Management
|
Control Keys; NMS; APP
|
LCN Insertion
|
YES
|
|
Language
|
English
|
Upgrade
|
NMS
|
|
GENERAL
|
|
Power Supply
|
DC12V 1A
|
Power Consumption
|
|
|
|
|
|
|
