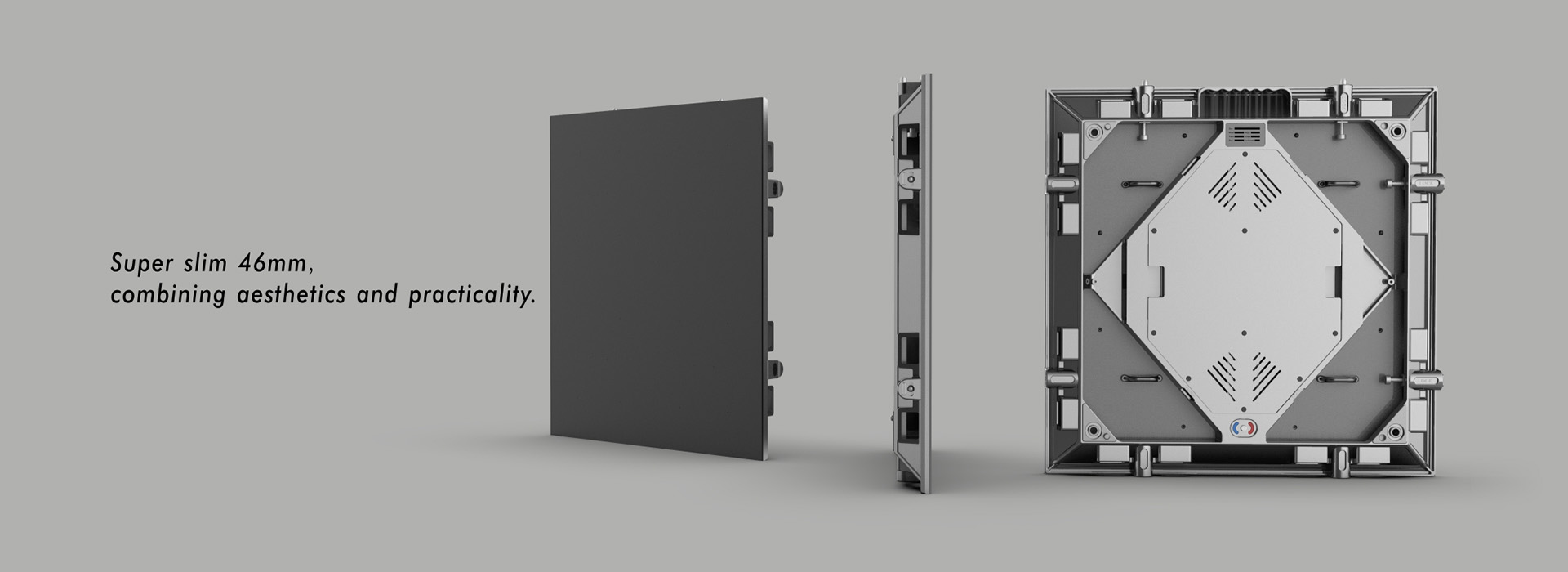

HD Full Color Slim Fine Pitch Indoor LED Display Screen

1 The weight of the cabinet is only 6kg, 30% lighter than the traditional iron box, which saves a lot of cost.



2 Anti-knock design to avoid damage to the module, reduce maintenance and improve work efficiency.



3 Maintain the suction cup tool before use, suck the module (the iron plate is installed on the back of the module), easy to disassemble and assemble.



4 High brightness, high contrast, high grey scale.

Facebook Twitter Pinterest LinkedIn 分享

indoor led display

Indoor led screen

full color led display screen

indoor led video wall

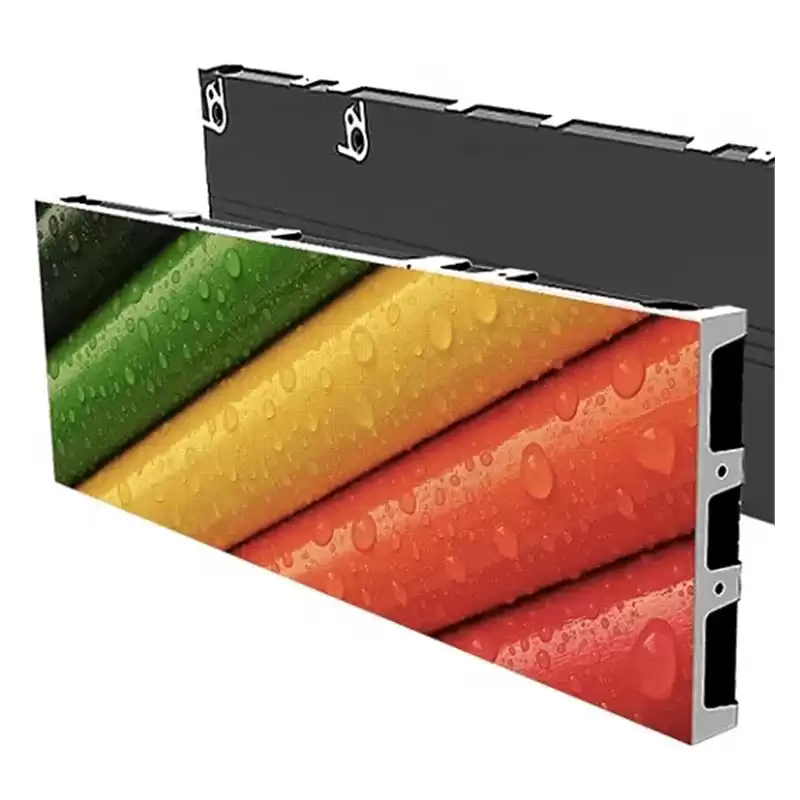

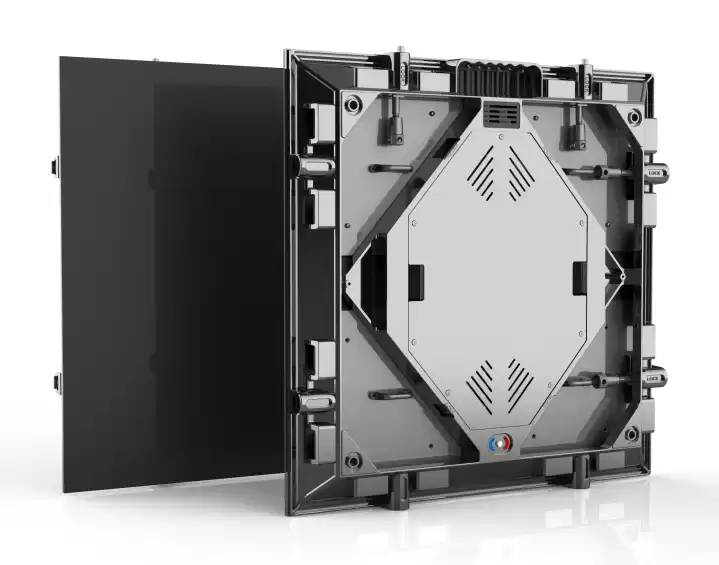

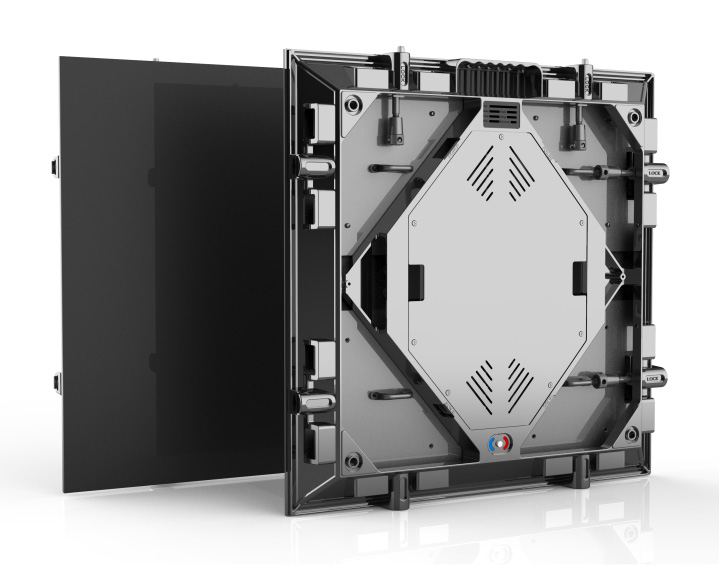

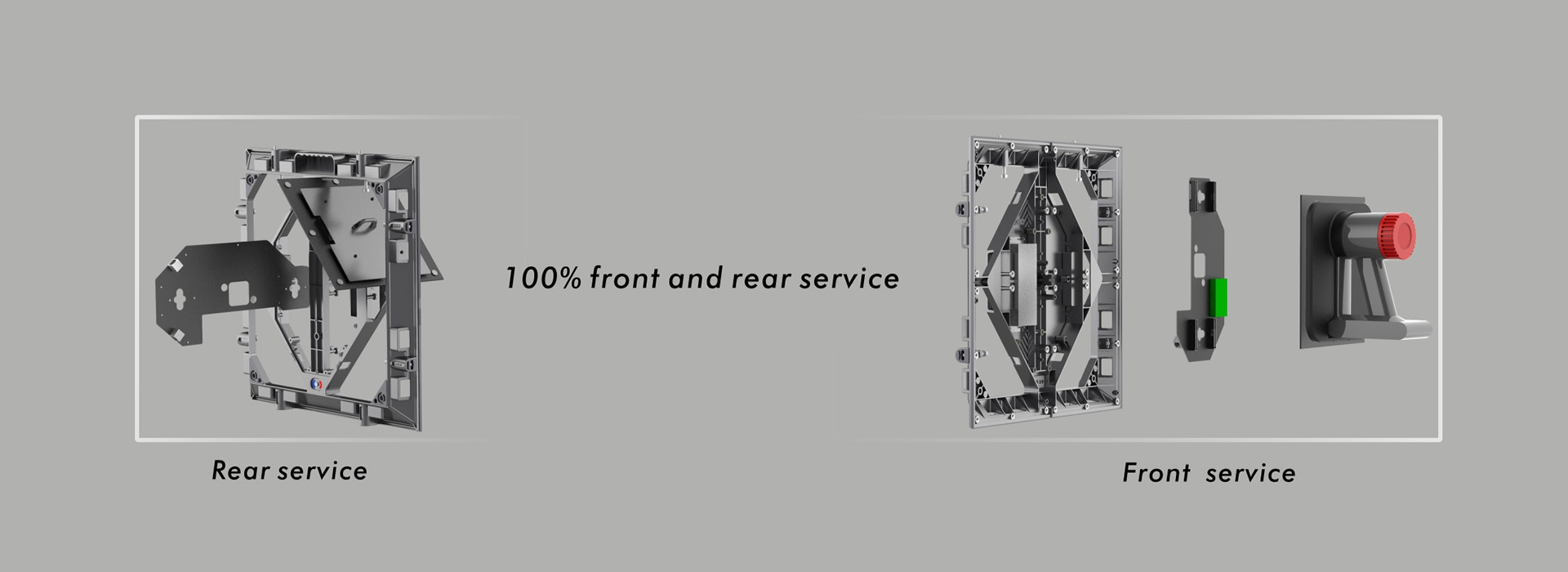

The Led adopts integrated molding design of finishing die-casting aluminum, with 2:1 display ratio, high integration internal design, 100% front maintenance.

All parts are customized hot-plug to achieve wireless connection, supporting hot plug, large load, lower power consumption, easy disassembly. Multi-point heat dissipation

holes design make sure for safety, stability and reliability.

Large size LED screen is easy to assemble and time-saving, labor-saving, material-saving, ultra-high cost performance.





Specifications:



Model
M P1.25
M P1.5
M P1.8
M P2.5
LEDType
SMD1010
SMD1010
SMD1515
SMD2020
Physical Density (dot/m²)
640000
422,500
288,906
160000
Module Size (W ×H ×D) mm
320x160x17
Module Resolution(W×H)
256x128
208x104
172x86
128x64
Cabinet Size (W ×H ×D) mm
640x480x32
Cabinet Material
Die Casting Aluminum
Scanning Mode
1/64
1/52
1/43
1/32
Cabinet Flatness(mm)
≤0.10
Grey Scale (Bit)
16
Protection Level
IP45
Brightness(cd/㎡)
500-900cd/㎡
ColorTemperature
3200-9300Kadjustable
Brightness Uniformity
≥98%

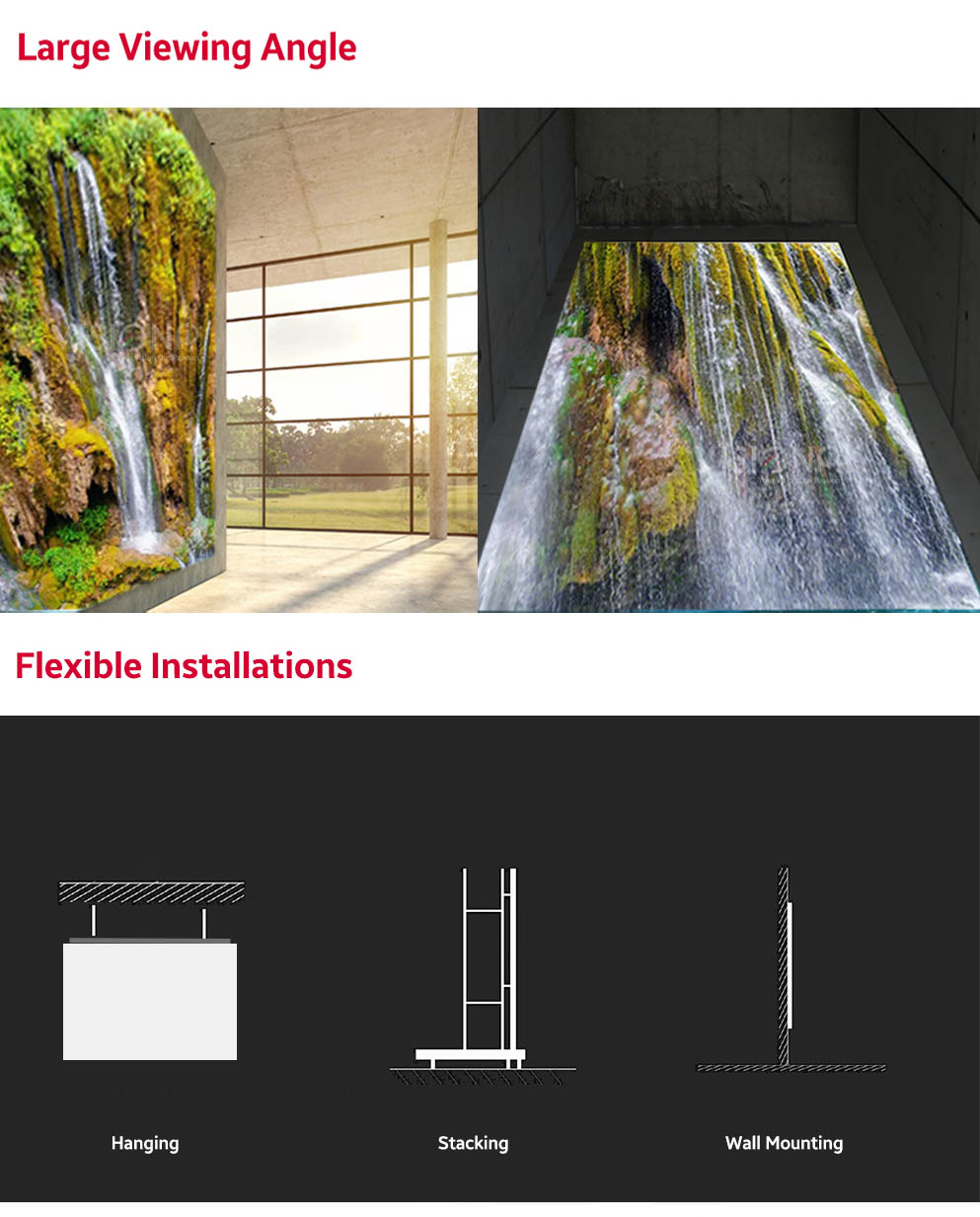

Horizontal/Vertical ViewAngle
≥140°/≥140°
Contrast Ratio
≥6000:1
Module Input Voltage DC
5V
Max Refresh Rate
≥3840Hz
Input VoltageAC
110-220V
Max.PowerConsumption
≤600W/m2
≤580W/m2
≤480W/m2
≤480W/m2
Aver.PowerConsumption
≤200W/m2
≤180W/m2
≤160W/m2
≤160W/m2
Working Temperature
20℃～+80℃
Working Humidity
10%～95%RH
Installation/Service Method
Front installation/Front service


APPLICATIONS
  • #

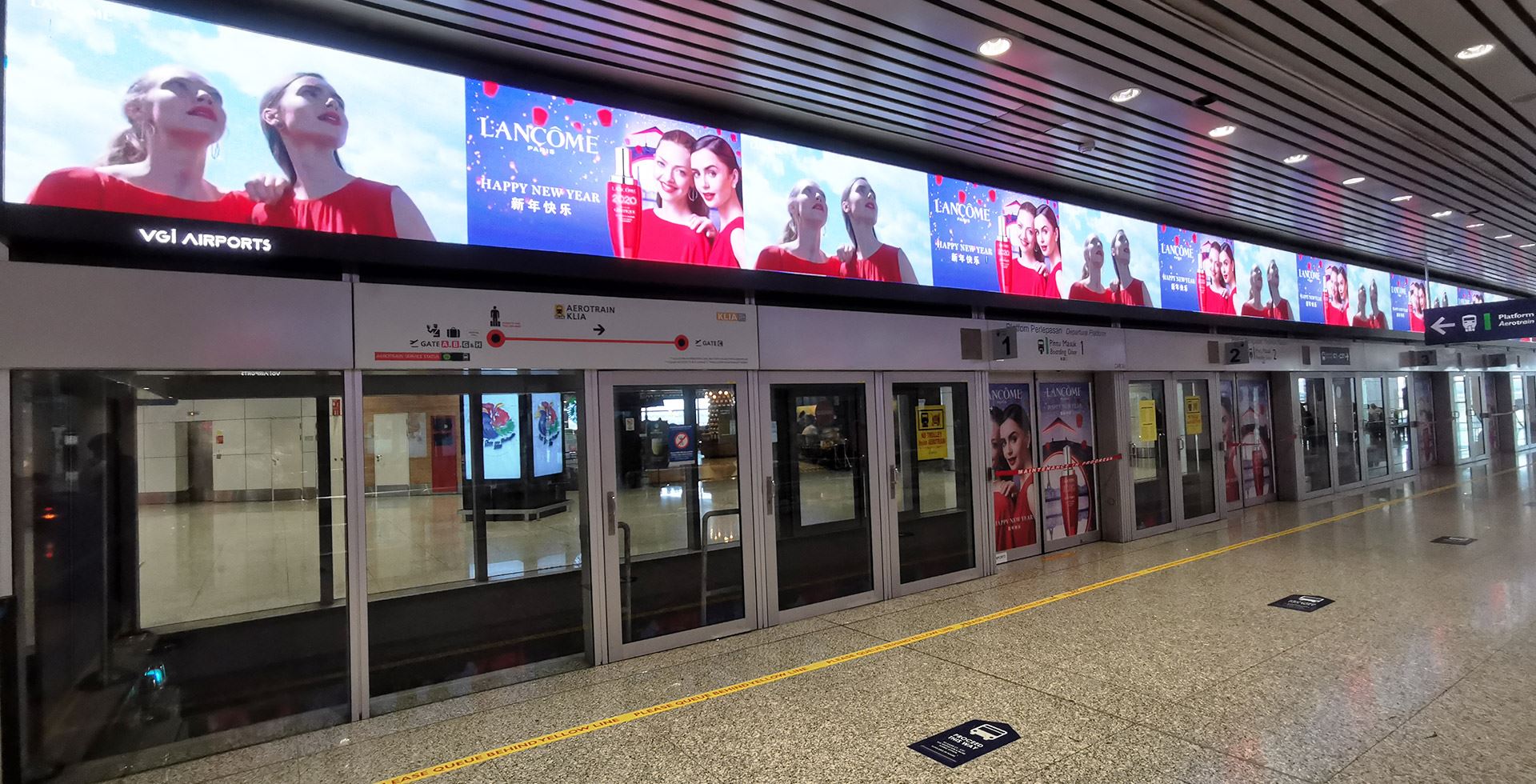

    Airport
    It is not difficult to find that almost all airports and train station have display screens. These display screens are used to display flight status or train status, making it easier for passengers to view flight/car information. In addition, the airport and railway station have a very large flow of people, and many businesses store will choose to install a display screen for attracting customers and advertising.
  • #

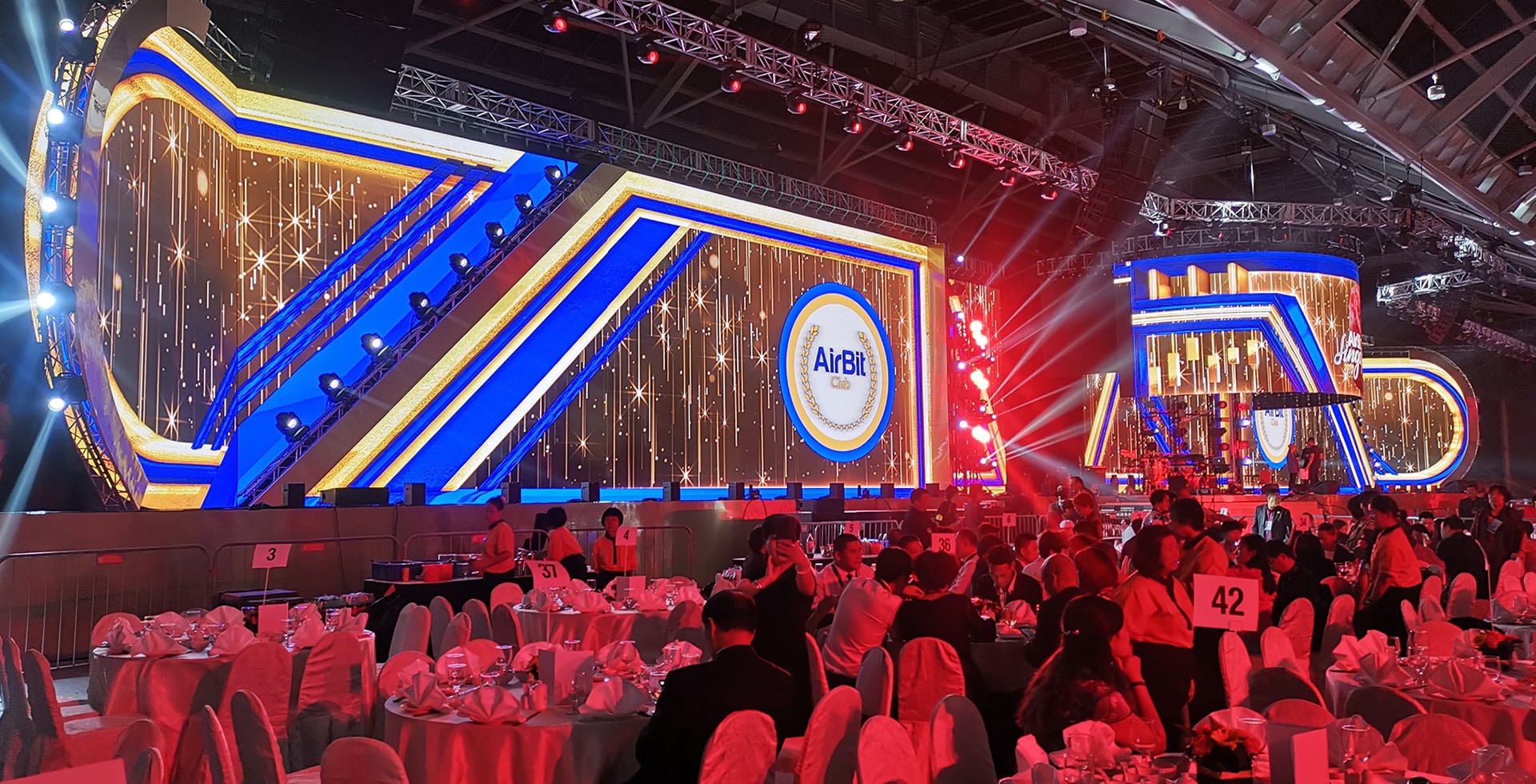

    Stages
    This display screen can be used for indoor rental event. It is been widely used for large concert or some wedding event rental, if you are an event company, our display screen will be your best choice. The rental cabinet have some handles for easy installation and movement. The side lock design makes the whole screen installation more stable, and it can also increase the flatness of the screen
  • led indoor display in shopping mall
    Shopping mall
    Led Sigange and displays are widely used in shopping malls to advertise. For example, clothing stores , Jewelry store, resteranut, etc, shopping malls can use the screen to show the latest styles or the latest discounts to customers entering the clothing store. It can help the shopping mall to attracts more customers


--
