HD Led Display Full Color Magnetic Led Module Rental Events Staged Led Screen

P2.6 P2.9 P3.91 P4.81 indoor outdoor stage background led display


1.Adopt Die-casting aluminum materials ,ultra thin , light weight ,only use one hand can lift, easy to install.

2.Use quick lock to fixed each panel ,makes connection easy and seamless.

3.The product support 2K ,4K ,8K video and image .

4.High refresh rate , clear effect, can be used for leasing projects and fixed installation projects.



rental led display
1.Ultra Light-weight & Ultra Thin


Within 26kg per square meter, 40% lighter than traditional iron Led cabinet.Panel depth is only around 80mm.





staged rental advertising led screen

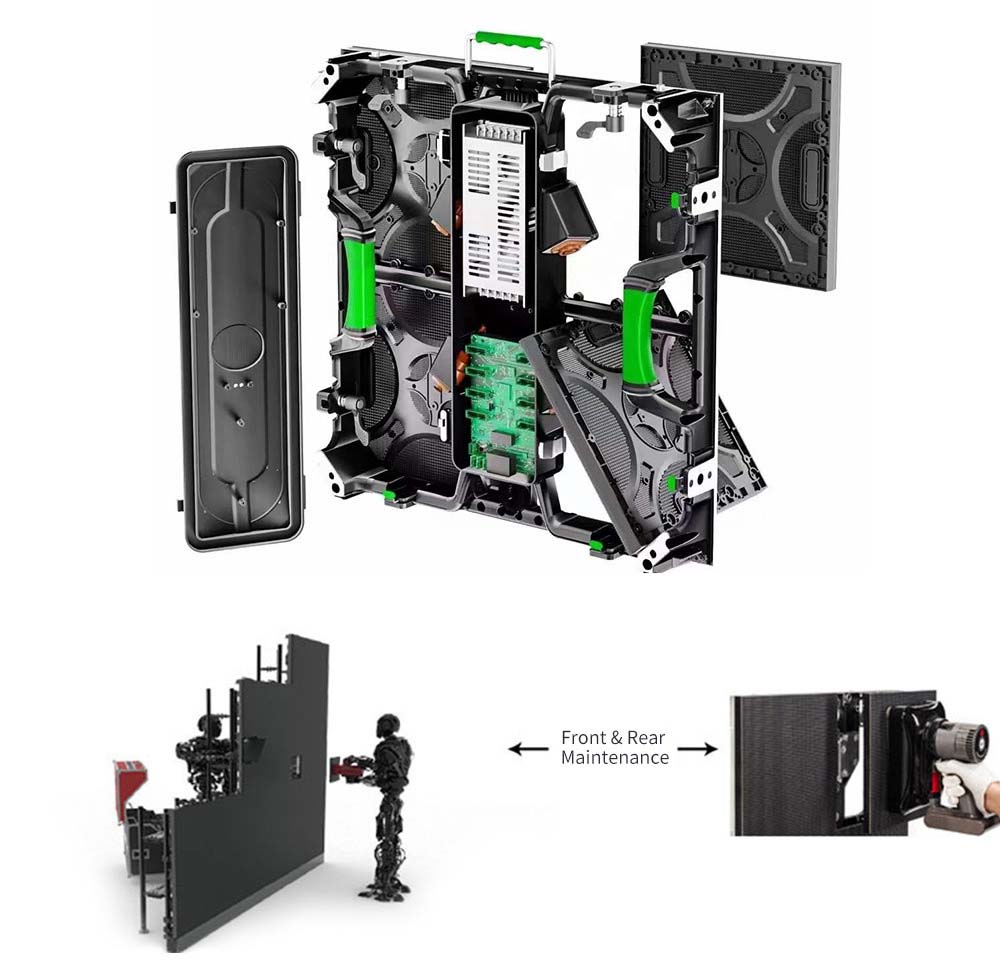

2.Easy Maintenance


Front and Rear maintenance system available, convenient and efficient.
Module magnetic installation option

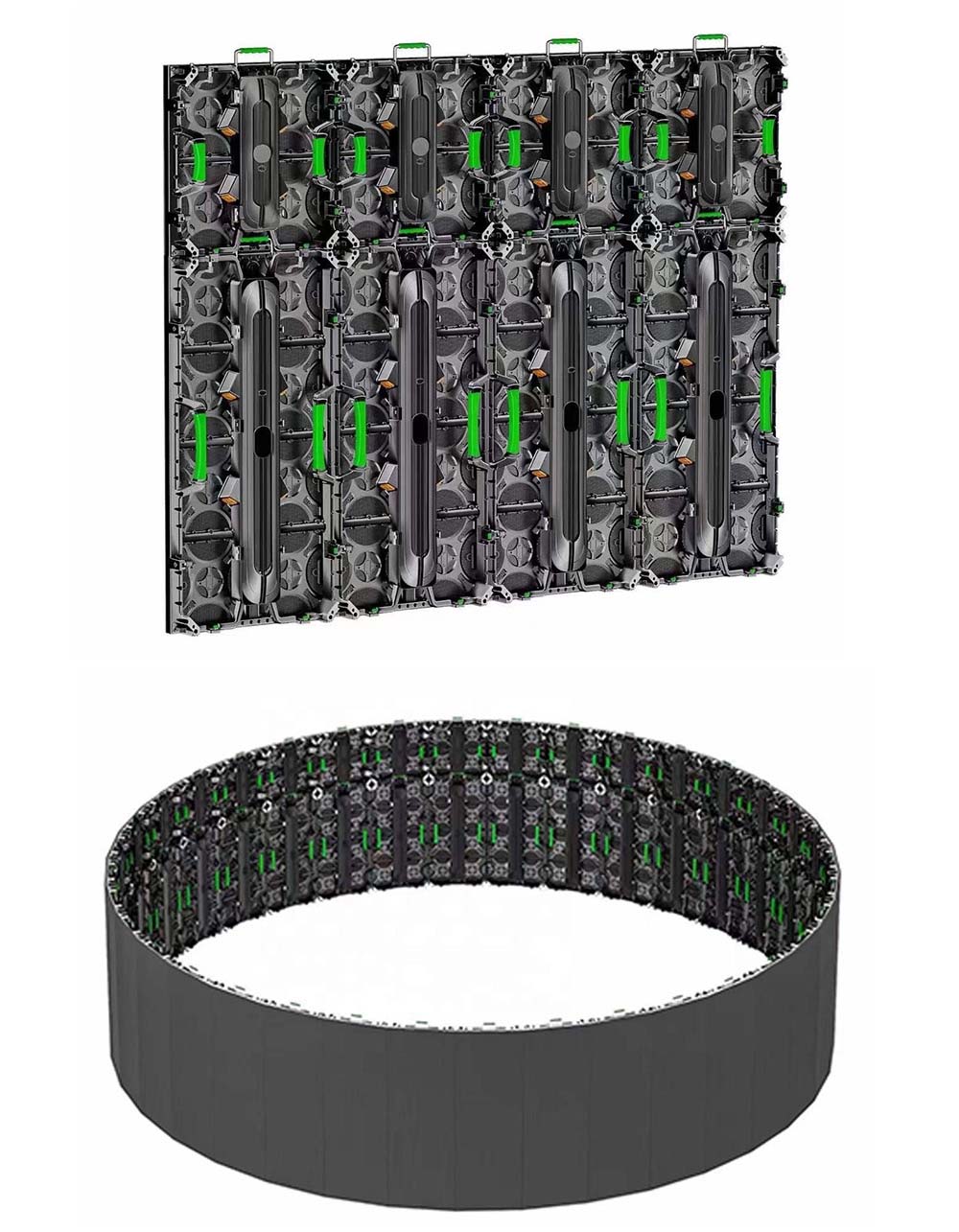

Curved rental backgroud led wall

3.LED Arc Lock Design

2 Styles: Curve and Flat.
7 Degrees: ±15º, ±10º, ±5º, ±0º.

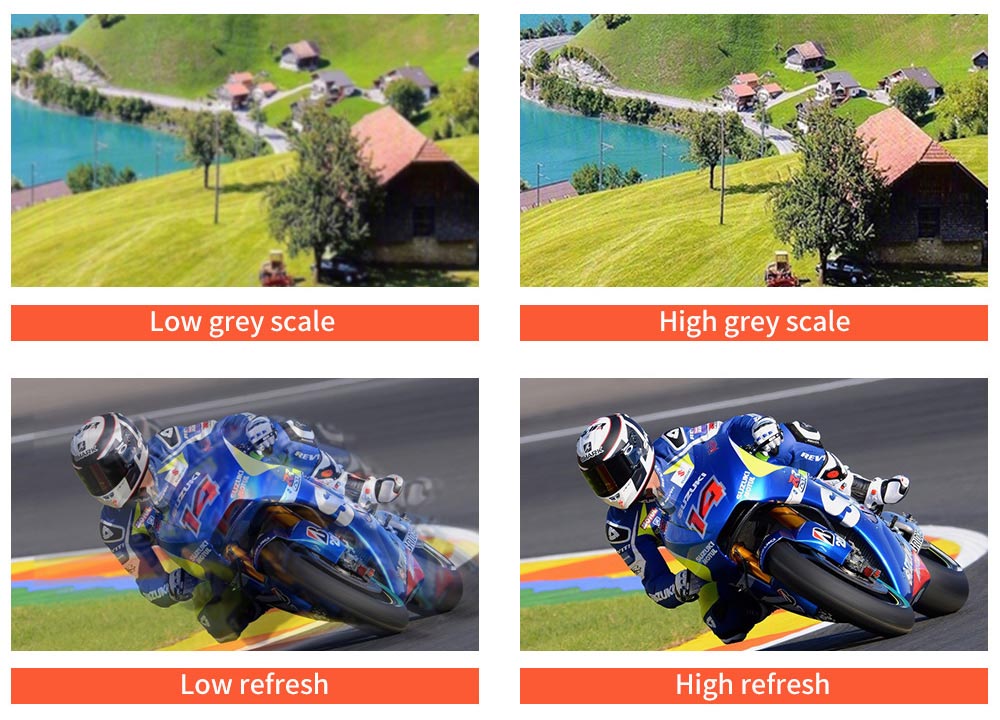

High refresh HD Led display

4.Perfect Led Display Performance


High brightness, high refresh rate, high gray scale



Specifications



Product Name



P3.91



indoor use



outdoor use



Unit Module



Model Number



VG-P3.91- 16S-In



VG-P3.91- 16S-Out



Module Size



250mm*250mm



250mm*250mm



Pixel Pitch



3.91mm



3.91mm



Pixels  Density



65536pixel/m2



65536pixel/m2



Pixel Configuration





1R1G1B





1R1G1B



Package Mode



SMD2121



SMD1921



Pixel Resolution



64dots(W)*64dots (H)



64dots(W)*64dots (H)



Max Power



30W



35W



Weight



0.5kg



0.65kg



Drive Type



Constant drive



Constant drive



Brightness of White Balance



≥1000cd/m2



4500-5000cd/m2



Cabinet



Dimension



500mm*500mm



500mm*500mm





Monomer Module Number



4pcs



4pcs



Power Supply



5V/40A* 1pcs



5V/40A* 1pcs



Pixel per Cabinet



128* 128



128* 128



Best Viewing Distance



5M20M



5M20M



Best Viewing Angle



160°(W) 120°(H)



160°(W) 120°(H)



Temperature



storage:-35~+85 .working:-             20~+50



storage:-35~+85 .working:-              20~+50



Relative Humidity



10%-95%



10%-95%



Thickness



65mm



65mm
