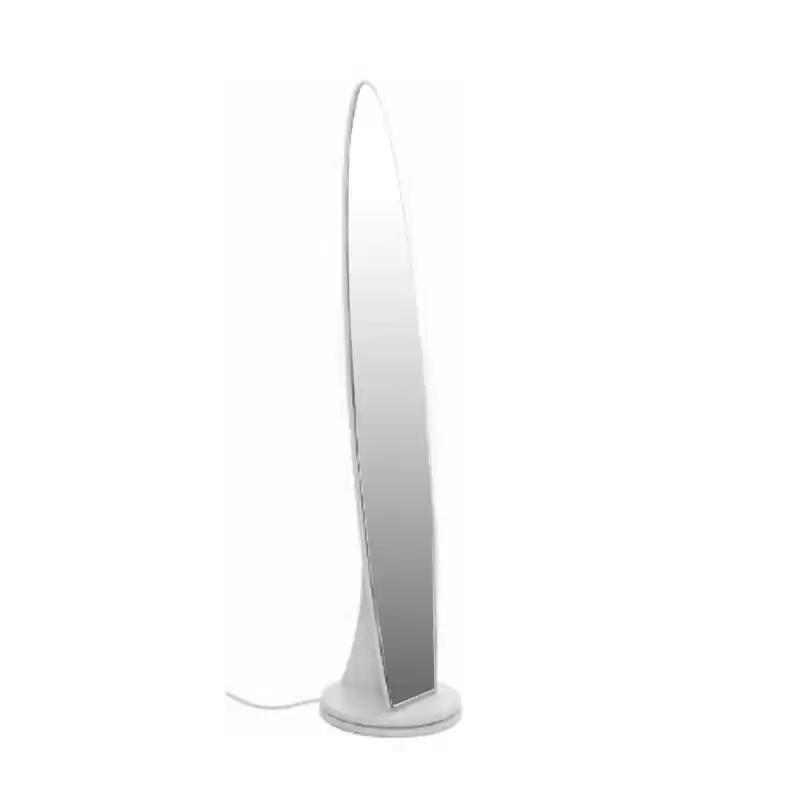

Product Name:Phoebe Smart Photo Taking Dressing Mirror
Feature
●Redefine your dressing mirror,
●Automatic upload of shooting, ping-pong effect. The mobile phone synchronizes photos and videos in real time and shares them in the circle of friends.
● LED display module, human-computer interaction, easy to take pictures, and freely switch the picture mode.
● The new 5mm thick mirror material is more beautiful.
● High-definition camera golden section design, human body aesthetics, get the best shooting angle.
● Support face recognition and voice recognition, the best user experience.
● 270 degree rotation foolproof, security considerations are everything.
● Mobile APP shooting management, support Android and IOS.
● AP direct connection or Wi-Fi link, support multiple people to connect at the same time.
Parameter
|
Model
|
ANSDEN EAP-MAP852-01
|
|
Smart Photo-Taking Mirror
|
|
Software and hardware configuration
|
|
CPU
|
Fullhan FH8853
|
|
Main frequency
|
ARM1176,600mHz
|
|
Image processing
|
Fixed noise cancellation DAC SNR 94dB
|
|
High-performance CFA interpolation
|
|
External interface
|
|
2*I2C;3*SPI
|
|
Adaptive 2D, 3D denoising, high-performance YUV noise cancellation 1*USB
|
|
Auto White Balance/Auto Exposure GPIO
|
|
Image enhancement (brightness, sharpness, contrast, hue, saturation adjustment)
|
|
Memory
|
16MB
|
|
Flash memory
|
16MB
|
|
Wifi
|
2.4G
|
|
Operating system
|
support Linux system
|
|
Camera
|
400W
|
|
Interface
|
USB*1
|
|
Power/power consumption
|
|
Power input (built-in switching power supply)
|
5V/1A
|
|
Power consumption
|
≤1W
|
|
LCD panel
|
|
Display type
|
LED (matrix)
|
|
Working life
|
≥35000H
|
|
Working storage temperature and humidity
|
|
Operating temperature and humidity range
|
0-50℃/20-90%RH
|
|
Storage temperature and humidity range
|
-20-60℃/5-90%RH
|
|
Multimedia support format
|
|
|
JPG, BMP, JPEG, PNG
|
|
Appearance/Material/Craft
|
|
Host appearance
|
1600mm*300mm
|
|
Body thickness
|
55mm
|
|
Panel glass
|
Imported (non-conductive) diamond grade nano-coated glass
|
|
Material/process
|
MDF, fiber-coated paper
|
|
Dust proof and waterproof rating
|
IP65
|
|
Gross weight (carton)
|
14.6KG/16.8KG
|
|
Appearance size
|
1600mm*300mm*55mm
|
|
Carton size
|
1740mm*380mm*110mm
|
|
*Product characteristics and specifications may change, and each country or region may have different product performance requirements. For the latest information, please refer to the actual product.
|
Dimension
LED display module, human-computer interaction, easy to take pictures, and freely switch the picture mode.

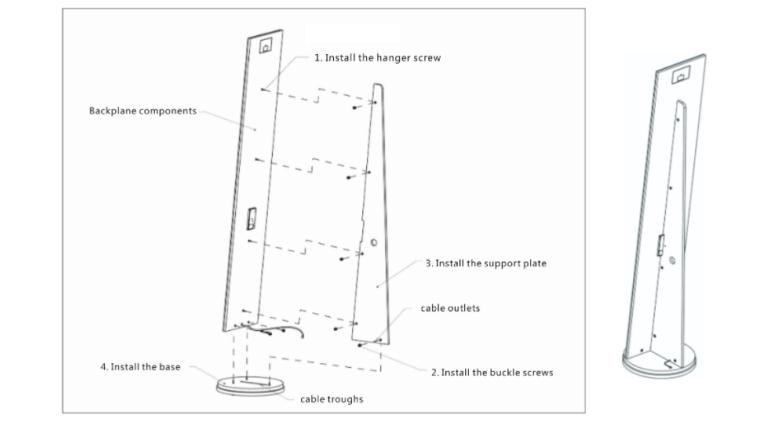

Note: This is a schematic diagram of installation. The installation method and steps are the same for each model.

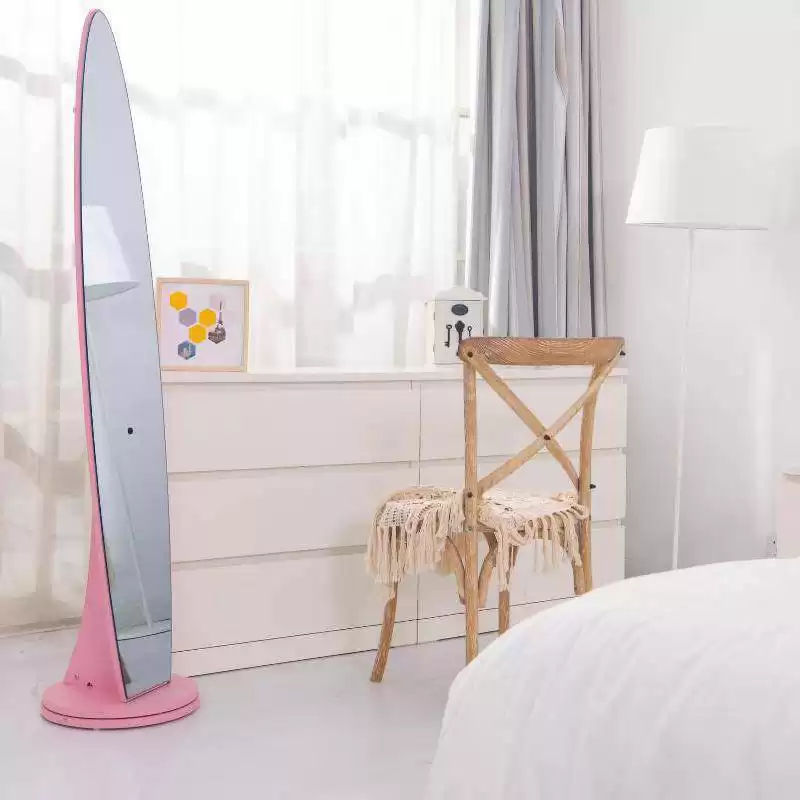

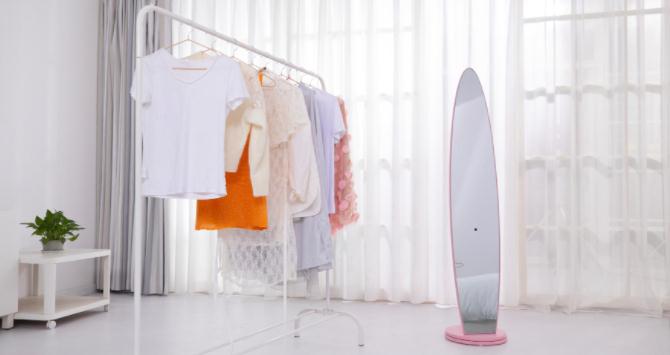

Application
The new 5mm thick mirror material is more beautiful.
