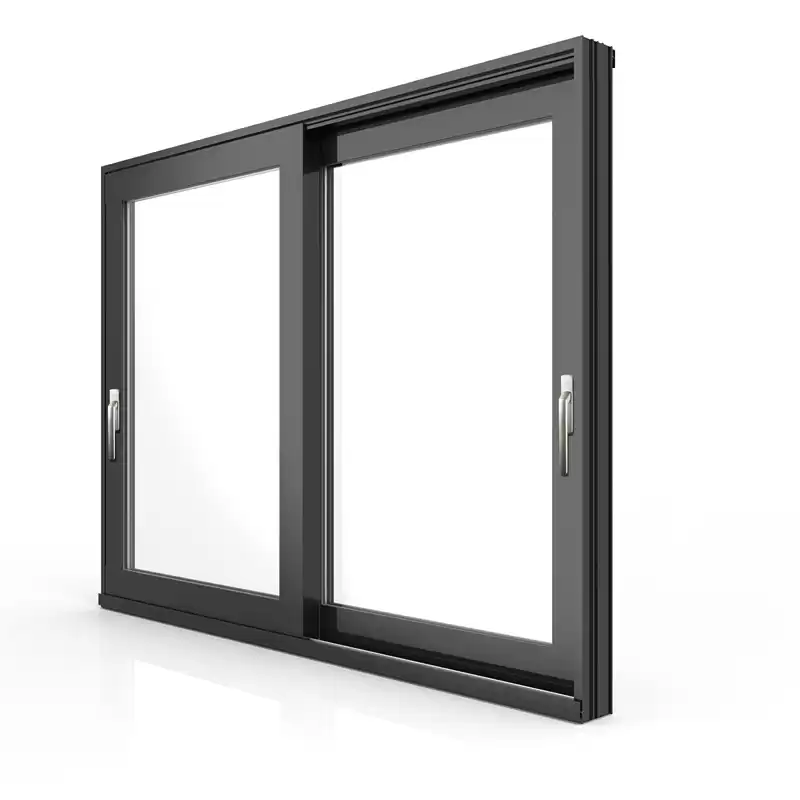

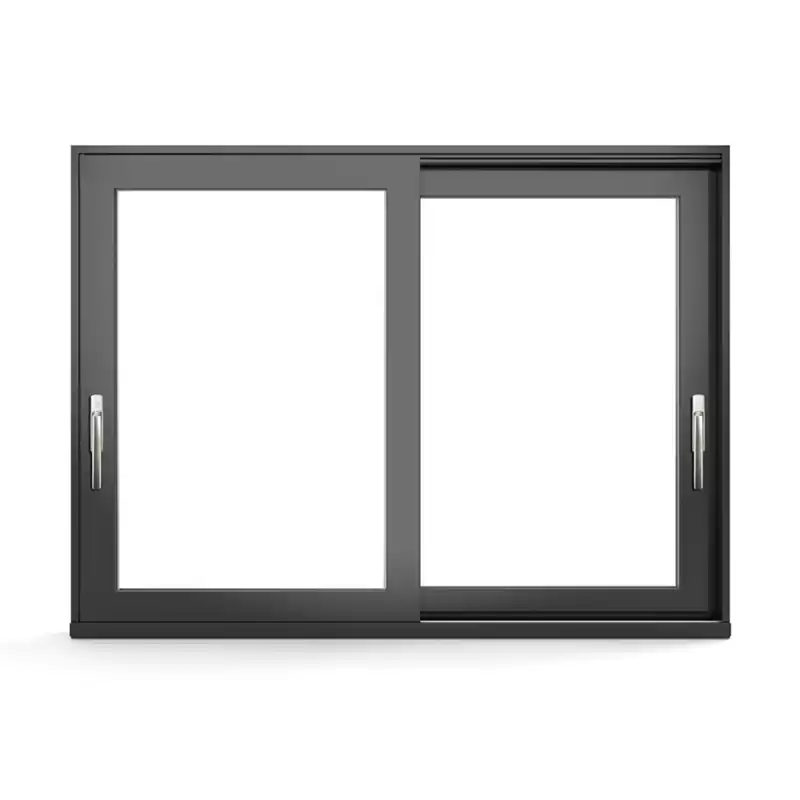

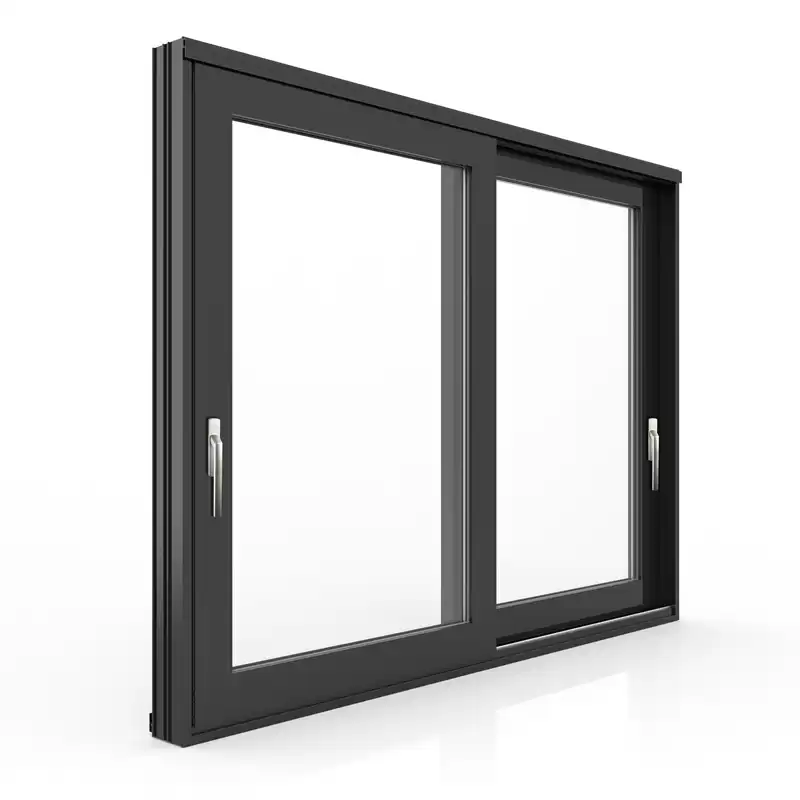

HD113 Series Aluminium Sliding Door/Lift-Sliding Glass Panel Door

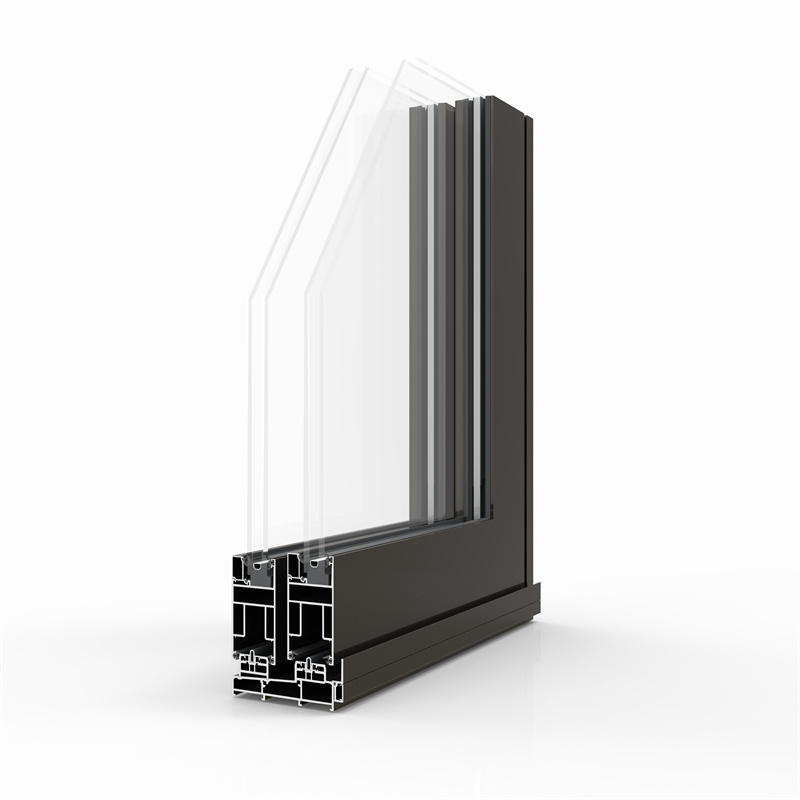

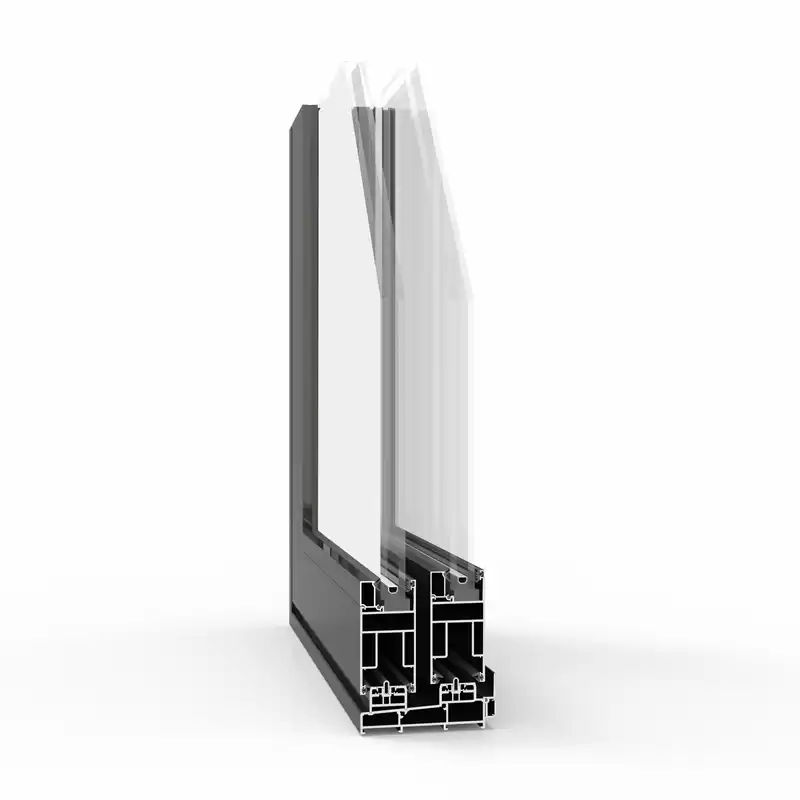

Sliding door profile is succinct with complete series matched profiles; and frame sash is evenly connected to 45 degrees. The frame has the device to ward off water as well as has low threshold design, which can open by two activities sashes or four sashes. A sash fixed or a sash pushing and pulling or two sashes fixed two sashes pushing and pulling are acceptable. Indoor fixation can also set inside. On the positioning wheel, push and pull smooth, no noise.
- Choose panels that stack in full view within the frame or conceal within a wall pocket
- Lift-and-slide engineering allows nearly effortless operation
- Industry-exclusive flush mount panel hardware is concealed for a clean look
- Side stiles and top rail available in 4- or 6-inch width for contemporary or traditional styling
- Flush and Recessed sill options create seamless transitions for accessibility
| Parameters |
Sash Width/Height
(mm) |
Visible Width
(mm) |
Depth
(mm) |
Glass Thickness(mm) |
|
Width 720-3300mm
height 1800-2700mm
Weight 300kg(MAX)
|
Fame Width 40mm
Sash Width 100mm
|
Frame Depth 130/190mm
Sash Depth 50mm
|
SGU:
8-10mm
DGU:
24-35mm
|
| Performance |
|
Heat Insulation
W(m2.k)
|
Sound Insulation
(DB)
|
Water Tightness
(Pa)
|
Air Tightness |
Wind Load
(KPA)
|
|
2.3-2.8
level 5/6
|
35DB
level 4
|
500PA
level 5
|
level 6 |
3.1KPA
level 5
|
Customized - HOMI is a aluminium manufacturer with over 30 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.
Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design -Based on the clients' and market's requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
Q: Are you trading company or manufacturer?
A: We are aluminium manufacturer located in QINGYUAN with more than 30 years experience. And you are warmly welcomed to visit us.
Q: How long is your delivery time?
A: Generally it is 15-20 workdays after receiving payment.
Q: Do you provide samples for free? What's the MOQ?
A: The new die samples are free for approval and inspection. The MOQ is 8-10tons
Q: What is the payment terms?
A: 30% upon order confirmation and the balance should be paid before delivery by T/T./after receiving B/L copy. /L/C at sight
