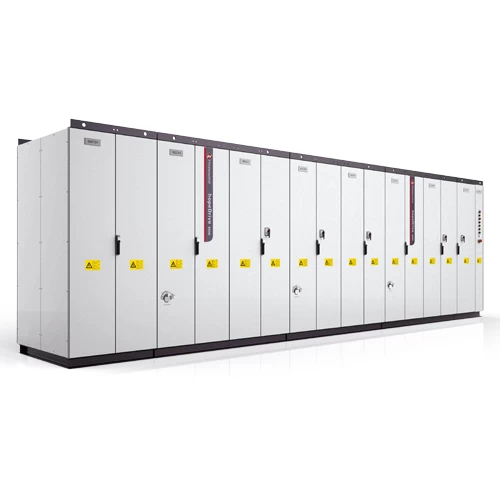

HD8000 Series Medium Voltage Engineering Type Variable Frequency Drive System
Product Introduction:
1.The
"system level" design and modularization units of accessory
engineering, to facilitate the expansion of power and customized
engineering combination, to meet meet the flexibility of application and
integration of system.
2. Engineering reliability
design concept, using IGCT and crimping power module, with two-level,
three-level, five-level and seven-level topology; fewer devices, high
reliability.
3. With our rich range of products and
solutions, can provide a direct replacement for CC, LCI products; grid
level supporting 1.65kV, 3.3kV, 6.6kV, 10kV, with 3MW-90MW power
coverage.
4. Complete rectifier front-end,
including basic rectifier, intelligent feedback rectifier and AFE
rectifier; can providing a common bus two-quadrant/four-quadrant
transmission system according to customer demand.
5. Ultra high power density, minimal footprint.
6. Use of deionized water cooling scheme, internal heat dissipation using
the wind-water heat exchanger; high protection level, up to IP65.
7. Can be seamlessly connected with the mainstream PC, in addition to
supporting the mainstream Profibus, CANopen, ModBus RTU protocol, but
also supports TCP/IP, CC-Link, DeviceNet and other protocols.
8. Excellent control performance; when sudden increase of rated torque,
the current response time is about 5ms under the torque control mode.
9. Strong adaptability of the grid to support a wide range of input power
grid; better adaptability of unbalanced grid and harmonic distortion
grid.
10. The product can be suitable for
asynchronous induction motor, permanent magnet synchronous motor and
electric excitation synchronous motor.
11. Providing a quick debugging tool hopeInsight, can achieve intelligent
wizard, graphical configuration, fault recording and 12-channels
background oscilloscope ,for more convenient network debugging.
12. Hopewind Cloud Data Management Services be used to achieve "zero"
distance monitoring, providing customers with advanced data analysis and
diagnostic services, reducing unplanned downtime.
13. Products can be widely used in metallurgical steel rolling, oil and gas
transportation, mining machinery, marine equipment, test bench,
offshore wind power, pumped storage and other industrial fields.
