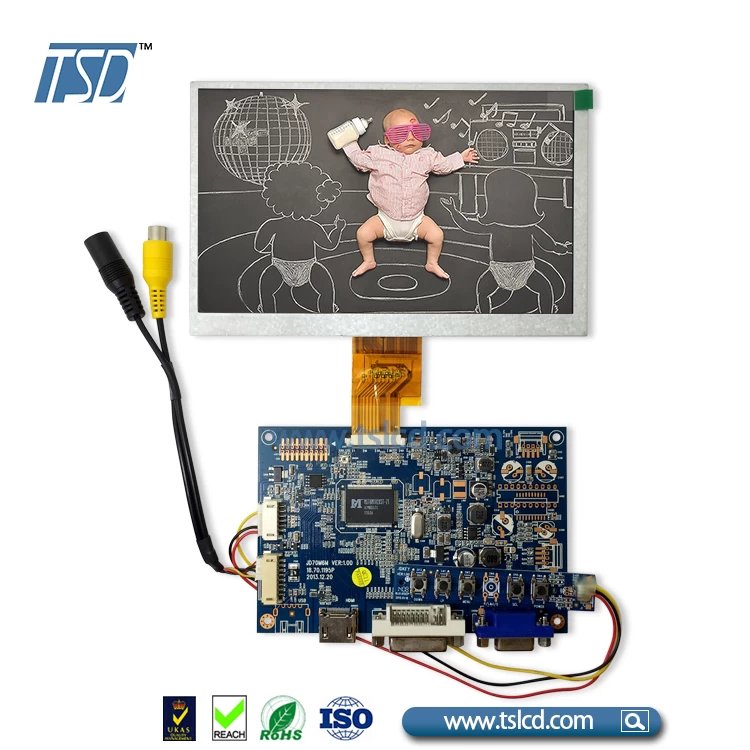

HDMI VGA board 7 inch tft lcd screen 1024x600 resolution

HDMI VGA board 7 inch tft lcd screen 1024x600 resolution



HDMI VGA board 7 inch tft lcd screen 1024x600 resolution



164.00x103.00x3.50
Specification
Part No. TST070WXBE-05-HDMI
Outline Dimension(mm)
Active Area(mm) 154.214*85.92
Resolution(dots) 1024*RGB*600
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 1024RGB(H)xRGBx600(V)
Touch panel Available to custom
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal white, 7.0 inch TFT
Surface treatment Antiglare
View direction  12 o'clock
Brightness 220 cd/m2
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface HDMI/VGA
Module lifetime(Hours) 50,000-100,000
