Side seal header bag making machine
Application:

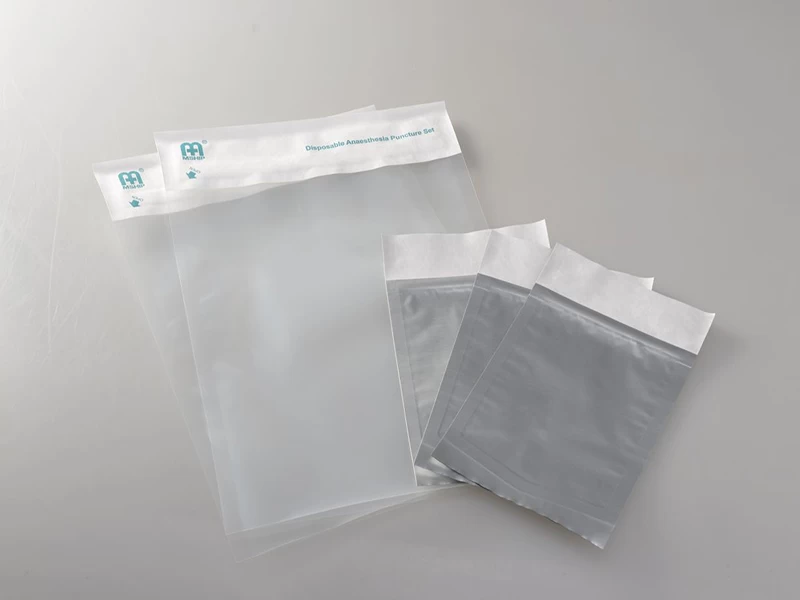

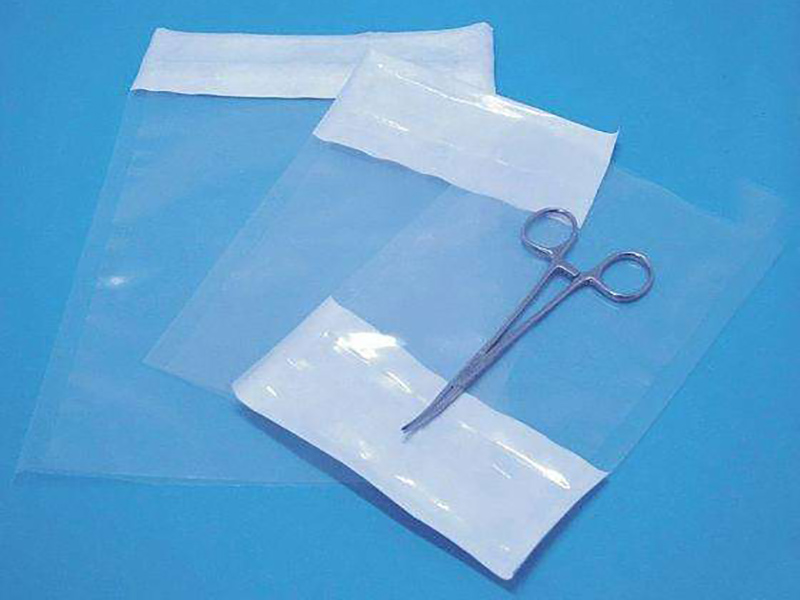

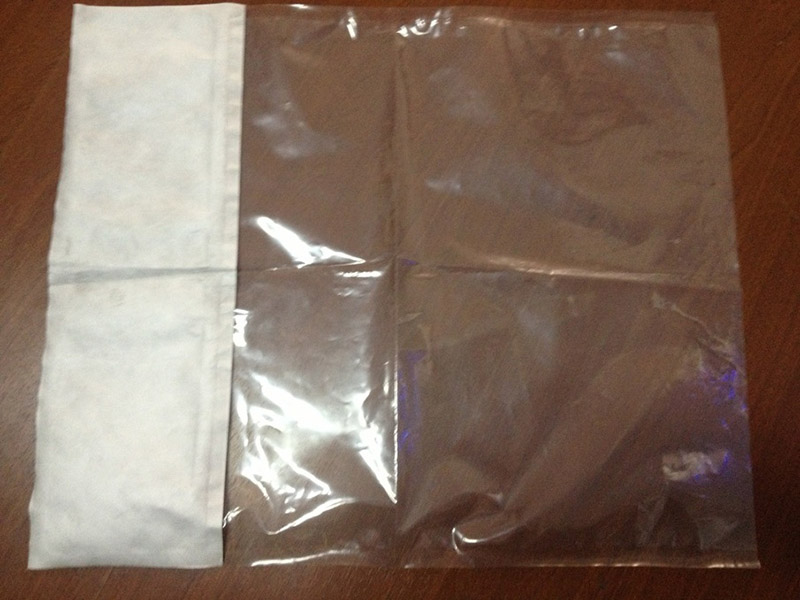

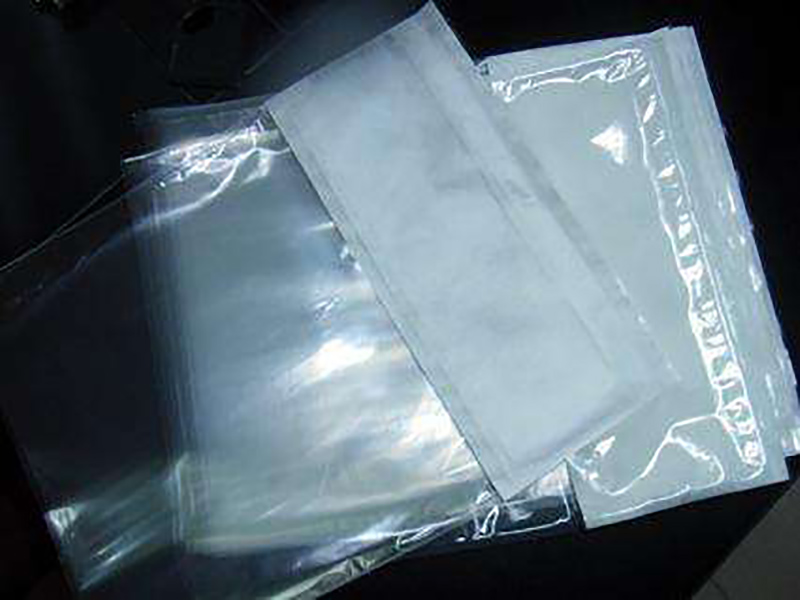

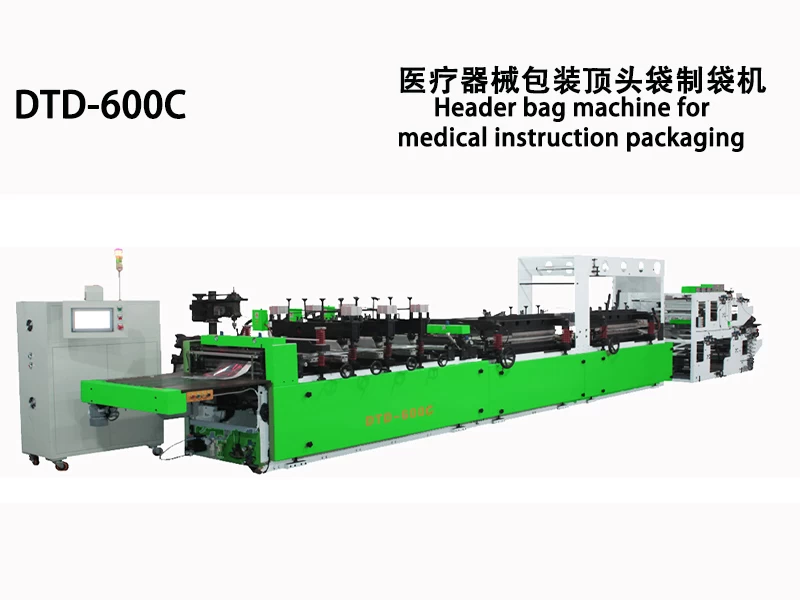

The DTD-600C header bag machine for medical instruction packaging is widely used to produce medical header bags such as PE header bag and Tyvek peel film with better tightness and intactness. There are series of features to meet clients’ requirements.
Features:

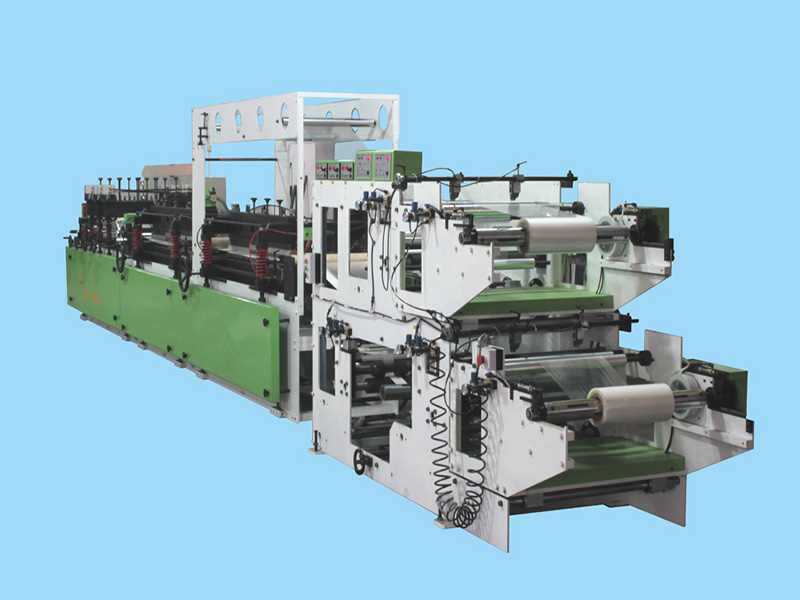

●DTD-600C medical bag machine is equipped with three or four latest discharging devices, automatic deviation correction with magnetic powder tension, photoelectric tracking device, PLC to control fixed length and touch screen.
●Chiefly characterized by proper structure, simple operation, convenient repair method and high control precision, the machine is the ideal facility to produce three-layer (four-layer) Tyvek/PE/PE of header bag and Tyvek/PE easy peel film for medical instruction packaging.
Main technical parameter:
|
Max width
|
620mm
|
|
Max bag-making length
|
600mm
|
|
Hot press frequency
|
10-40 times/min
|
|
Total power
|
26kw
|
|
Dimension
|
1000*1200*1800mm
|
|
Weight
|
5000kg
|
Technical parameter of prototype:
|
Bag-making speed
|
10-40 pcs/min (may range by material sorts and cutting length)
|
|
Range of film size
|
Max width of upper discharging device: 620mm, max diameter: ￠700mm
Max width of lower discharging device: 300mm, max diameter: ￠450mm
|
|
Bag size
|
Width: 75-600mm, length: 30-400mm (6 multiple material feeding)
|
|
Machine dimension
|
Length*width*height: 10000*1200*1800mm
|
|
Weight
|
5000kg
|
