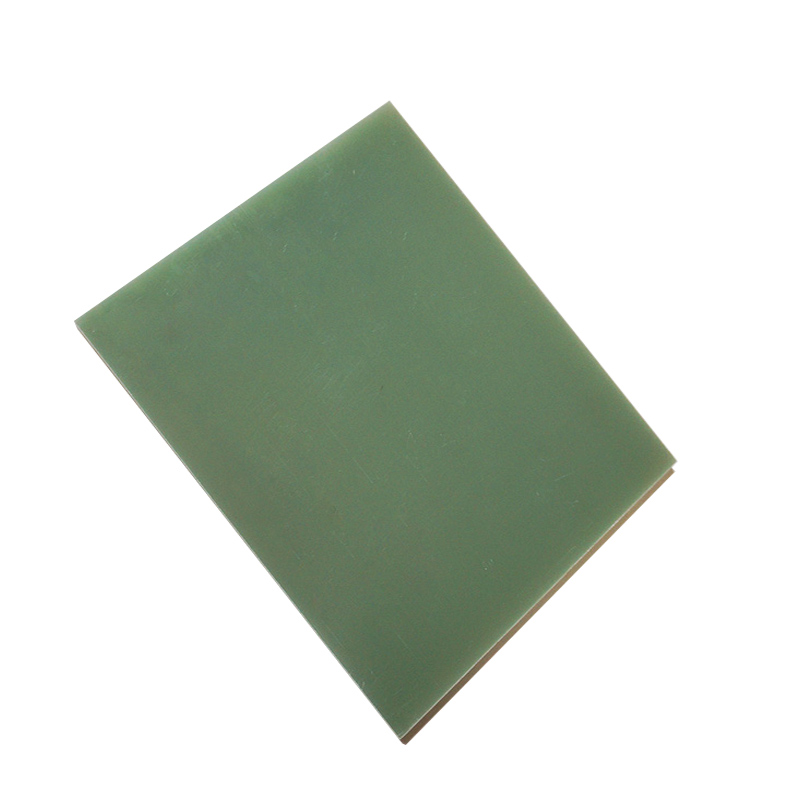

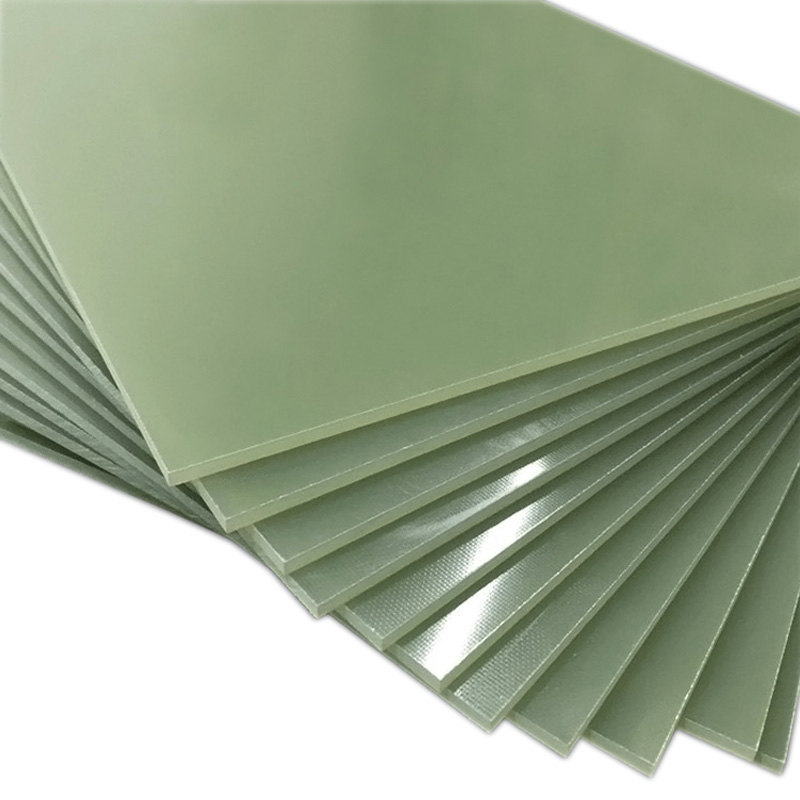

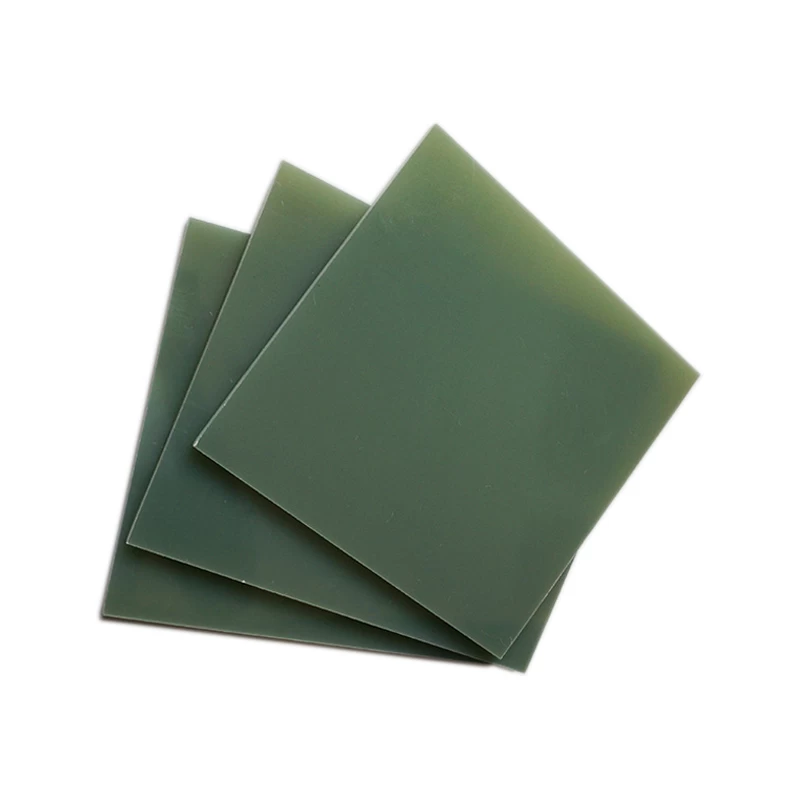

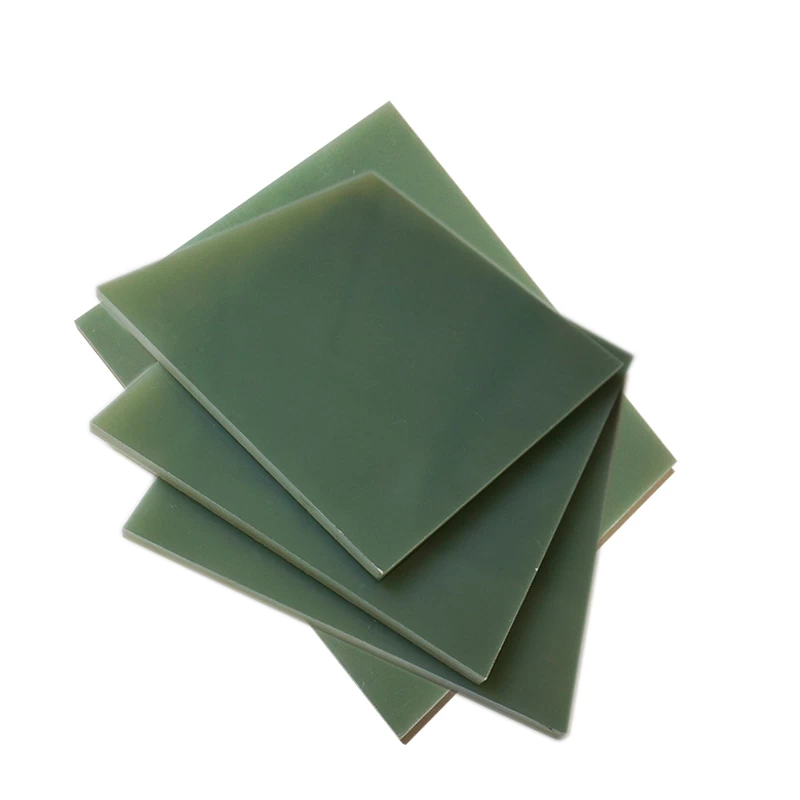

Heat resistant G10 FR4 glass epoxy sheet

These G-10/FR4 sheets are strong, machinable, and electrically insulating. They're made of a flame-retardant epoxy resin with fiberglass fabric reinforcement. G-10/FR4 is also called epoxy-grade industrial laminate and phenolic.



G-10/FR-4 is a thermosetting industrial laminate consisting of a continuous filament glass cloth material with an epoxy resin binder. It has characteristics of high strength, excellent electrical properties and chemical resistance not only at room temperature but also under humid or moist conditions.


The product has the following characteristics:

Color: Green,Black and customized is available
Thickness: 0.3~100mm
Standard Sheet Sizes: 1020x1220mm,1020x2040mm,1220x2470mm
Max. Temperature: 265° F
Tensile Strength: 35,000-50,000 psi (Excellent)
Impact Strength: 5.5-12 ft.-lbs./in. (Excellent)


                                                                              FR-4 Laminates Sheet Technical Date sheet

Item

Test method

Unit

Typical Values



Physical
Properties


Color

Visual inspection

--

Light/Green/Yellow

Specific Gravity

IEC 60893-2:2003

g/cm³

1.90-2.15

Water absorption

ISO 62:2008

%

<0.3



Electrical
Proerties


Electric strenght ┴

IEC 60893-2:2003

KV/mm

≥14(3.0mm)

Breakdown Voltage //

IEC 60893-2:2003

KV

≥60

Volume Resistivity

IEC 60893-1980

Ω.m

≥1.0*10¹²

Surface Resistivity

IEC 60893-1980

Ω

≥1.0*1014

(1 MHZ)Dielectric constant

IEC 60893-2:2003

--

4.0-5.5

(1 MHZ)Dissipation Factor

IEC 60893-2:2003

--

0.04-0.05

Proof Tracking Index PTI

IEC 60893-2:2003

V

≥200

Insulation resistance after immersion 24Hrs in Water

IEC 60893-2:2003

Ω

≥5*1010



Mechanical
Properties


Flexural Strength ┴

IEC 60893-2:2003

Mpa

≥340

Charpy Impact strength //

IEC 60893-2:2003

KJ/m2

≥60

Tensile Strength

IEC 60893-2:2003

MPa

≥300

Bond Strength//

IEC 60893-3-4:2003

N

≥8000

Compressive Strength┴

IEC 60893-2:2003

MPa

≥350


Flame
Resistance
Properties


Flame resistance

IEC 60893-2:2003

--

V-0

Temperature Index

IEC 60085:2004

°C

155

Toxicant Content

E662

--

 Low

Others

Acetone Resistance

boiled

Min

30(OK)
