Product Name: Heat Transfer Label Screen Printing Machine

• Heat Transfer Label Screen Printing Machine's content relates to thermal transfer label, wash care label, care label, tagless label and garment label screen printed on roll film or paper
• Screen printing on roll films like PET, PVC, PC, BOPP or PP or Paper then transfer to garments and clothing
• Not screen printing to garments and clothing directly,
• The winding mechanism utilizes an advanced sonar sensor for accurately sensing the thinnest film
• The film thickness range: 0.02--0.5mm
• The film breadth range: 300-600mm
•  A servo system drives an automatic registration control system features high speed, high precision positioning calculation (±0.01 mm), assuring positioning accuracy.
• Precise alignment device (not contain automatic register ) travel employs a linear motor drive for outstanding overprint accuracy of ±0.01 mm.

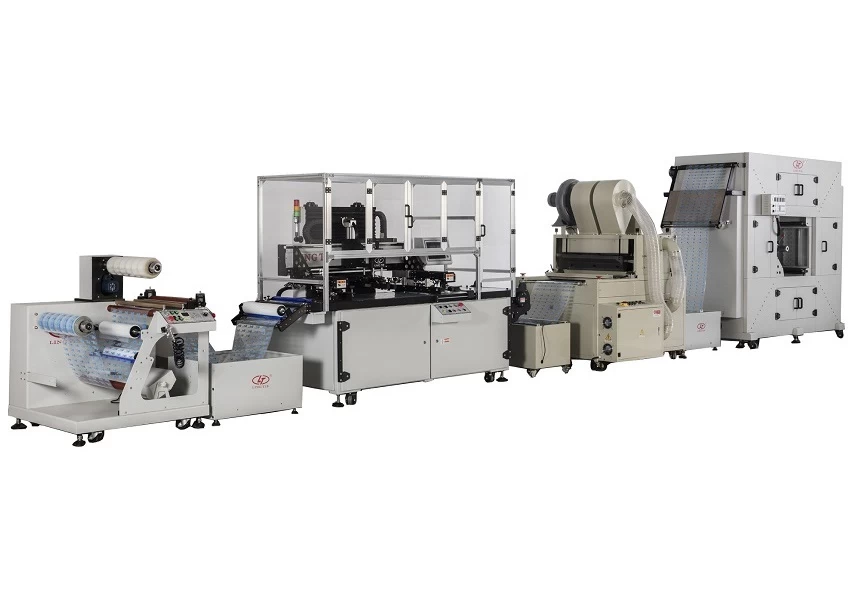

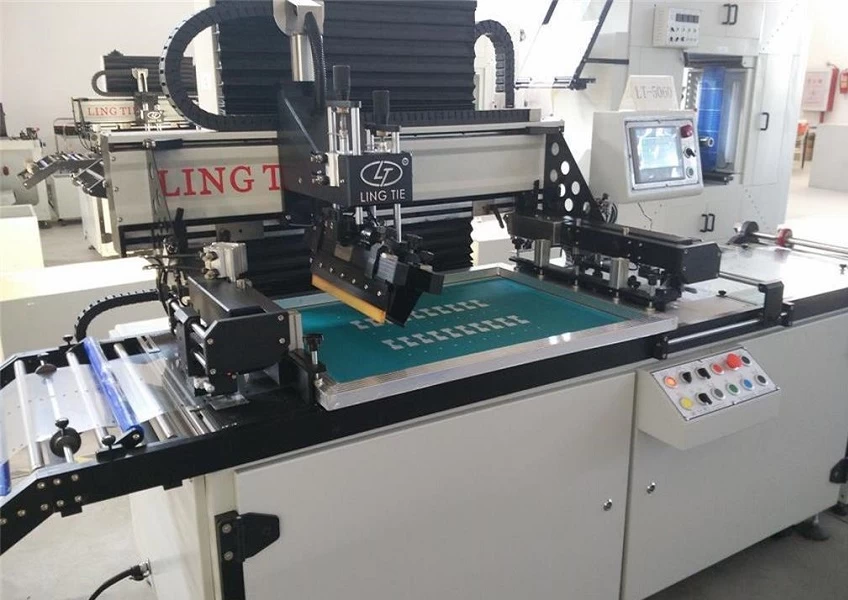

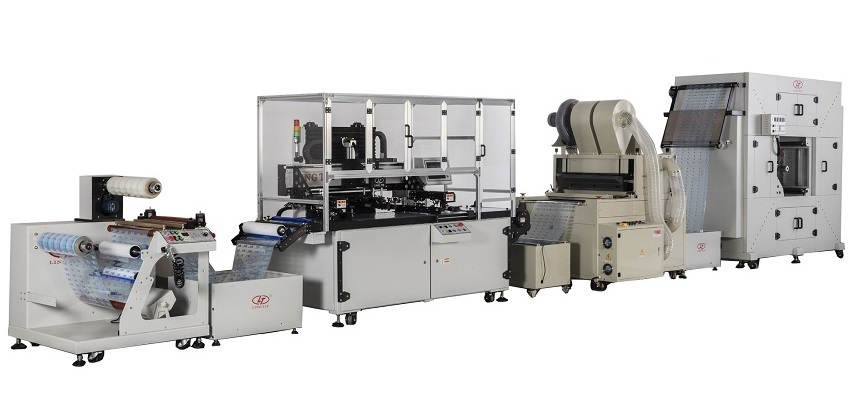

• The machine consists of a feeding unit, a screen printer and a curing oven
• Two dryers are available. Curing Oven (oven length: inner loop 30m,60m,80m ) and UV dryer with the cooling roller.

Specification:

 Model LTA-6080
 Max. Printing Size 600 x 800 mm
 Printing Speed  0~2500 print/hr
 Max. Screen Frame Size 900 x 1200 mm
 Frame Adjusting Variable 60mm
 Max. Substrate Width  620 mm
 Registration Accuracy ±0.01 mm
 Air Source 0.4~0.6 m pa
 Power 220 V, 3KW, 15 A
 Printing Material Thickness 0.02~0.5 mm
 Overall Dimensions 3150 x 1260 x 1650 mm (L*W*H)

The printing process of Heat transfer label  printing machine roll to roll
1.  sensor mark printing-- use for overprinting
2.  label pattern printing -- overprint how many times according to the label type
3. transparent ink printing --resist deformation
4. glue printing ---use to stick the pattern and cloth

The FAQ of the heat transfer label printing machine manufacturer

1, How much printing accuracy can be achieved?

• We can reach 0.01 mm overprint precision

• We can print 1 color, 2 colors, 3 colors, 4 colors, 5 colors, 6 colors, 7 colors and more.

• 10-20 meters /minuter in generally, 600-1200 meters / Hour.

• It's about 40 KWH /day,  working 8 hours

• Yes, we  supply Free Training and Installation overseas, but the round airplane ticket is on your side

• We are a professional manufacturer for 15-years in China.

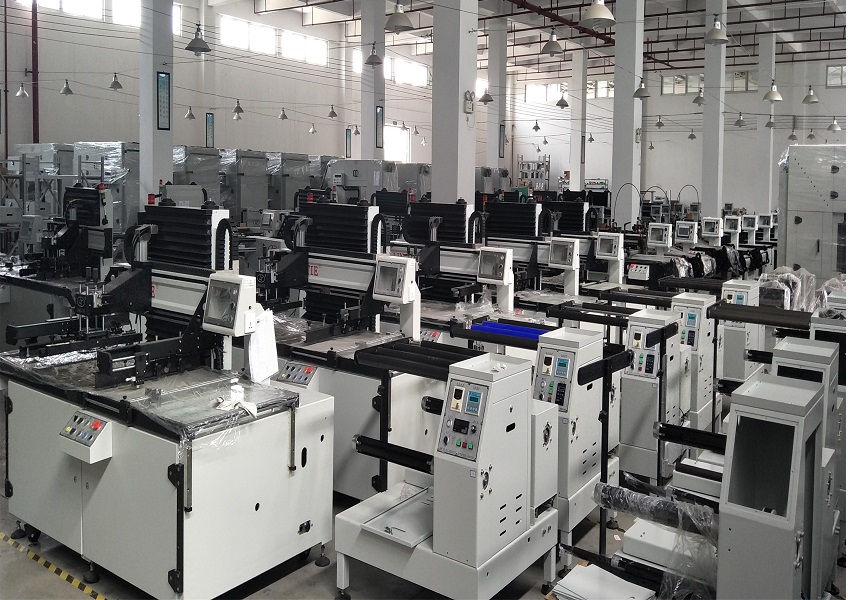

• There are so many models of the single color roll to roll screen printing machine in our workshop which ensure short delivery time and can reduce your waiting cost.

• We can offer screen film, screen ink supplier and various ancillary equipment and accessories
• After-sales service is maintenance, not repair
• High requirement and High demand label, you can give to Lingtie Brand fully automatic screen printer

• Tell the truth, the price is not very cheap. As you know, only a reasonable profit can guarantee high quality

• We have CE Certificate & ISO Certificate

• We have the Self-Machining CNC Center and each process under the strict quality control,  which is one of the conditions that ensure the stability of the roll to roll screen printing system.

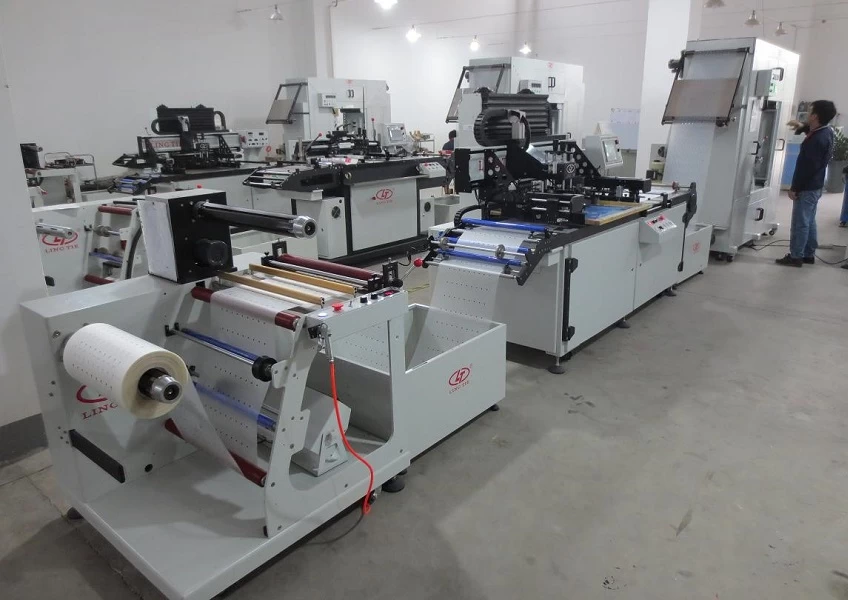

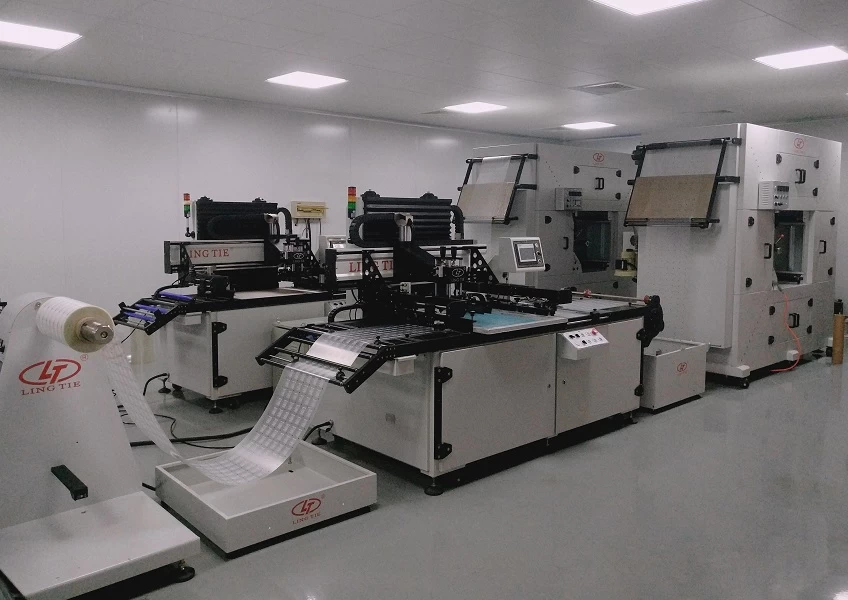

• We had installed the machine more than 20 countries since 2009( get the export and import right in 2009), the below images show our machine in clients'  factory.

• We have 9 types of the printing area, such as  300 x 400 mm,350 x 450 mm, 460 x 560 mm, 500 x 600 mm, 550 x 700 mm, 600 x 800 mm, 700 x 600 mm, 500 x 1200 mm, 600 x 1600 mm.
