Heat Vacuum Sealer for Pre-Sealing Pouch Cell after Electrolyte Injection

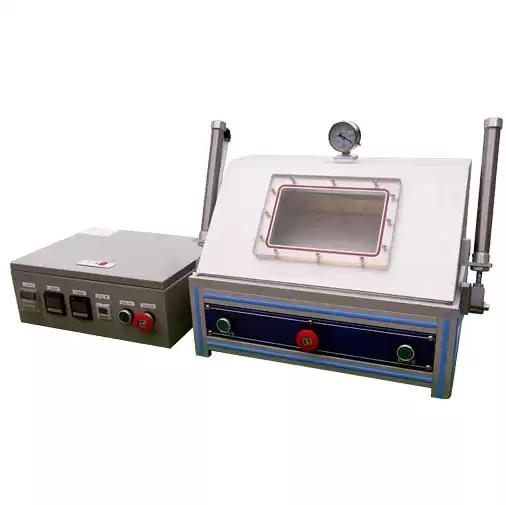

TMAX-YF200 vacuum pre-sealer for battery is a compact vacuum sealer for sealing aluminum-laminated case in glove box after injection of electrolyte into pouch Li-ion cell or after formation for final seal (polymer Li-Ion cell). Heatable sealer blade is built into the chamber.
|
Type
|
TMAX-YF200 Vacuum pre-sealing machine
|
|
Vacuum
|
up-90Kpa ~ 0 adjustable
|
|
Head temperature
|
room temperature ~ 250 °C, temperature adjustable
|
|
Temperature Accuracy
|
± 2 °C
|
|
Sealing pressure
|
0 ~ 7Kg/cm2 adjustable
|
|
Sealing time
|
0 ~ 99 seconds adjustable
|
|
Edge Width
|
5mm
|
|
Maximum Edge Dimensions
|
200mm-400mm
|
|
Head Parallelism
|
with triple NCR, head pressure at 0.6MPa, temperature 200 °C, pressure
out of uniform seal
|
|
Air Consumption
|
Approximately 0.2L compressed gas / each message once
|
|
Air Working speed
|
≥ 180 times / h
|
|
Power
|
Using 500w heat pipe, heat the power consumption of about 1KW
|
|
Power supply
|
220V/50Hz;
|
|
Compressed air source
|
0.5 ~ 0.8Mpa;
|
|
Dimensions
|
Work Department: 470mm * 485mm * 435mm
|
|
Control box
|
420mm * 325mm * 225mm
|
|
Weight
|
about 50Kg
|
