Heavy 50 CBM Diesel Tank Semitrailer

North africa best supplier for 50 CBM oil tanker semtirailer, BPW & FUWA axle, JOST towing kingpin, JOST 13 T landing gear, more than 10 years experience in supply best quality for africa customer



Best 50 CBM Diesel Tanker Truck export North Africa



50CBM Oil tanker semitrailer for sale



China best fuel tanker semitrailer, also can be called diesel tanker semitrailer, oil tanker semitrailer, gasoline tanker semitrailer, stainless steel tanker trailer, aluminum tanker trailer, etc. which are mainly used to transport all kinds of inflammable liquids, such as diesel, oil, gasoline. The 50 CBM fuel tanker trailer export to North Africa, and will be used for crude oil transportation in Oil Field.

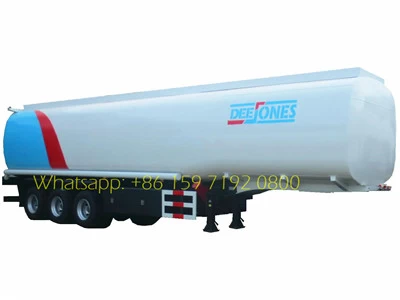

48CBM 3 Axle diesel tank semi trailer

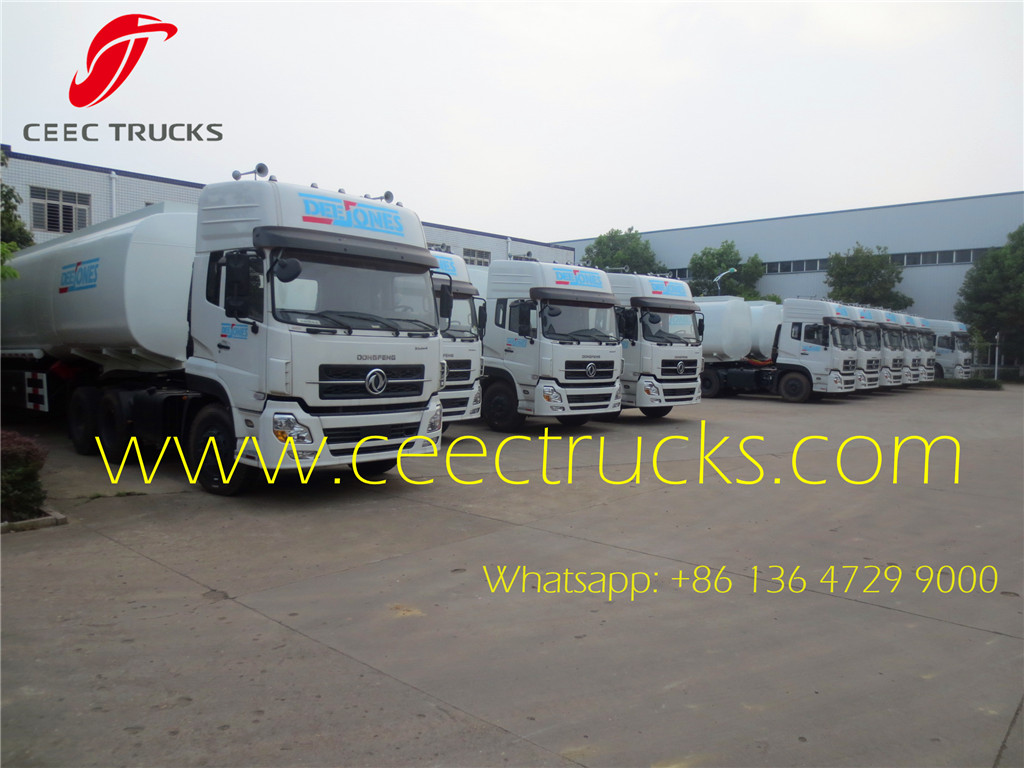

North Africa customer choose 30-50 CBM fuel tanker trucks from China CEEC TRUCKS:

The tank is grounded to discharge static electricity produced by the rubber tire, which might cause fire during fuel transfer operation. Upon your request, we can add a power take-off system to the tank that is powered by gearbox, which controls the tank to either sucks in or discharge fuel.

The tank of our semi trailer also comes with two hoses and quick couplers. Its suction head is 6 meters. Two fire extinguishers and other specialized tools are also sure to come in handy during emergency. The whole tank semi trailer is comprised of two parts, the tank assembly and tank support.

In addition, the tank semi trailer can be equipped with various kinds of valves, discharge ports, and tank lids, such as in square or round shapes. Choices of these parts can be made all according to your likings.

Simply tell us the variety of materials to be transported, particle size, density, and desired tank capacity and weight, and we will design accordingly a suitable semi trailer model available with various chassis, tanks, and fuel feeders.

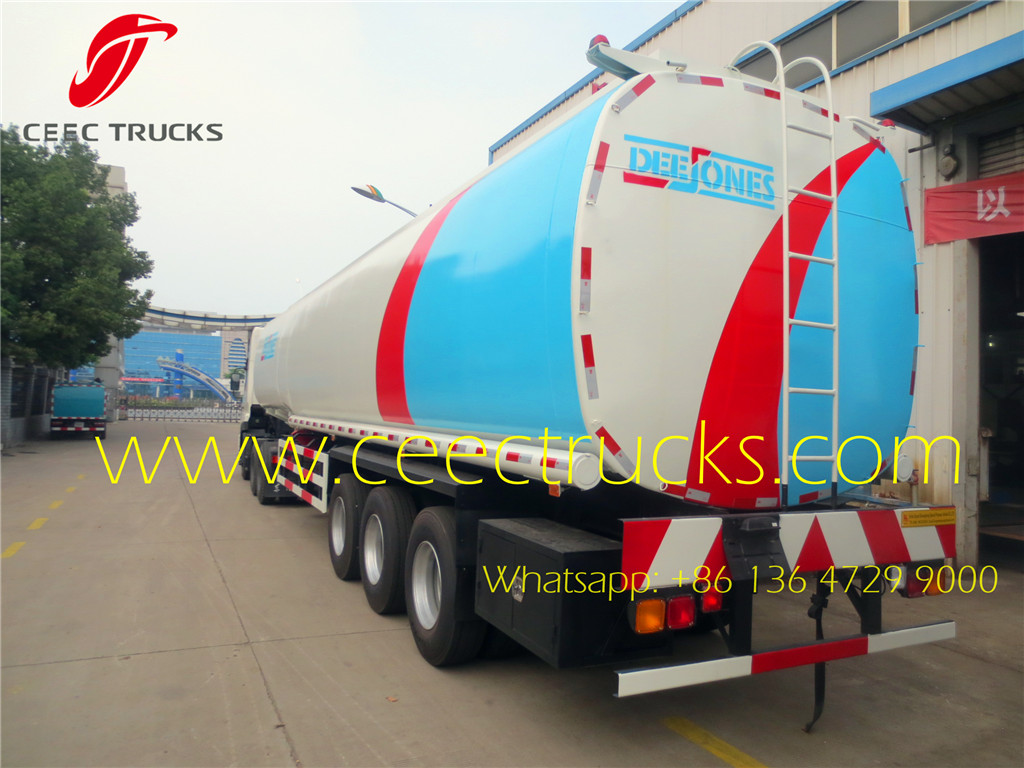

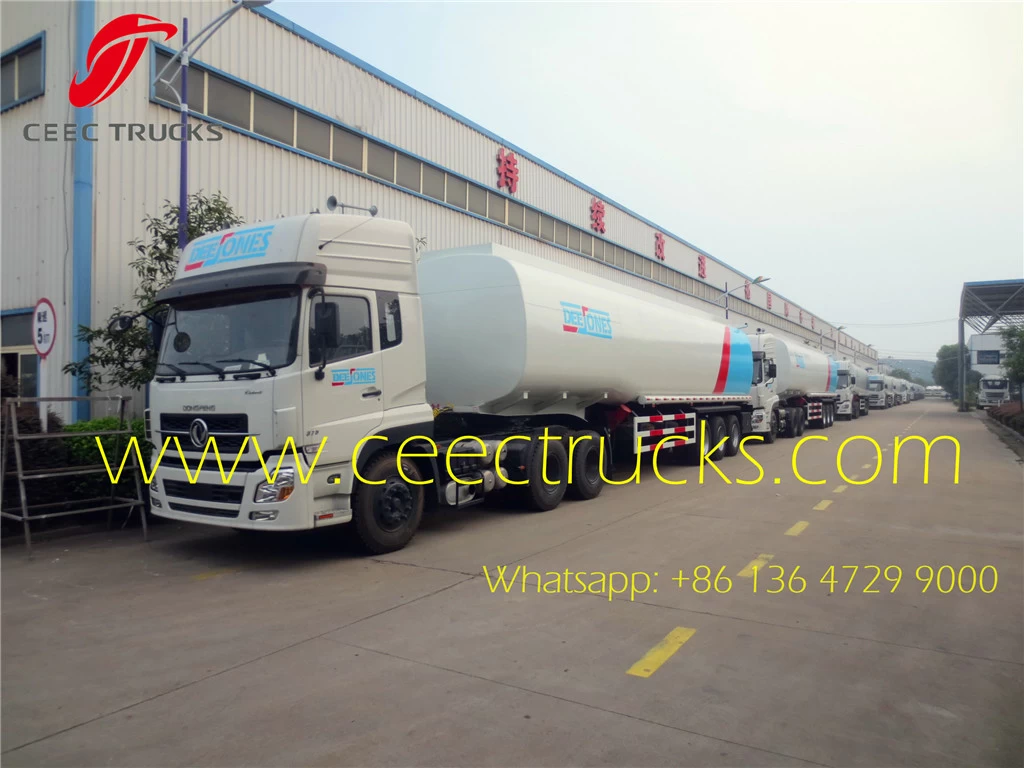

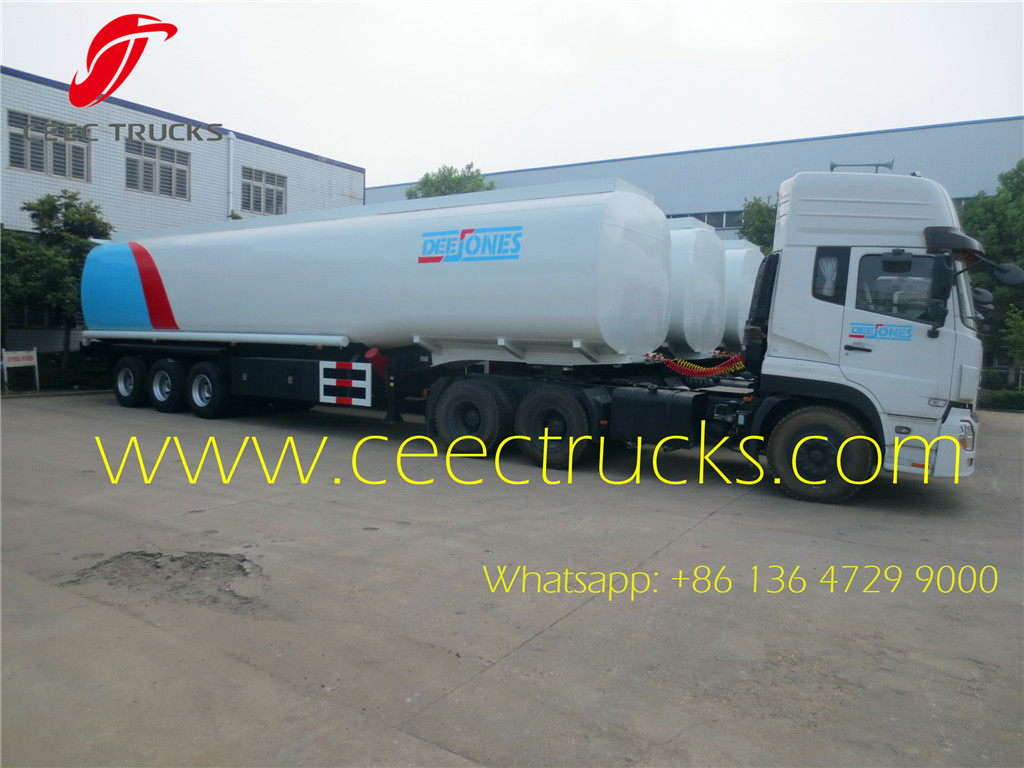

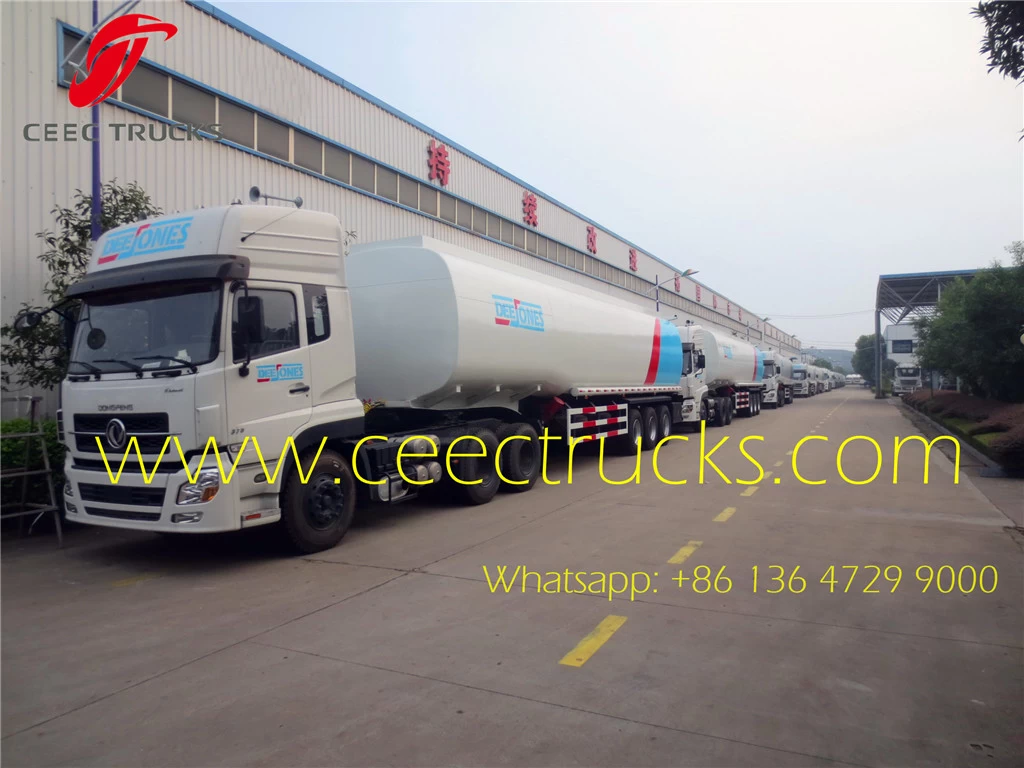

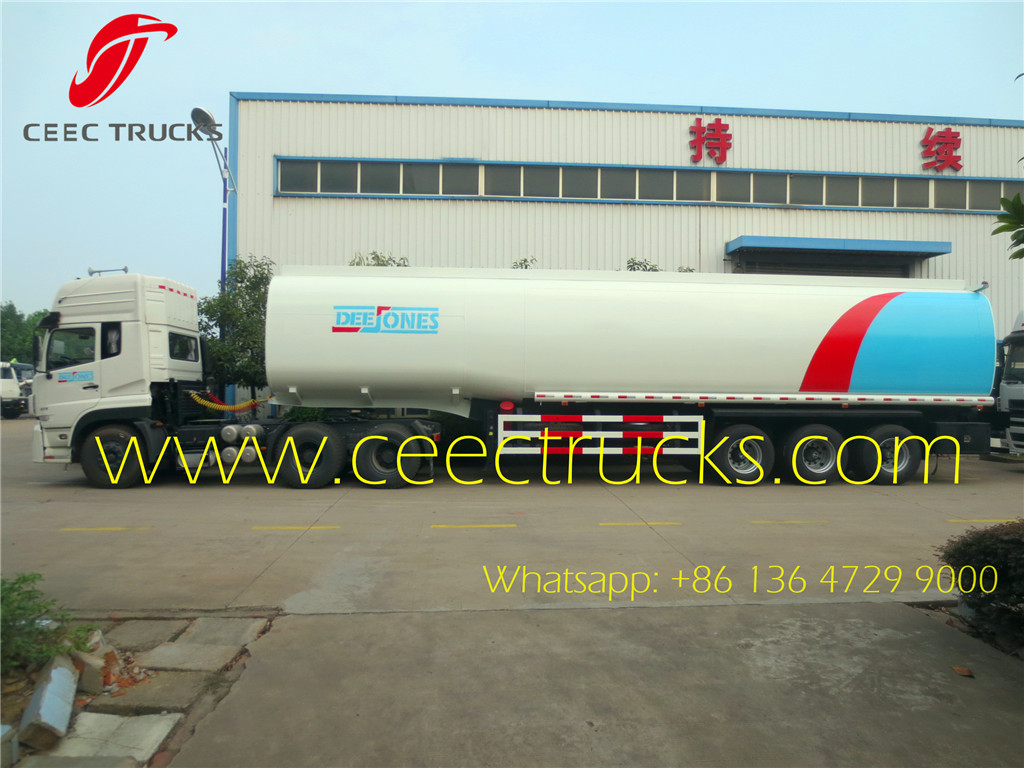

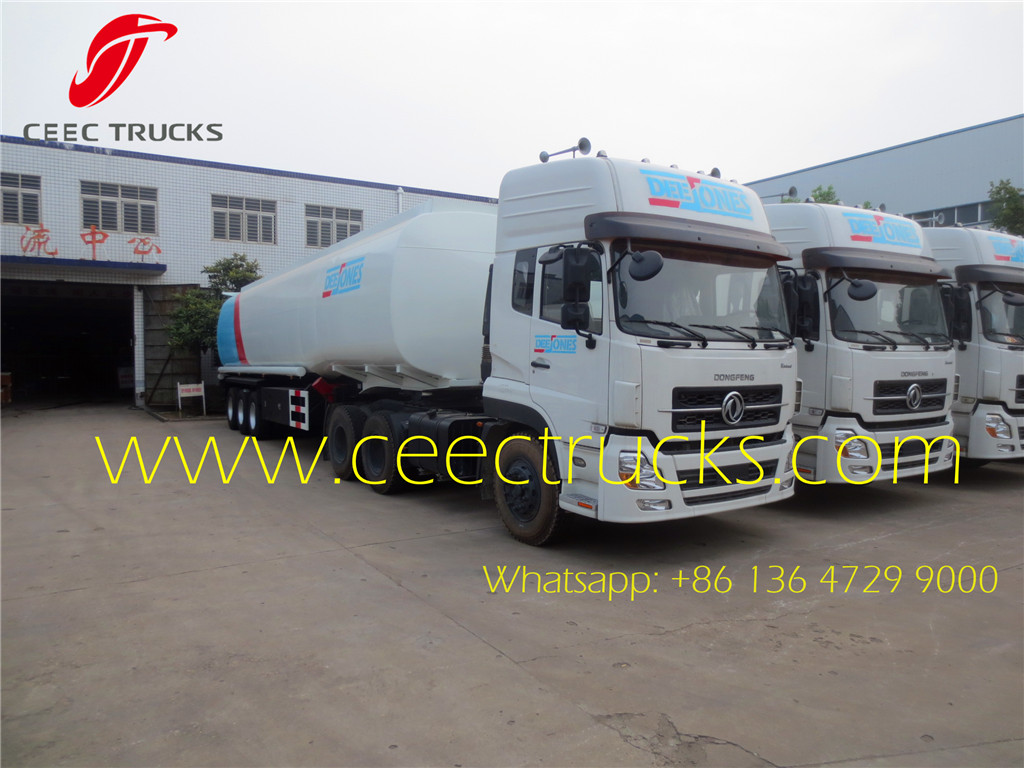

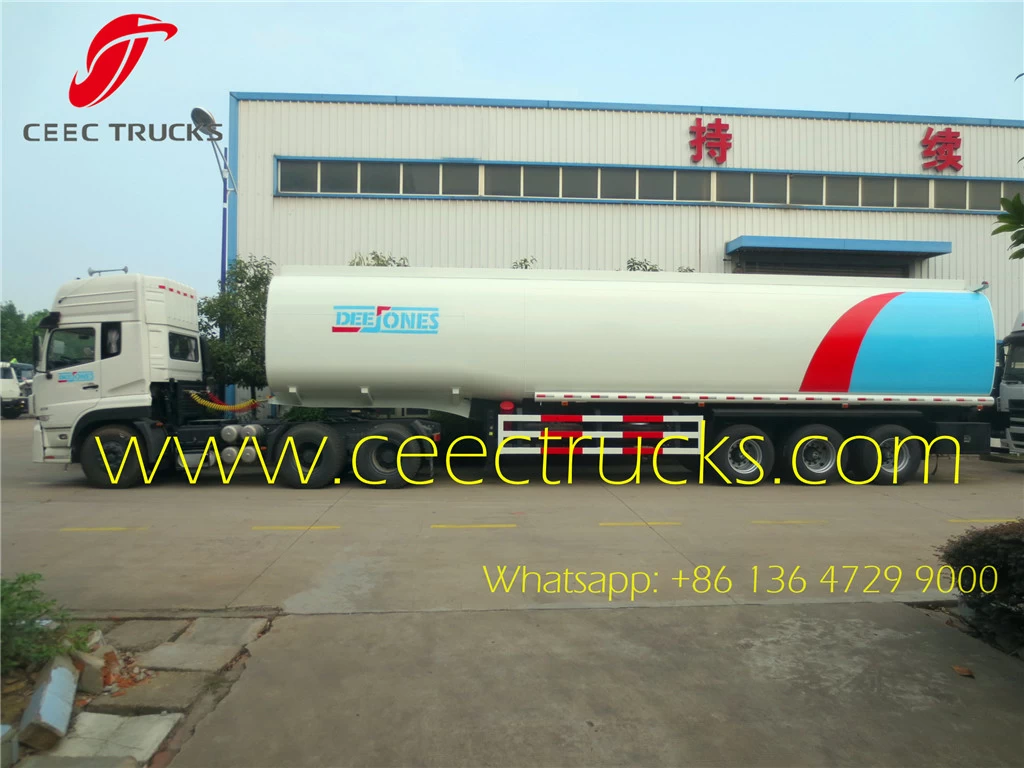

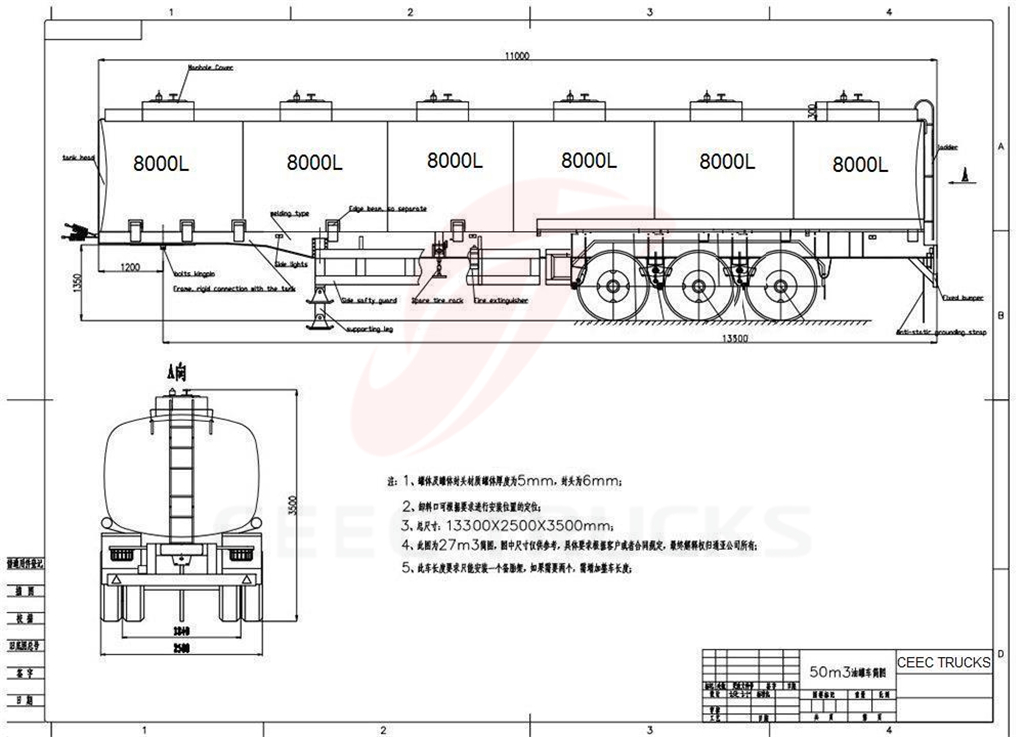

50CBM Oil tanker semitrailers

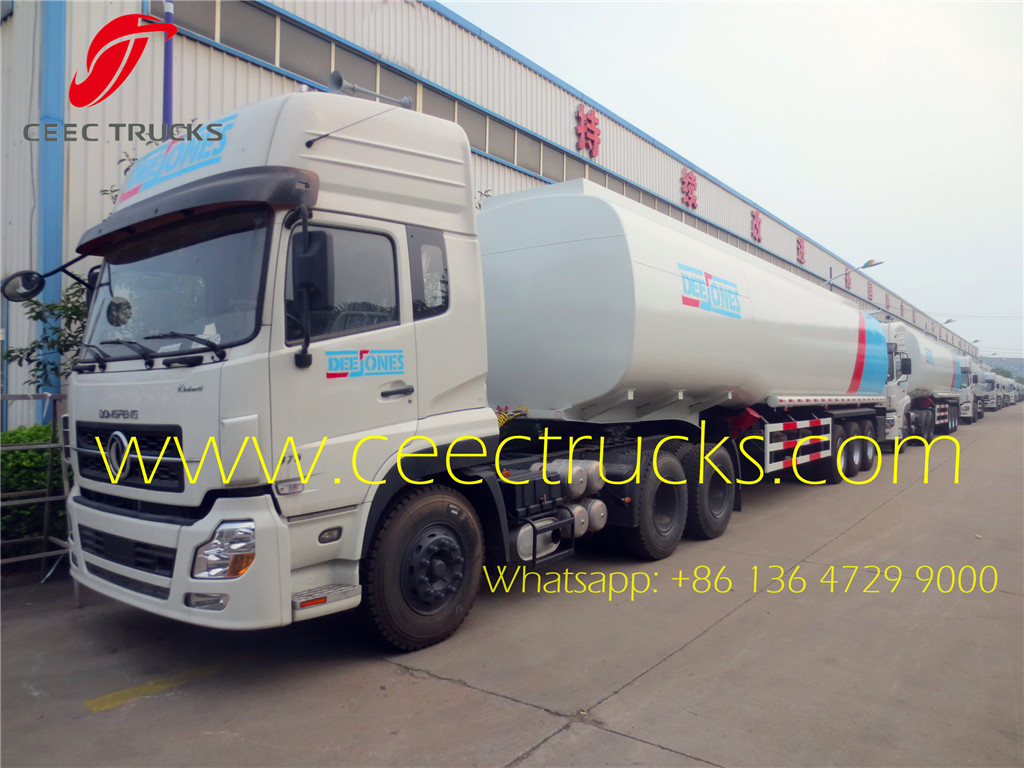

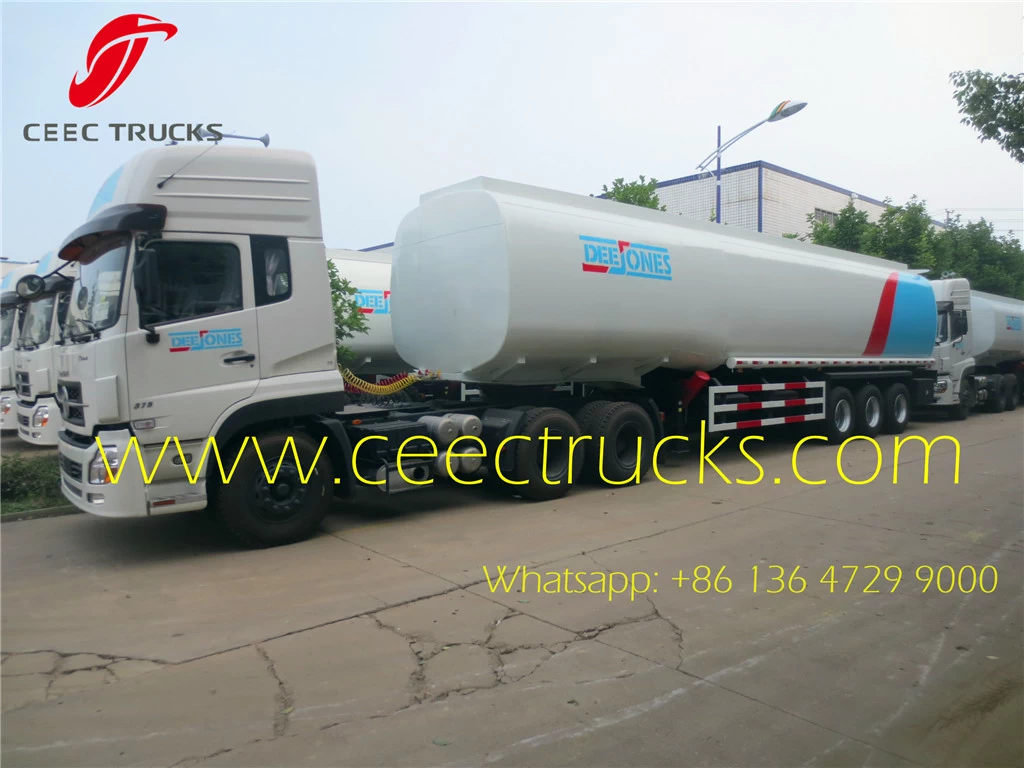

50CBM Oil tanker semitrailers

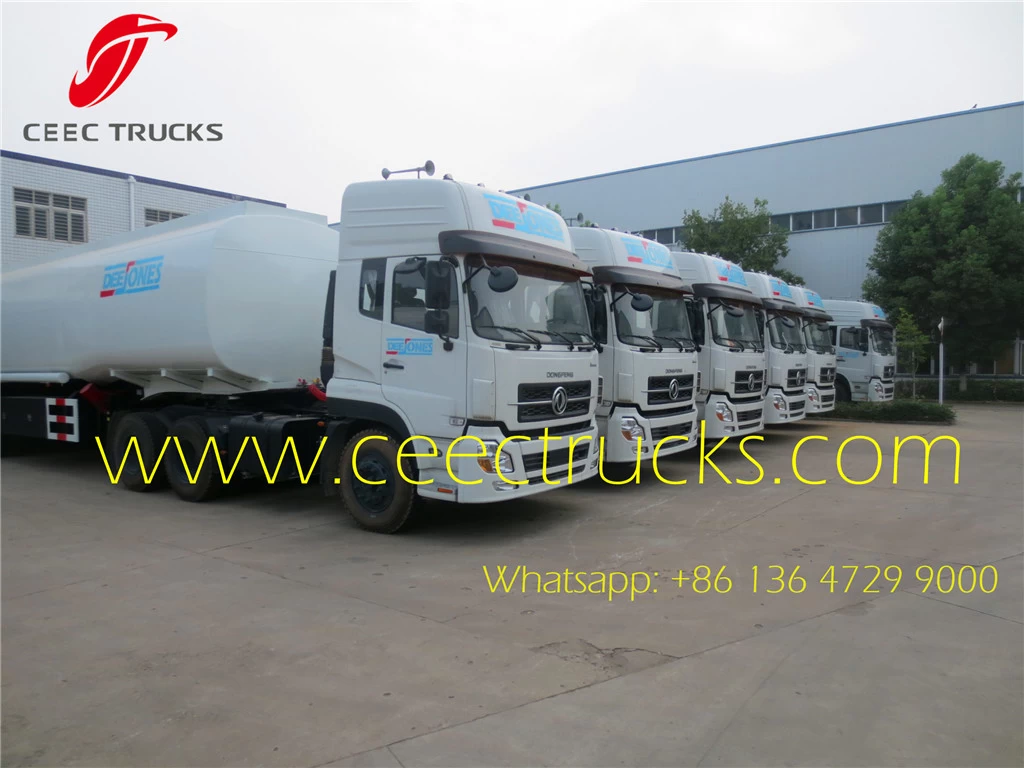

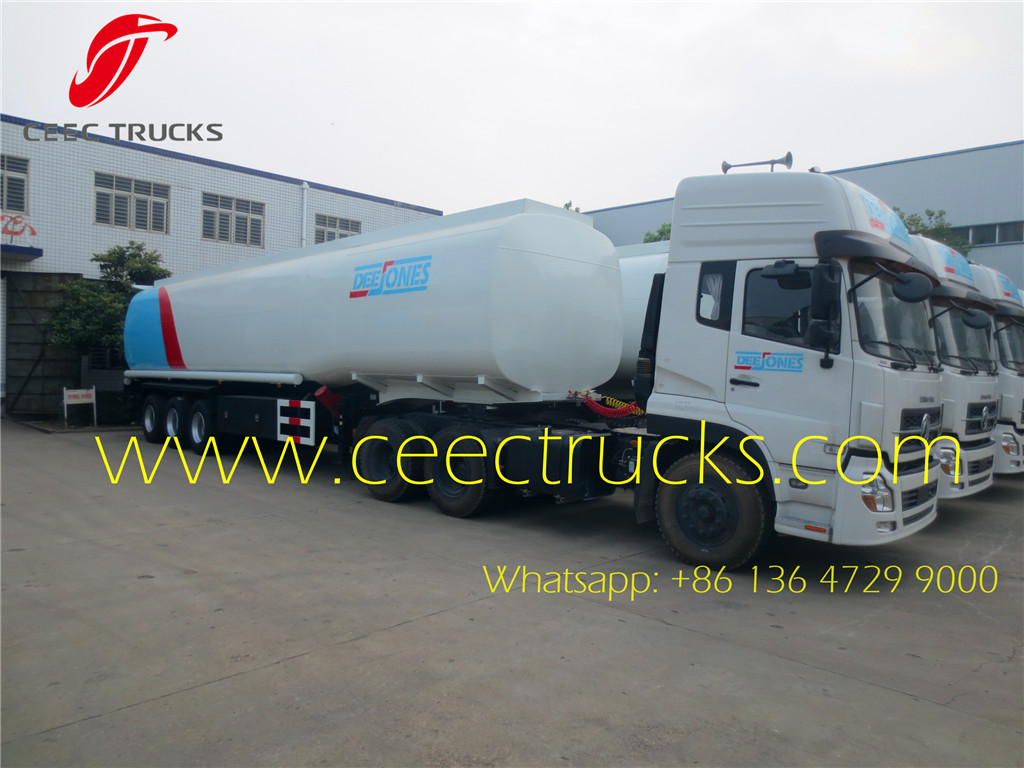

50CBM Oil tanker semitrailers

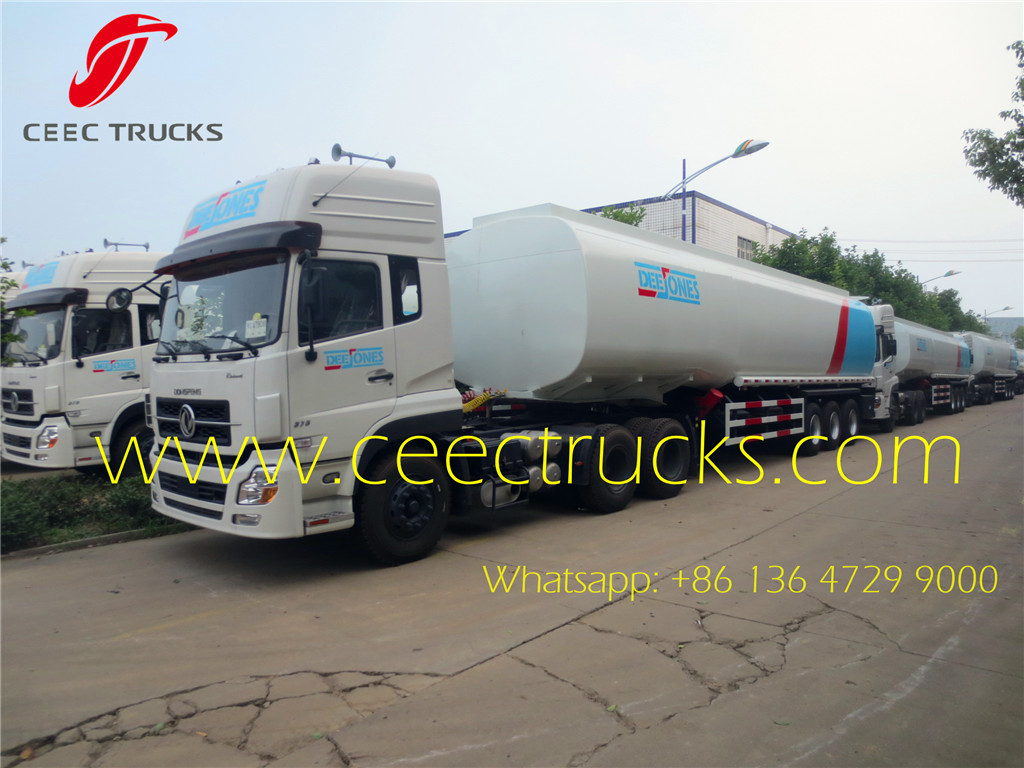

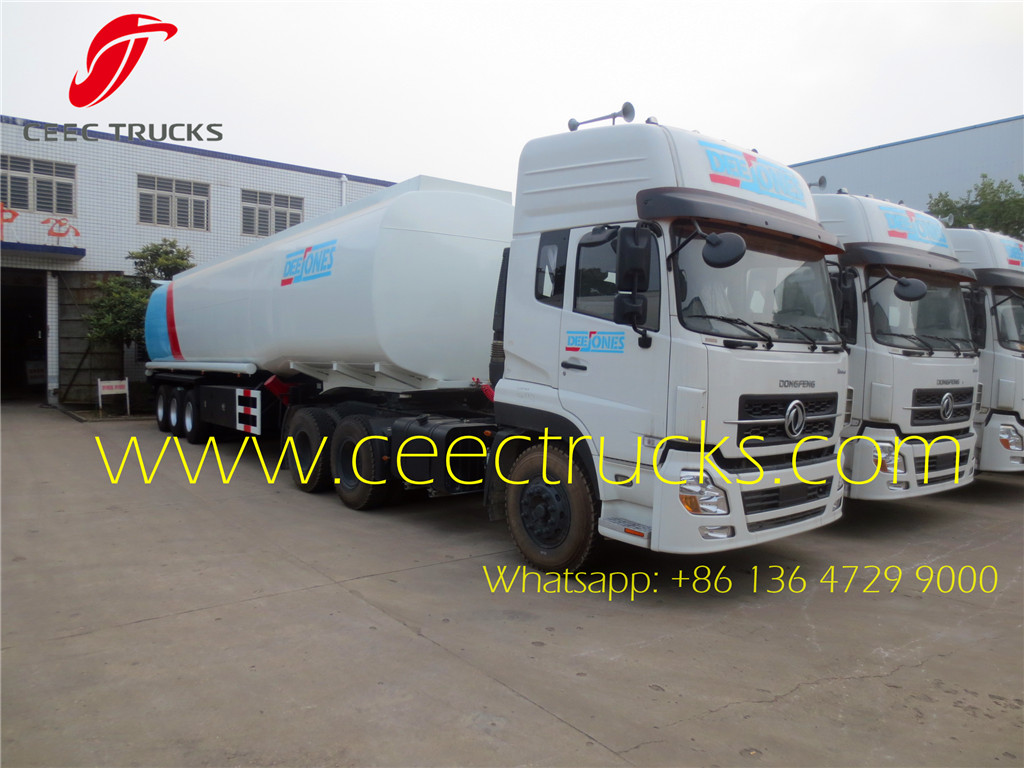

50CBM Oil tanker semitrailers

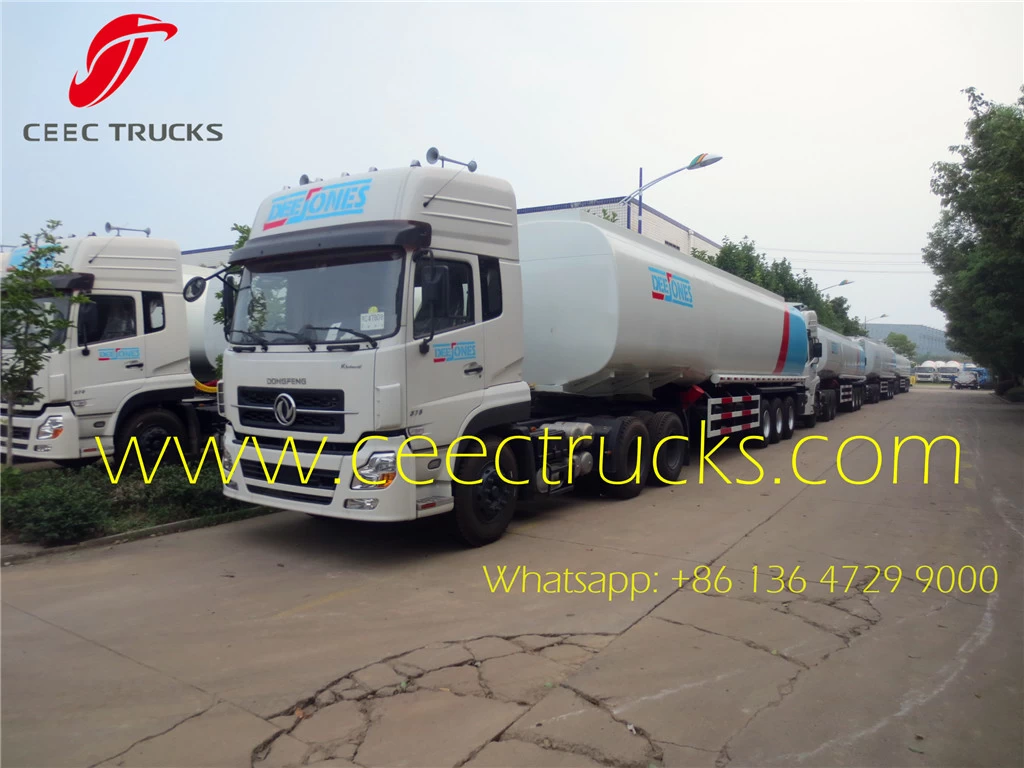

50CBM Oil tanker semitrailers    50CBM Oil tanker semitrailers



50CBM Oil tanker semitrailers    50CBM Oil tanker semitrailers



Similar Key Words: 50 CBM fuel tanker trucks suppliler, oil tank semi-trailer, fuel tanker semitrailer, fuel semi-trailer, oil semitrailer, fuel trailer tanker, fuel tankers, fuel tank trailer, oil trailer, semi tanker trailer, stainless steel oil tanker trailer, 50CBM carbon steel trailer tank fuel



Manufacturer

Unit

Type

3-axle fuel tank semi-trailer can be loading 380,000Liter diesel

Weight:





Tare Weight

9.85Ton



Volume

45000L +3% expansion



Tank material

Aluminum



Thickness of shell

5mm



Thickness of dish

6mm



Inside baffles

4mm

Specification:





Compartment

3 to 5 compartments (according to buyer)

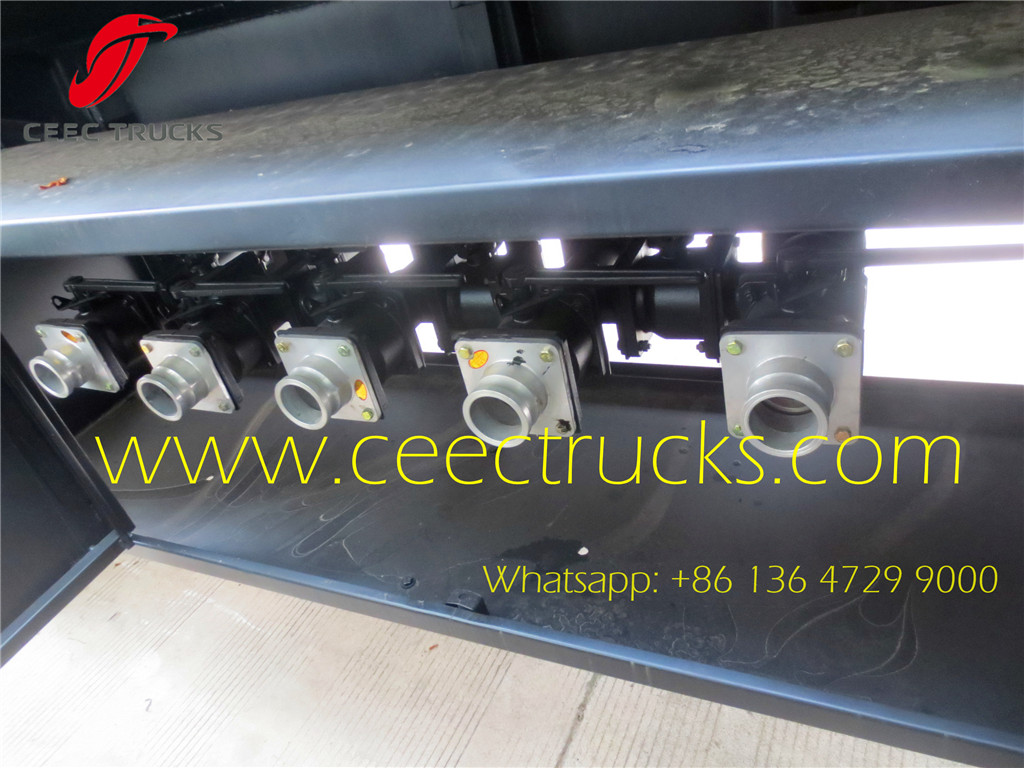

Each compartment equipped with

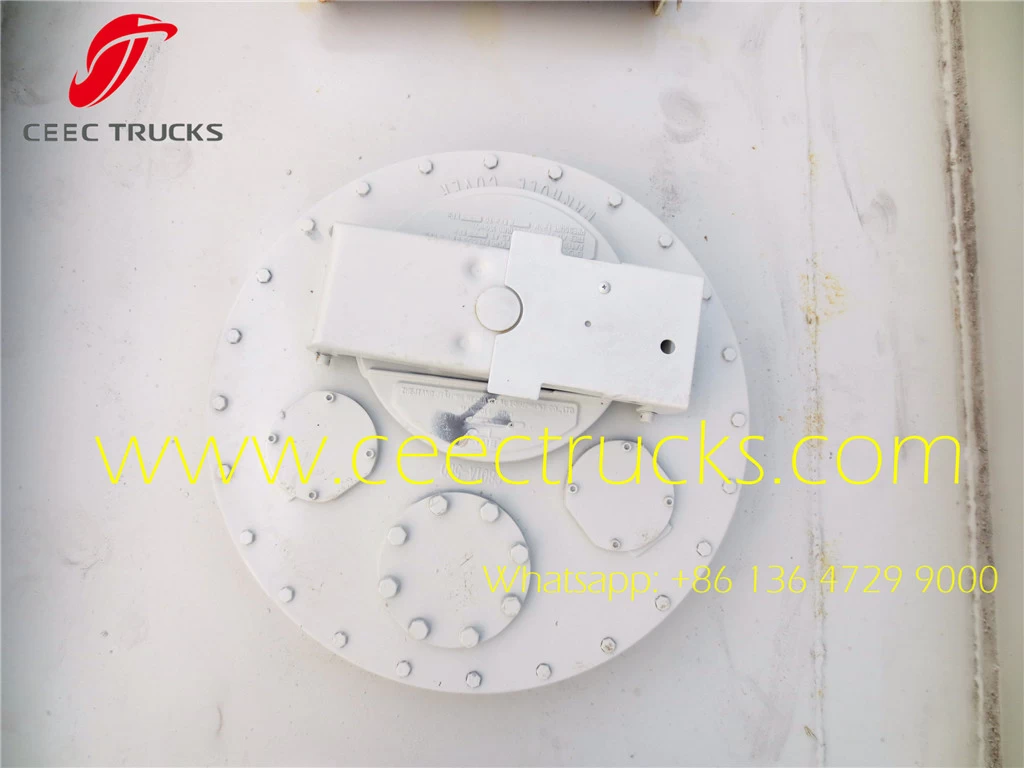

Aluminum Manhole cover 16" or 20"

Aluminum Emergency Bottom valve 3" with Pneumatic switch in locker

Aluminum Spill Valve 3” or 4",

Discharging Nylon hose 6m



Vapor Recovery System

Optional



Loading type

Top loading



Discharge type

Gravity discharge



Axle number

Three



Axle specs.

Original FUWA axle 13Tonlow-maintenance axles

(Optional BPW axle)



Suspension type

Heavy duty spring suspension 18*16*9mm



King Pin

50#(2.0”) traction pin JOST brand



Outside Dimensions (LxWxH)

11000×2500×1530mm



Steel Spring

10pieces

Tire:

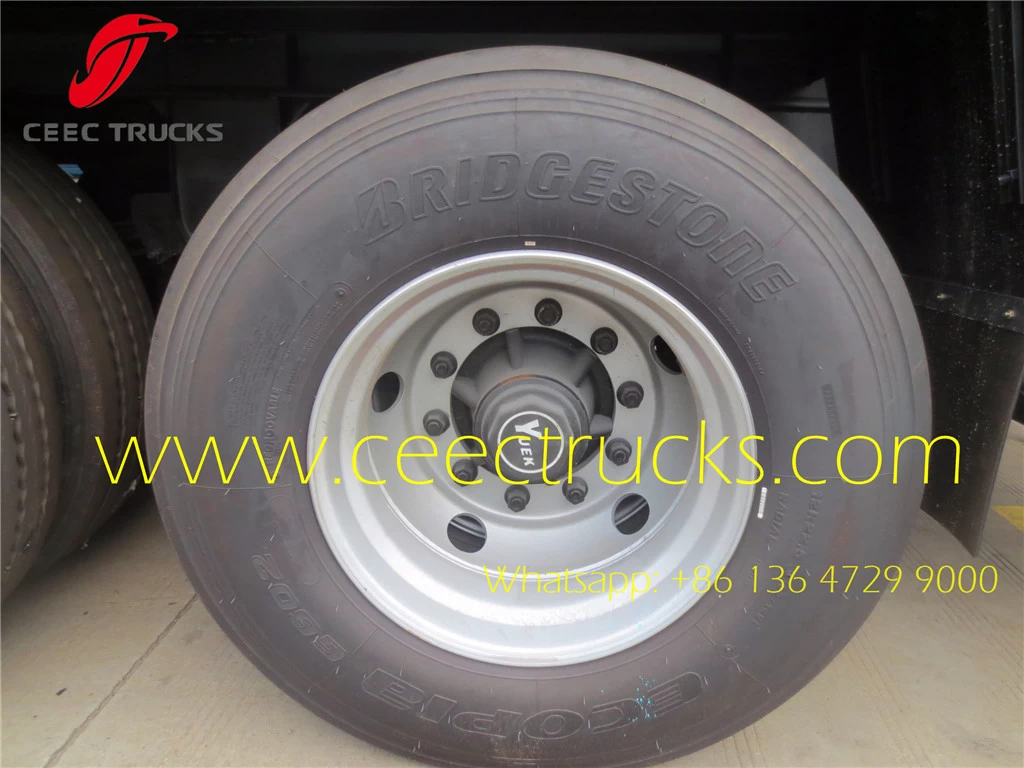

Tire specs.

12.00R22.5



Number of Tire

12 pieces



Spare Tire Carries

1 pieces

Frame: (specs. And materials)

Main beam height is 500mm



Frame Beam

Upper plate is 14mm,  lower plate is 16mm,middle is 8 mm.

The frame will be reinforced in strength and high tensile.



Platform bed

3mm diamond steel plate

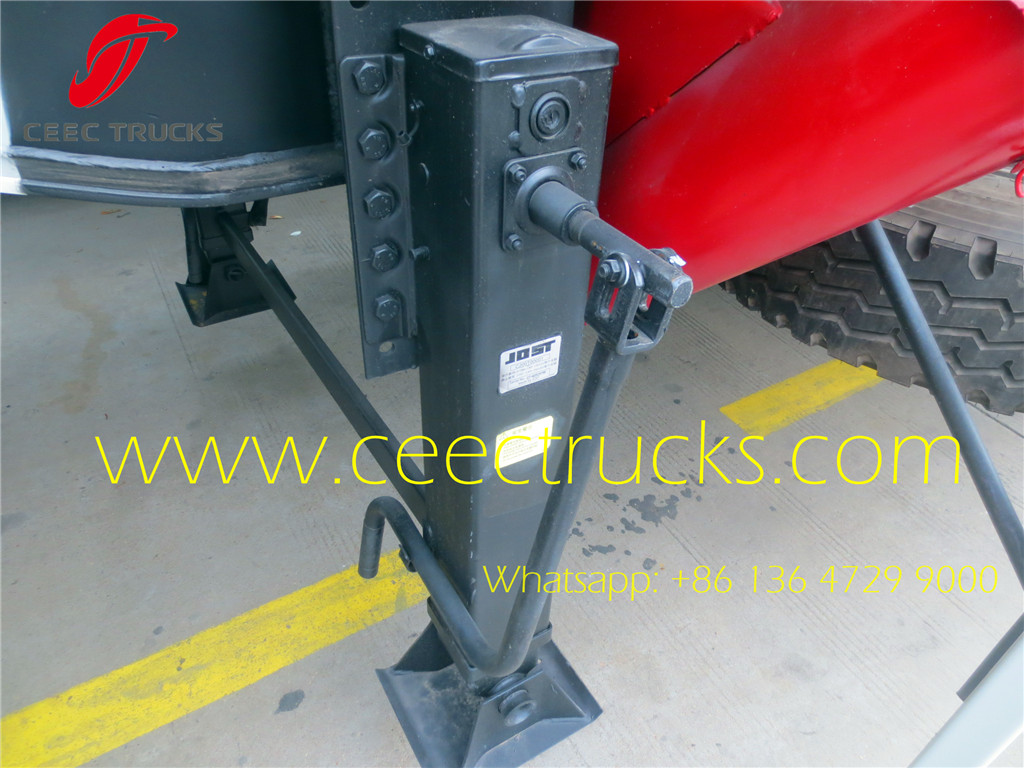

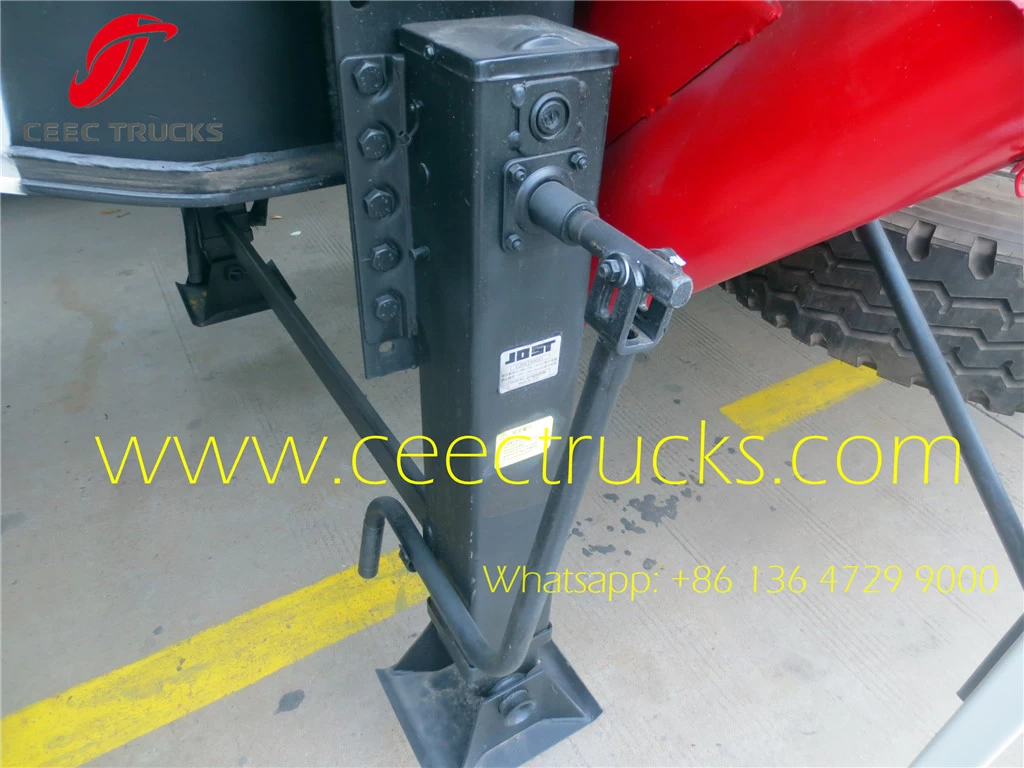

Landing Leg Support

 28T JOST 2-geared mechanical operated landing legs

Brake:





Brake Chamber

Four double and two single chamber( TKL brand  )



ABS system

STANDARD WABCO ABS System

Electrical:





Voltage

Complete 24V system in explosion proof installation



Receptacle

7 ways(7 wire harness)



Rear lighting type

Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights

Light color:

LED brand



Front marker lamp

front corner marker lamp is red,Reflector lamp is white



Side marker lamp

Orange



Rear lamp

Red



Turn signal lamp

Orange

Miscellaneous:







Painting

Exterior surface treatment by shot blasting.

Painting by high solid primer directly on the surface

Painting inside special paint booth with the cargo cabin color or the color chosen by the customer



Marking

According to the requirement of the buyer

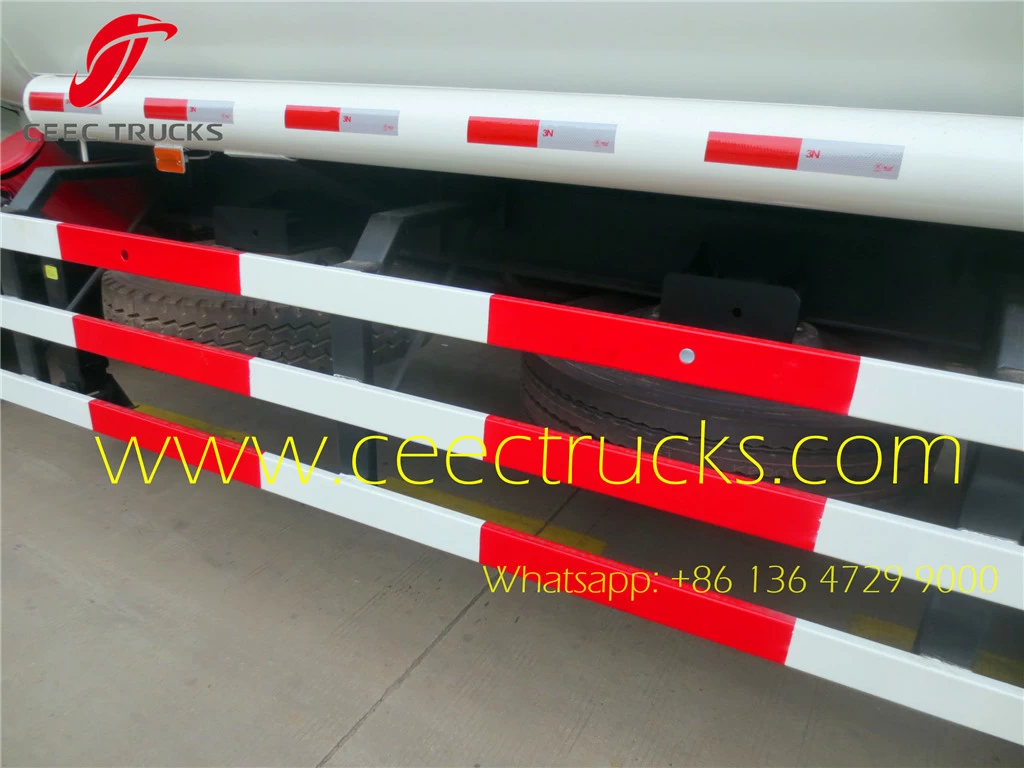

Side Guard

According to the requirement of the buyer



Tools box

1 tool box with our factory's standard matching tools









Accessories

Plastic half-circle mudguards;
Fire extinguisher 2 PCS
Pipe 1 PCS
Cranking bar 1 PCS
Gudgeon sleeve 1 PCS



Tank Top Accessories

Ladders fixed on the front and rear; foldable handrail

Walkway with anti-slip material in the front of reach the manholes,

Not covering the complete length of the tank.

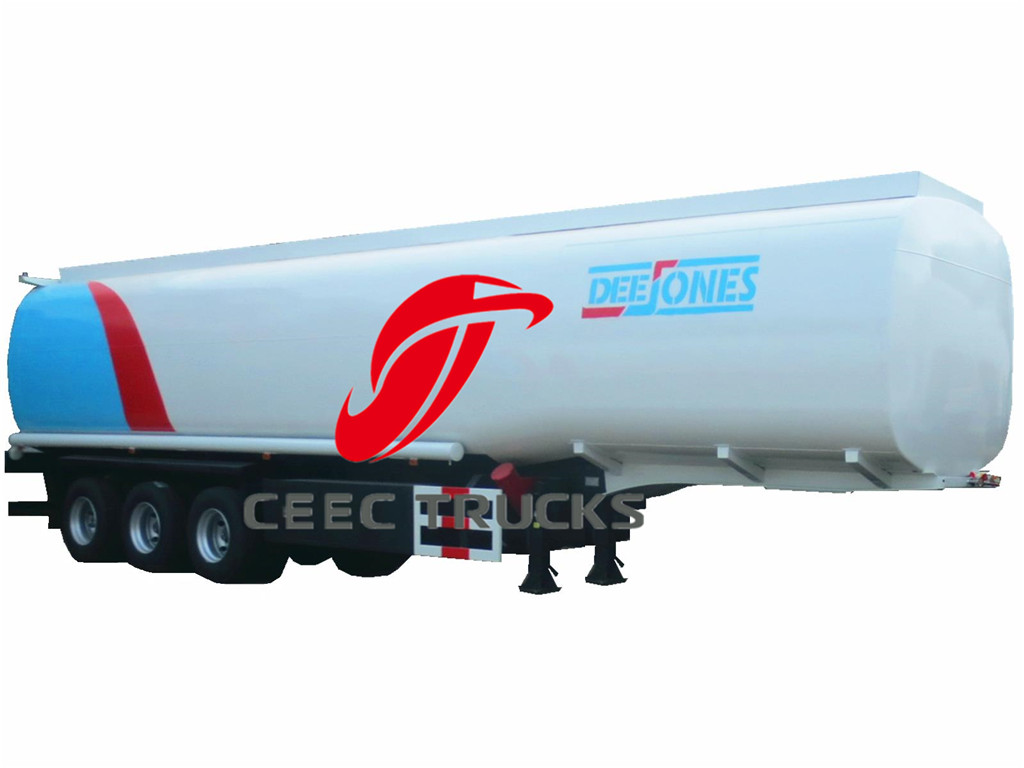

50CBM Oil tanker semitrailers



China Best Semitrailer on sale





FUEL TANKER semitrailer advantages



FUEL TANKER semitrailer advantages
