ITEM: Heavy Duty 50 Tons 4 Axle Tipper Trailer
Feature
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1. HYVA hydraulic lifting cylinder with a strong lifting power and its performance is stable . It also with the global quality warranty .
2. Fast discharge and less residual . The inside of SUNSKY tipper trailer body is smooth and without corner pockets, the trailer's discharge can be faster .
3. Lower ( 200-300mm ) centre of gravity due to no stiffeners, increases stability.
4. The optimized braking system makes the dump trailer can stop within a shortest braking distance .
Quality guarantee
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1) Heavy Duty 50 Tons 4 Axle Tipper Trailer Manufacturer,more than 30 years professional experience.
2) Two years guarantee term provided freely.
3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) We can produce the trailer and truck as your drawing or requirements, help you saving the cost and time.
Specification:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
|
Style
|
40CBM 4 Axle Tipper Trailer
|
|
Model
|
SS9700ZYX
|
|
Dimension(L*W*H)mm:
|
10500*2550*3700
|
|
Inner dimension(L*W*H)mm:
|
9500*2350*1800
|
|
The material of body
|
BS700MC high tensible 4mm
|
|
Payload(kgs):
|
60000
|
|
Volume(CBM)
|
45 CBM
|
|
Tare weight(kgs):
|
14000
|
|
Kingpin
|
JOST 3.5” bolt-in
|
|
Landing gear
|
JOST 19”
|
|
Tire and rim
|
12R22.5
|
|
Axle
|
Fuwa brand 13 tons,4 Axle
|
|
Suspension
|
3 Axle Spring suspension Plus 1 axle airbag with lifting
|
|
Brake system
|
Re-6 emergency valve
|
|
Air Chamber
|
MBA T30/30
|
|
Hydraulic
system:
|
HYVA brand
|

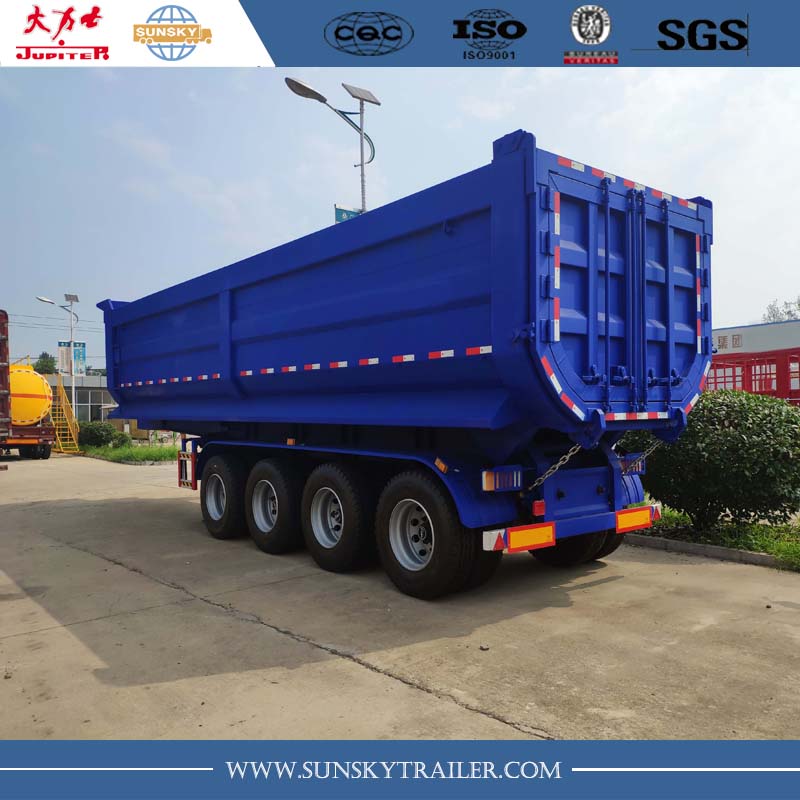

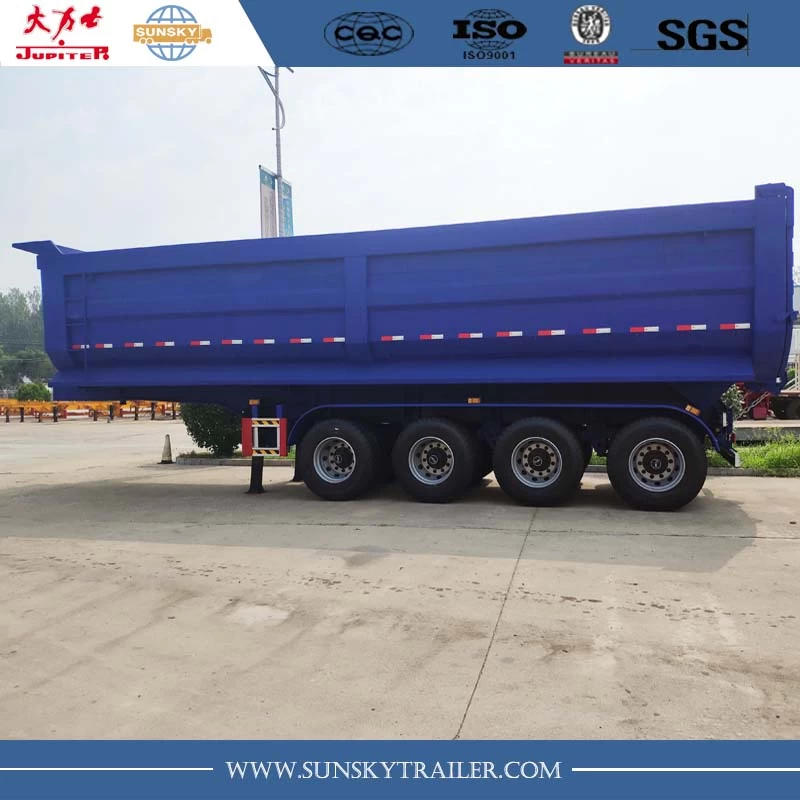

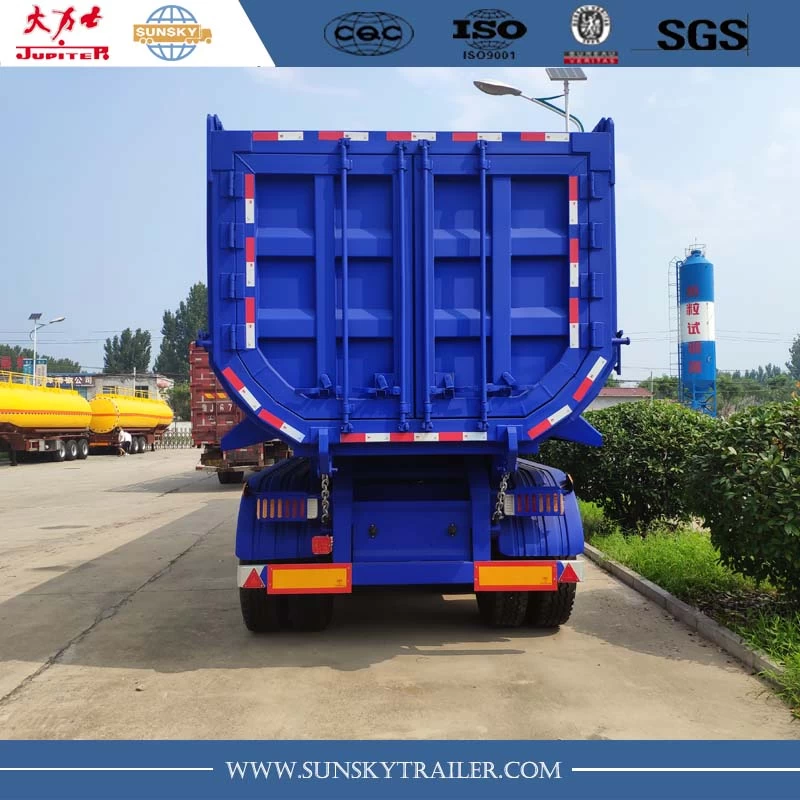

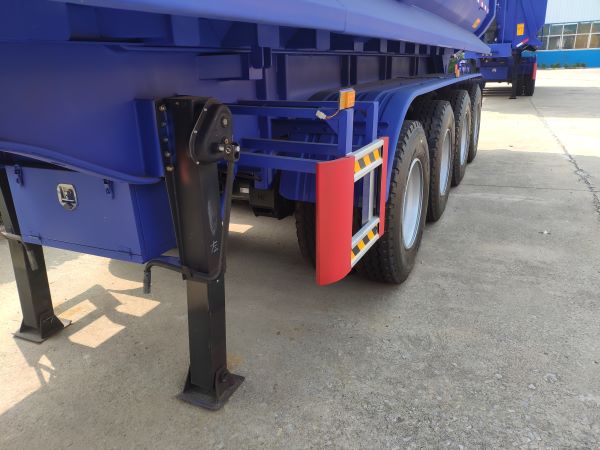

Detail Photo:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
