Heavy Duty Fibre Reinforced Plastic Pultruded FRP Grating
Product Description

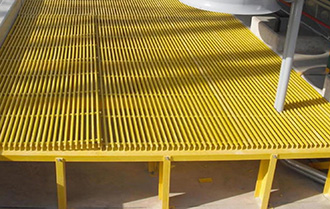

FRP pultruded grating is assembled from pultruded FRP profiles. It has the characteristics of light weight, high strength, corrosion resistance, anti-slip, aging resistance, and easy cutting. It is widely used in pedestrian walkways, work platforms, equipment platforms, stair treads, channel covers, trestle walkways, etc. in the petroleum, chemical, electric power, electroplating and other industries. It is an ideal replacement product for traditional metal gratings in corrosive environments.

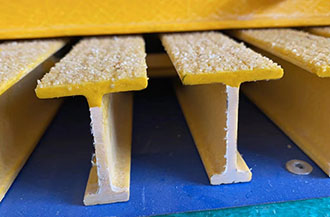

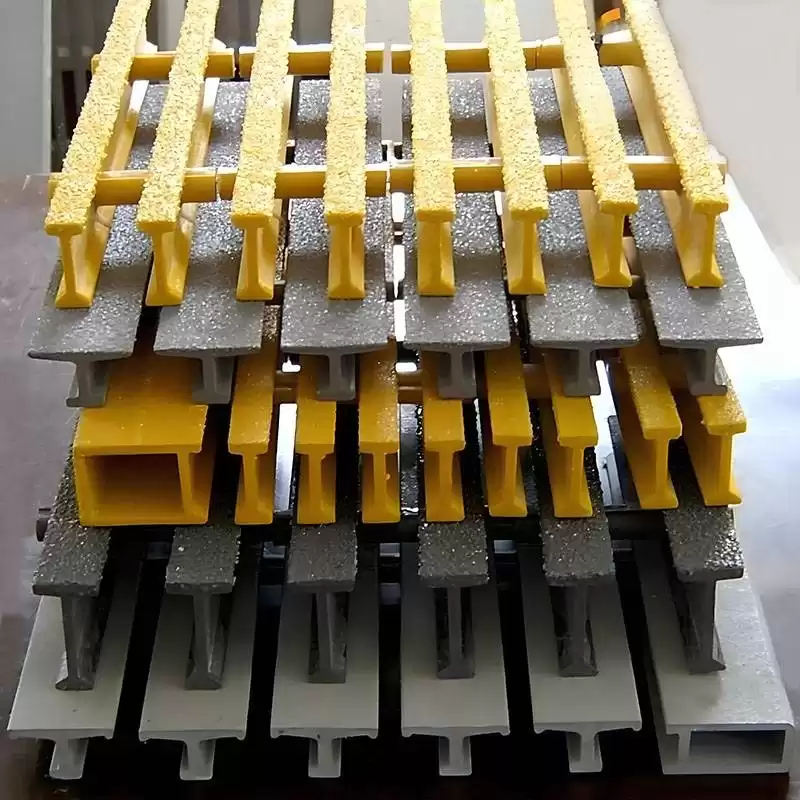

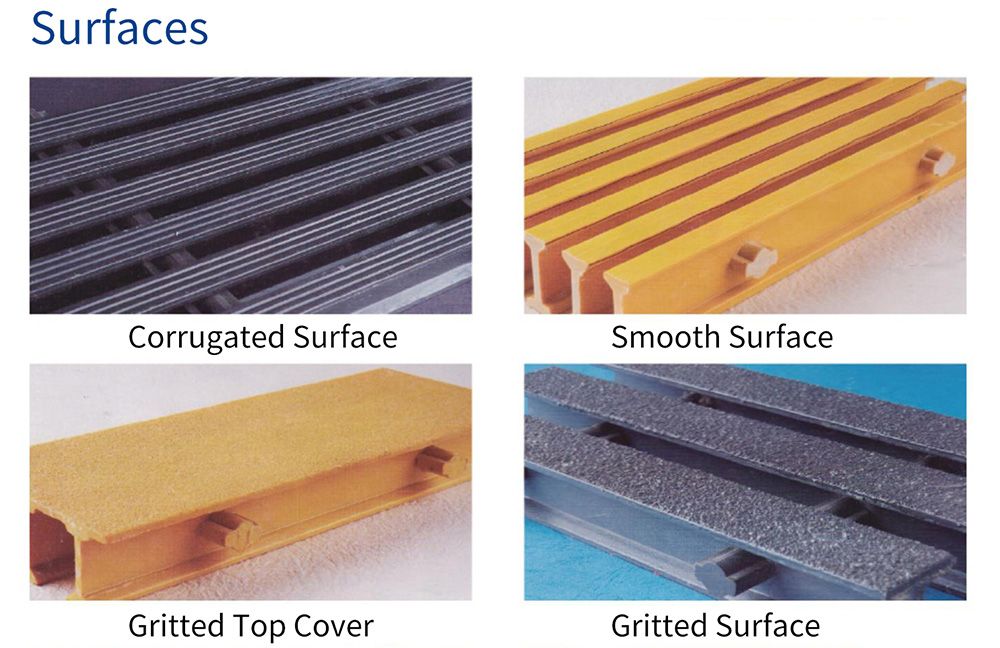

Surface Treatment
Size Of FRP Pultruded Grating
The Fibre Reinforced Plastic Pultruded Grating produced by our company has various specifications, including 25/30/32/38/50mm, etc. The following table introduces some specifications. If you need to customize other specifications, please contact us!
|

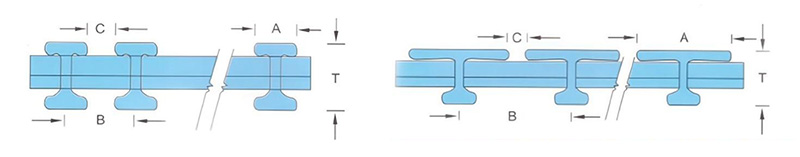

PULTRUDED GRATING SPECIFICATIONS
(The following parameters are for reference only, and there will be slight errors in actual products.)
|
|
|
| Type |
Height "T"
(mm) |
Top edge width "A"
(mm) |
Space between "B"
(mm) |
Clearance width "c"
(mm) |
| I-4010 |
25 |
15 |
25 |
10 |
| I-5010 |
25 |
15 |
30 |
15 |
| I-6010 |
25 |
15 |
38 |
23 |
| I-4015 |
38 |
15 |
25 |
10 |
| I-5015 |
38 |
8 |
30 |
15 |
| I-6015 |
38 |
15 |
38 |
23 |
| I-4020 |
50 |
15 |
25 |
10 |
| I-5020 |
50 |
15 |
30 |
15 |
| I-6020 |
50 |
15 |
38 |
23 |
| T-1210 |
25 |
38 |
43.4 |
5.4 |
| T-1810 |
25 |
38 |
50.8 |
9.5 |
| T-2510 |
25 |
38 |
50.8 |
12.7 |

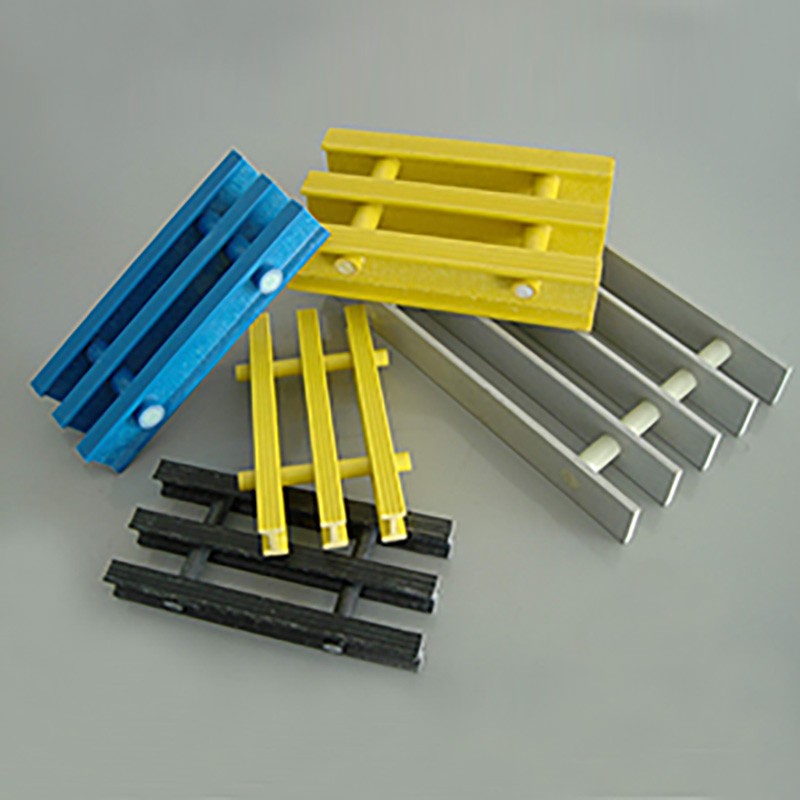

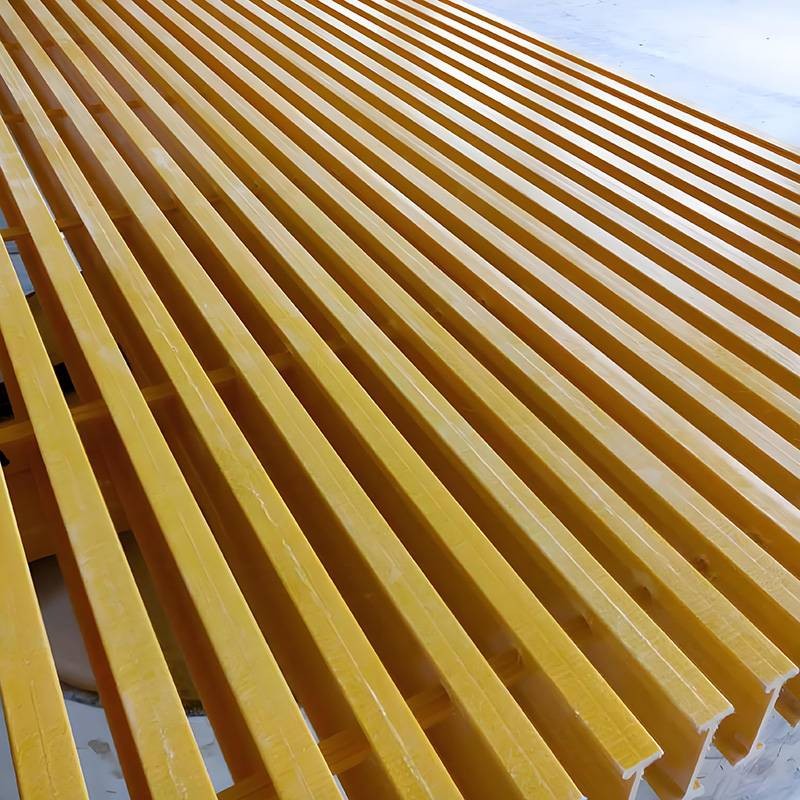

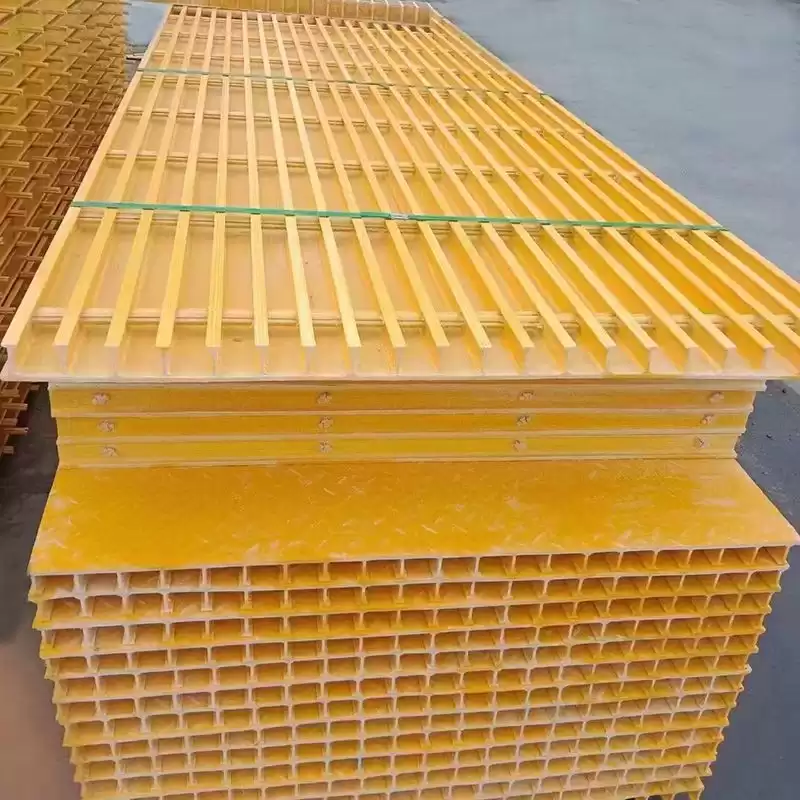

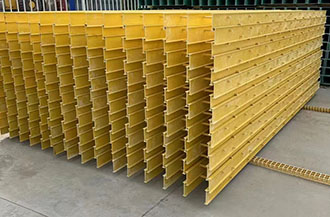

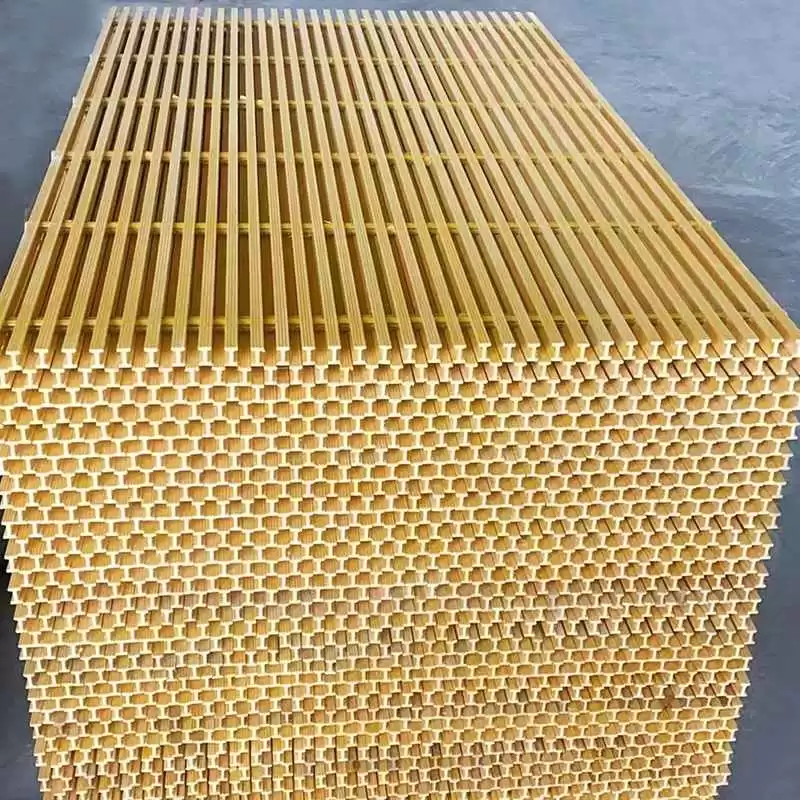

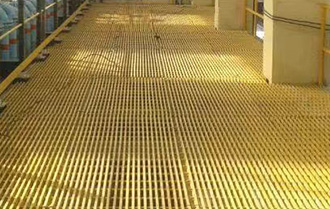

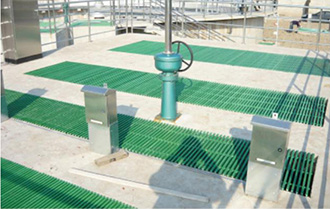

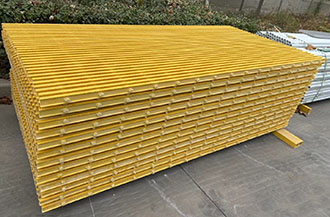

Product display
Our Services
Our company has more than 40 years of production experience and professional production equipment. We can customize and produce various specifications of FRP Pultruded Grating according to your needs. The product quality is excellent and the price is very competitive. Welcome to consult and discuss cooperation!
