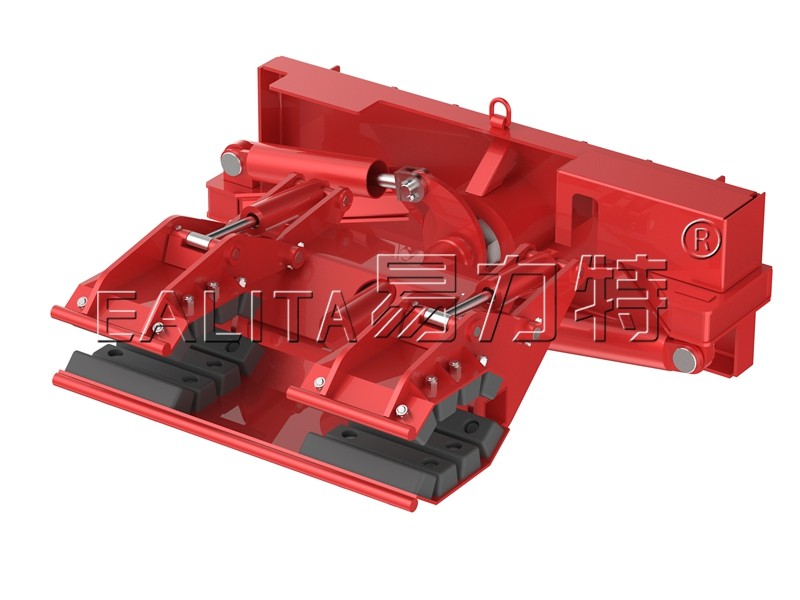

The HEAVY DUTY POLE SETTER is designed to handle big, heavy utility poles up to 45 feet long.

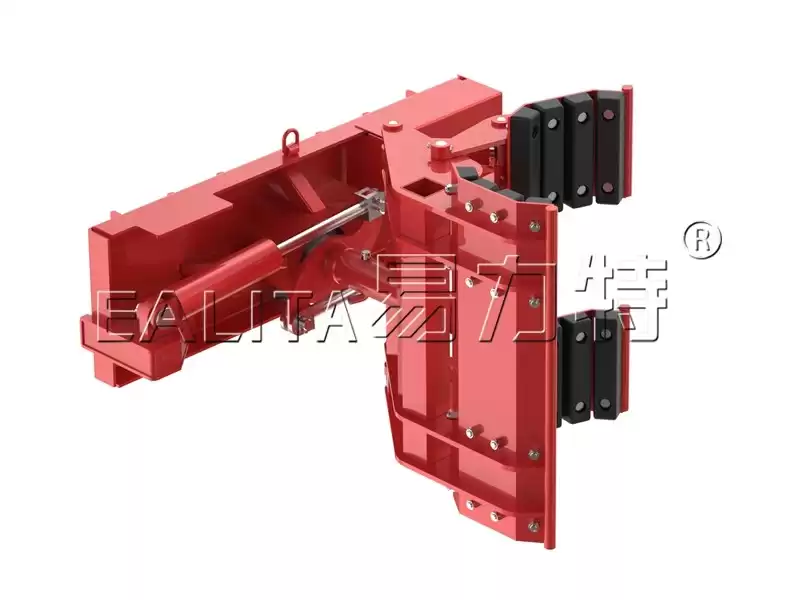

- With the Heavy Duty Pole Setter, the operator can pick up a pole on the ground, or on a trailer, and rotate up to the vertical.
- At this point the operator can easily position the pole the way he wants, without any effort, and with a complete security.

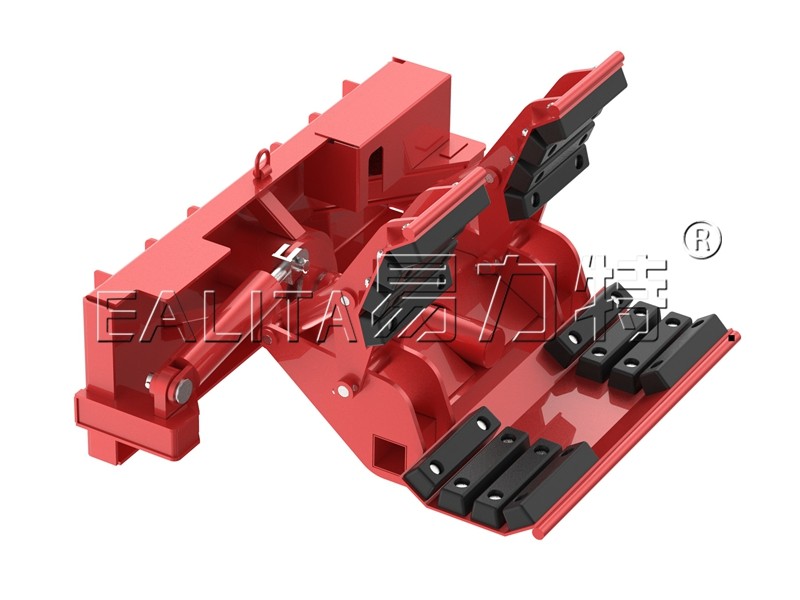

- It opens to 563mm and closes down to 102mm, and assures quick and easy loading, unloading, pulling or setting of 45 foot UTILITY POLES.
- The HEAVY DUTY DOUBLE POLE CLAW eliminates the need for cranes, slings, and man-hours.
- The Rubber lining prevents damage, and the second sequencing claw allows for precision setting.
Features
• Fit all the Skid Steers equipped with the Universal Quick’Tach.
• Rotates to 115 degrees.
• Weight 605kg.

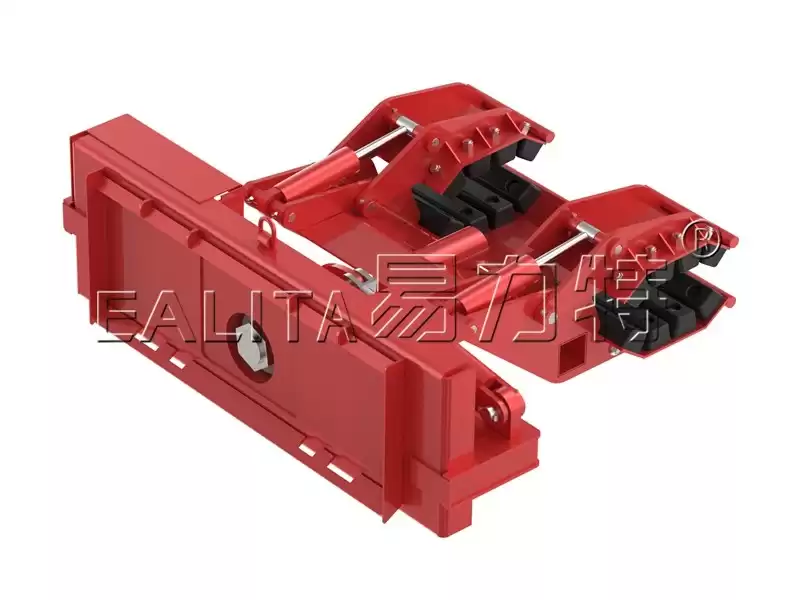

• Designed with 2 independent jaws that open and close one after another for more security and safety.
• Designed with a double cylinder rotating plate for more stability and precision.
• Made of 1/2 inch steel grade 80 or higher.
• Comes standard with rubber lining to protect the pole.
• The clamping is activated by two 3’’ X 6’’ cylinders.
• The backing plate is designed to carry the pole above the skid steer to facilitate the pole transportation and reduce
the natural movement of the pole.
• Comes complete with flush faced coupler, spring hose mount and wiring harness
• Can be adapted to Excavator, Wheelloader, Telehandlers and Backhoes.
The Heavy Duty Pole Setter is currently being used in the following industries:
• Utilities
• Rural Electric Associations
• Electrical Contractors
• Mining
• Oil
• Foundations
• Government
• Parks and Recreations
• Piling and Shoring
• Boring and Drilling
• Fencing
• Wind Tower Installation
• Solar Panel Installation
• Electric Cooperatives
