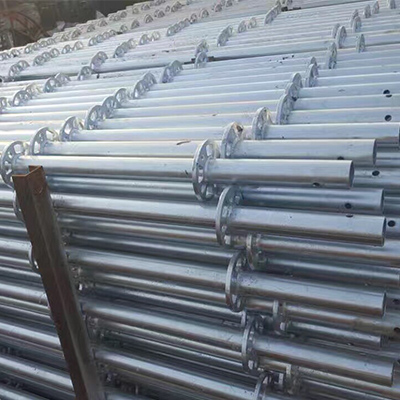

Heavy Duty Q345 Galvanized Layher Ring Lock Scaffolding Standard

The ‌Ring Lock Scaffolding Standard‌ is a high-performance modular scaffolding system for industrial, commercial, and infrastructure projects. This system is manufactured in our state-of-the-art facility and combines exceptional durability, compliance with international safety standards, and flexible customization to meet diverse project requirements.

Facebook Twitter Pinterest LinkedIn 分享

Ring Lock Scaffolding Standard Manufacturer

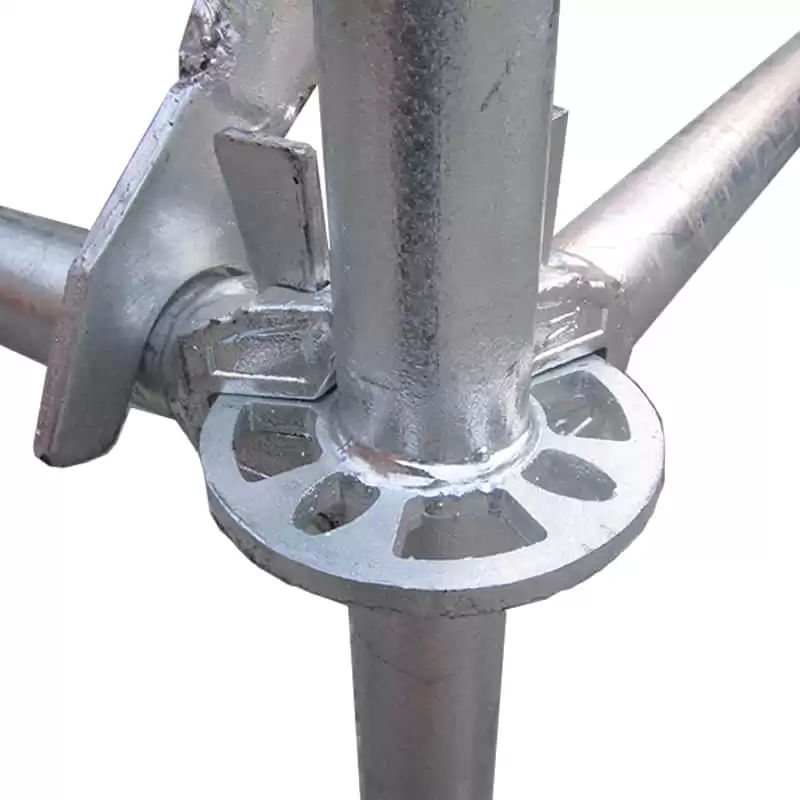

Ring Lock Scaffolding Standard adopts innovative ring locking technology, which improves installation efficiency by 40% compared with traditional coupler scaffolding. The maximum vertical load of a single node is 70kN and the lateral load is 30kN, providing military-grade safety protection for workers and equipment.

As a leading scaffolding manufacturer, we deliver EN 12811-1 and OSHA-compliant Ring Lock Scaffolding Standard Systems with fully customizable dimensions, thickness, and surface treatments. Request a quote for tailored solutions.







Feature Of Ring Lock Type Scaffolding





  • # Modularity
    The build allows for easy assembly and disassembly, making it adaptable to different uses, ranging from simple to complex.
  • # Strength
    Ringlock standards are designed to support heavy loads, making them suitable for high-rises and heavy-duty applications.
  • # Safety
    The exact and robust connections of the rosettes decrease the risks of the components loosening or shifting, increasing overall safety.





Technical Specifications & Customization‌



‌Material Excellence:‌

‌Steel Grade:‌ Q235/Q345 (optional S355JR for enhanced strength).

‌Tube Thickness:‌ Standard 3.0mm (customizable up to 4.5mm for extreme load demands).



‌Surface Treatment:‌

‌Hot-Dip Galvanizing:‌ 80μm–120μm coating for corrosion resistance (ideal for coastal/offshore environments).

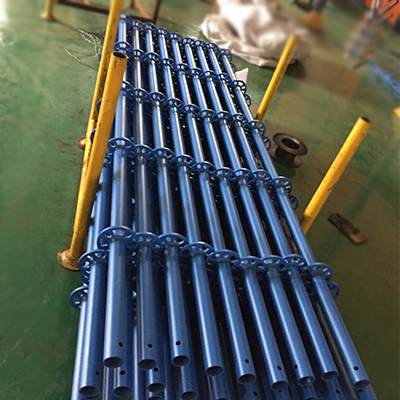

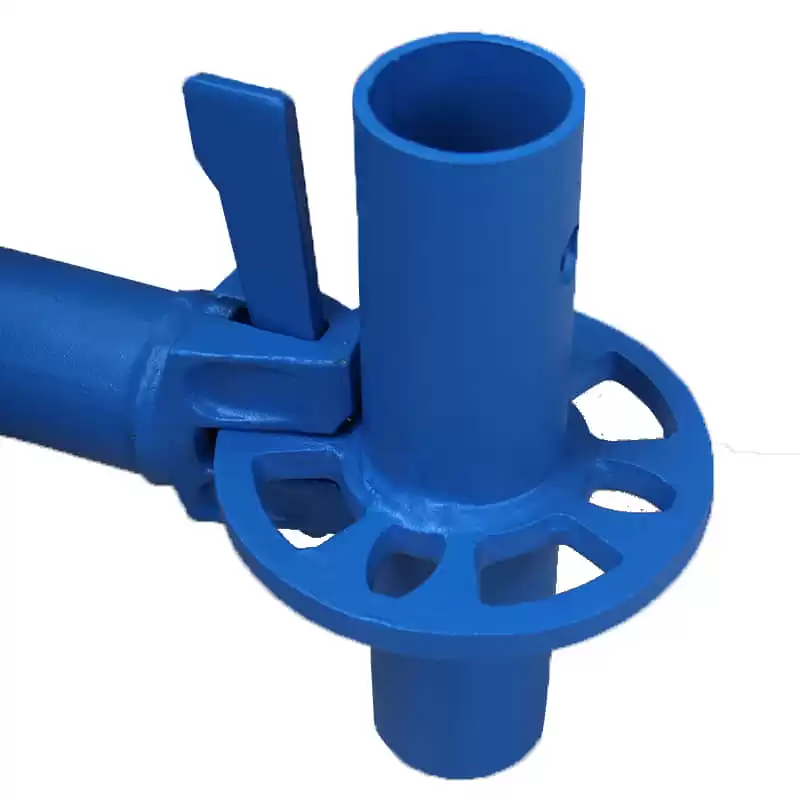

‌Powder Coating:‌ Customizable colors with anti-UV properties.



‌Dimensions & Design‌

‌Vertical Standards:‌ 1000mm, 2000, 2500mm, 3000mm

‌Bay Length:‌ 1.0m–2.4m (configurable in 0.2m increments).

‌Platform Width:‌ 500mm–1,200mm (non-slip tread options available).



‌Load Capacity‌

Maximum vertical load: 6,000 kg per bay.

Horizontal load resistance: Compliant with EN 12811-1 wind load standards.







‌Quality Assurance & Certifications

‌

‌Manufacturing Process:‌

CNC precision cutting and robotic welding for component consistency.

100% load testing and ultrasonic inspection for joint integrity.



‌Certifications:‌

ISO 9001:2015 (Quality Management).

EN 12811-1, OSHA 1926.452, AS/NZS 1576.

Mill certificates and third-party inspection reports are available upon request.













Ringlock Scaffolding Standard Application



Ringlock scaffolding is widely used in construction and maintenance, offering versatile applications that include, but are not limited to, the following:

Super high-rise buildings: core tube climbing frame supporting, curtain wall installation

Industrial facilities: refinery pipeline maintenance, ship manufacturing platform

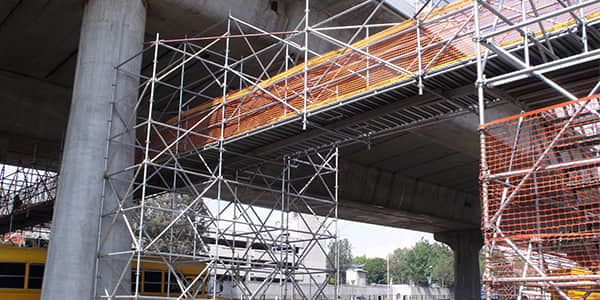

Infrastructure: bridge maintenance, subway platform construction

Temporary structures: concert stage, stadium stands

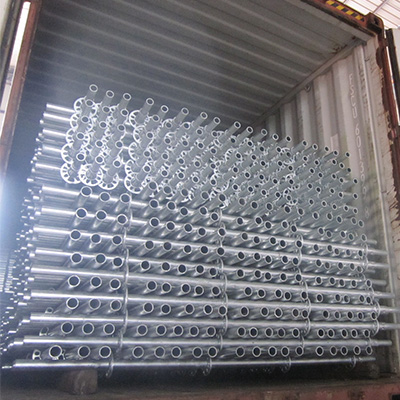

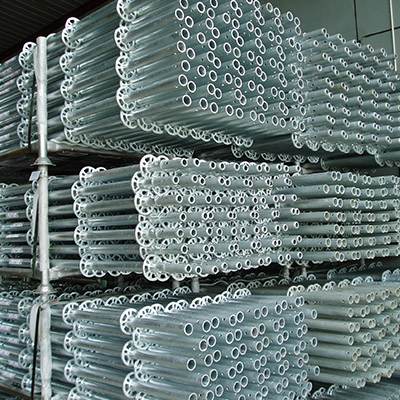

Package

  • #
  • #
  • #
  • #
