Product Item: Heavy Haul 3 Axle 60 Tons Lowboy Trailers
Introduction of 3 axle lowbed trailer
Low bed trailers are not only used to transport machinery and vehicle but all kinds of heavy and abnormal loads. For instance, finished products from these industries are packed in containers and stacked on lowboys for transportation. The transporters can move stacks of heavy containers without toppling over. Hence, many manufacturers prefer to transported finished products to retailers with low bed trailers.
Advantage
1. The lowbed trailer is more stability, The deck of the lowboys is extremely compared to other heavy haulers. A low-lying deck means that the center of gravity is low. Hence, low bed trainers are more stable when transporting heavy cargo than trailers.
2. The lowbed trailer are safe when transport abnormal caego. Low bed trailers are specifically designed to carry heavy loads. The trailers are made of high-strength materials that can withstand pressure of up to 700mpa.
3. Some countries have laws that restrict the height of cargo that can be transported on the road.Low bed trailers offer companies a solution to transport extra tall equipment safely without breaking the laws.
Quality guarantee
1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.
2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.
3. Spare parts support services is available
4. We able to design and produce the low bed trailer as your requirment,ensure to meet your local road regulation
Specification:
|
Products:
|
SUNSKY brand 60 tons 3 axle lowbed trailer
|
|
Feature:
|
Carry containers, bulk cargo, equipments
|
|
Dimension(L*W*H):
|
13000*2800*1600mm (custom-built)
|
|
Main frame:
|
Heavy duty and extra durability design; High tensible low carbon alloy Q345B steel
|
|
Model:
|
SS9600TDP
|
|
No. of axle:
|
3
|
|
Payload:
|
45,000 to 60,000kgs
|
|
Kingpin:
|
The world-famous JOST brand bolt-in/welded type 3.5"
|
|
Landing gear:
|
JOST brand two-speed manual operation 19”
|
|
Tire size:
|
11R22.5 (Optional)
|
|
Rim size:
|
9.00*22.5
|
|
Axle:
|
L1 Brand /Fuwa Brand
|
|
Suspension
|
Spring suspnesion with 8pcs of leafs spring
|
|
Brake system:
|
Dual line Re-6 emergency relay valve, T30/30 air chamber, 46L air tank
|
|
Electric system:
|
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
|
|
Container locks
|
0
|
|
Painting:
|
S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
|
|
Accessory:
|
One tool box
|

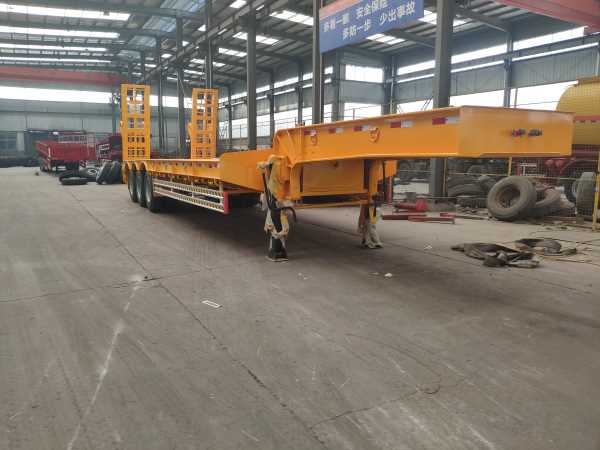

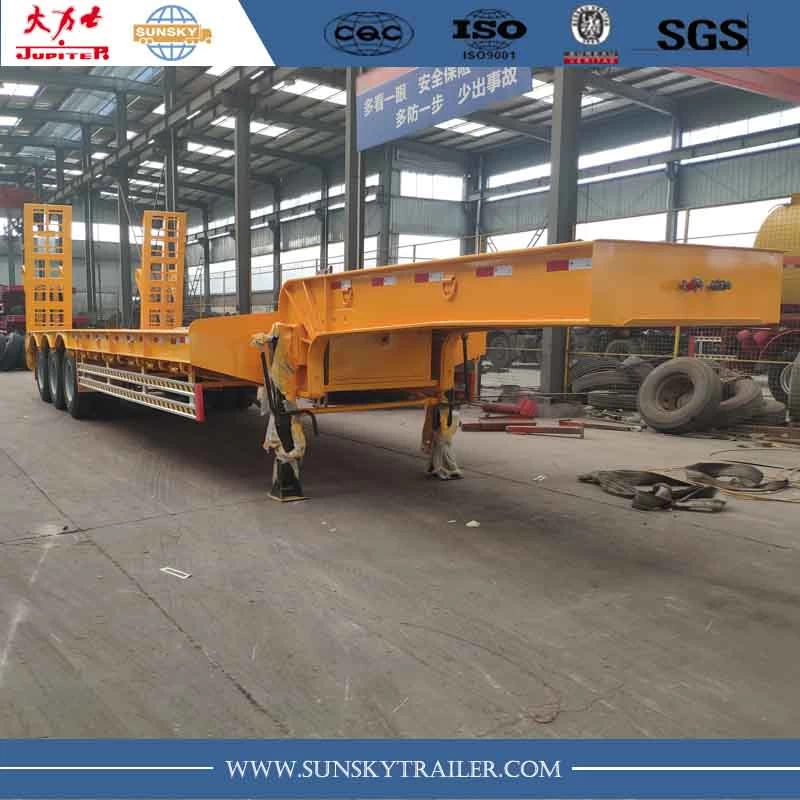

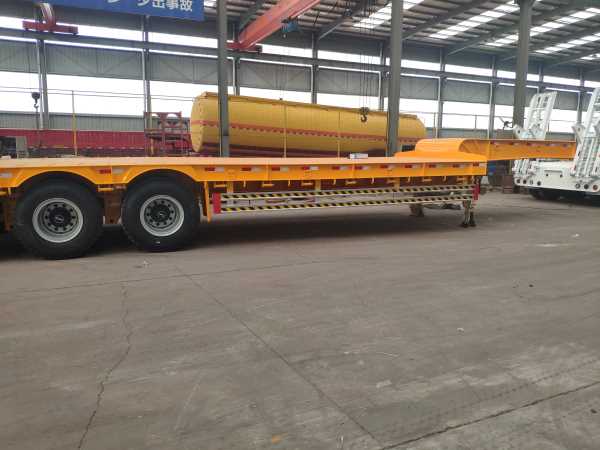

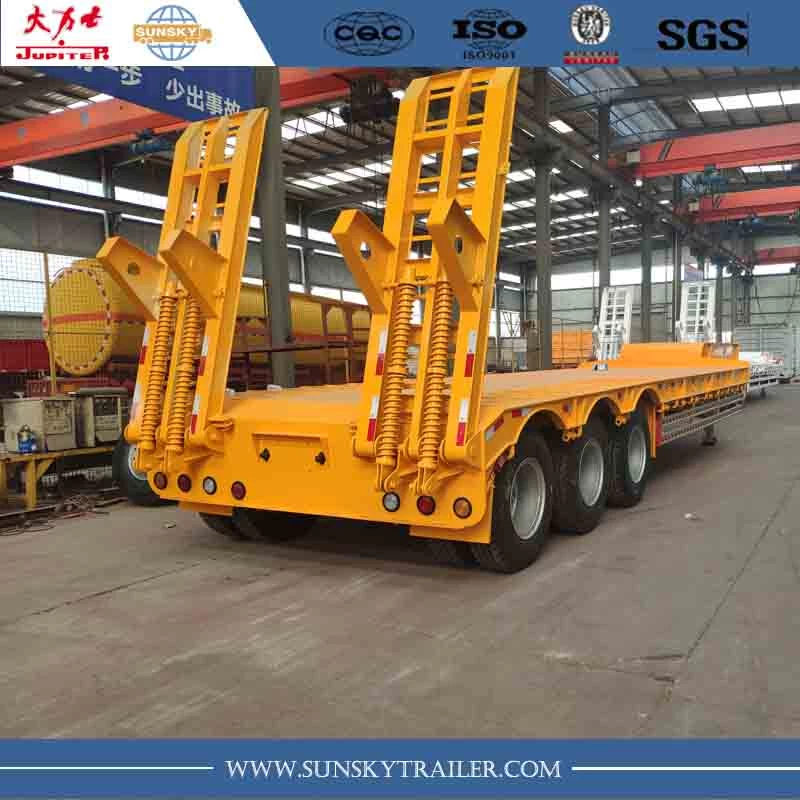

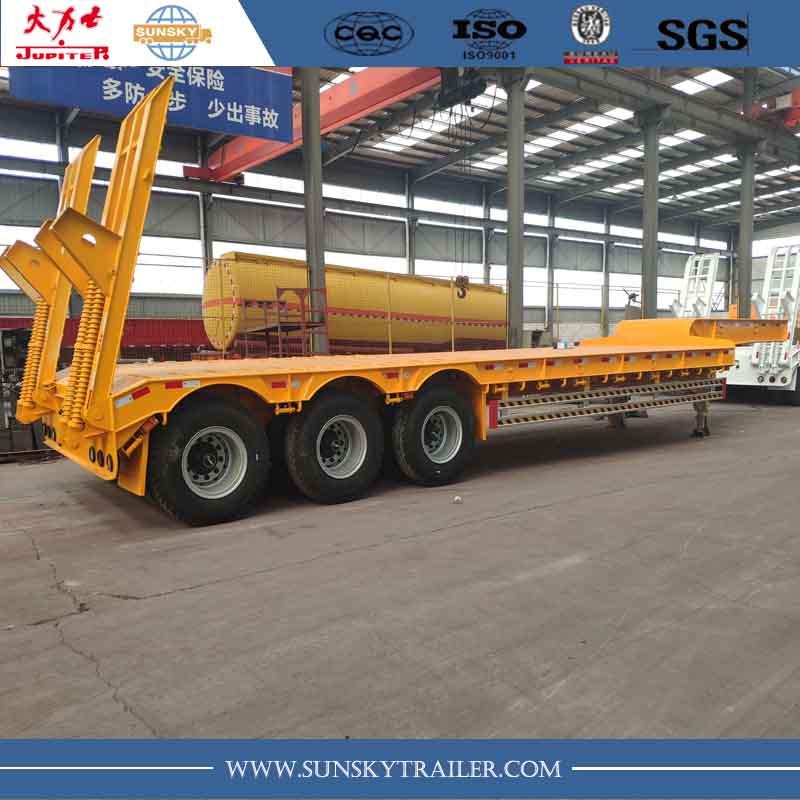

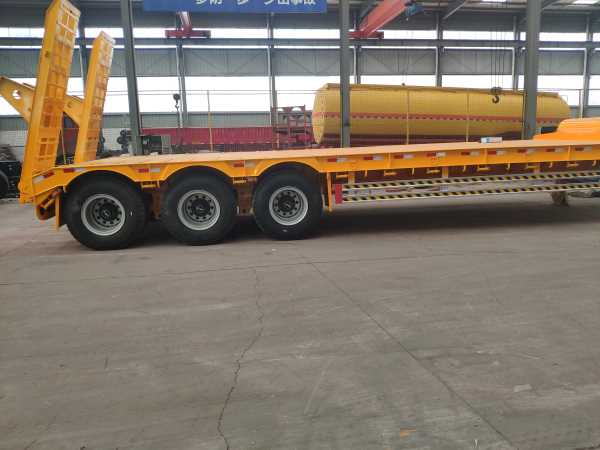

Detail Photo of 60 tons lowbed trailer
