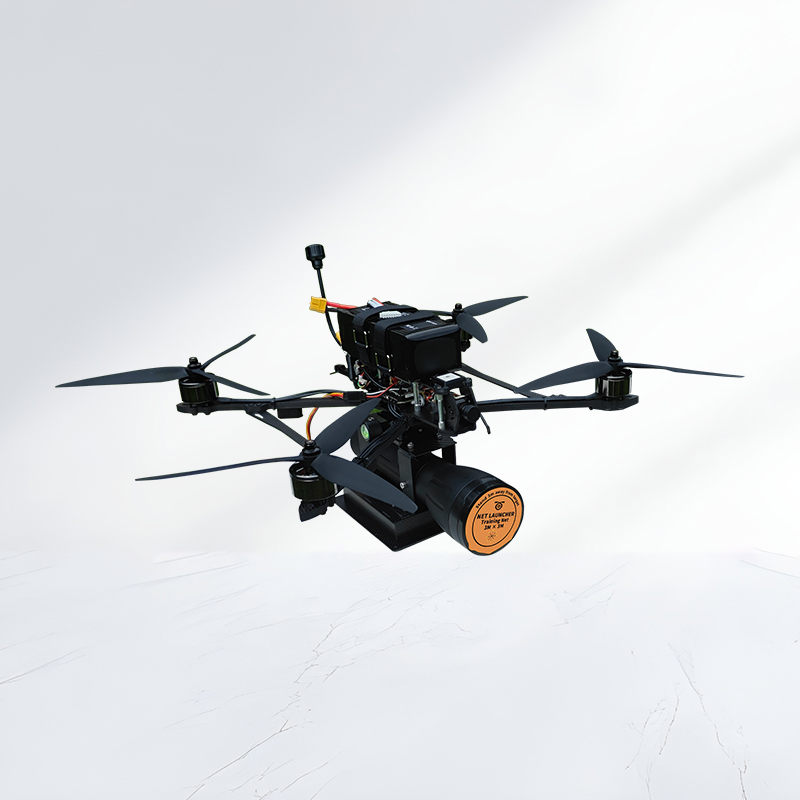

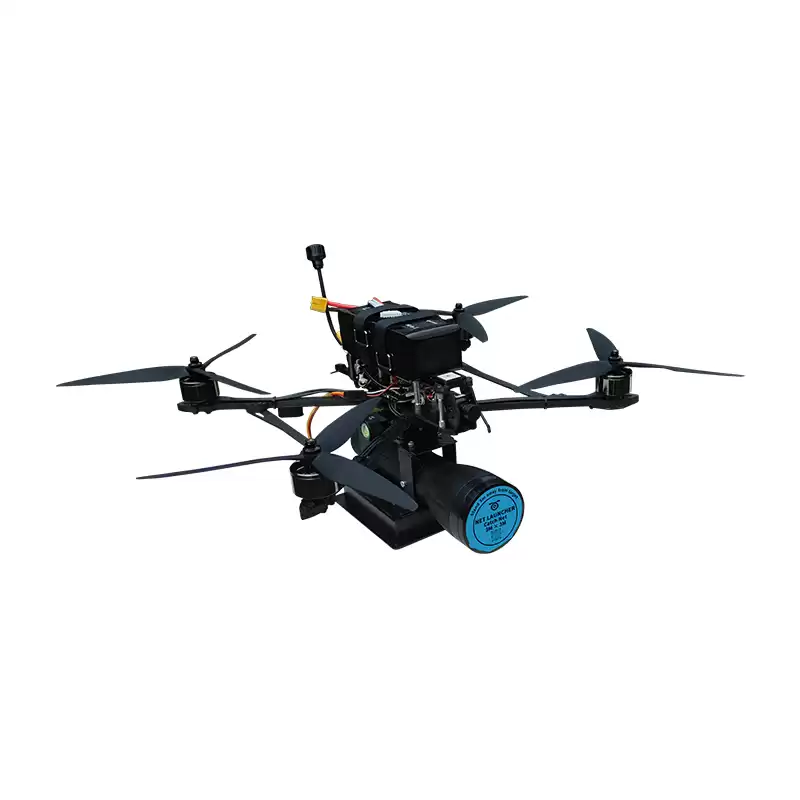

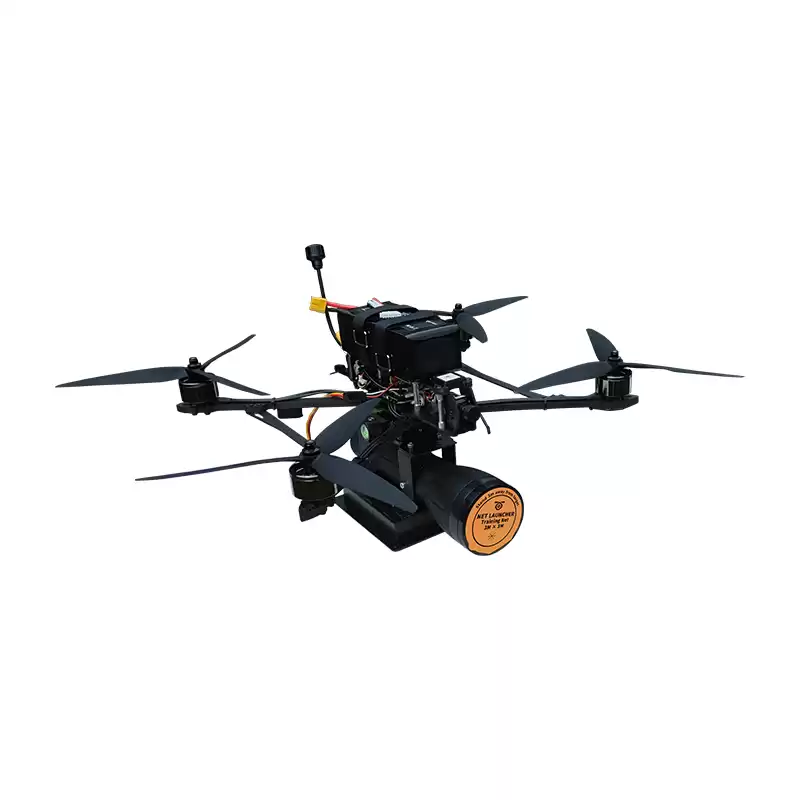

Heavy-Payload FPV Net Capture Drone for Security and Wildlife Management

     This heavy-payload security enforcement UAV delivers precision net capture capability with FPV real-time monitoring for public safety applications. The wildlife management drone system features extended flight endurance and non-lethal containment technology, making it ideal for animal control operations in zoological environments and suspect apprehension in law enforcement scenarios.





Product parameter

FPV DRD-03S

wheelbase

338mm

weight

529g

Payload

1.2-2kg

Flight Control

F405-HD V2

ESC

BLS60A-4IN1

motor

EM2810 1280KV

camera

Caddx H1

propeller

8040-3

Image transmission

5.8G  2.5W

Receiver

ELRS915

The above parameters are for reference only, and the detailed product parameters shall be subject to the actual delivery.



Net capture launcher







            This net capture launcher is the smallest in size, the lightest in weight, and easy to carry. Equipped with an insurance structure, it can prevent accidental contact, and the usage method is simple and easy to understand. Eight heavy hammers have been precisely designed to allow the mesh rope to fully open. The launch distance can reach 8 to 10 meters, and by 4 meters, the net rope has gradually opened, effectively completing the capture mission.



Product parameter



Net capture launcher WB-01S

Size

φ73*250mm

Weight

821g (excluding small gas bottle)

power

12g/16g small gas cylinder

Operating distance

8m~10m

Net (reusable)

3m*3m,mesh 15cm*15cm

The above parameters are for reference only, and the detailed product parameters shall be subject to the actual delivery.
