Piles Underpinning come with a durable hot dipped galvanized coating that will protect ground screws from corrosion.
|

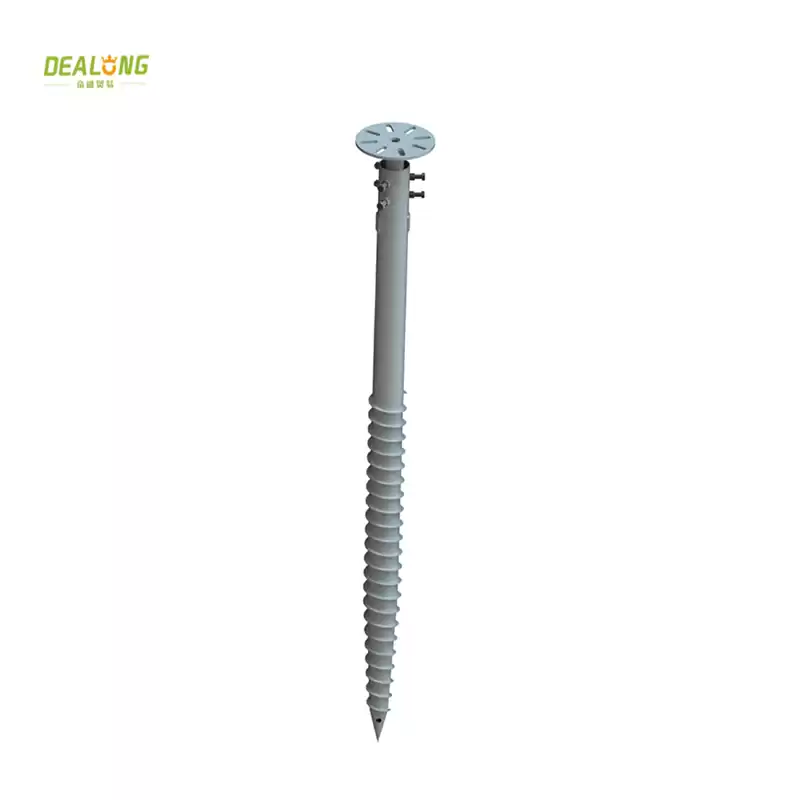

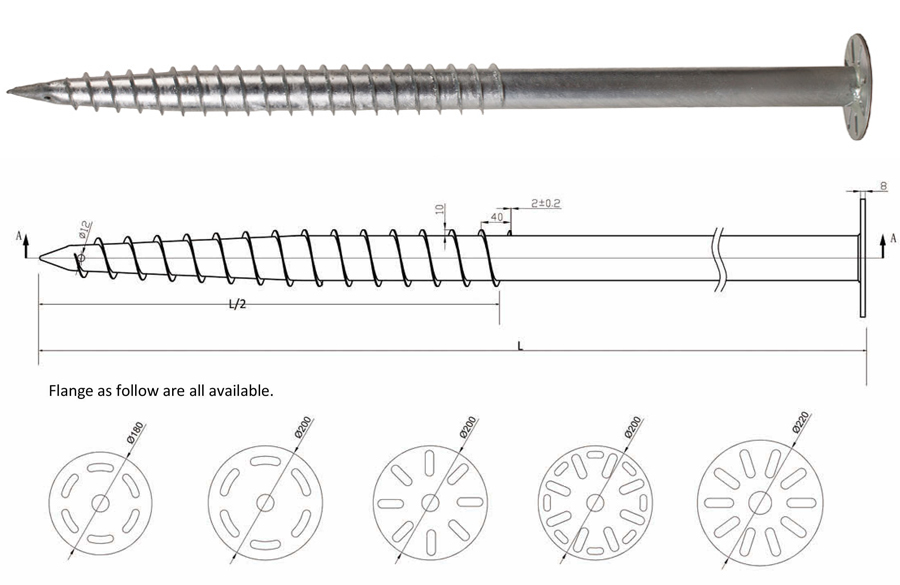

Normal ground screw with flange
|
|
Item NO.
|
Length(mm)
|
Dia.of flange(mm)
|
Minium galvnized thickness (um)
|
OD(mm)
|
Thickness of tube(mm)
|
Remarks(mm)
|
|
F76-1200-T3
|
1200
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-1400-T3
|
1400
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-1600-T3
|
1600
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-1800-T3
|
1800
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-2000-T3
|
2000
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-2400-T3
|
2400
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-2500-T3
|
2500
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-3000-T3
|
3000
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-1600-T3
|
1600
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-1800-T3
|
1800
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-2000-T3
|
2000
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-2100-T3
|
2100
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-2400-T3
|
2400
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-2500-T3
|
2500
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-3000-T3
|
3000
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|

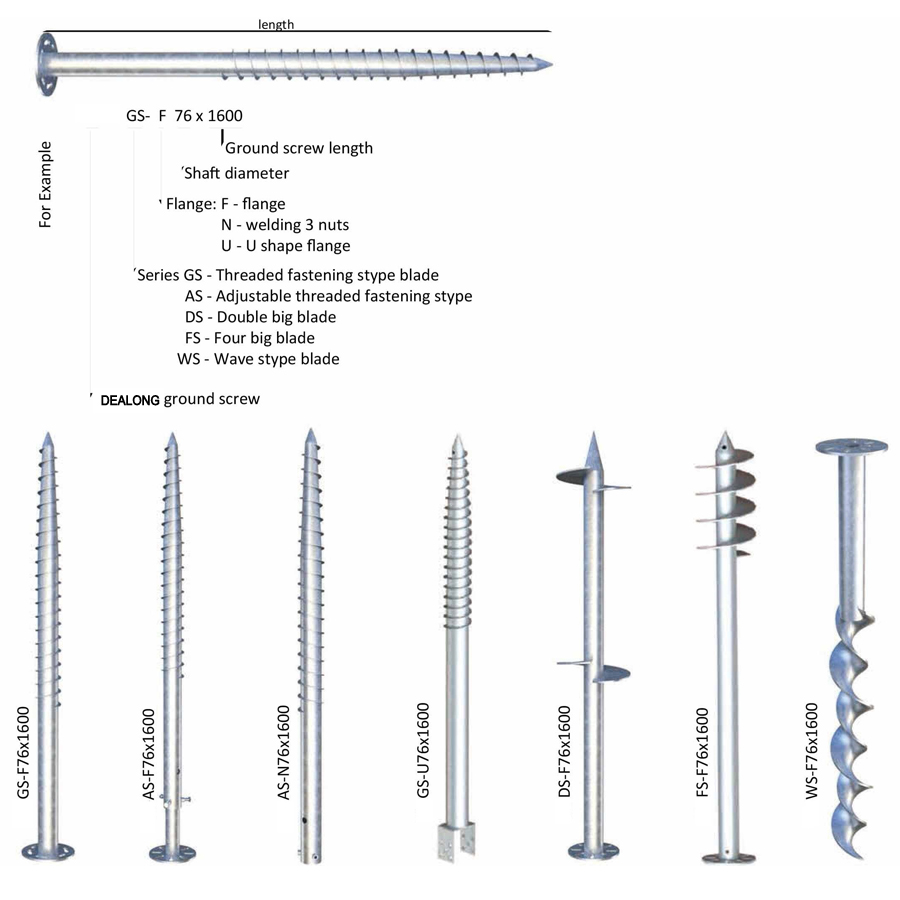

Note: Shuangheng offers different type of ground screw based on different installation conditions,dimension can be customized.
|

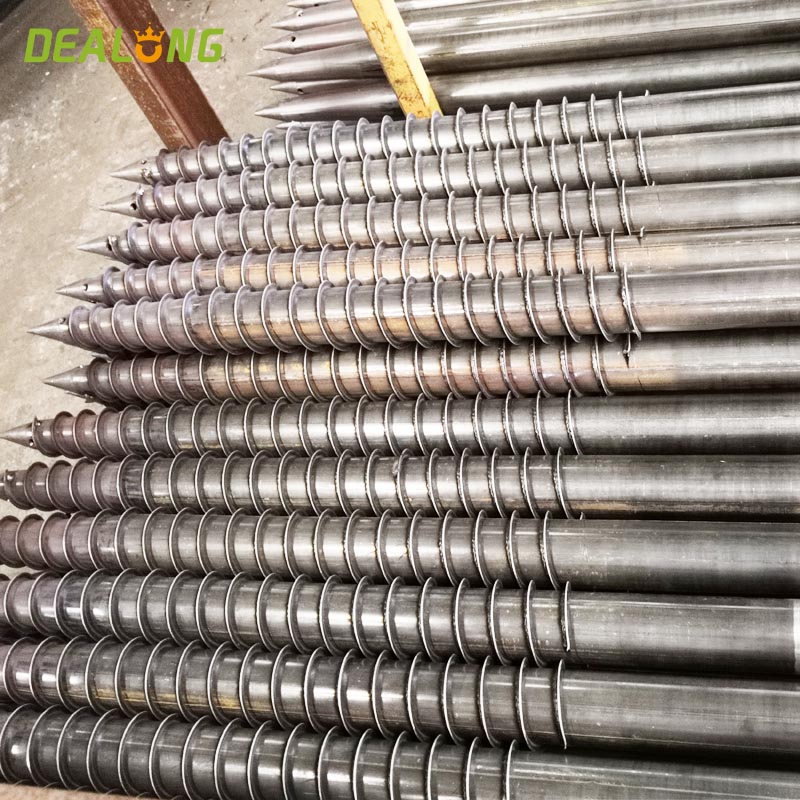

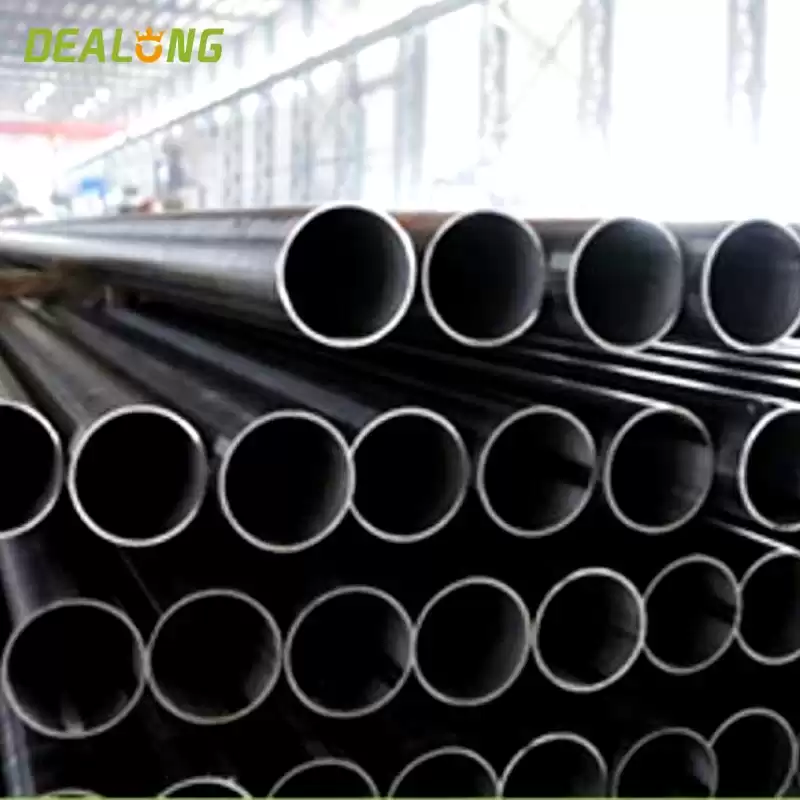

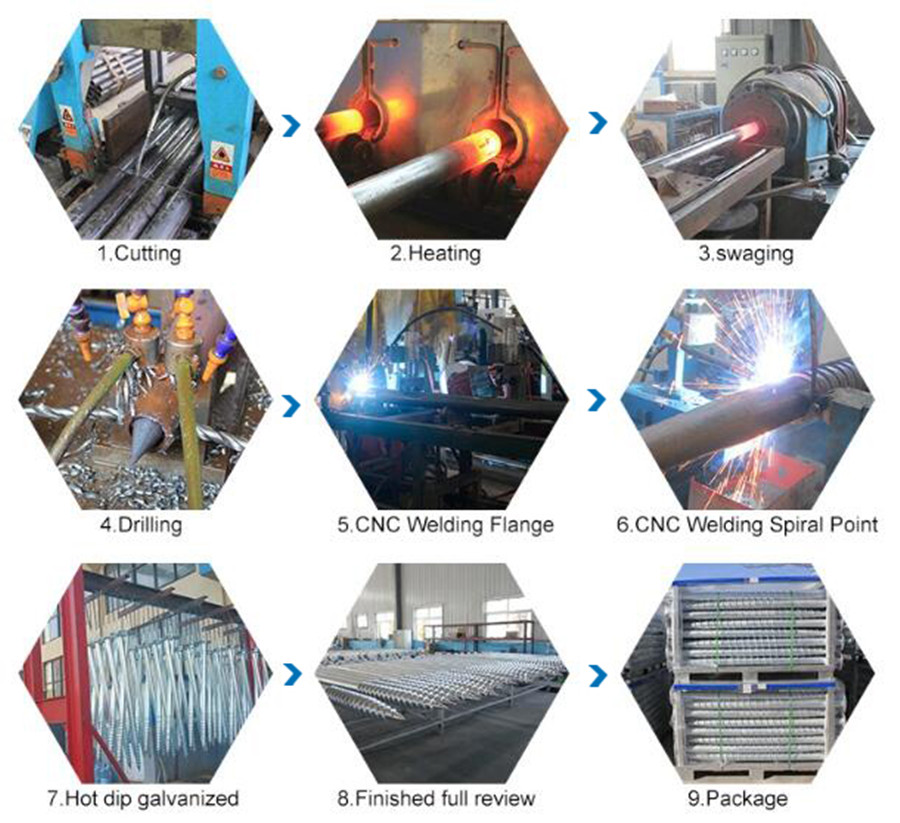

Production process of ground screws

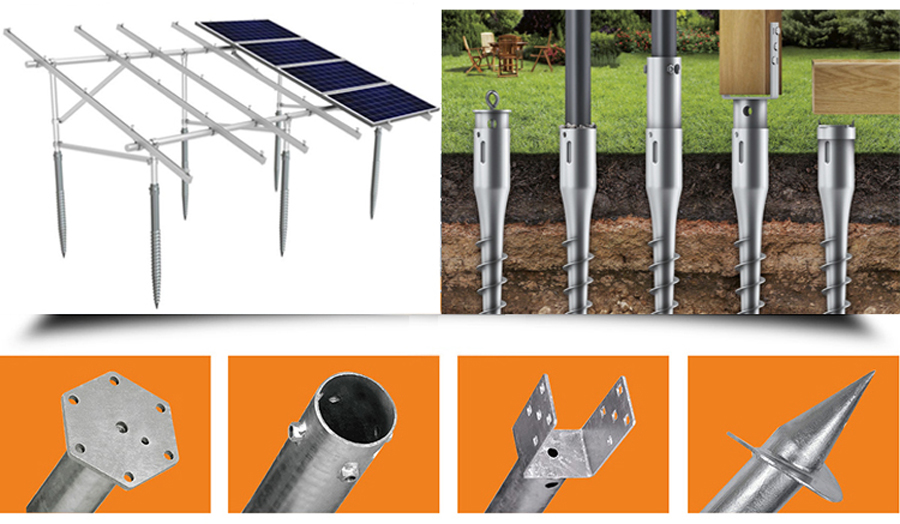

Ground screws application

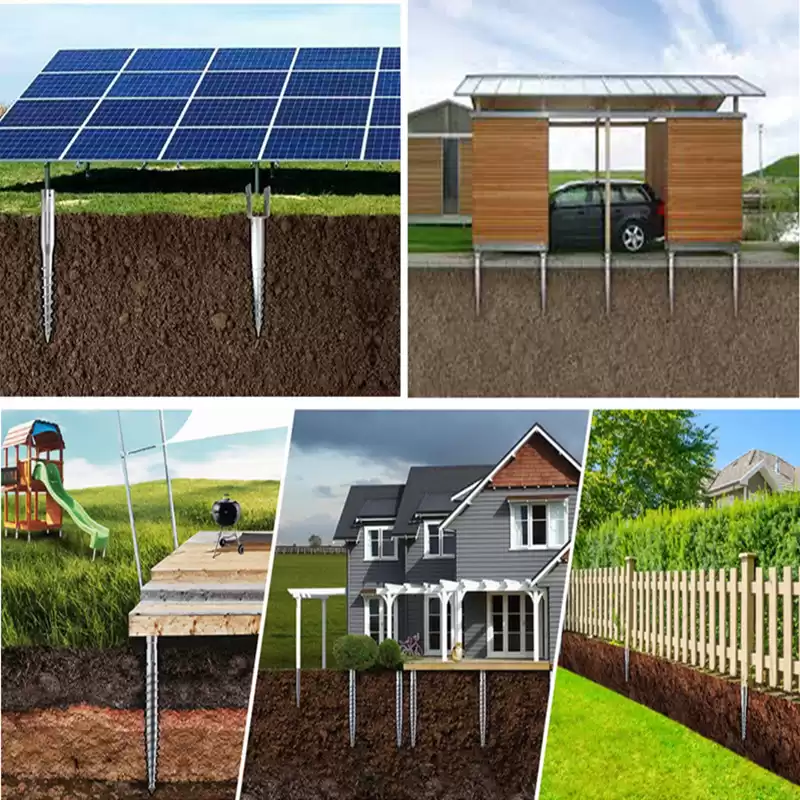

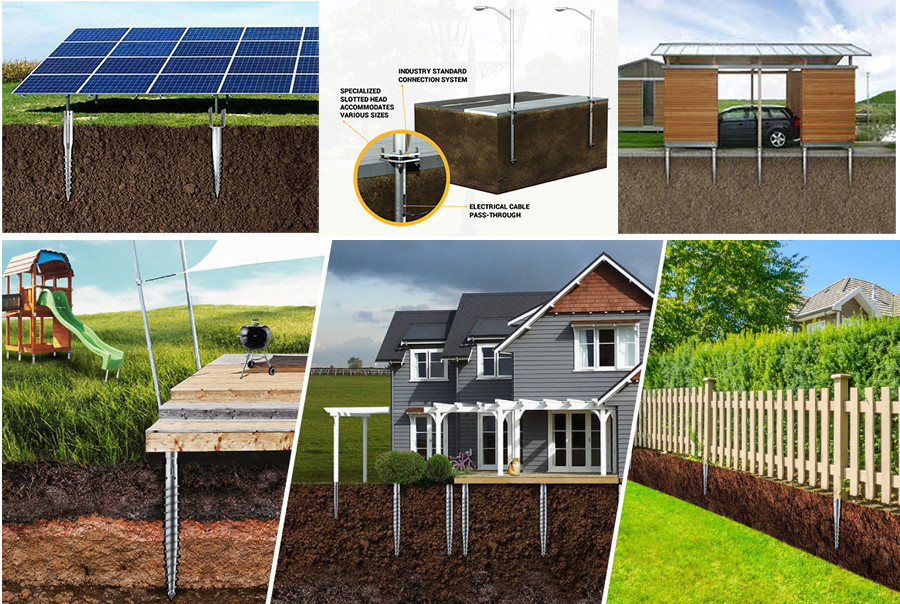

Ground screws have a wide variety of application,not only for solar mounting system foundation, but also for light industrial projects, wooden structures to fencing, streetlinghts and storage containers, etc. Install into ground without concrete save your labor and material cost, and its environment friendly and recycle.
