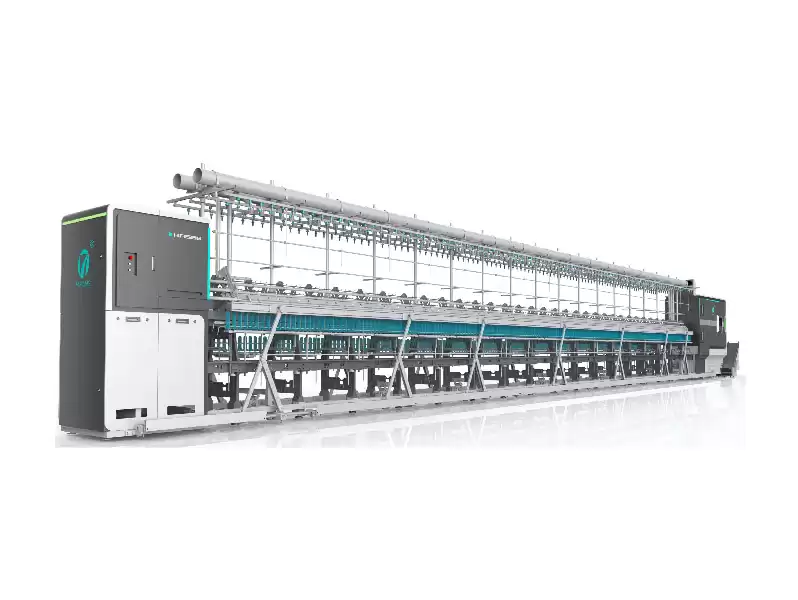

HF1588JL Worsted Spinning Frame

HF1588JL Auto-doffing worsted ring spinning frame integrates electronic drafting, electronic lifting, auto-doffing, compact spinning, single spindle detecting, remote monitoring, electronic spindle and other intelligent technologies. It is the main choice for the intelligent upgrading of domestic worsted ring spinning equipment.

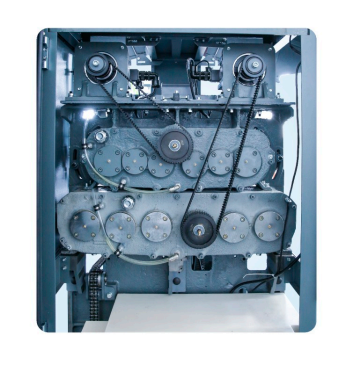

Electronic drafting

- The front, middle and back rollers are driven by individual servo motor instead of traditional gear system, laying the foundation of intelligence by realizing online adjustment and remote monitoring of process digitization. It can meet customers' demands for fancy yarn spinning such as slub yarn and injection yarn.

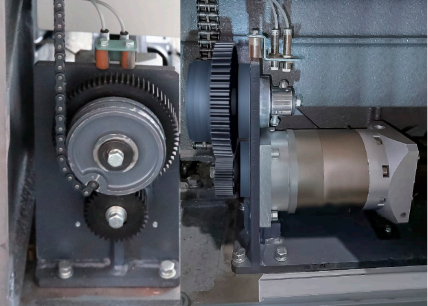

Electronic lifting

- The spinning electronic forming technology is driven by servomotor. lt simplifies the lifting mechanism and improves the level of digital spinning.

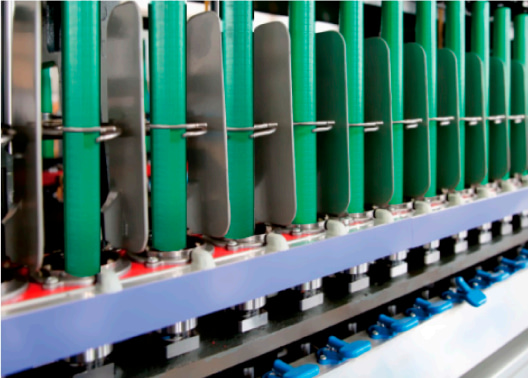

Electronic spindle (optional)

- Each spindle is driven by an individual motor(optional). it simplifies machine structure reduces noise, and improves working environment.

- Each spindle is controlled by integrated PCB drive circuit board, the spindle automatically stops once it is detected with yarn breakage or poor quality, which can reduce energy consumption.
