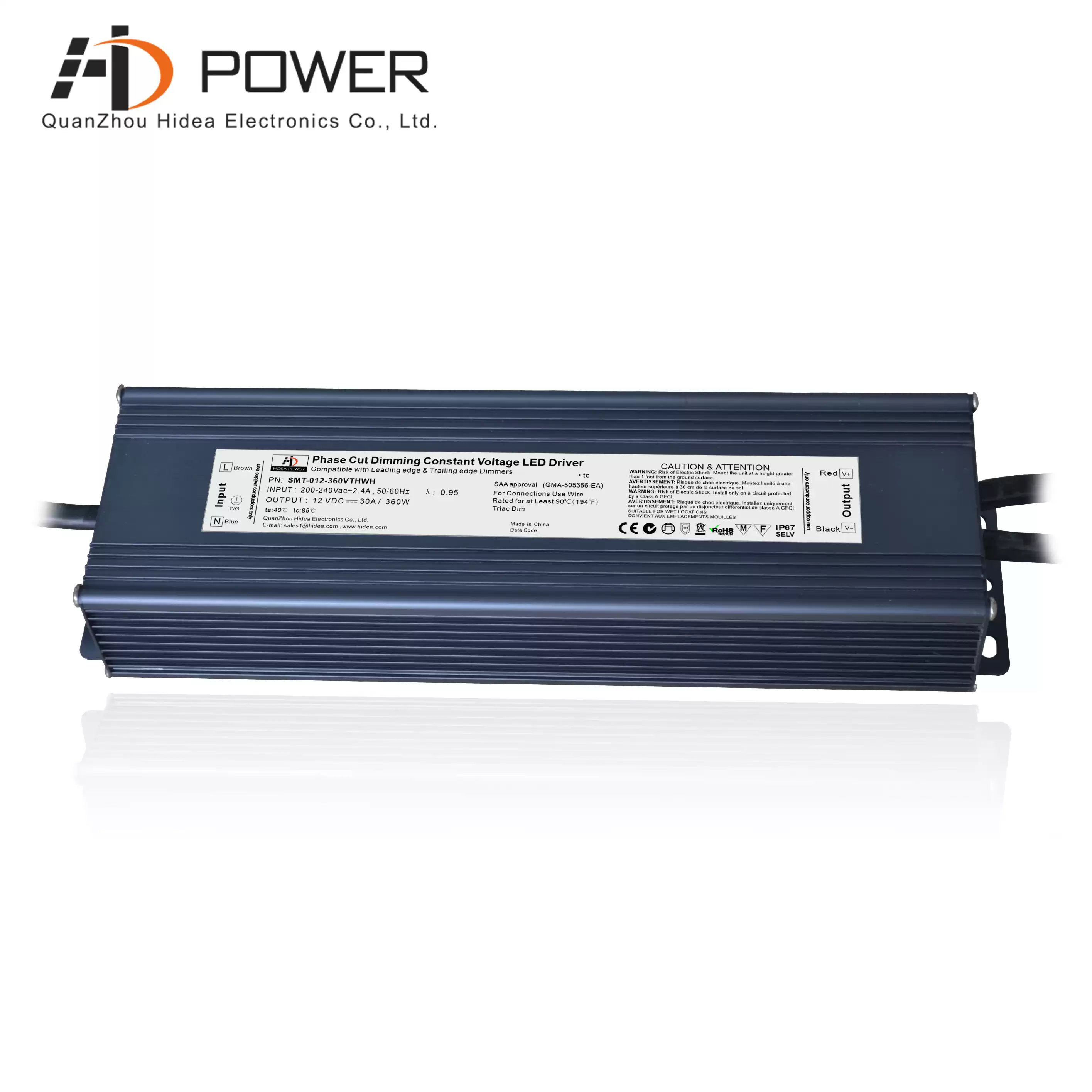

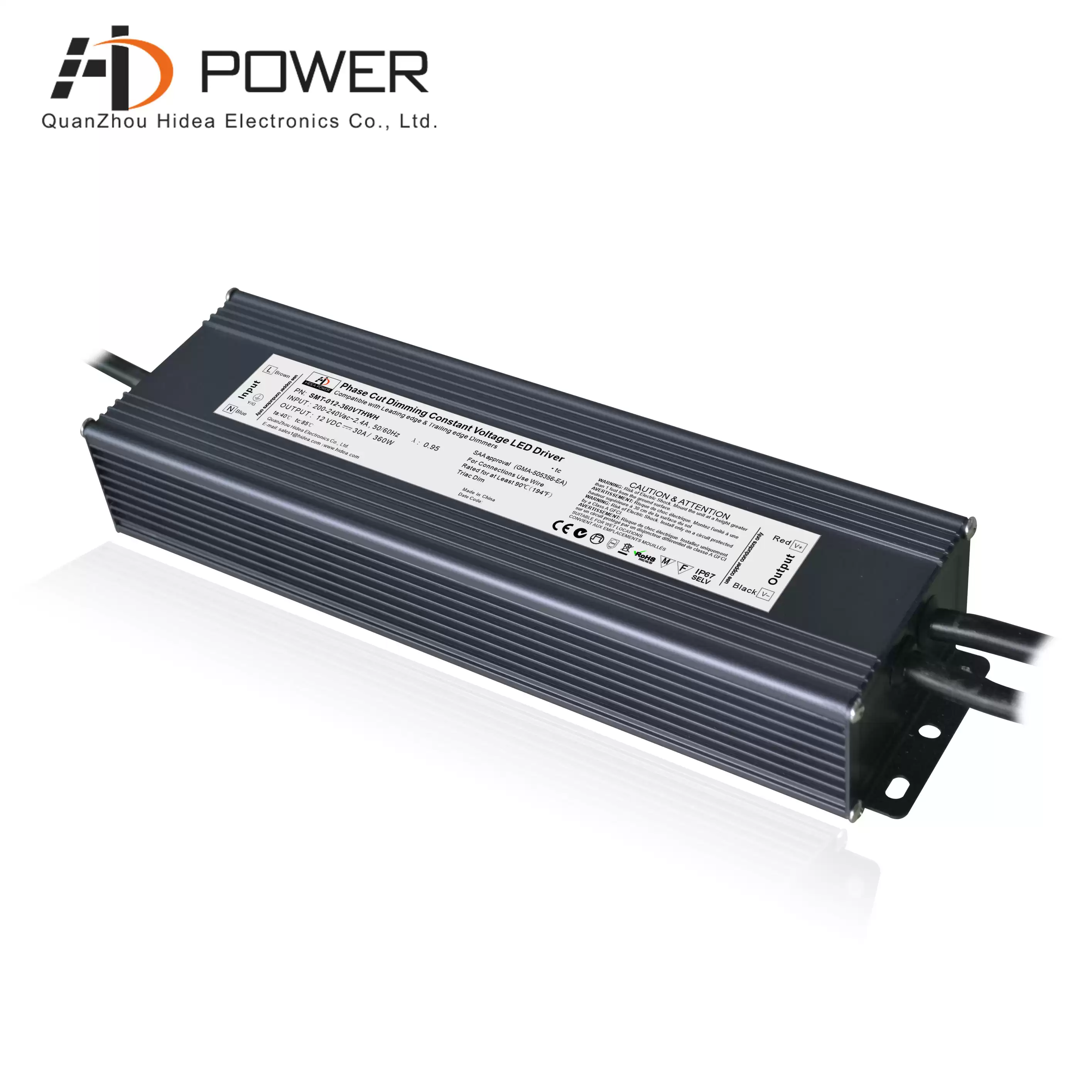

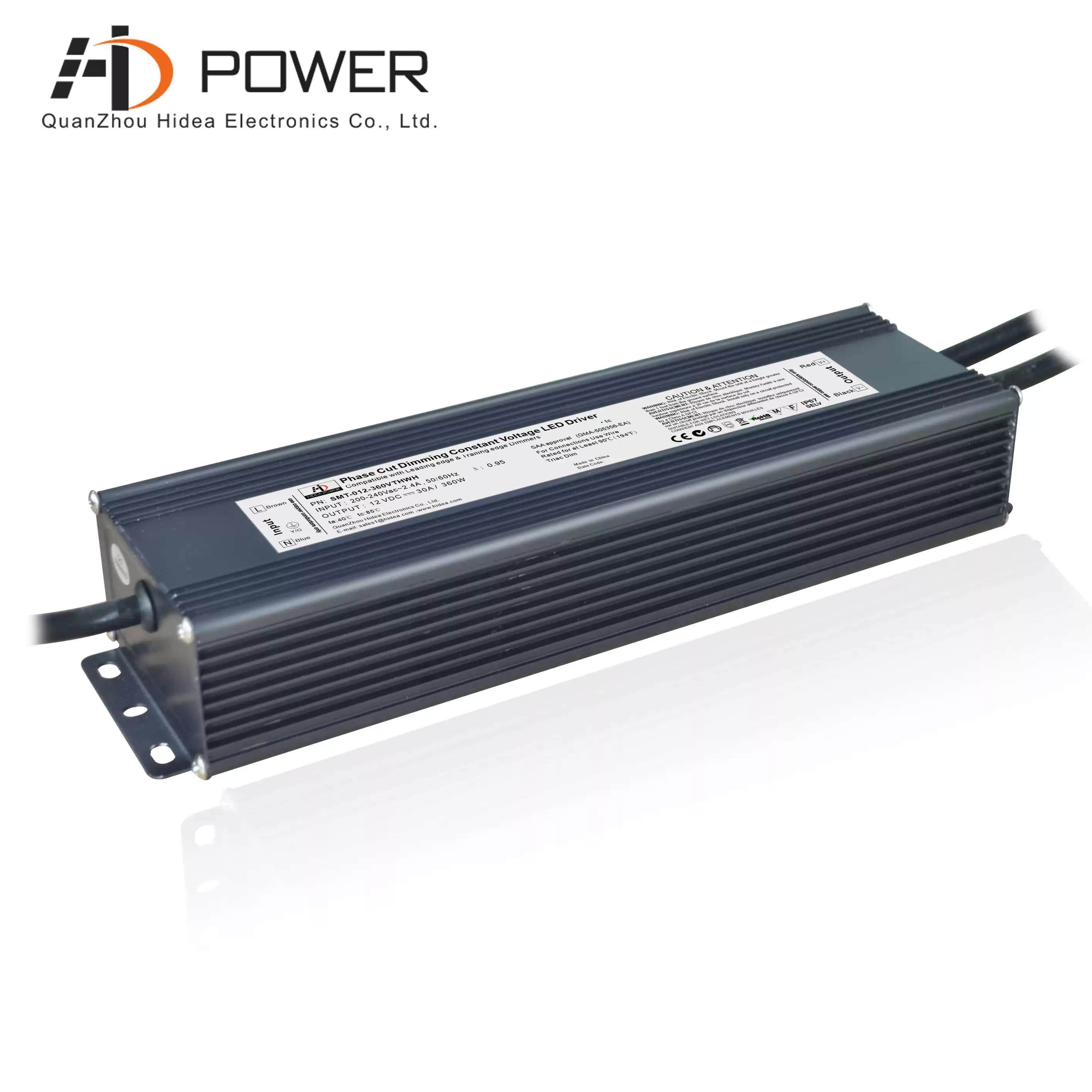

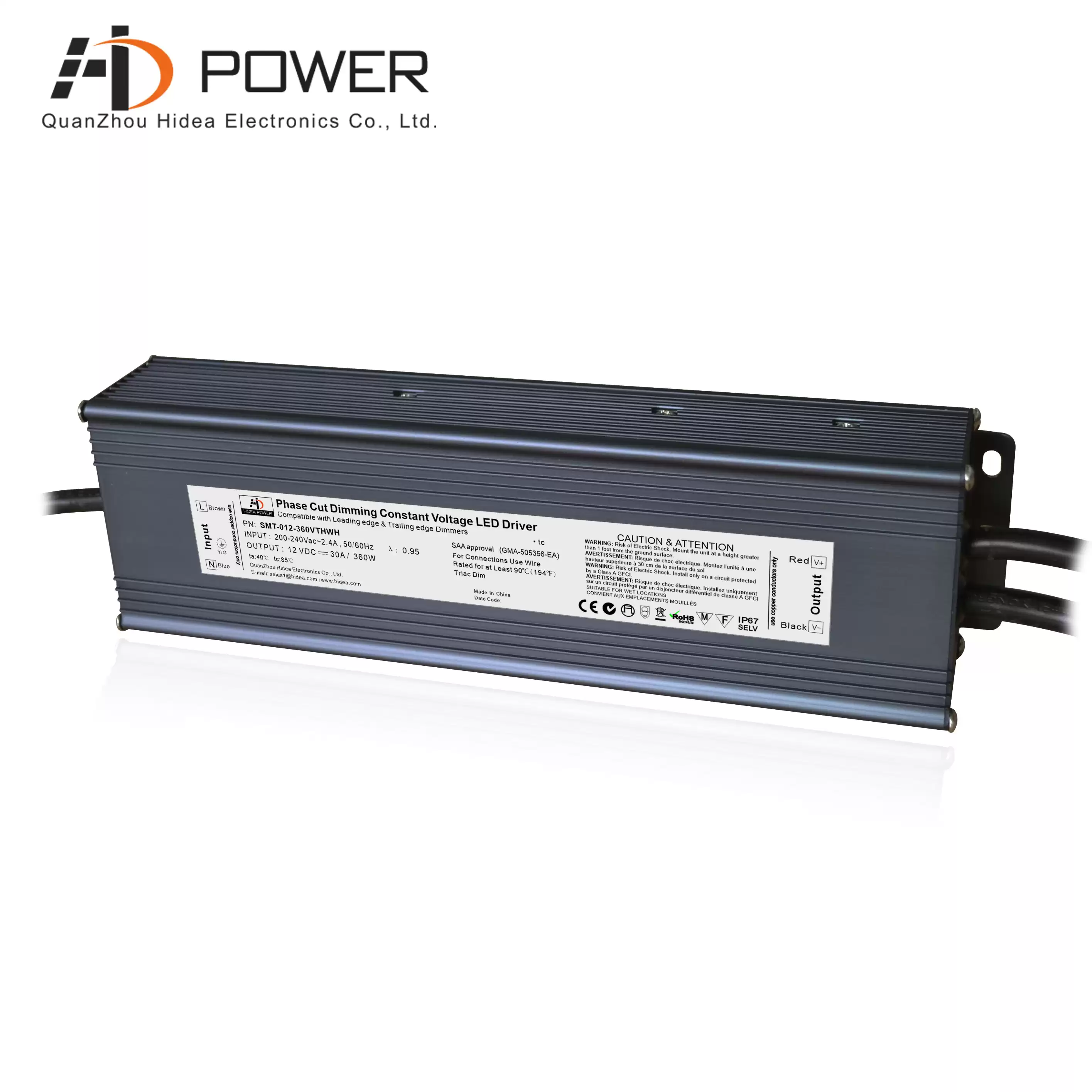

hidea power 24v high power rgb 360W triac dimmable electronic transformer 12v led strip light driver price ip67
Through the SAA and CE certification, the input voltage of 220-240VAC 360W LED DRIVER waterproof level reaches IP67, which can effectively waterproof and dust and dust. Protecting power and lamps for a longer period of time, suitable for lighting items suitable for outdoor humidity places
Specification
|
Model
|
SMT-012-360VTHWH
|
SMT-024-360VTHWH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
30A
|
15A
|
|
Rated power
|
360W
|
|
Input
|
Voltage Range
|
200-240V AC
|
|
Frequency Range
|
47-63HZ
|
|
Power Factor
|
PF≧0.97/200VAC PF≧0.97/230VAC PF≧0.97/240VAC(Full loading)
|
|
Full Load Efficiency(Typ.)
|
87%
|
89%
|
|
AC Current (Max.)
|
2.4A
|
2.4A
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over load
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over Temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (Refer to Derating Curve -- Page 4)
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~40℃)
|
|
Vibration
|
10 - 500Hz, 5G 12min./1 cycle, period for 72min.each along X,Y,Z axes.
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015,EN61000-3-2,3 (≥60%loading)
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6 ,11,EN61547
|
|
Others
|
Weight
|
1.67kg
|
|
Size
|
276*78*47mm(L*W*H)
|
|
packing
|
336*121*61mm inner box, 350*310*260mm outside carton 10PCS /CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
|
3. Loading range from 10% to 100%
|
