Introduction to electromagnetic water meter
MFB-K series electromagnetic water meter
Electromagnetic water meter features:
-
Easy installation, overall protection class IP68
-
Battery life: up to 6 years of service life
-
Range ratio: R=160, R=250,R400 ,R630
-
Low requiremenat for installation enviroment,can be installed with zero pipeline
suitable for DN50~DN300 (50mm ~300 mm carliber size)
Ultra low speed initial flow rate
-
Measurement accuracy, long-term measurement performance, maintenance-free
-
Can measure flow in both positive and negative directions
-

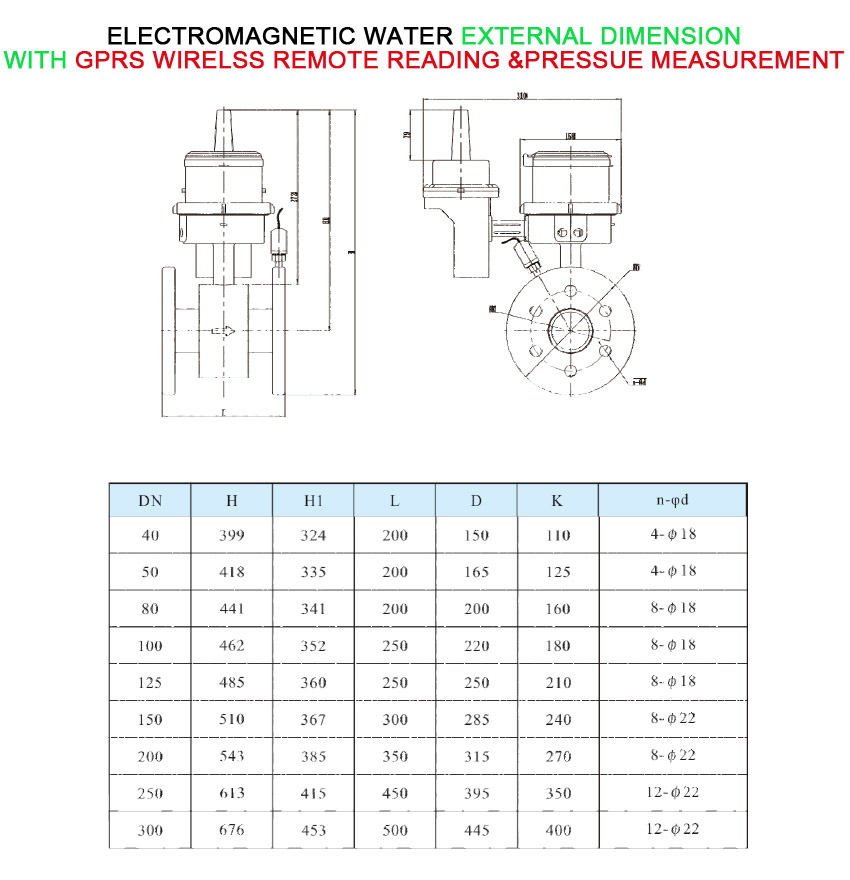

The battery water sensor can be equipped with a pressure sensor to detect the pipeline pressure at the installation point, which can be transmitted to the system.
-
The internal power supply is powered by a 3.6V high-energy lithium battery. It requires no external power supply and external settings. It is easy to use and has a wide range of applications.
-
Electromagnetic flowmeter or electromagnetic water meter housing is made of stainless steel (carbon steel optional)
-

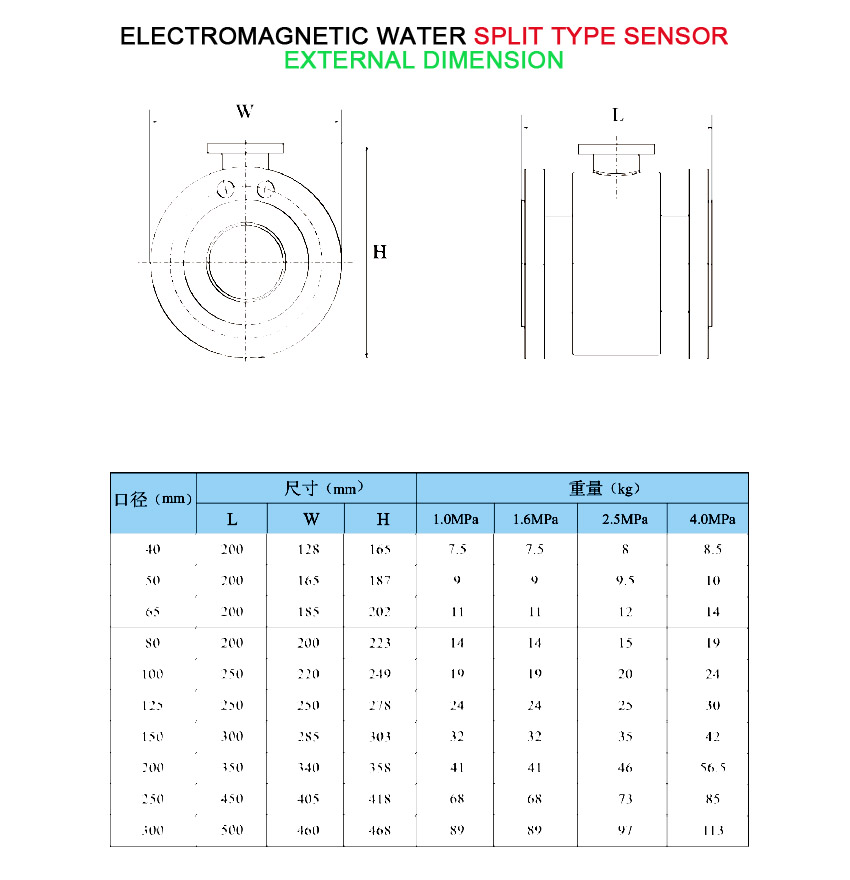

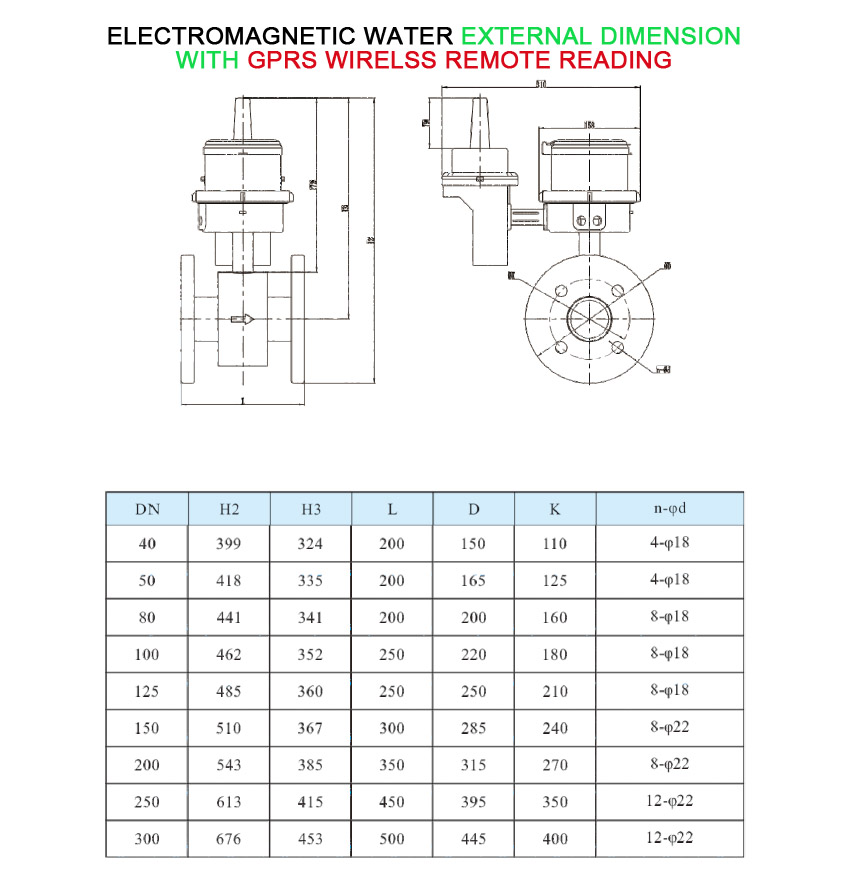

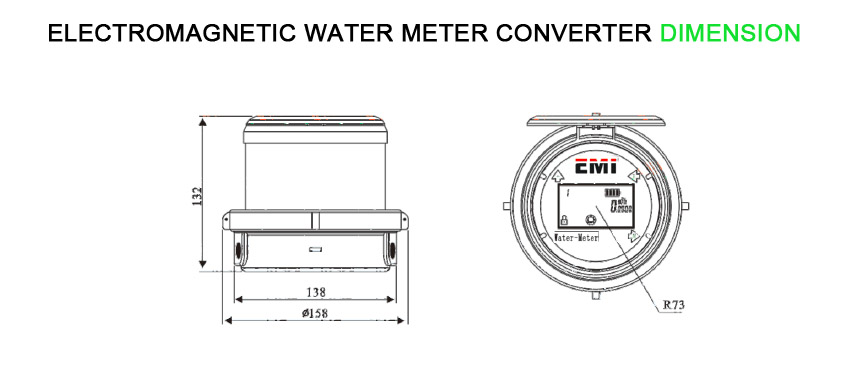

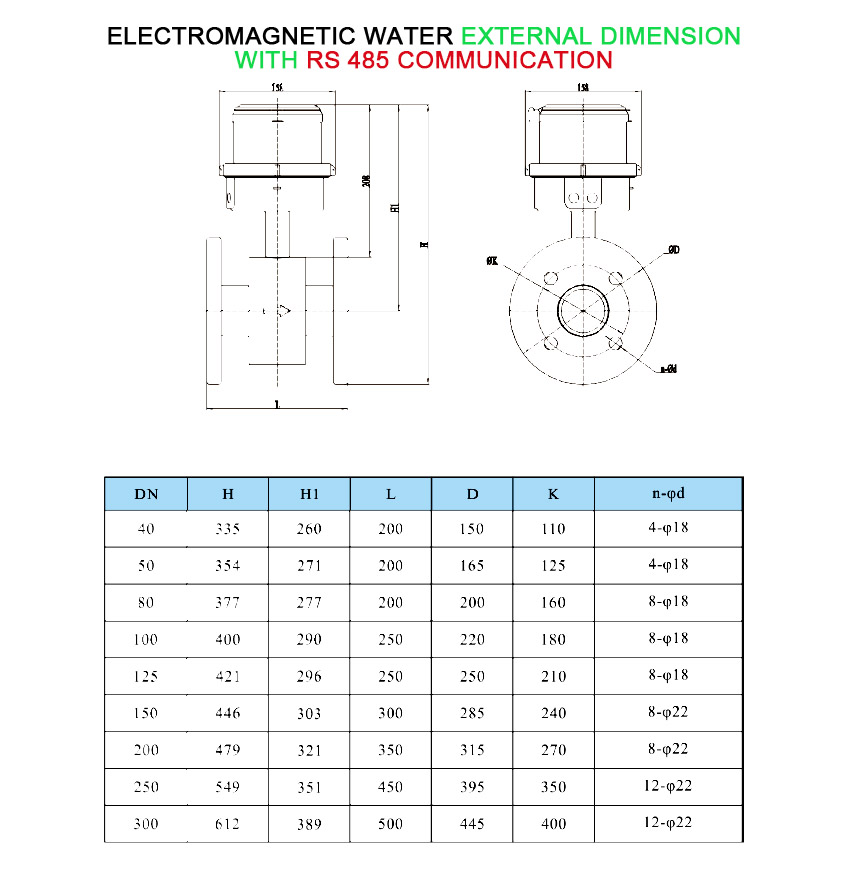

A variety of communication solutions are available: RS485 communication, wireless remote transmission (GPRS\NB-IoT): remotely collect and detect electromagnetic water meter measurement information and alarm information to maximize customer convenience
-
The converter has a series of word diagnosis functions, electrode scaling, sensor leakage, empty tube alarm, low battery alarm light function, the user can detect the status of the water meter in real time.
-
Data protection: electromagnetic flowmeter parameters and measurement data are registered in non-volatile memory (can be stored for more than 10 years). The instrument has mechanical seal and electronic seal, which can effectively prevent parameters from being modified by unauthorized persons.
-
It is not affected by the density, viscosity, temperature, pressure and electroconductibility of fluid
DC/AC, battery power supply.
Electromagnetic water meter technical data
|
MFB-S
series
electromagnetic
water meter
|
|
Carliber
|
DN50~DN300
|
Installation standard
|
Pipeline type(flanged connection)
|
Flange standard
|
GB/T9119
|
Pressure grade
|
1.0MPA\or others
|
Lining matgerial
|
PU
|
Electrode material
|
316L
|
Electroconductibility
|
≧20μs/cm
|
|
Initial flow speed
|
≧3mm/s
|
Protection grade
|
IP68,IP67(split type)
|
Temperature grade
|
T50
|
Medium temperature
|
0℃~50℃
|
Climate and mechanical environmental class
|
class c
|
Electromagnetic enviroment grade
|
E2
|
Embeddability
|
Embedding depth ≤5m (only for IP68)
|
Electrical connection
|
high-protection
aviation plug
|
Split cable
|
≤10m
|
Power supply
|
3.6v lithium battery,220v ac+3.6v lithium battery,24v dc+3.6v lithium
battery
|
Output interface
|
Pulse(standard ),RS485(standard),GPRS,NB-IoT
|
MFB-K R160 type Electromagnetic water meter Flow rate Parameter
|
Carliber
|
Q4(m³/h)
|
Q3(m³/h)
|
Q2(m³/h)
|
Q1(m³/h)
|
Q1 Accuracy value
(mm/s)
|
R(Q3/Q1)
|
|
50
|
50
|
40
|
0.4
|
0.25
|
35
|
160
|
|
80
|
125
|
100
|
1
|
0.63
|
35
|
|
100
|
200
|
160
|
1.6
|
1.6
|
35
|
|
150
|
500
|
400
|
4
|
2.5
|
40
|
|
200
|
787.5
|
630
|
6.3
|
4
|
35
|
|
250
|
1250
|
1000
|
10
|
6.3
|
36
|
|
300
|
2000
|
1600
|
16
|
10
|
39
|
Class C :Q1-Q2:Erro range ≦3%R Q2-Q4 Erro range ≦1%; Class B :Q1-Q2:Erro range ≦5%R Q2-Q4 Erro range ≦2%R
MFB-K R250 type Electromagnetic water meter Flow rate Parameter
|
Carliber
|
Q4(m³/h)
|
Q3(m³/h)
|
Q2(m³/h)
|
Q1(m³/h)
|
Q1 Accuracy value
(mm/s)
|
R(Q3/Q1)
|
|
50
|
50
|
40
|
0.25
|
0.16
|
23
|
250
|
|
80
|
125
|
100
|
0.63
|
0.4
|
22
|
|
100
|
200
|
160
|
1
|
0.63
|
22
|
|
150
|
500
|
400
|
2.5
|
1.6
|
25
|
|
200
|
787.5
|
630
|
4
|
2.5
|
22
|
|
250
|
1250
|
1000
|
6.3
|
4
|
23
|
|
300
|
2000
|
1600
|
10
|
6.3
|
25
|
Class C :Q1-Q2:Erro range ≦3%R Q2-Q4 Erro range ≦1%; Class B :Q1-Q2:Erro range ≦5%R Q2-Q4 Erro range ≦2%R
MFB-K R400 type Electromagnetic water meter Flow rate Parameter
|
Carliber
|
Q4(m³/h)
|
Q3(m³/h)
|
Q2(m³/h)
|
Q1(m³/h)
|
Q1 Accuracy value
(mm/s)
|
R(Q3/Q1)
|
|
50
|
50
|
40
|
0.16
|
0.1
|
14
|
400
|
|
80
|
125
|
100
|
0.4
|
0.25
|
14
|
|
100
|
200
|
160
|
0.63
|
0.4
|
14
|
|
150
|
500
|
400
|
1.6
|
1
|
16
|
|
200
|
787.5
|
630
|
2.5
|
1.6
|
14
|
|
250
|
1250
|
1000
|
4
|
2.5
|
14
|
|
300
|
2000
|
1600
|
6.3
|
4
|
16
|
Class C :Q1-Q2:Erro range ≦3%R Q2-Q4 Erro range ≦1%; Class B :Q1-Q2:Erro range ≦5%R Q2-Q4 Erro range ≦2%R
MFB-K R630 type Electromagnetic water meter Flow rate Parameter
|
Carliber
|
Q4(m³/h)
|
Q3(m³/h)
|
Q2(m³/h)
|
Q1(m³/h)
|
Q1 Accuracy value
(mm/s)
|
R(Q3/Q1)
|
|
50
|
50
|
40
|
0.1
|
0.063
|
9
|
630
|
|
80
|
125
|
100
|
0.25
|
0.16
|
9
|
|
100
|
200
|
160
|
0.4
|
0.25
|
9
|
|
150
|
500
|
400
|
1
|
0.63
|
10
|
|
200
|
787.5
|
630
|
1.6
|
1
|
9
|
|
250
|
1250
|
1000
|
2.5
|
1.6
|
9
|
|
300
|
2000
|
1600
|
4
|
2.5
|
10
|
Class C :Q1-Q2:Erro range ≦3%R Q2-Q4 Erro range ≦1%; Class B :Q1-Q2:Erro range ≦5%R Q2-Q4 Erro range ≦2%R
