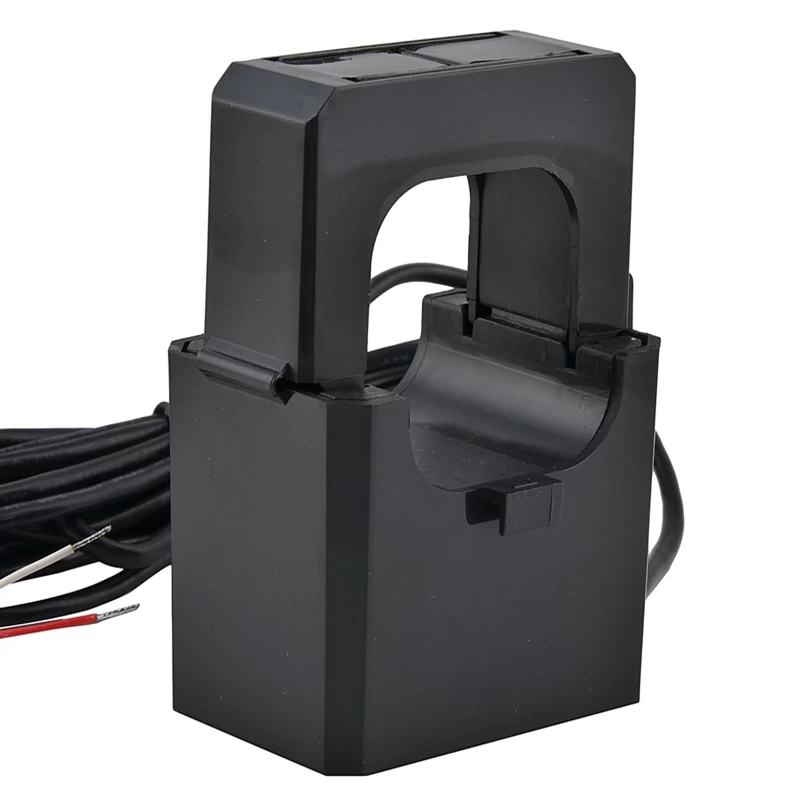

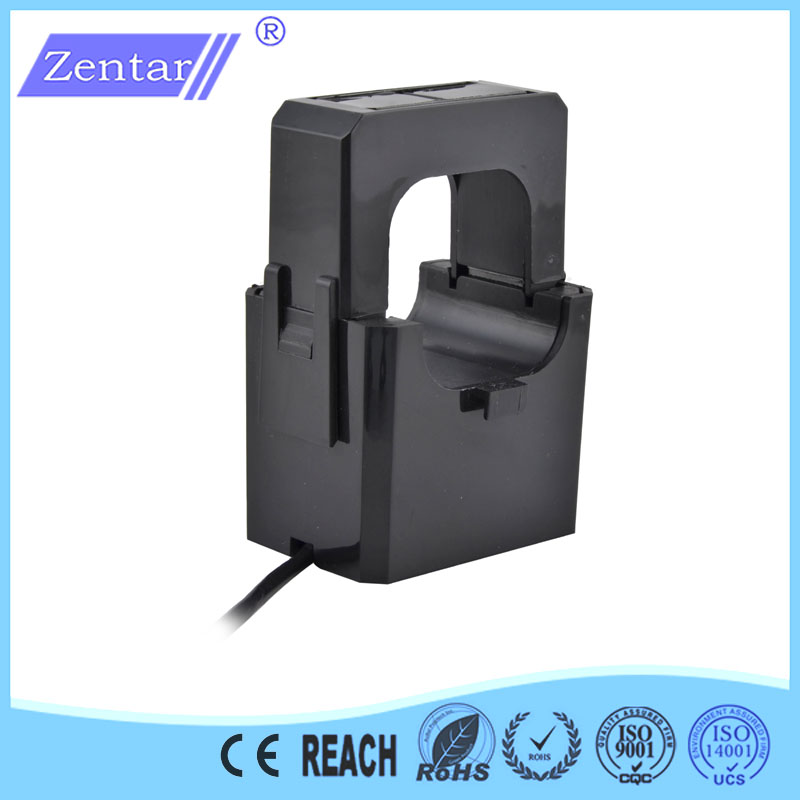

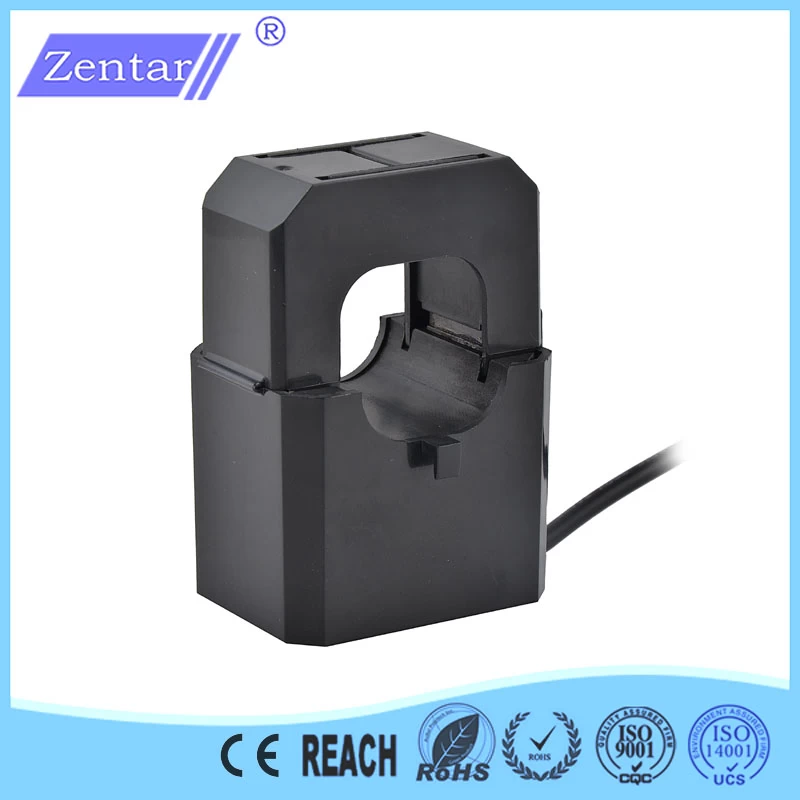

High accuracy Split core current transformer CT315

ID 36mm split core current transformer

Steady in phase shift over the whole range
Small in size,clamp type,easy to use no need of cutting cable
Various of configuration and output characteristics
RoHS compliant, CE, ETL Certificate.



High accuracy Split core current transformer CT315


Frequency band: 50Hz~60Hz
Dielectric strength: 2000Vrms/1 MIN between Sec. / Pri.
Rated current: 200A 50Hz
Max current: 600A 50Hz
Rated load resistor: 20Ω
Operate temperature `-10~50℃ 0~80%RH
store temperature `-30~80℃ 0~80%RH
Inductance ≥15H (@50HZ,1V)
Max error(5A~200A) Linearity error:1%(5A-600A)
Clamp times ≥500 time


Model No.

Rated  Input Current
   (A)

Rated Output

Accuracy

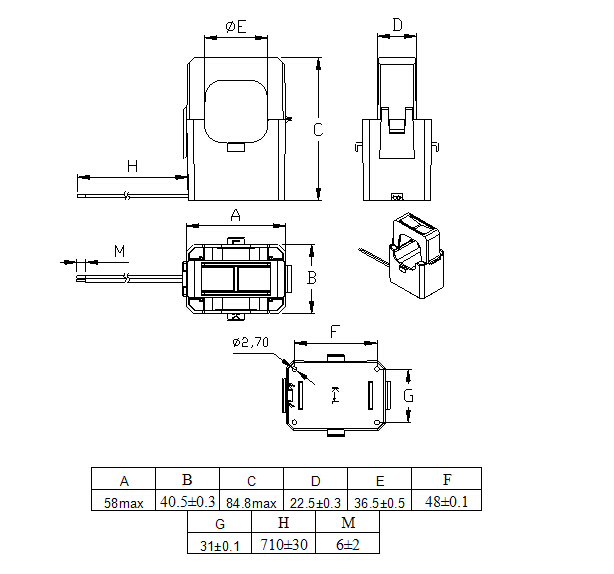

Dimension(Unit: mm/inch)

Ф

A

B

C

D

E

CT301

5-85A
 (5、10、50、60、75)

0-50mA
or  0.333V

0.5%~3%

10

27.0

25.0

42.5

To be defined

To be defined

0.394

1.063

0.984

1.673

CT302

10-300A   (10、50、100、200、250、300)

0-200mA
or  1A/5A

0.5%~3%

24

46.0

34.0

66.0

0.945

1.811

1.339

2.598

CT303

5-180A
(10、50、100、120、150)

0-100mA
or  1A

0.5%~3%

16

33.0

31.5

43.5

0.630

1.299

1.240

1.713

CT304

5-30A
(5、10、15、20、30)

0-30mA
or  0.333V

0.5%~3%

6

26.4

16.0

32.0

0.236

1.039

0.630

1.260

CT305

10-630A(20、100、250、300、400、630)

0-500mA
or  1A/5A

0.5%~3%

36

58.0

40.5

84.8

1.417

2.283

1.594

3.339

CT312

5-85A
 (5、10、50、60、75)

0-50mA
or  0.333V

0.5%~3%

10

23.5

26.2

42.0

0.394

0.925

1.031

1.654

CT313

10-200A  (10、50、100、200)

0-200mA
or  1A

0.5%~3%

16

30.5

31.0

45.2

0.630

1.201

1.220

1.780

CT314

10-300A  (10、50、100、200、250、300)

0-200mA
or  1A/5A

0.5%~3%

24

45.0

33.8

64.7

0.945

1.772

1.331

2.547

CT315

10-1000A(20 、100、250、300、400、630 800 1000)

0-500mA
or 1A/5A

0.5%~3%

36

58.0

40.5

84.0

1.417

2.283

1.594

3.307


Split core current transformer

Applications
Split core current transformer design is used for energy efficiency monitoring and automation applications. These include sub-metering cost allocation, dynamic energy consumption and peak load analysis.

ZTC series of AC Split core current transformers are a simple to use, compact split-core design which is easily installed for metering applications. They are ideal for distributed measurement systems and can be retro-fitted into existing installations and non-interruptible equipment as there is no requirement for disconnection and re-connection of wiring.


Distribution Cabinet

application of current transformer


We are providing customized service and expertise in consulting, design and manufacturing of current transformers, RCD fused connection unit and wireless energy monitor.
