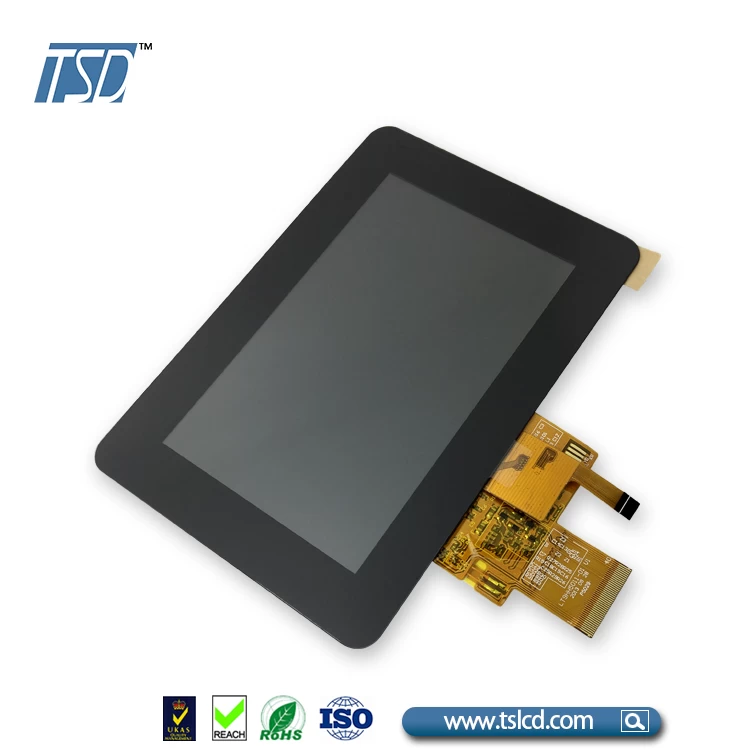

High brightness 5.0 inch TFT LCD module 800*480 dots with CTP

High brightness 5.0 inch TFT LCD module 800*480 dots with CTP

Facebook Twitter Pinterest LinkedIn 分享

High brightness 5.0 inch TFT LCD module 800*480 dots with CTP



Specification
Part No. TST050WVHI-13C
Outline Dimension(mm) 120.9 x 75.95 x2.9(Typ)
Display Area(mm) 107.7(H) x  64.6(V)
Viewing angle 12 o'clock
Resolution(dots) 800x480
Back-Light LED Side-light type
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 800 RGB (H) x 480(V)
Pixel Pitch 0.135(H) x 0.135(V)
Pixel arrangement RGB Vertical stripe
Display mode Normal white
Surface treatment  Antiglare, Hard-Coating (3H)
White luminance 900
Backlight 18 white LEDs
