Color Sorting Machine Working Principle
The long-grain rice color sorter works by using a combination of cameras and light sensors to detect the color of each grain of rice. The camera takes an image of each grain and sends it to the processor. The processor then compares the image to a reference library of colors, and if it finds a match, it sends a signal to the sorting mechanism which sorts the grain into its appropriate bin.
8 chutes Rice Color Sorter Machine Features
1.Color sorters can be programmed to sort a variety of colors, from bright colors to subtle shades.
2.High speed sorting: Color sorters can sort items quickly and accurately, with speeds up to 100 items per second.
3.Automated sorting: color sorters are equipped with automated systems that can detect and sort items without human intervention.
4.Advanced software: color sorters are equipped with advanced software that can be programmed to detect and sort a variety of colors and shapes.
5.Easy maintenance: Color sorters are designed for easy maintenance, so they require minimal upkeep.
6.Durability: Color sorters are designed to last for years, making them an ideal long-term investment.
7.Low noise levels: color sorters feature low noise levels, so they won’t disrupt the workplace environment.

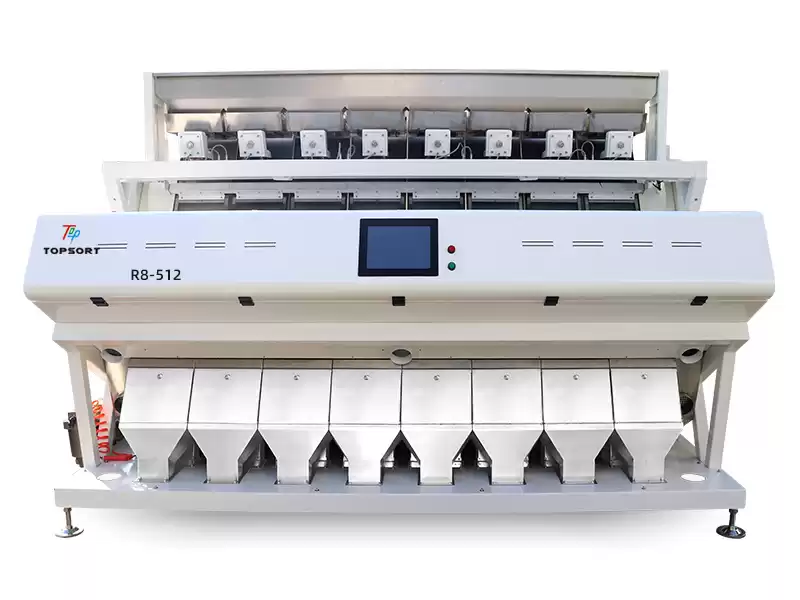

8 Chutes Rice Color Sorter Machine Technical Parameters
| Model |
R8-512 |
| Channles |
512 |
| Power |
4.7kw |
| Weight |
1400kgs |
| Dimensions |
3330*1504*1760mm |
| Power voltage |
220V/50HZ/60HZ |
| Sorting accuracy |
99.99% |
| Capacity |
6000-8000kg/h |
| Air consumption |
<6.5m3/min |
| Air pressure |
0.6-0.8Mpa |
Superb Rice Sorting Sulotions
Our Color Sorter Machine Core Advantages
Sucessful Cases
Why Choose TOPSORT Color Sorter
Top technology
Adopt high-speed FPGA digital image processing technology, faster detection speed, higher recognition rate and high sorting accuracy.we have CCD color sorter and infrared color sorter for different sorting requests.
Top quality
Equiped with imported famous brand key components to guarantee the reliability.Professional production team, each step is inspected by professional quality inspectors before moving on to the next process Before shipping the machine,our engineer will test and save parameters,make sure they are in good condition.
Free Training
We supply complete training for all customers for free,we train in the following ways:
1. Engineers go to customer site to explain how to adjust, use and maintain the machine.
2. Customers can also come to our factory to learn the knowledge related to the machine.
3. Online remote control training or video training is available if customer no need send engineer.
Competitive Price
Competitive price thanks to the mass production and lean production
Remote control for global
Machine equipped with WIFI device, online solve software parameters setting problems.
Fast Delivery
Safe stock of standard parts of the machine guarantees the quick delivery of the machine
A wealth of experience
More than 18 years of professional manufacturing experience, more than 10 years exporting experience overseas.Products are exported to more than 100 countries and regions. We can give you best sorting solutions according to your raw material .

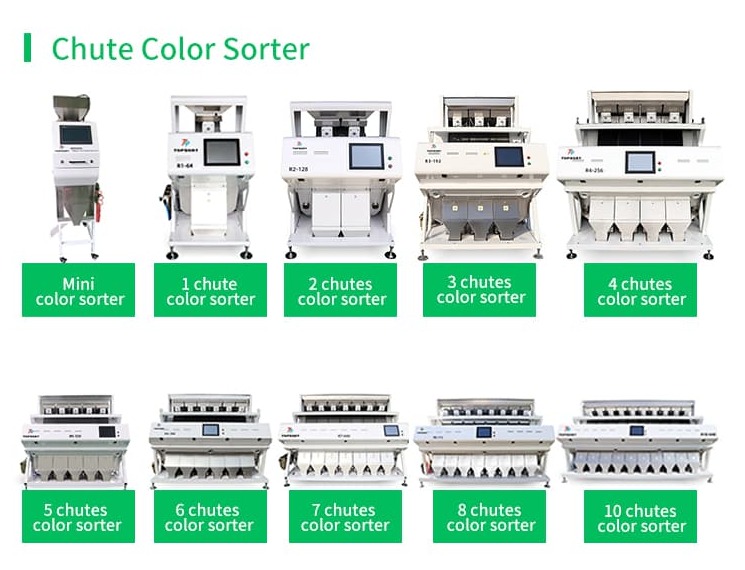

More models you can choose
Technical Parameters
| MODEL |
POWER |
VOLTAGE |
AIR PRESSURE |
AIR CONSUMPTION |
DIMENSIONS (MM) |
WEIGHT (KGS) |
| MINI-32 |
0.5KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜0.5m³/min |
420*1100*1820 |
100 |
| R1-64 |
0.8KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜1.0m³/min |
880*1504*1760 |
300 |
| R2-128 |
1.3KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜2.0m³/min |
1314*1504*1760 |
400 |
| R3-192 |
1.9KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜3.0m³/min |
1650*1504*1760 |
500 |
| R4-256 |
2.4KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜4.0m³/min |
1986*1504*1760 |
650 |
| R5-320 |
3.0KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜5.0m³/min |
2322*1504*1760 |
800 |
| R6-384 |
3.6KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜5.5m³/min |
2658*1504*1760 |
1000 |
| R7-448 |
4.1KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜6.0m³/min |
2994*1504*1760 |
1200 |
| R8-512 |
4.7KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜6.5m³/min |
3330*1504*1760 |
1400 |
| R10-640 |
5.8KW |
220V/50HZ/60HZ |
0.6-0.8MPA |
＜8.0m³/min |
3666*1504*1760 |
1800 |
Note:Capacity upon material type,impurity rate,so it needs to determine according to the actual sorting materials.
Customer Concerns
Question 1: What are your advantages compared with your competitors?
Answer:With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price. 2). Good customer service: Fast response to any inquiry or question. 3). On-time delivery.
Question 2: Are you a manufacturer?
Answer: Yes, we are glober manufacturer with more than 18 years' color sorter producing and export experience.
Question 3: How to install and use the machine?
We will supply the installation instructions or videos and our engineers will train the operators.
Question 4. How long about the guarantee period?
Two years. The warranty period starts on the day of delivery.We supply lifelong software upgrade services for our customers.
Question 5: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other data sheets related shall be provided by us.
