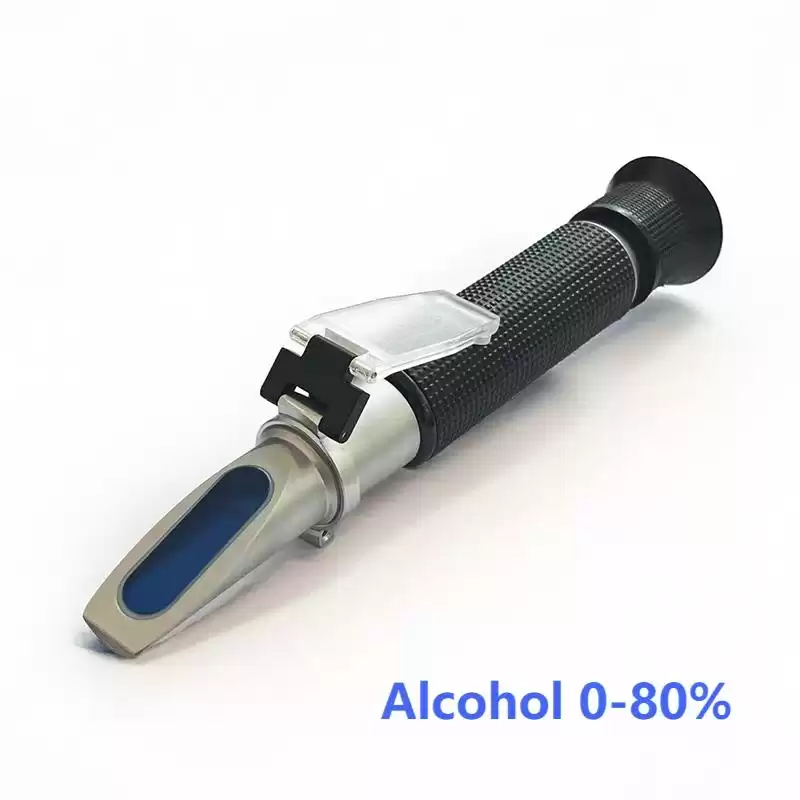

High Concentration Alcohol Refractometer ATC, High AbV Alcohol Meter for Liquor Spirits Sanitizer

The RHW-80A handheld alcohol refractometer measures the percentage of alcohol content in high alcohol solutions, with a measurement range of 0-80% alcohol and an accuracy of ±1%.



  • This tool is ideal for quality control for spirits and liquors, as well as other high alcohol content solutions.
  • The main body of the instrument is made of copper material to maximize measurement accuracy and durability.
  • This model has Automatic Temperature Compensation(ATC). Models without ATC are also available for a lower cost.



Measurement Specifications

Scale(s) Ranges Resolution Accuracy
Alcohol
0 to 80%
1.0%
±1%

Facebook Twitter Pinterest LinkedIn 分享
Product Description
The handheld optical refractometer is a common tool for liquid quality control. It works by measuring the refraction angle of light as it passes through a liquid to determine the liquid's refractive index, from which the concentration of a specific component can be inferred. Compact, accurate, and easy to use, it operates without a power source by relying purely on the optical principles of light refraction. Handheld optical refractometers are used across various industries, including food and beverage, automotive, chemical processing, and pharmaceuticals.
The RHW-80A Handheld Alcohol Refractometer is an instrument designed to detect the concentration of alcohol in solutions. With a simple product structure, convenient operation and portability, and a clear field of view, it is widely used in wineries and wine-related fields. It is a good helper for scientific research, food industry production, as well as the purchase and operation of liquors.


Product Features
Refractometer Prism

High-Range Alcohol Measurement (0–80%)

 Designed for testing spirits, liquors, and other high-alcohol content solutions with ±1% accuracy.



Copper Body

 Rugged and thermally stable housing for consistent performance in labs, distilleries, and production environments.



Crown Glass Prism

 Provides enhanced optical clarity and minimizes refractive error for precise readings.



Automatic Temperature Compensation

 Delivers accurate readings across temperature fluctuations without the need for manual adjustments.





Typical Applications

Distillery Quality Control

 Used to measure alcohol percentage in spirits like vodka, whiskey, rum, and gin during production or bottling.

Liquor Blending and Proofing

 Verify alcohol content when blending or diluting high-proof products to desired concentrations.

Fermentation Monitoring for High-ABV Products

 Track alcohol development in high-strength fermentations such as fortified wines or specialty brews.

Industrial Ethanol Testing

 Measure alcohol content in industrial-grade ethanol used for non-consumable applications.







Product Parameters
Model RHW-80A
Net Weight 0.27kg
Length 203mm
Diameter 29mm
Temperature Range

10℃ to 30℃ with ATC

20℃ without ATC

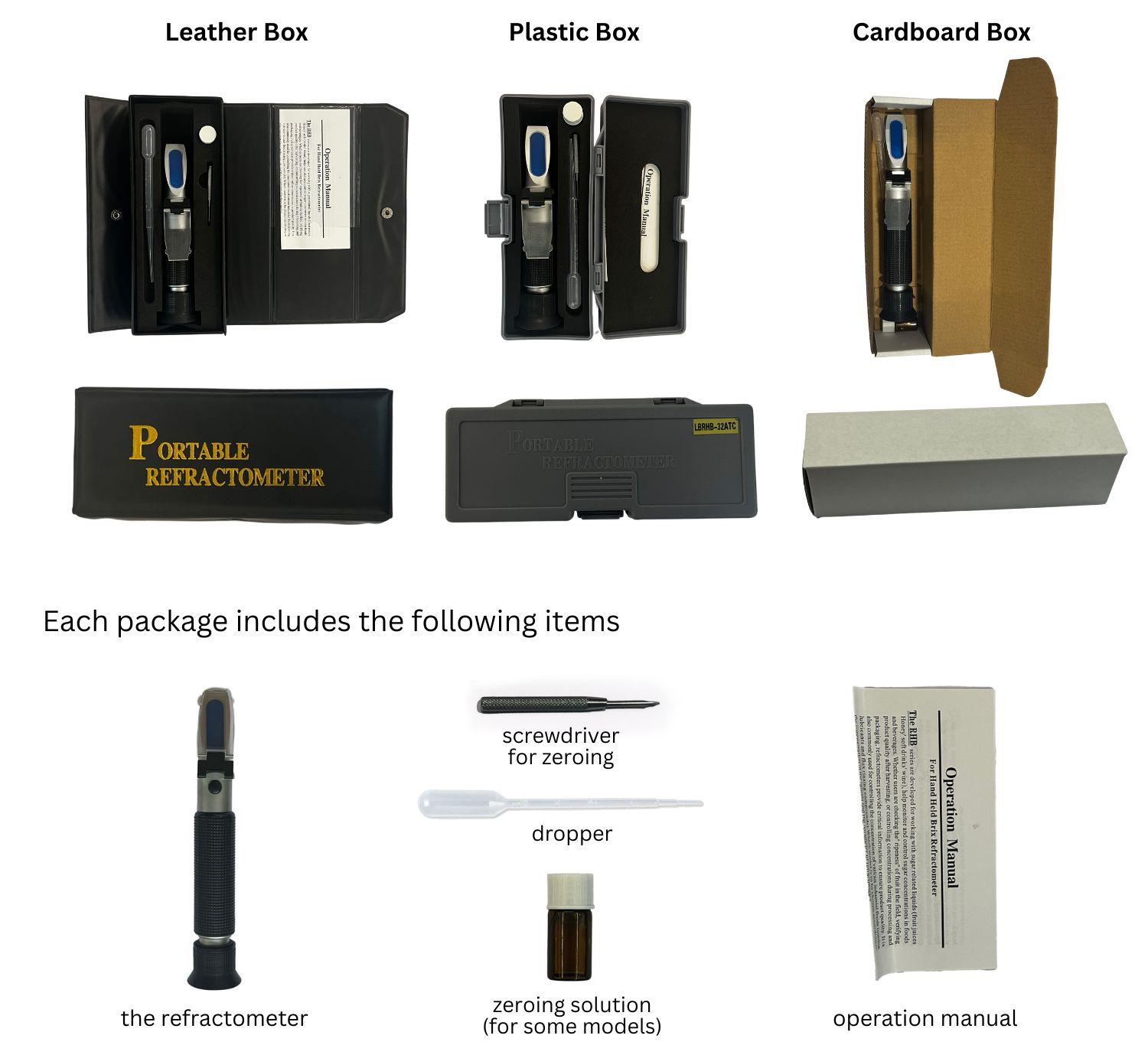

Packaging

We have three packaging options: leather, plastic, or cardboard. The cost per unit vary with different packaging.

If you have a preferred packaging option or require customized packaging with your own text or logo, please feel free to send us an inquiry.

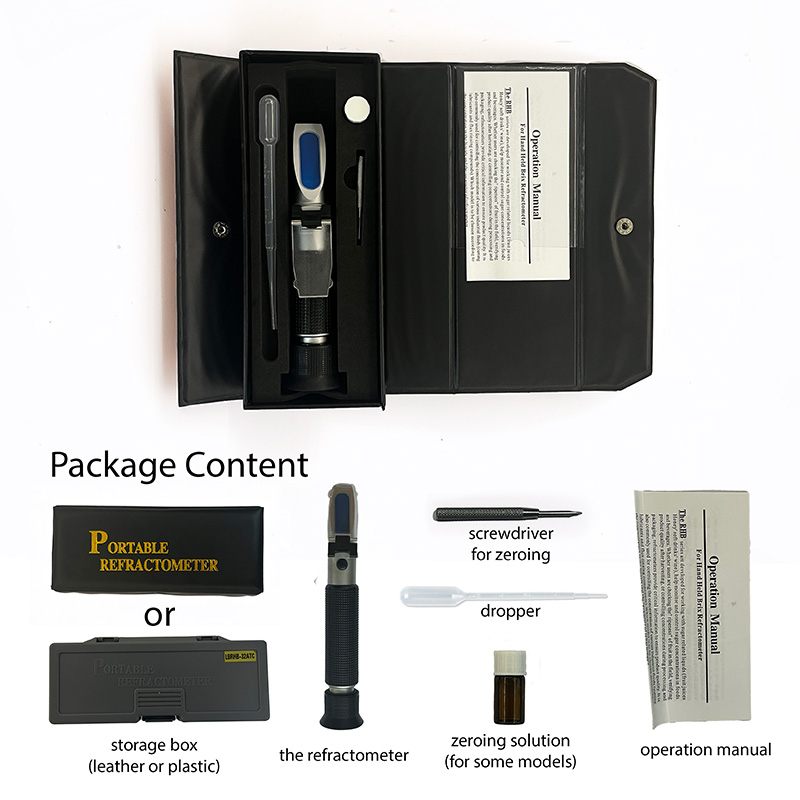

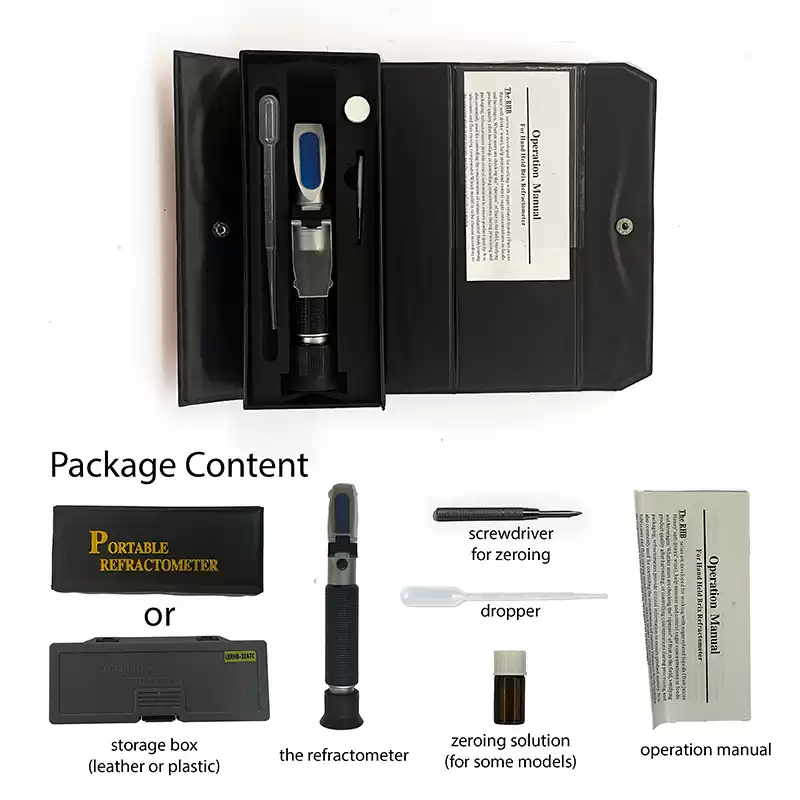

Handheld Refractometer Packaging Options and Content

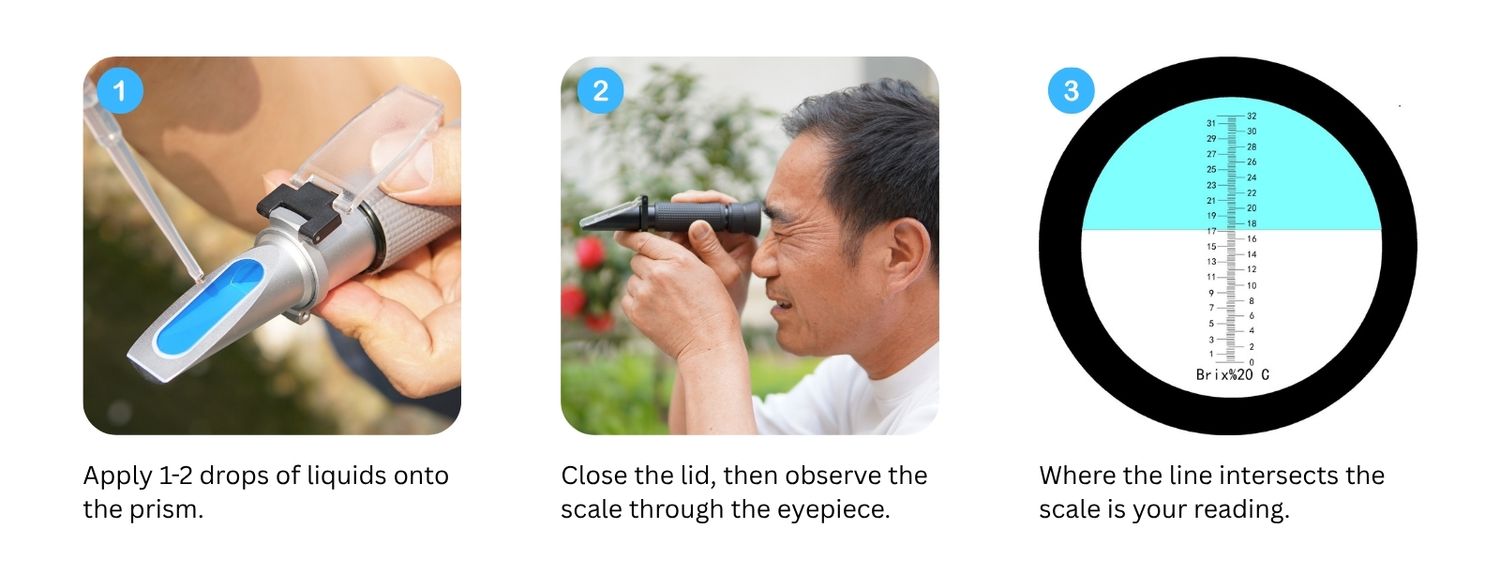

Instruction of Use
Handheld Refractometer Instruction of Use

After-Sale Services

At Lindian Technology, we take pride in providing only premium-quality refractometers. If any of our products is found to be defective upon arrival, we will replace the defective unit free of charge.

In addition, we offer a free replacement warranty for a period of three years, along with free lifetime maintenance and calibration services.
