High Efficacy Solar Flood Lights Outdoor

This LED Solar Flood Light (MS-ESFL1101A-15W) application is widely used for industrial and outdoor lighting site. LED solar flood light suitable stadium, sports field, plaza, bill board, parking lot ,outside walls, and landscape plant.

Usually we are using diferent solar flood light in industrial area for meeting different project requirements.



Efficacy 170lm/W LED Solar Flood Light 100W in Outdoor


This LED Solar Flood Light is diamond face reflection process designed, super high efficiency reflection light source, and effictively enhance the brightness of the illumination.

This flood light using Lithium iron phosphate battery, the discharge depth reaches 95%. Under the discharge ratio of less than 0.5C, service life is up to 15 years, with high safety factor.

Therefore, It is best solar outdoor flood light to serve our daily life.

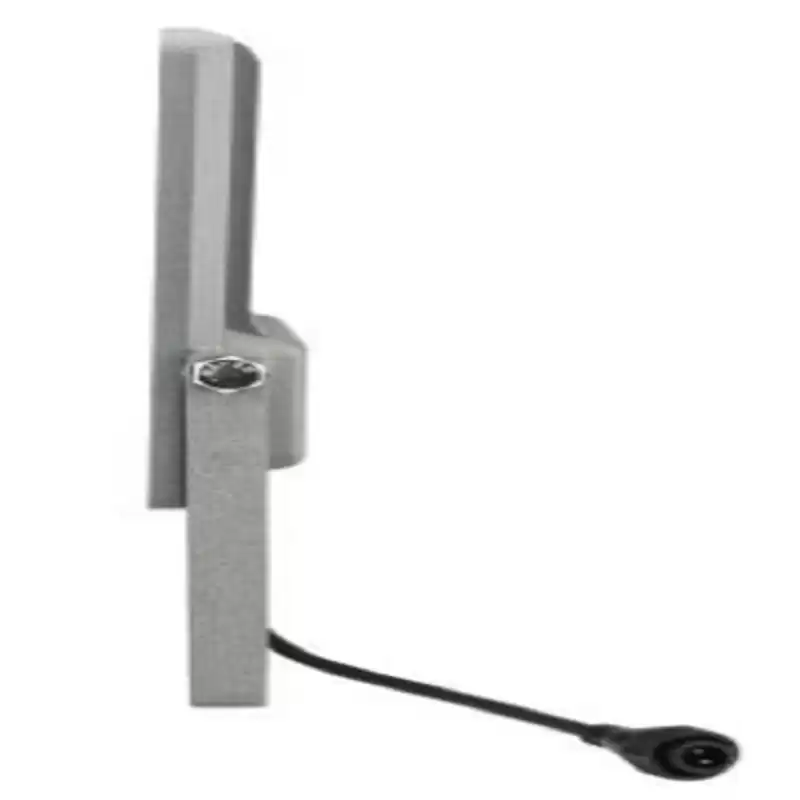

PRODUCT APPEARANCE

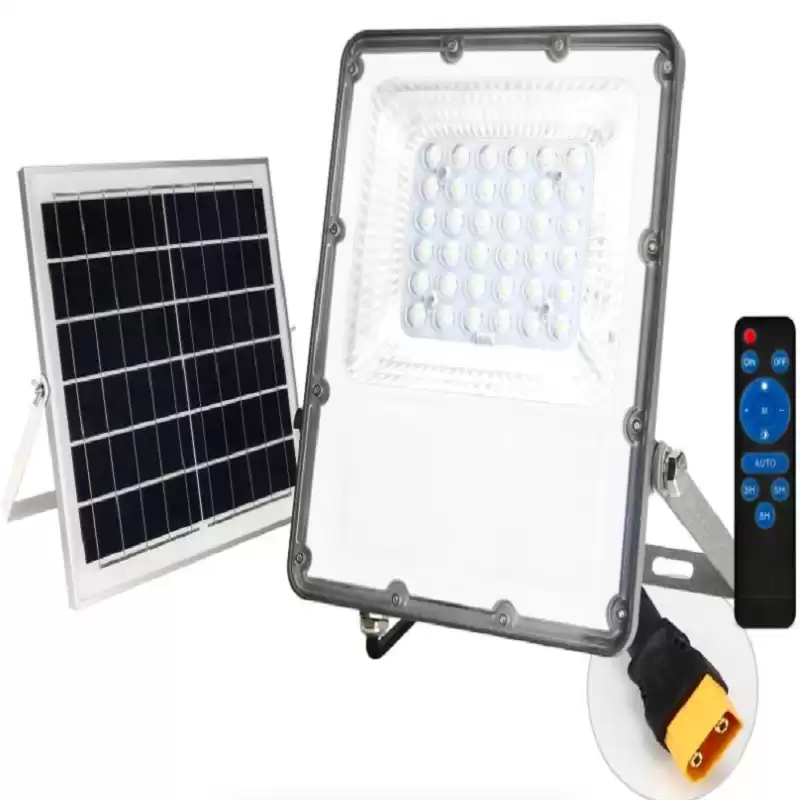

 remote controled LED solar flood light


PRODUCT SPECIFICATION



Production No.

MS-ESFL1101A-15W

MS-ESFL1102A-30W

MS-ESFL1103A-60W

MS-ESFL1104A-100W

MS-ESFL1105A-200W

Power

15W

30W

60W

100W

200W

Total lumens:

360lm(±8%)

720lm(±8%)

1400lm(±8%)

2160lm(±8%)

 4320lm(±8%)

Height of installation

3-5M

4-6M

4-6M

4-6M

4-6M

Solar Panel

6V 6W

6V 12W

6V 15W

6V 22W

6V 45W

QTY(PCS)

2 PCS*(32650)

2 PCS*(32650)

4 PCS*(32650)

6 PCS*(32650)

12 PCS*(32650)

Capacity

3.2V   /   5000mA

3.2V   /   10000mA

3.2V   /   20000mA

3.2V   /   30000mA

3.2V   /   20000mA


Solar flood light efficacy is 170LM/W

Solar flood light is Bridge lux chip

Color Temp: 3000k/4000k/6000k

Lamp Viewing Angle: 120°

CRI: Ra>80

Charging Time: 5-8 Hours

Light charge&discharge: About 1500 times

Working Temperature:  -20℃ - 50℃

Warranty: 5 years warranty for Lights , 3 years warranty for battery。

Housing Material: ADC#12 Aluminium

Cable:H05RN-F2G 1.0mm²-100cm with gold painting

Durability(Once full charge): lighting 12 hours per day; back up 7 rainy day.

The sunlight on the pannel that affects the charging is subject to the local weather,installation place and direction.


PACKAGE INFORMATION


Production No.

MS-ESFL1101A-15W

MS-ESFL1102A-30W

MS-ESFL1103A-60W

MS-ESFL1104A-100W

MS-ESFL1105A-200W

Product size:

119.5x144.5x41mm

172x201x41mm

211.5x251.5x41mm

241.5x281.5x41mm

293.5x349.5x41mm

Solar panel  size:

305x210.5x17mm

350x280x17mm

350x350x17mm

350x480x17mm

570x510x17mm



INSTALLATION

 COB flood solar light
